0.55kw 240v Single Phase Electric Motor 3/4 hp 6 pole 900rpm 1 Phase Motor Perm Cap New IE2 Efficiency

Electric Motor Specifications High Torque Perm Capacitor Fitted

Output: 0.55 KW (HP 0.75)
Poles: 6 = Full Load Speed 900RPM
Frame Size: 80
Voltage Input: 240V Single Phase
Capacitor: 1 Run
Construction: Aluminium
Frequency: 50 Hz
Full Load Amps 240v 4.07
Shaft Size: 19mm x 40mm Long

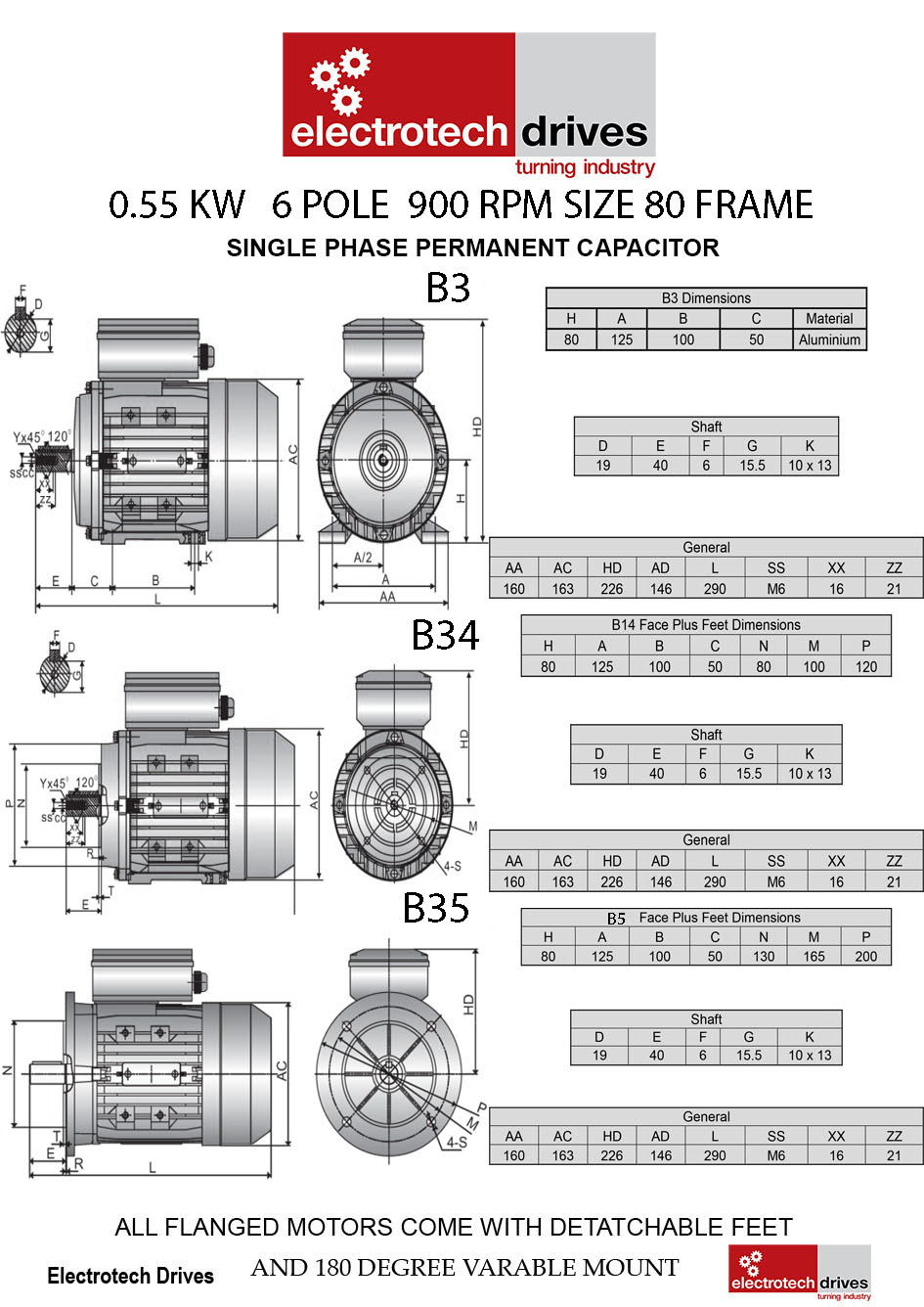

See attached for full dimensional information
Degree of Protection: IP55
Ambient Temperature: 40°C

High Quality SKF or NSK Bearings Fitted
Performance According to IEC 60034

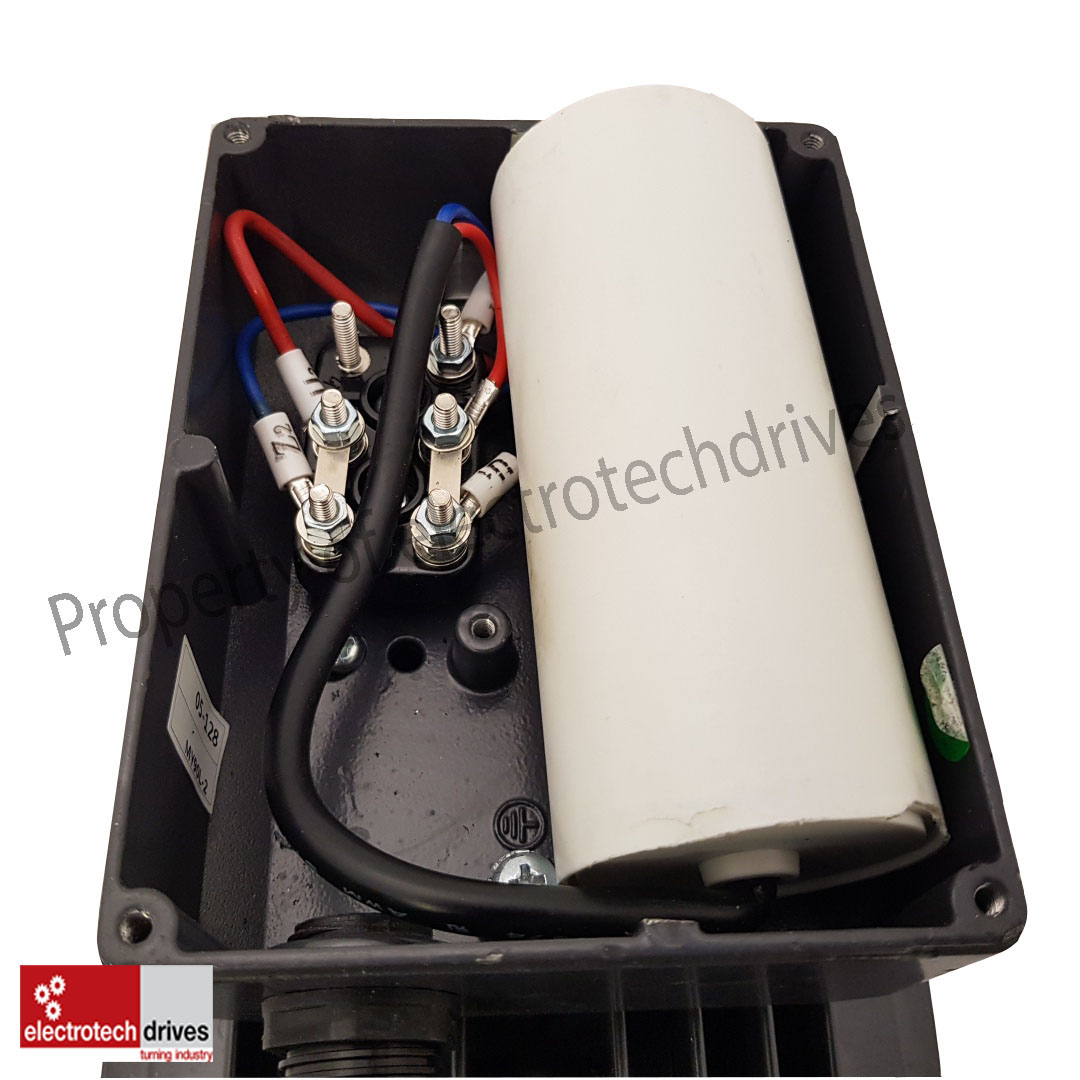

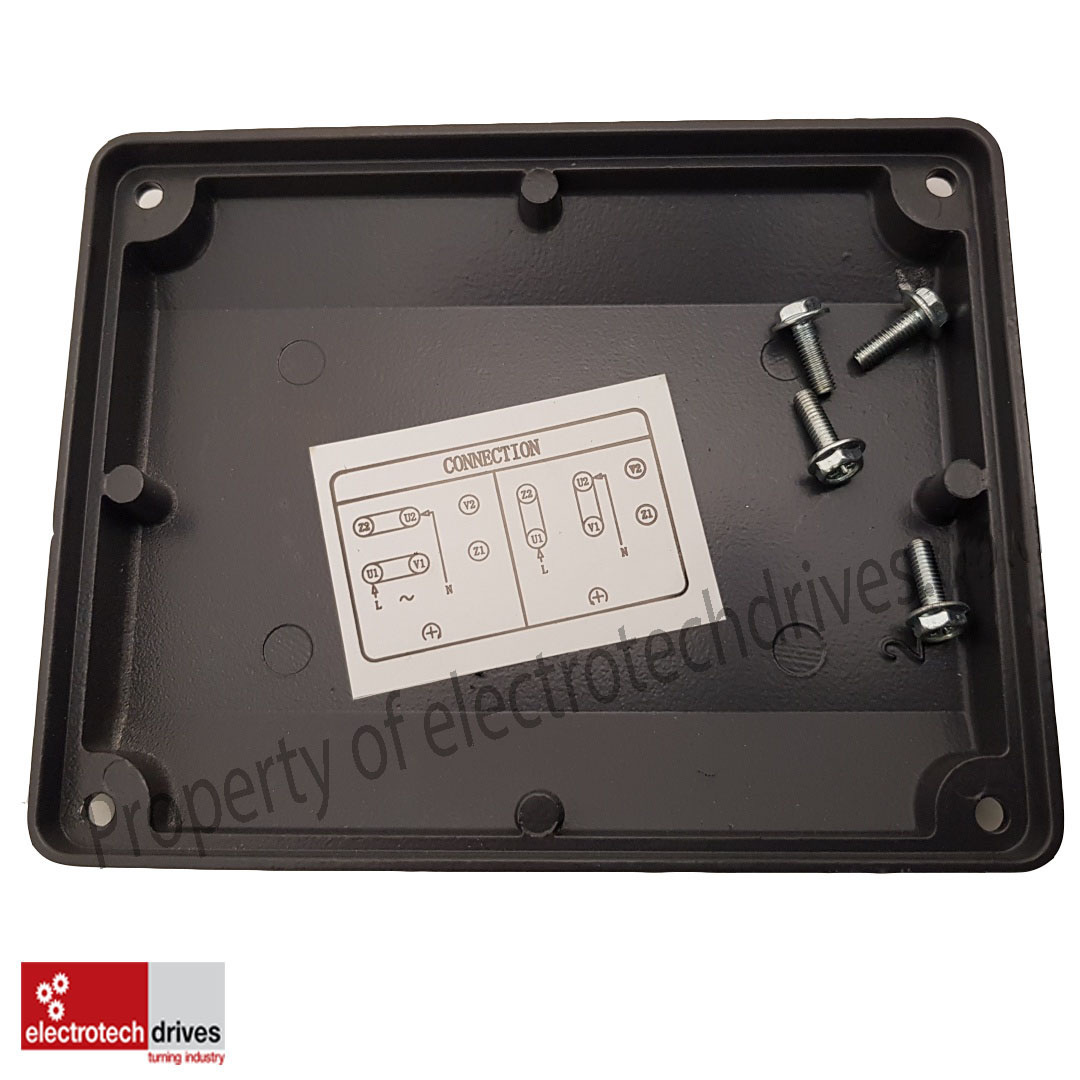

Rotation of shaft can easily be changed by switching 2 links in terminal box

Mounting Variations as below

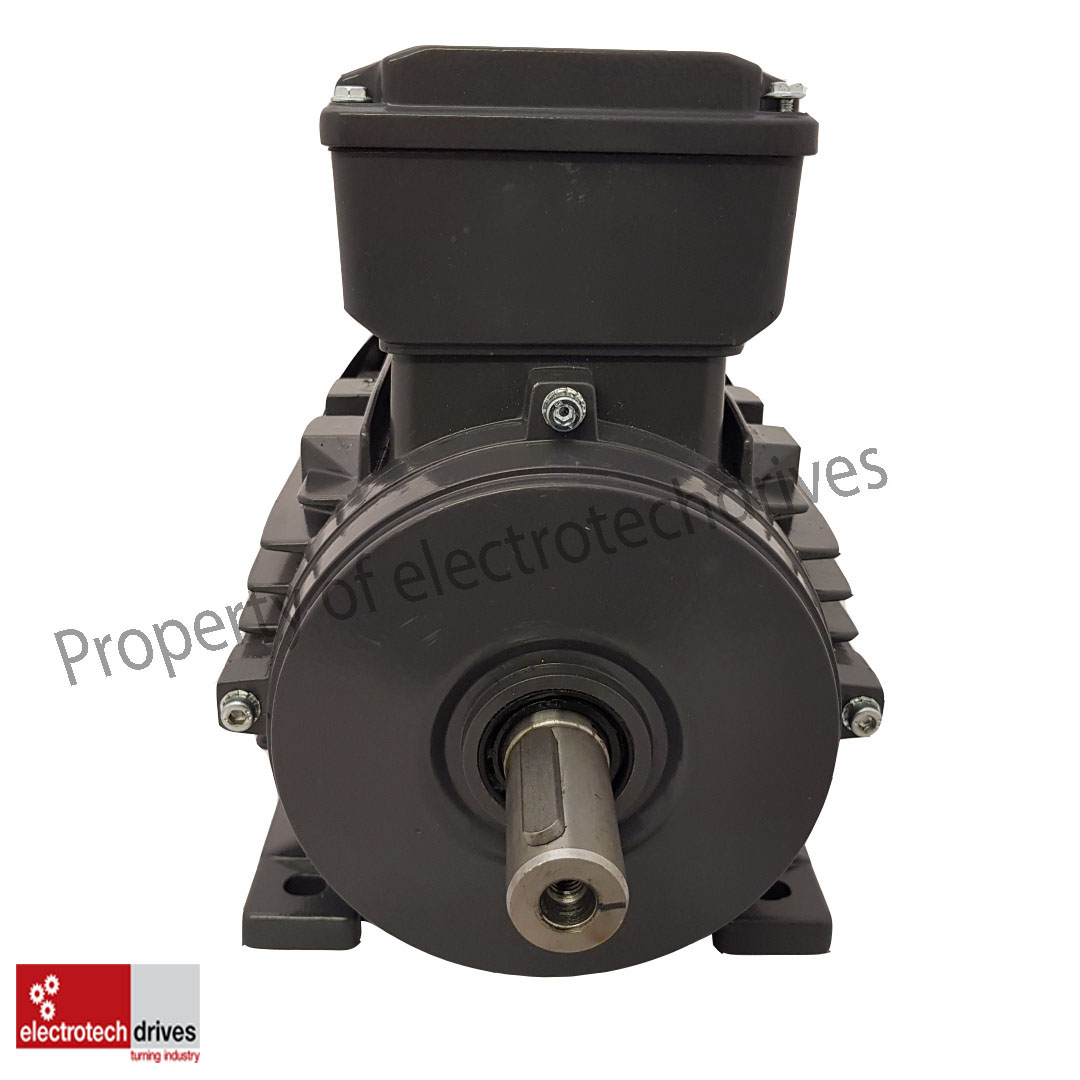

B3 Foot Mount Only.

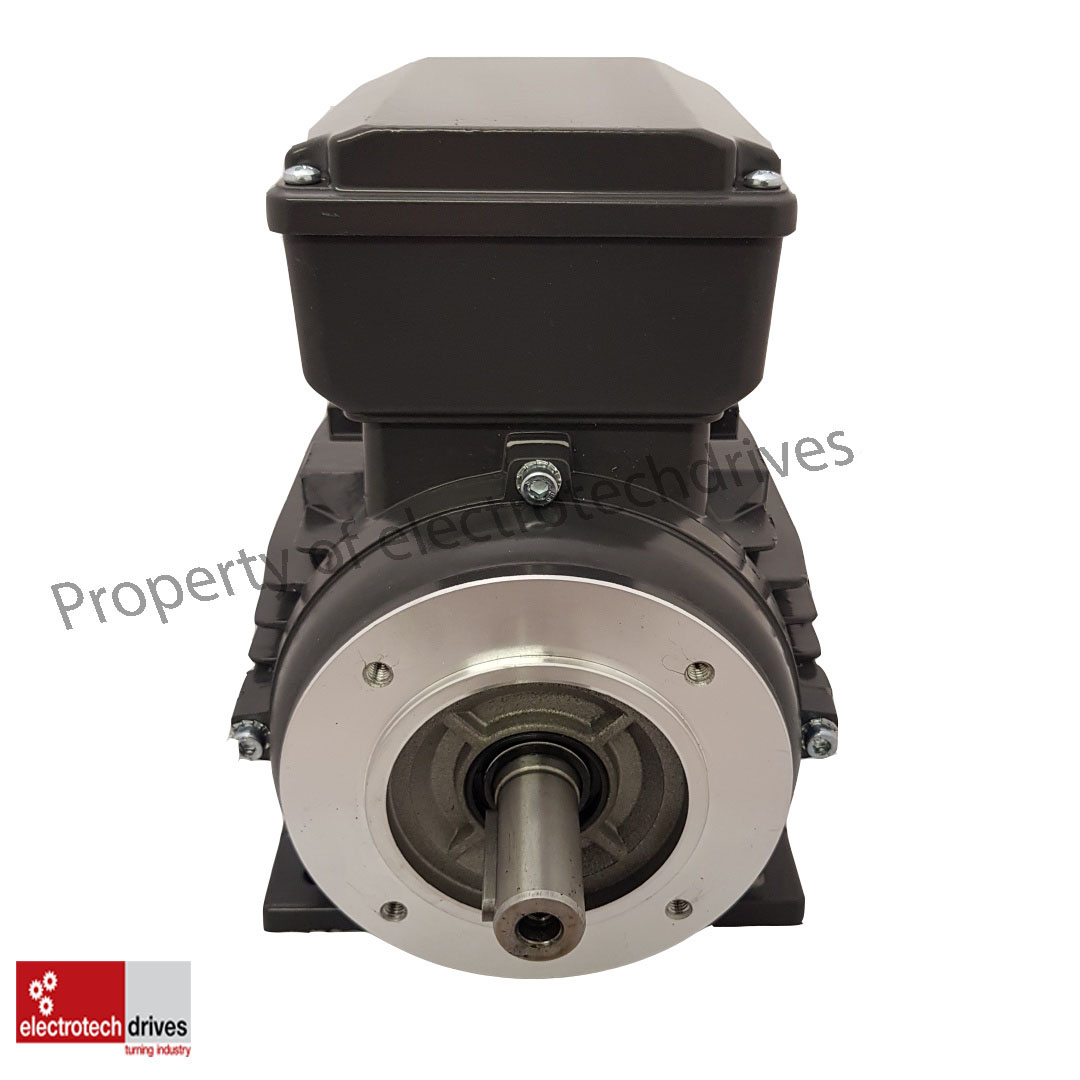

B35 Foot and Flanged Large Flange
B34 Foot and Flanged with Small Flange with Internal Threaded Holes
All Motors have detachable Multi mount feet so can be easily removed and transferred to enable the terminal box with capacitors fitted to be located on either side or on top of motor as standard if you are restricted for Height.

We also keep in stock Special flanges so example if you had a 2.2kw 1400rpm in a 100 frame with a b35 mount 250mm Diameter flange we can fit a 90b5 200mm flange to this motor if required.

Installation
All electric motors should be installed by a qualified electrician and suitable overload protection fitted to prevent the motor from overload
