The YT001 Intelligent Wireless Spectral Illuminance Meter is a new generation handheld light source color testing instrument that combines advanced miniature spectrometers, embedded operating systems, and microcomputer technology. The Bluetooth APP and mini programs make testing more convenient and simple, with one click sharing, and more suitable for parameter testing, analysis, and verification in on-site application scenarios. It can sample and measure the light source parameters anytime and anywhere, and can also be connected to PC software for efficient analysis and processing of test data, with extremely high measurement linearity and accuracy. Application standards: various lighting fixture standards such as GB40070-2021, JG245-2018, GB55016-2021, GB/T5702-2019, GB/T5702-2019, GB/T5699-2017, GBT5700-2008, GBT24824-2009, GB30734-2014, GBT9473-2017, etc.

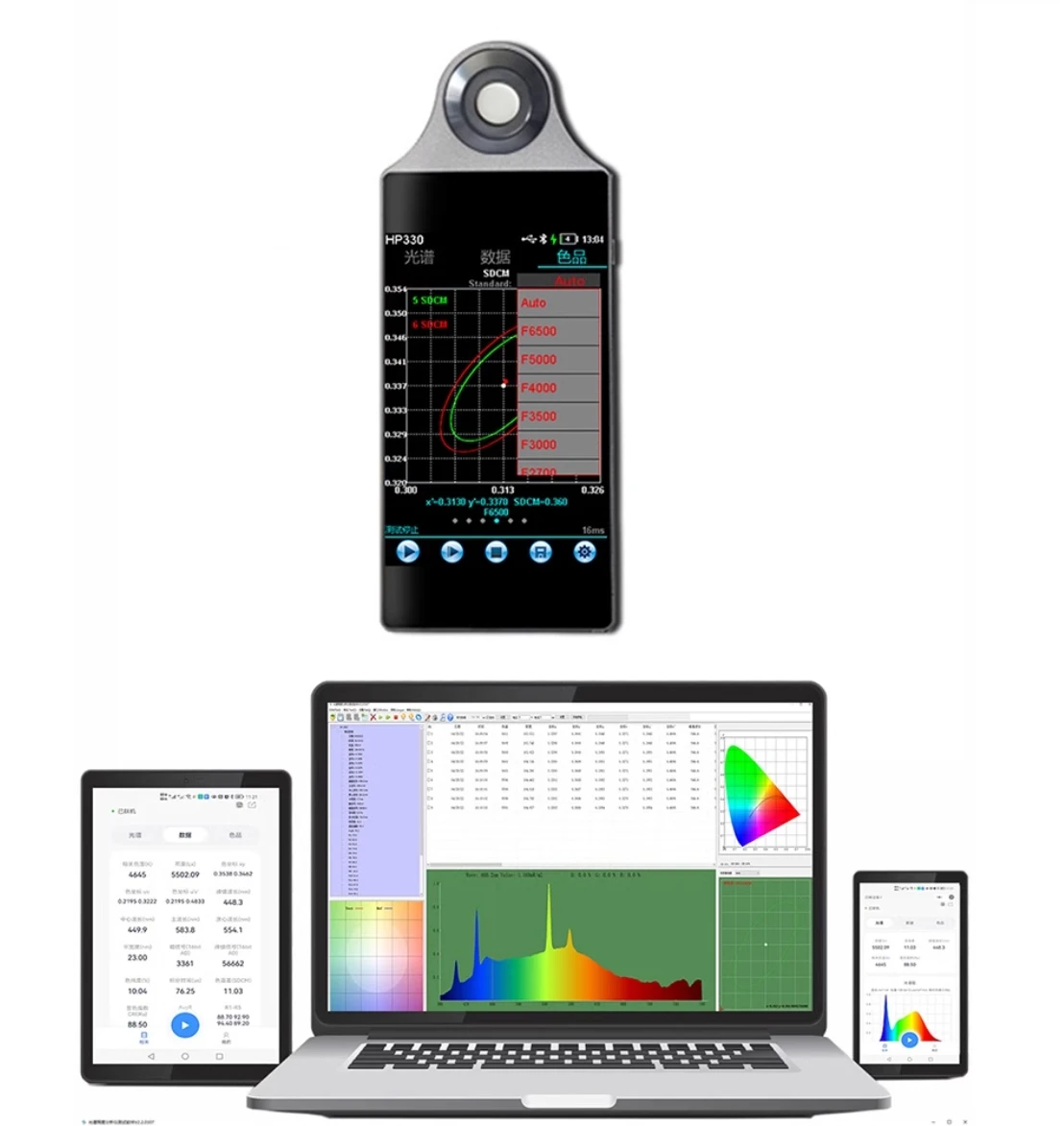

The 3.5-inch IPS touch screen allows for sampling and measurement of light source parameters anytime and anywhere, and can also be connected to a mobile phone for testing. It can also efficiently analyze and process the data saved during testing in PC software, with extremely high measurement accuracy. Widely used in home, health lighting, eye protection lamps, shopping malls, schools, factories, greenhouses, outdoor and other on-site lighting measurement fields. It can also be used in the research and development of light source products, production line quality monitoring, and other links.

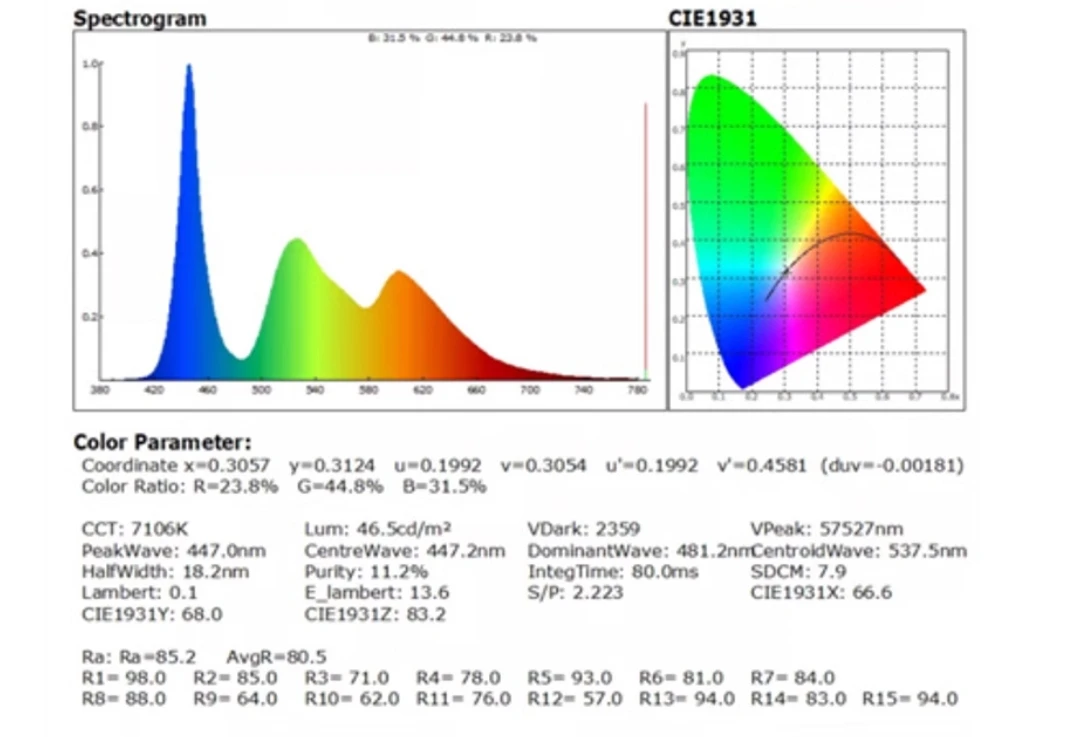

Main test parameters: color temperature (K), illuminance lx, color tolerance SDCM, color rendering index Ra, color coordinates, wavelength nm, color purity (Purity), spectral power distribution, color quality index (COS), light to dark visual ratio (S/P), and transmittance.

Features:

With Bluetooth, can be connectted to smart phones for easier operation (only support Andorid system).

Convenient Field Testing: Its 3.5-inch IPS touch screen allows for easy on-site testing, ensuring consistency in parameter analysis and verification. Sampling and measurement of light source parameters can be done anytime, anywhere, with efficient analysis and processing of data.

Main Test Parameters: Measure color temperature (K), illuminance (lx), color tolerance (SDCM), Color index (Ra), color coordinate, wavelength (nm), color purity, light and dark visual ratio (S/P), and transmittance.

Applications: Ideal for on-site testing of commercial, health, home, and building lighting. Also suitable for laboratory research, product development, quality control, and online monitoring of light source products.

Product Advantages: Features USB communication and multi-platform operation via PC software control or IPS touch screen.

Core Devices: Equipped with a TCD1254 CCD detector, enhanced coating grating, 16-bit high-speed AD sampling, and a high-precision optical path.

Testing Advantages: Offers comparative testing, transmittance testing, timing testing, wavelength adjustment, and compensation for test results.

Optical Path Characteristics: Includes multiple optical inputs, wavelength range of 380-780nm, spectral resolution of ±0.2nm, and photometric linearity of ±0.3%.

Power Requirements: Comes with a charging adapter, built-in lithium battery, and Type-C data cable for convenient usage.

Environment: Suitable for storage in environments with humidity <70% RH and temperature <50°C. Usage environment recommended between -10°C to +40°C, with humidity of 0-70% RH.
