Y172 Fiber Fineness Analyzer Fiber Microtome Fiber Slice Cutter 3 x 0.8mm
Description:

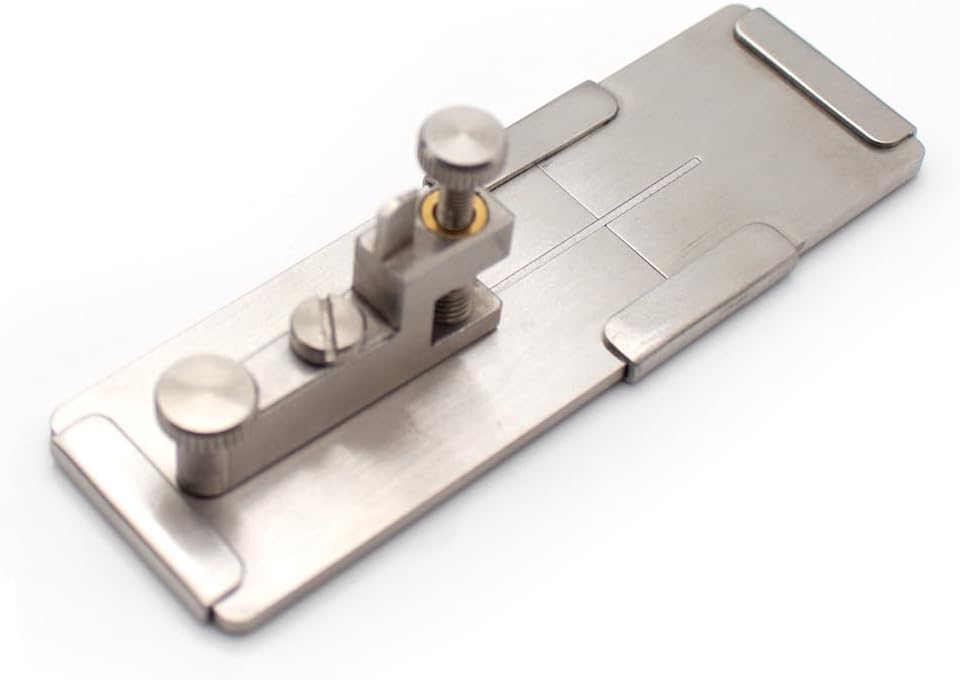

1. This Fiber Slicer consists of two 1.6mm thick stainless steel bottom plates to form the left and right bottom plates of the slicer.
2. On the right bottom plate, there is a 0.8mm wide insertion groove, which cooperates with the plug on the left bottom plate to push the sample tightly.
3. The symmetry frame is centered on the gusset strut, and can be rotated while lifting the arranging groove when the aligning knife is disengaged.
4. The knives are evenly placed on the top of the sample, and the adjusting screw is adjusted to control the sample to extend out of the bottom plate.
5. Thickness of Using a blade to cut a sample sheet under the bottom plate
Application:
Applicable to the textile, fiber industry department, scientific research unit to cut the fiber or yarn into a very small cross-section sheet, observe its morphology by microscope
Parameter:
Slice area: 3 × 0.8mm
The minimum slice thickness: 20μm
Size: 82mm × 27mm × 25mm
Weight: 0.5Kg
Package Including:
1 x Set of Y172 Fiber Slicer
