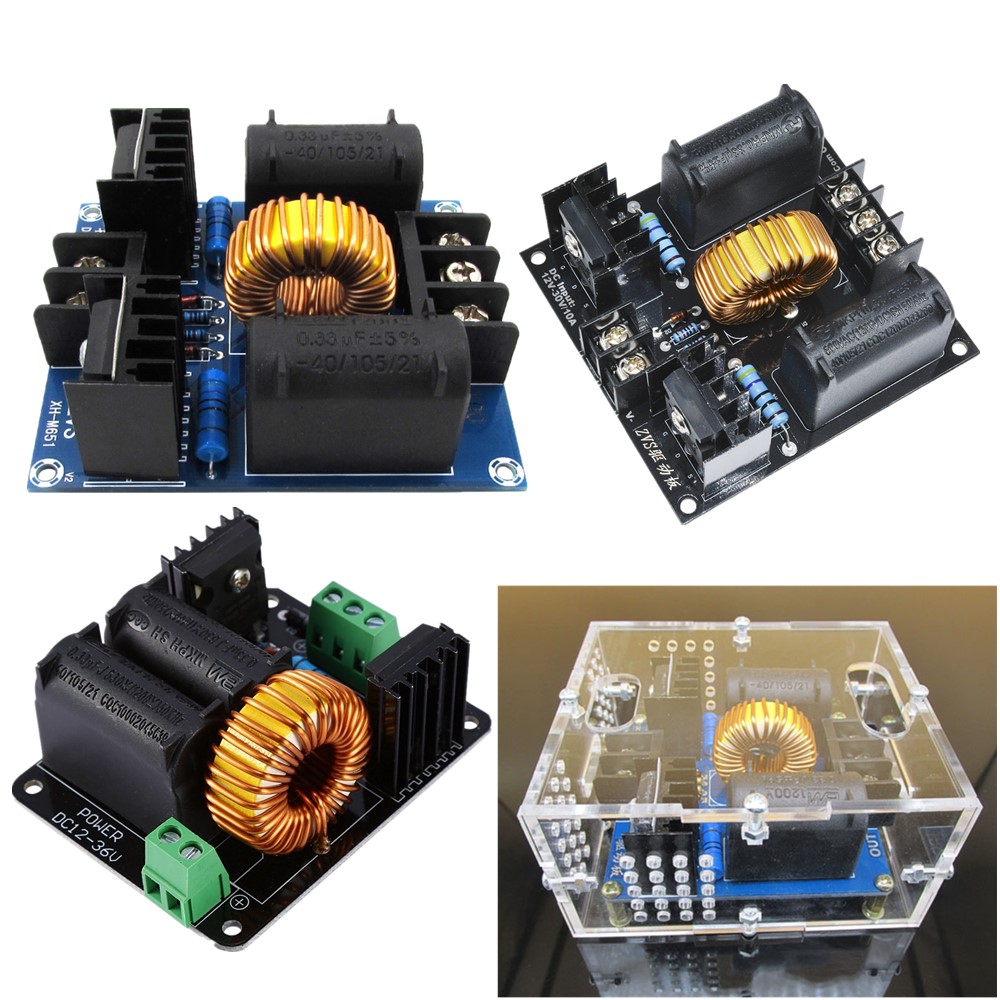

ZVS Tesla Flyback Driver Board 10A/20A 200W 1000W 12-30V 12-36V Acrylic Case Kit
10A 200W ZVS Tesla

Features:
1. Working current: DC 12V-30V (less than 12V does not work);
2. Power requirements: 12V≥5A/15V≥≥10A (more current is more power);
3. Operating frequency: 30KHz-50Kz adaptive;
4. Arc length: 1-5 cm;
5 output voltage / power; input 12V/5A, the output is about 10000V 60W; input 24V / 10A, the output is about 20000V 200W;
6. Maximum power: 180-360W;
7. Board size: 75*70.6mm;
Package Included: 1 x ZVS Tesla Coil Driver Board

10A 1000W ZVS Tesla

Features:
1. size: 74 mm * 77 mm
2. input voltage: 12V-30V recommended 24V
3. Power supply requirements: less than 15V≧ 5A; 15V or more≧15A
4. Operating frequency: 30KHZ - 60KHZ
5. Secondary parameters: 5T+ 5T
6. Use military 1.6mm double board, four fixed 3 mm hole.
7. Mixer tube to add new field with a 30mm large heat sink, greatly improve the stability and life!
8. Low density component placement, better heat dissipation, Especially the capacitance, the majority of ZVS plate will be 2 capacitance placed side by side!
9. Extra power line tin, current-carrying capacity more strong!
10. Metal film resistor power, high precision, small Temperature drift!
Package Include: 1 x ZVS Tesla Flyback Driver Board Zero Voltage Switching F/ FBT Inductive Heater

20A 1000W ZVS Tesla

Description:
1.This is Assembled Board
2. Size: 74mm x 77.8mm
3. Input Voltage: DC 12V-30V
4. Power Requirement: Less than 12V≥5A, Above 15V≥15A
5. Operating Frequency: 30KHz-50KHz adaptive
6. Secondary Parameters: 5T + 5T
Input Voltage/Current Output Voltage Max Power
12V/5A About 10000V 60W
24V/10A About 20000V 200W
Packing List: 1 x Assembled ZVS Tesla Coil Driver Board

12V-36V ZVS Tesla

Features:
12-36VDC input (recommend 24V), output high voltage direct current, voltage of the input voltage of about 1000 times. The 12V input can reach 50-100W power, 24 V input max can reach more than 200W, so request power supply current best in more than 10A.
A flyback drive circuit, which is used to drive the ignition coil, as did the Zero Voltage Switching, masses of fans called them "ZVS circuit". Because of its big power, low heat, simple and reliable by fans are widely used in the drive spark gap tesla coil (SGTC) and Jacob, ladders, Marx generator, etc.
Package Include:1 x 12V-36V ZVS Tesla coil flyback driver/Marx generator/Jacob's ladder Heater

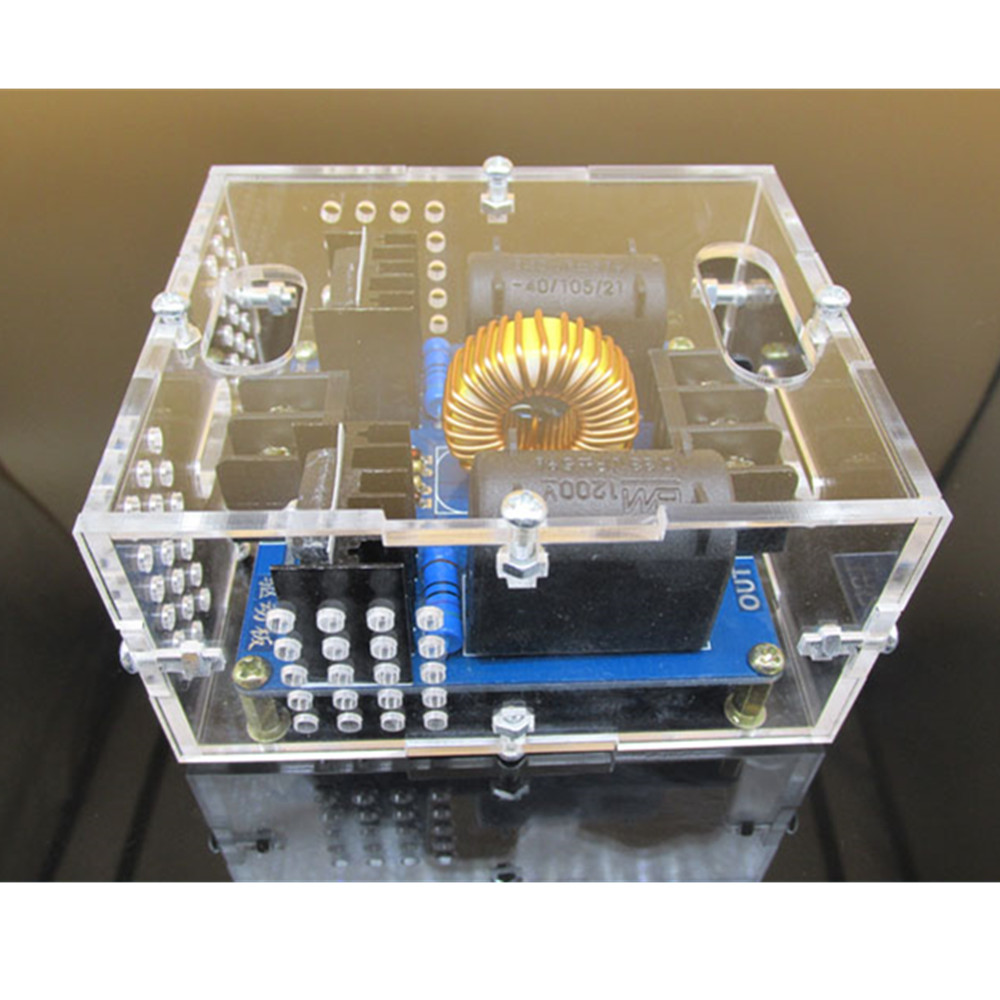

ZVS Acrylic Case

Features:
Shell for the transparent acrylic, shipping shell are spare parts, please pro note, because the assembled shell hollow, bad delivery, easy to crush.
Delivery of both sides of the physical have a layer of protective layer, after receipt of the goods before the installation of the protective layer to tear and then assembled.
Shipping list:
(1) transparent acrylic shell 1 set
(2) set of screws:
30MM double through copper pillars 4
M3 * 10 screws 9
