Product Description

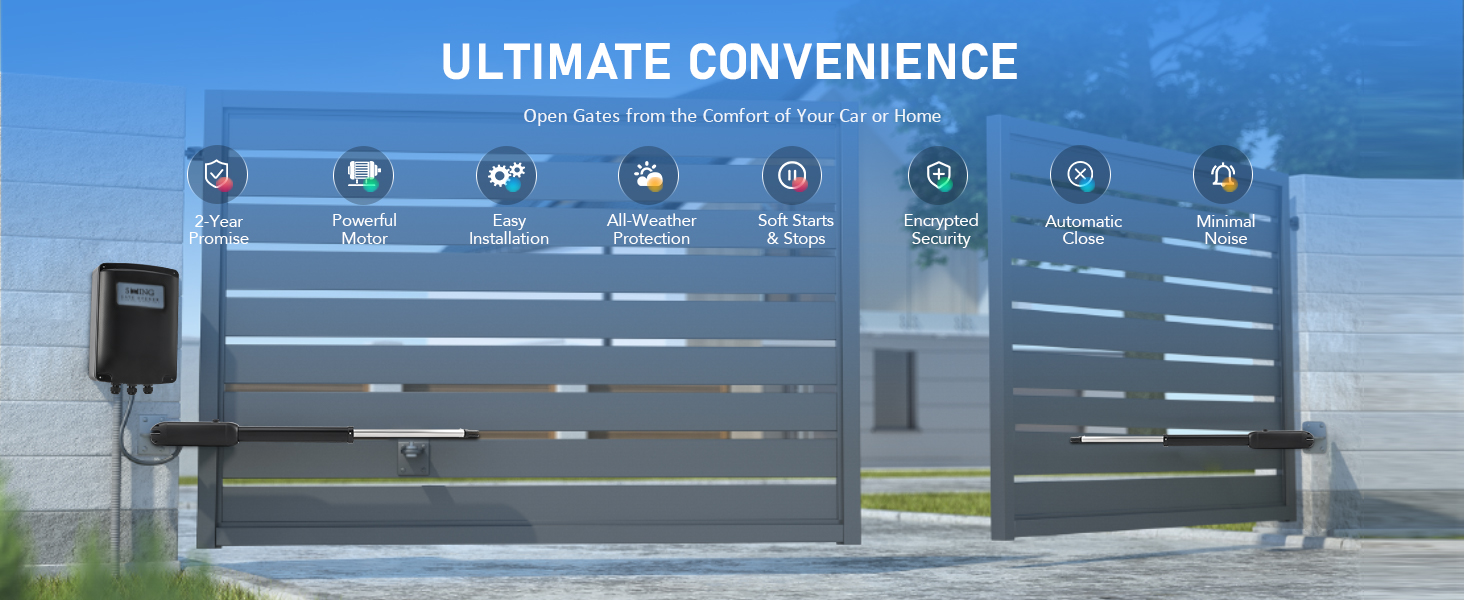

If you're looking for a more advanced security system than traditional security alarms and CCTVs, it's time to consider CO-Z's automatic swing gate opener as a crucial addition to your security measures.
Working with gates up to 1100 pounds and 20 feet in length, this electric gate opener is a must have for your property. The electric swing gate opener operates smoothly and quietly with its energy efficient 62W all-copper motors, opening and closing your swing gates at 3.9 feet per minute. Once open, the gates will automatically close behind you after a custom set time of 15, 30, 60 or 90 seconds. The remote controls are effective up to 98 feet while the manual release key serves as a reliable backup.
Features

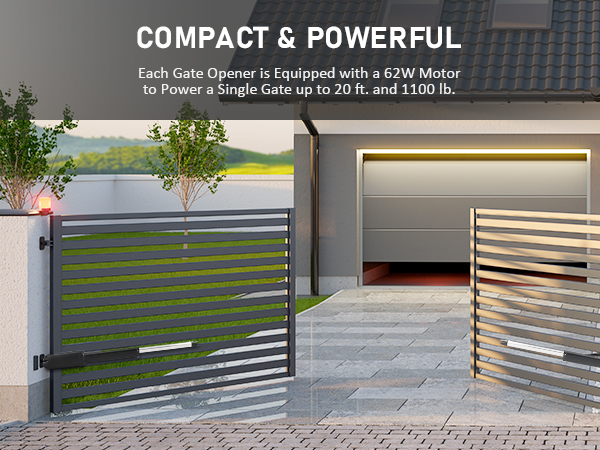

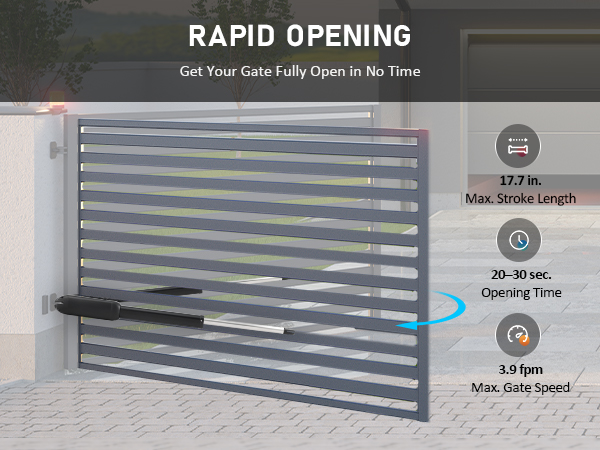

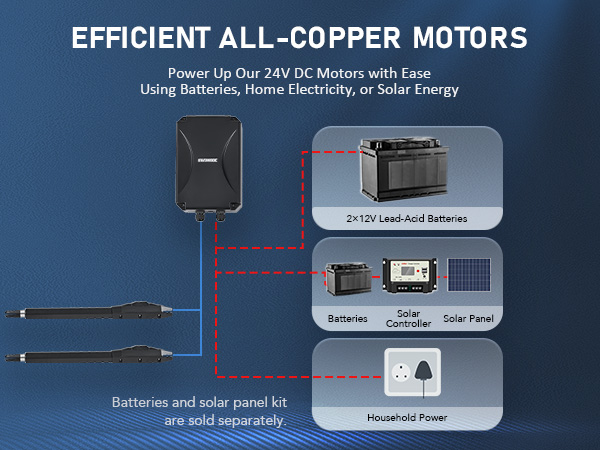

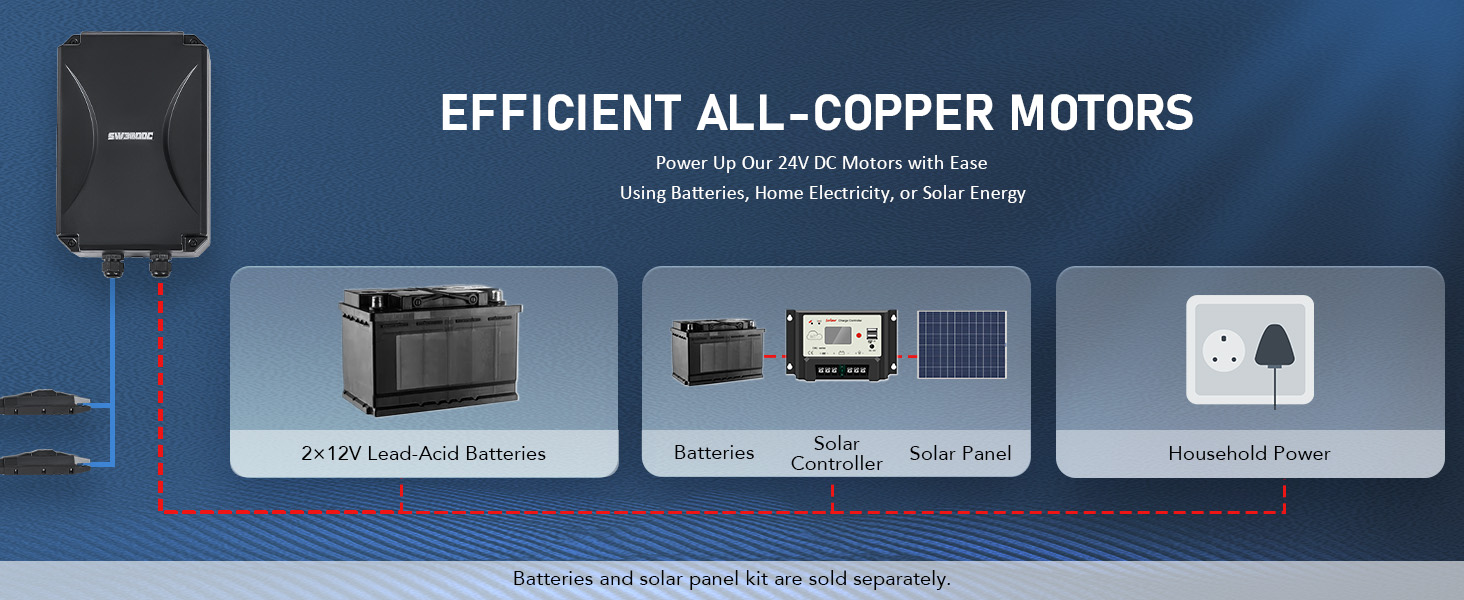

Open & Close Gates with Ease: With energy-efficient 62W motors, this automatic dual swing gate opener from CO-Z smoothly opens double gates up to 1100 lb. and 20 ft. at 3.9 ft. per minute
Customizable Closing Times: Take complete control over your gates with our electric double gate opener, allowing you to set custom closing times of 15, 30, 60, or 90 seconds once the gates are open
Built to Withstand Any Weather: Our gate opening system is engineered to resist rain, dust, and dirt with its solid construction and IP44 casing, and can withstand extreme weather conditions from -4°F to 158°

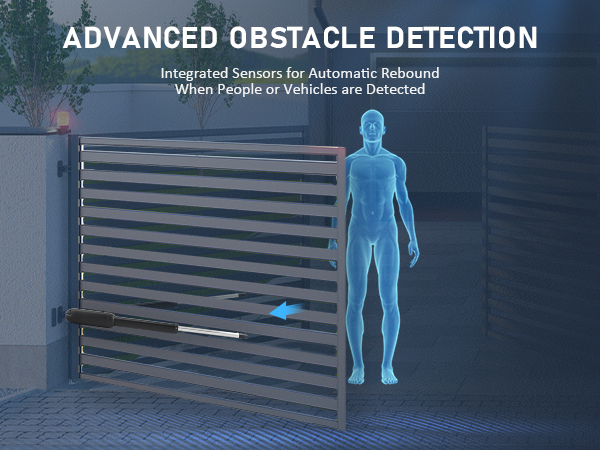

Safe and Reliable Gate Operation: Our electric gate opener ensures maximum safety by stopping and reversing your gates' directions if people or vehicles are detected
Designed for Lasting Service: Featuring powerful all-copper motors, aluminum actuators, and a durable ABS casing, our dual gate opener provides years of dependable service without jamming
All-Weather Durability
From 4° below to 158° above, CO-Z gate opener will keep opening and closing just the way you need, its IP44 casing preventing damage from rain, dirt.

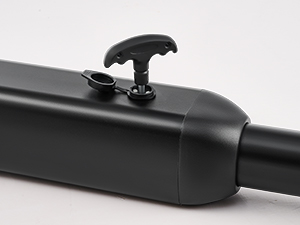

Added Convenience
Our gate opener comes with a convenient manual release key that provides you easy access to your gate with just a simple turn.

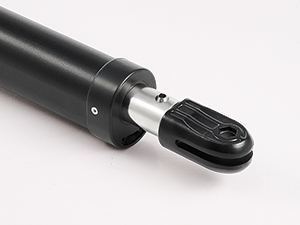

Aluminum Actuator
The actuator is made of premium aluminum alloy to stay lightweight and corrosion resistant for long-lasting use.

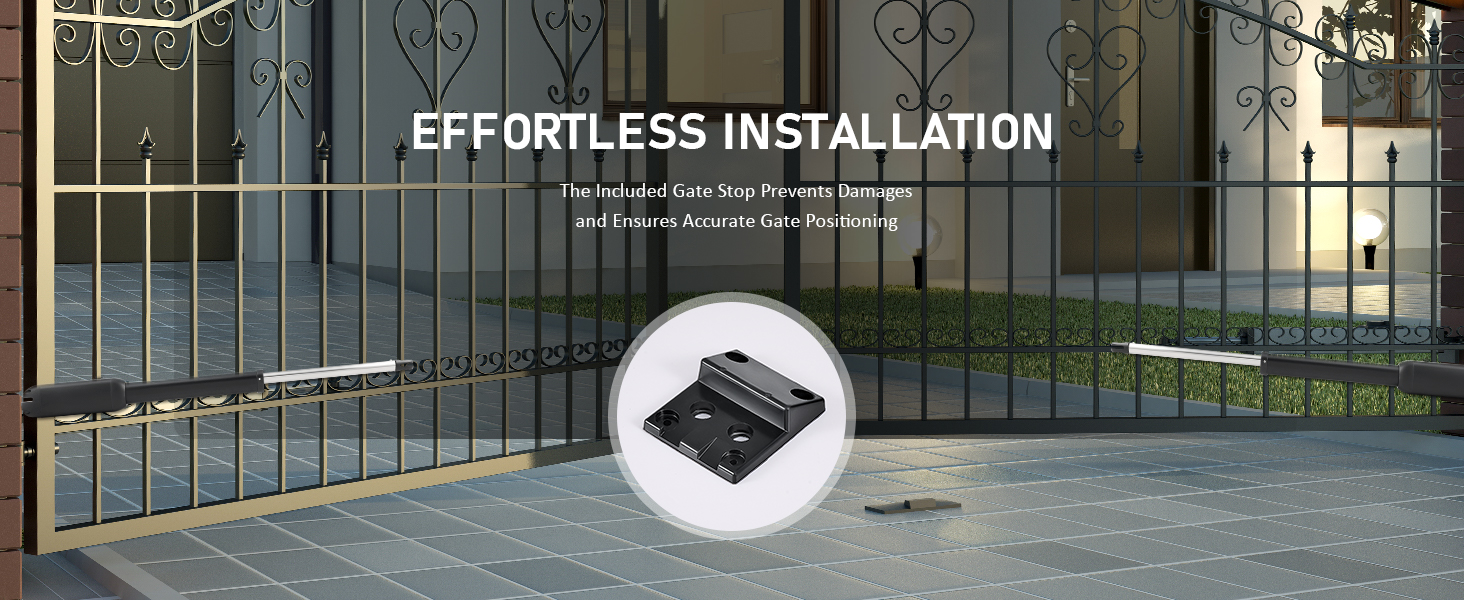

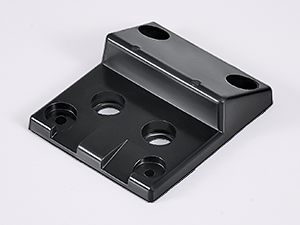

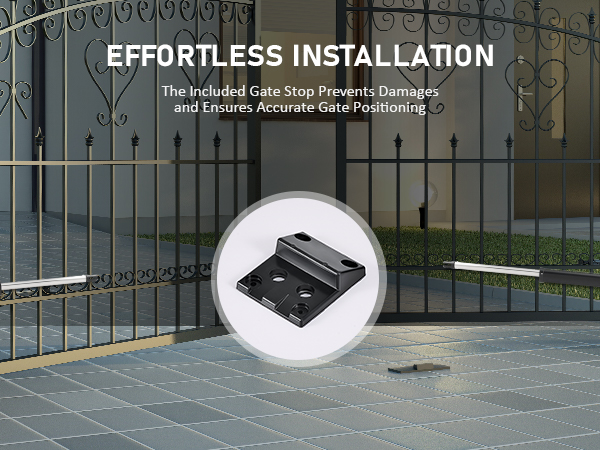

Convenient Limit Stop
Our included gate stop ensures proper gate positioning and prevents accidental damages for safe operation.
Specifications
Material
Steel, Copper, Plastic, Aluminum
Color
Black
Rated Power
0.08 hp (62W)
Max. Torque
658 lb.-ft. (893 N·m)
Max. Capacity
1100 lb. (500 kg)

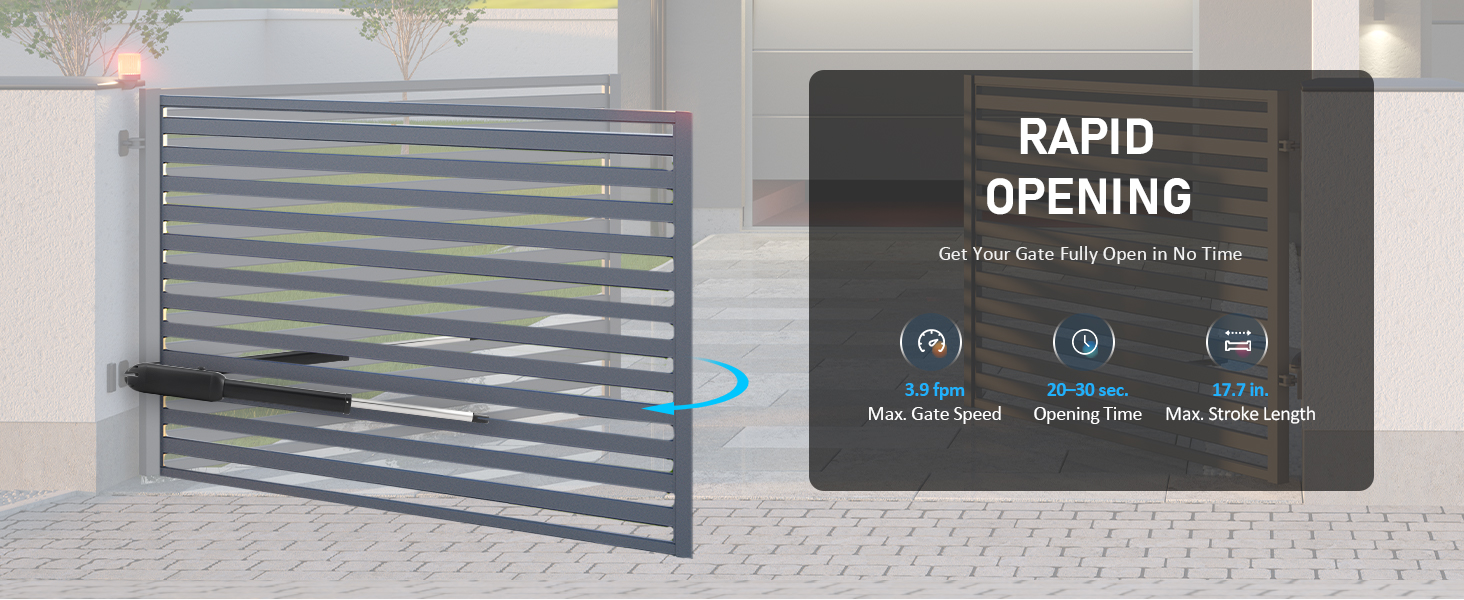

Max. Piston Speed
3.9 fpm (1.2 m/min.)
Max. Stroke Length
17.7 in. (45 cm)
Max. Noise
58 dB
Operating Temp. Range
-4 to 158°F (-20 to 70°C)
Weatherproof Rating
IP44
Max. Remotes
32
Remote Range
98 ft. (30 m)
Remote Frequency
433.92 MHz
Power Cord Length
4 ft. 11 in. (1.5 m)
Dimensions
39.4 x 4.2 x 4.2 in.
Package List
2x Arm Actuators
1x Manual Release Key
2x Remote Controls
1x Control Box with Protective Cover
4x Post Base Brackets
2x Post Pivot Brackets
2x Gate End Brackets
4x Gate Tube Brackets & M8 Nuts
8x M10x200 Bolts, Nuts, & Washers
8x M8x70 Bolts, Nuts, & Washers
4x M8x25 Bolts, Nuts, & Washers
2x Long Mounting Bolts, Nuts, & Washers
2x Short Mounting Bolts, Nuts, & Washers
4x 6.3x25 Self-Drilling Screws
1x Limit Stop
2x Warning Signs

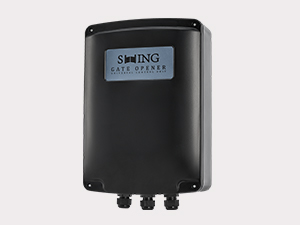

1x Instruction Manual
