| Title： |

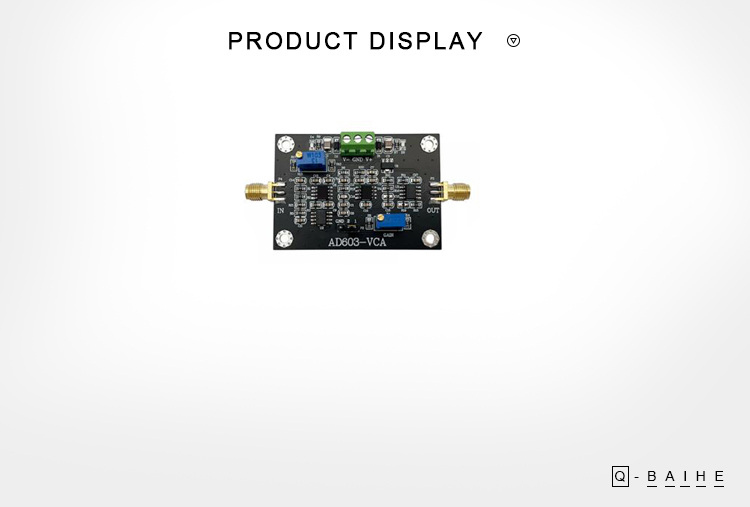

AD603 Voltage Controlled Gain Amplifier Module VCA High Bandwidth -20~60dB
Gain Manual or External DA Program Control
|
||
| Specifications: |
Module model: AD603
Module type: Voltage controlled gain amplifier module
Input voltage range: ± 3V
Output voltage range: ± 4V
Module power supply voltage: ± 5V-6V (recommended 5.3V power supply)
Module working current: ± 35mA (Typ)
Module bandwidth: DC-60MHz (-3dB) Typ
Module gain adjustment range: -20~60dB
Control voltage range: 0.4V-1.4V
Input bias adjustment range: ± 0.1V
Input impedance: 50 Ω
Output impedance: 50 Ω
Module protection: power supply anti reverse connection protection
Module specification: 60x42mm
Module heating: no heat sink
Module heating factor: Excessive input voltage or module damage
Module operating temperature: -25 ℃ -+75 ℃ (industrial grade)
Module features: Both gain and bias can be adjusted
Application scope: signal amplifi
|
||
| Packaging: | 1x voltage controlled gain amplifier module | ||
