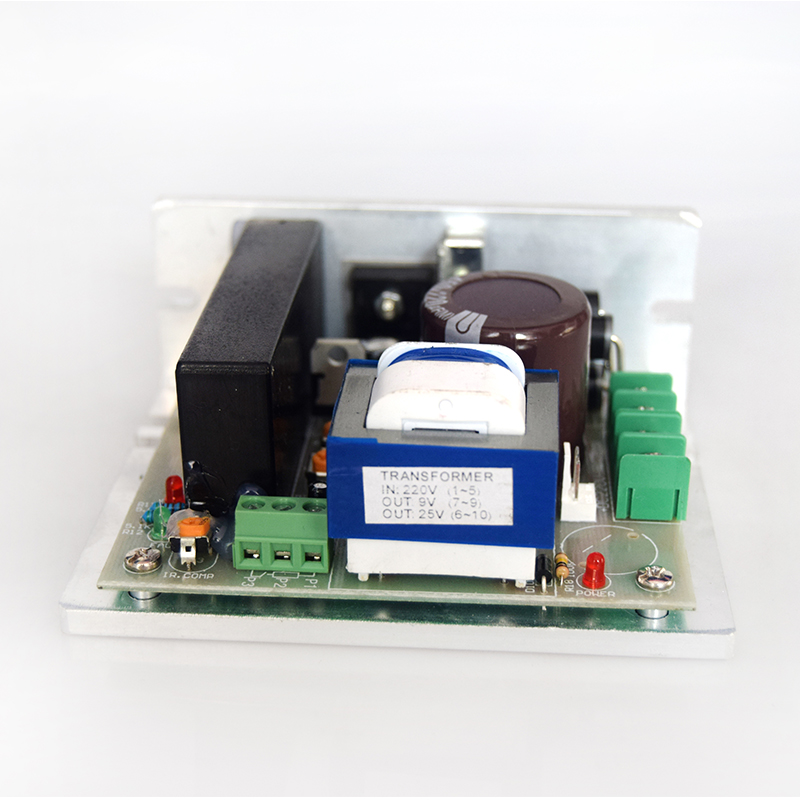

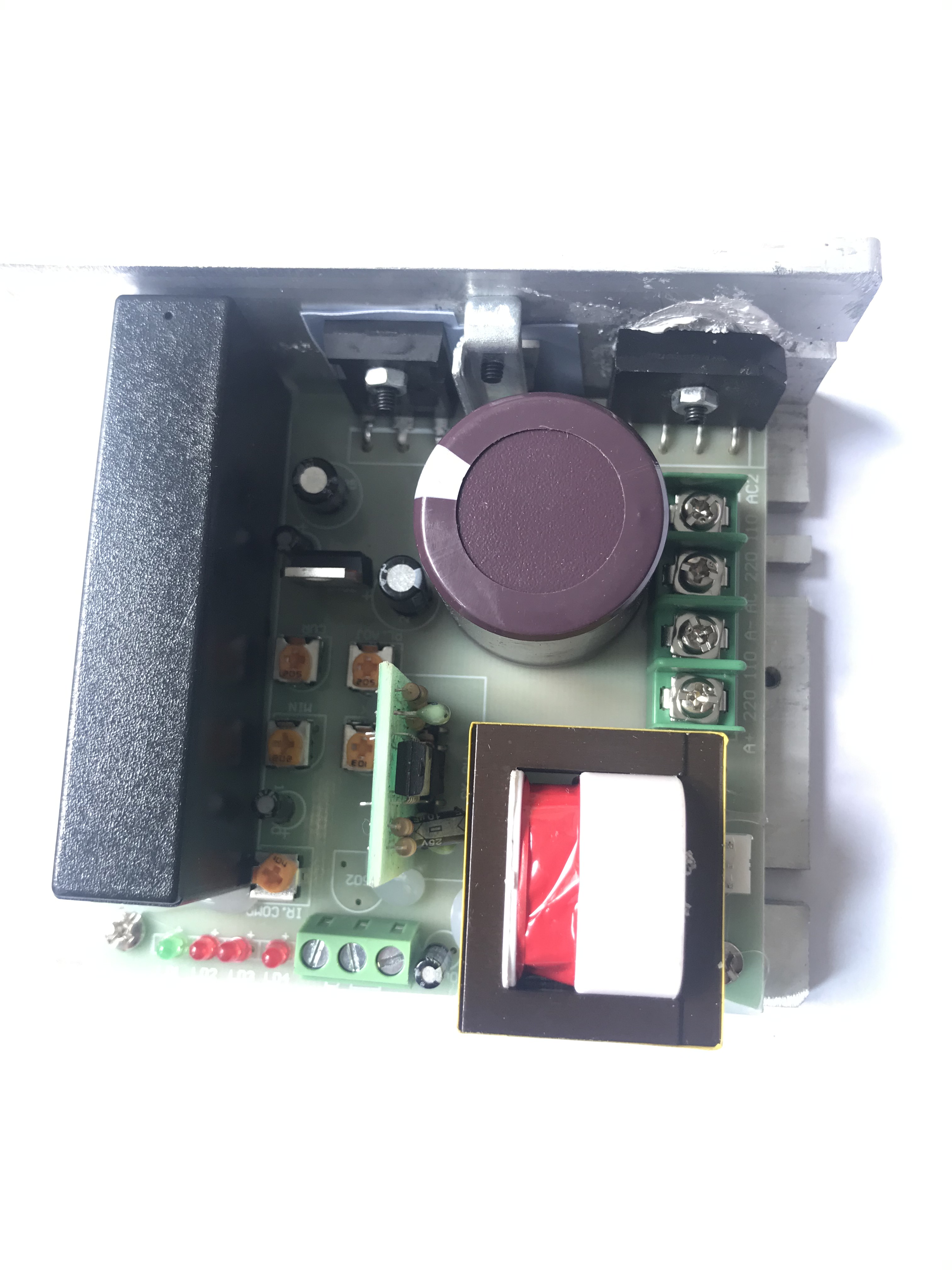

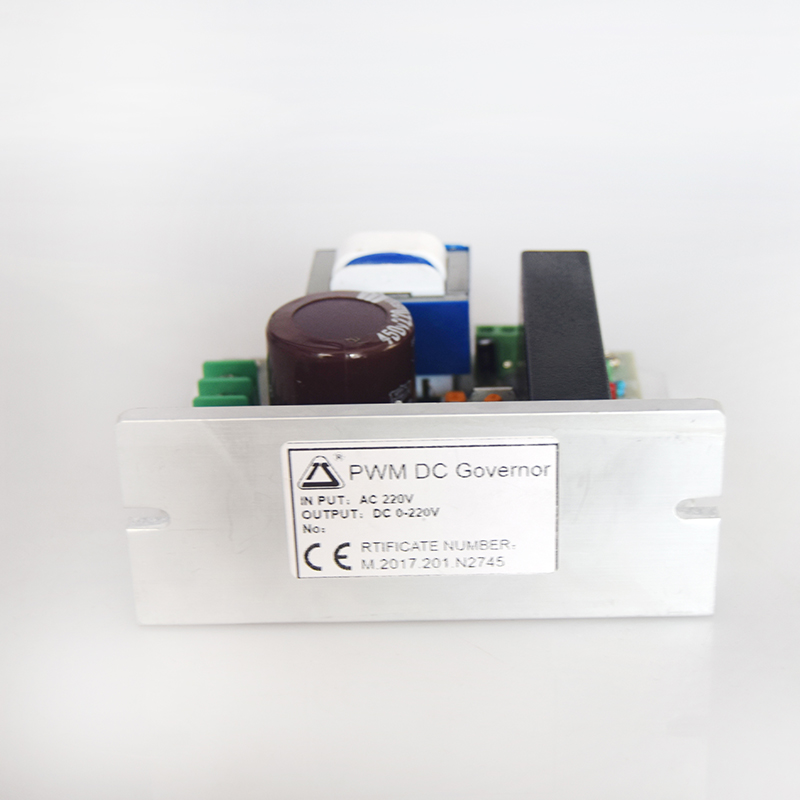

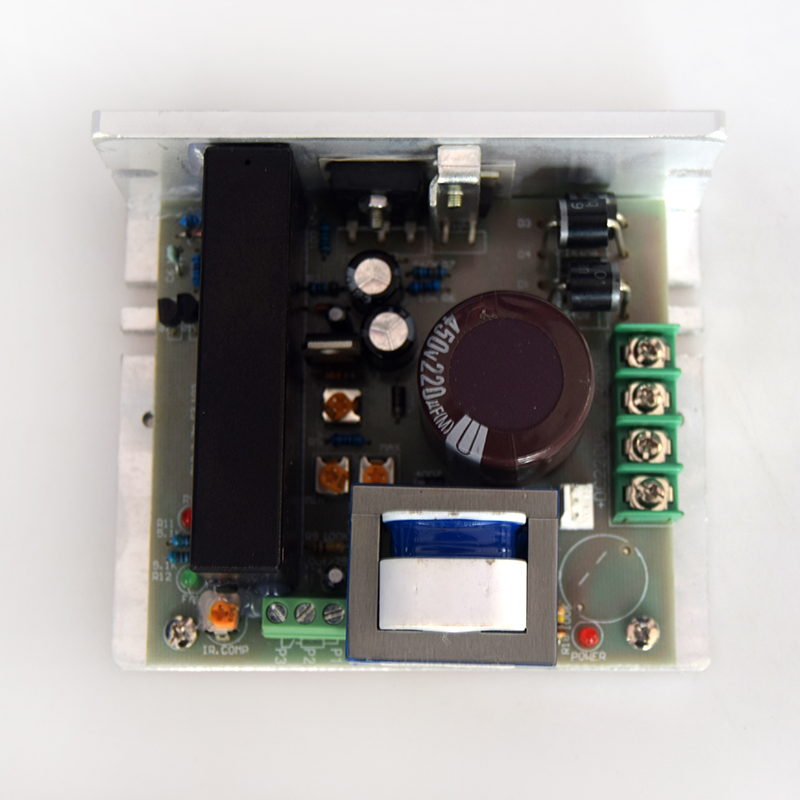

PWM DC speed control board is suitable for permanent magnet or excitation brush DC motor! It has the advantages of high power, high torque, constant low speed, strong anti-interference, etc. It has completed the replacement of KBIC BC2000 and other foreign speed control boards. Suitable for: net frame pole cutting and welding equipment on the low-speed motor speed control use, home lathe milling machine, DC gear motor and other equipment motor use.
The following functions can be customized and added according to customer requirements:
1--Quick start, brake braking function;
2--Forward and reverse function
3--Digital display function, display speed or display voltage or display current.
4--Starting delay adjustable function
5--Forward and reverse speed adjustable respectively
There is a need to increase the customized features of friends, consulting customer service or inquiry electricity 13965949797
Power: 60W ~ 1800W Rated current: 10A
Output Voltage: DC (DC) 0~230V [Maximum output voltage can be adjusted
Input Voltage: AC (AC) 85V~220V
Speed range: 1-9999 rpm [the actual speed is determined by the motor
Size: L:110mm*W:95mm*H:45mm
Applicable motors: DC48V/60V/72V/90V/100V/110V/180V/200V/220V DC motor
