TECHTONGDA Dough Divider Main

110V Commercial 26 Blocks Semi-Automatic Dough Divider and Rounder

INTSUPERMAI®

📋 ITEM DESCRIPTION

Dough divider machine detail
  • High-Volume Efficiency: Single-cycle operation produces 26 uniformly portioned and rounded dough balls at once, significantly boosting productivity for bakeries and kitchens.
  • Precision Consistency: Features an adjustable precision scale to ensure uniform weight and shape for every piece (from 50g to 130g), delivering professional-grade baking results.

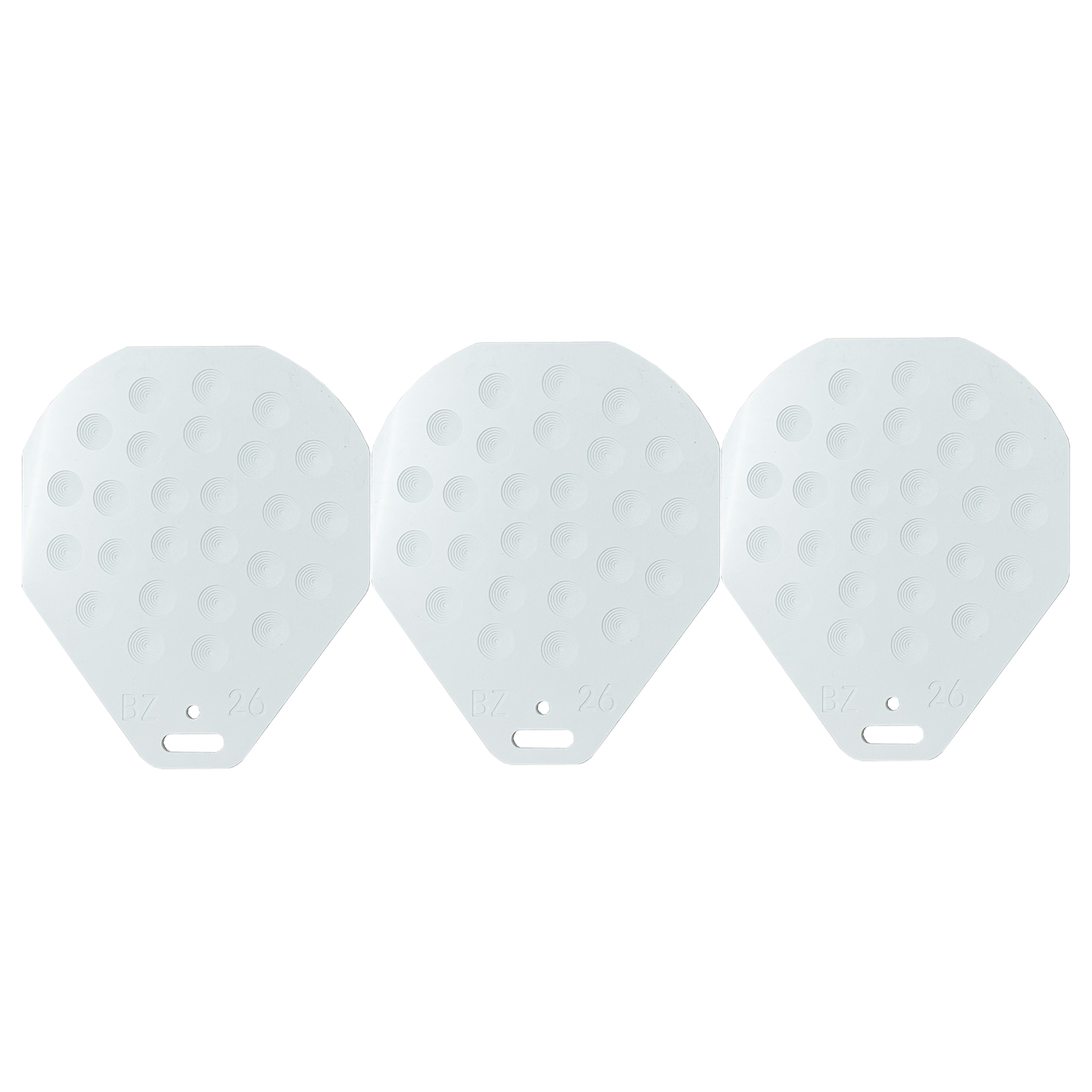

  • Food-Grade Safety: Includes three food-grade PVC dough plates that are non-stick, durable, easy to clean, and fully compliant with food safety standards.
  • User-Friendly & Stable Operation: Designed with ergonomic handles and clear operational guidance for intuitive use, backed by a robust construction for reliable and stable performance.
  • Easy Cleaning & Maintenance: Designed with user-friendly maintenance in mind; key components are easily accessible and streamlined for quick cleaning after use.
This dough dividing and rounding machine uses the geometric dividing principle and the eccentric swinging principle to divide the dough into 26 pieces of dough of uniform shape and equal weight within 5-10 seconds, which saves time and effort and greatly improves the production efficiency. At the same time, this machine can also divide the dough into a round shape. After the dough is divided and rounded, the weight of the small dough is the same, and the structure is dense, which can save labor and eliminate the difference caused by labor. The cutter head is easy to clean. It is a good helper for commercial kitchens!

⚙️ ITEM PARAMETER

Model: HM-26
Voltage: AC110V 50/60Hz
Power: 1HP(750W)
Weight per dough: 1.76oz-4.58oz(50g-130g)
Quantity of dough after dividing: 26PCS
Dough rounding takes time: 5S-10S

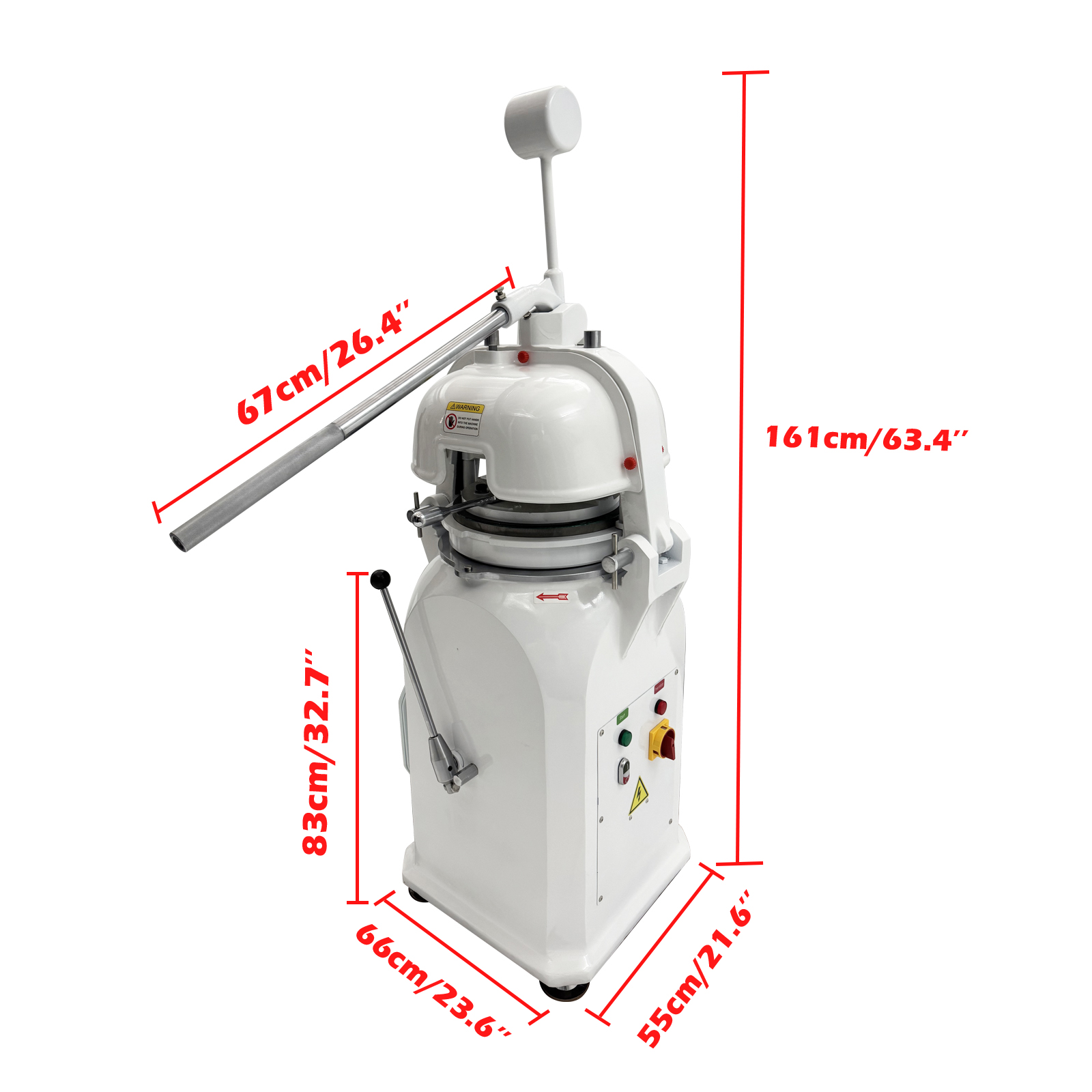

Down pressure rod length: 26.4"(67cm)
Material of the plate: Food-Grade PVC
Package size: 31.1"*27.2"*61.8"(79cm*69cm*157cm)
Net weight/Gross weight: 718.7LB(326kg)/815.7LB(370kg)
Note: If you need to process dough with other weight specifications, you can contact us to customize.

⚠️ ITEM PRECAUTIONS

Warning: Always prioritize safety. Disconnect the power supply before performing any cleaning or maintenance. Daily Cleaning: Clean the machine thoroughly after each day's operation to prevent food residue from molding or corroding the machine head.
Lubrication Specification: Use only food-grade lubricant for maintaining and lubricating the machine head. Do not use standard industrial oil.
Power Off for Service: Always disconnect the machine from the power supply before performing any maintenance, or cleaning. Never operate electrically.
Avoid Paint Damage: Be careful not to chip or damage the machine's paint during production, as paint flakes could fall into the dough.
Thorough Cleaning: When cleaning, pay special attention to removing any debris from the rounding disk and the underside of the dough plates.
Proper Drying: After cleaning, hang the PVC dough plates in a well-ventilated area to air dry. Do not bake, freeze, or stack them, as this may cause warping, cracking, or deformation.
Risk of Injury: Always follow operating procedures. Be cautious to avoid getting hands pinched, caught, or cut by the machine parts.
No High-Pressure Spray: Do not use a high-pressure water spray hose or jet for cleaning, as this can damage electrical components and bearings.

🔍 ITEM DETAILS

User-Friendly Control Panel
User-Friendly Control Panel

The intuitive control panel features a master power switch for safety, a clear power indicator light, dedicated start/stop buttons for one-touch operation, and a running status light. This logical layout prevents errors and enhances both operational efficiency and safety.

Convenient Storage Solution
Convenient Storage Solution

The integrated side-mounted pegs allow for neat storage of all three dough plates, keeping them within easy reach yet off the counter. This smart design saves workspace, reduces clutter, and streamlines your workflow for maximum efficiency.

Auto-Return Lever System
Auto-Return Lever System | Effortless & Efficient

The machine features a precisely engineered gravity lever system on top. Utilizing the lever principle, the counterweight automatically returns the head to its starting position smoothly after each pressing operation. This hands-free, effort-saving mechanism ensures consistent and efficient cycling.

Precision Weight Adjustment
Precision Weight Adjustment

Featuring a calibrated control rod, this machine allows easy and tool-free weight adjustment from 50 to 130 grams. Clearly marked enable quick, precise portion control, ensuring uniform dough weight and professional results for any recipe.

Reliable 750W Motor
Reliable 750W Motor

Powered by a robust single-phase induction motor (110V/60Hz), this machine delivers consistent performance without complex wiring. With a steady speed of 1700 RPM, it provides ample power for smooth, continuous operation, making it ideal for high-volume dough processing.

Hygienic 304 Stainless Steel Blades
Hygienic 304 Stainless Steel Blades & Surface

Crafted with food-grade 304 stainless steel, the cutting blades and work surface resist rust and corrosion while ensuring food safety. The polished smooth finish prevents dough sticking, enables effortless cleaning, and meets strict hygiene standards for professional use.

📘 ITEM OPERATING INSTRUCTIONS

  • 1. Power Connection: Connect the plug to an AC110V power source according to the voltage and wiring indicators. The power indicator light will illuminate.
  • 2. Test Run Without Load: Run the machine empty to check for any abnormal noise or jamming.
  • 3. Initial Setup & Cleaning: Clean off any dust and oil residue from the machine head and the rounding disk base. Use approximately 2KG of dough to run through the machine repeatedly until thoroughly clean.
  • 4. Preparation for Production: Once cleaned, place your mixed dough onto the food-grade PVC plate and flatten it. Allow the dough to relax for a period of time.
  • 5. Loading the Dough Plate: Place the PVC plate with the dough into the machine body, aligning it with the rounding disk base. ⚠ Important: The plate has a round hole which must be correctly aligned and seated onto the cylindrical pin on the rounding disk. Ensure the plate is level.
  • 6. Adjusting the Rounding Scale: Use knurled weight adjustment lever. Example: For 80g set scale to 8; for 50g set scale to 5. Tighten locking screw. Avoid setting too high or low.
  • 7. Pressing the Dough: Press down the handle (pressure pipe) repeatedly to flatten dough ensuring uniform division.
  • 8. Dividing the Dough: With left hand push blocking knife to right, press handle firmly until fully in position. Dough consistency affects weight uniformity.
  • 9. Rounding the Dough: Slightly release pressure pipe (approx 1mm gap). With left hand push rounding lever down toward lower right, gradually increasing speed. Release lever to complete cycle. Rounding time varies by dough size.
  • 10. Completing the Process: Lift handle upwards to original position, remove plate containing divided and rounded dough pieces.

📦 ITEM INCLUDED (056743)

Dough Divider and Rounder *1
Food-Grade PVC Dough Plates *3
