QR / THRU AXLE 700c 28" Hybrid CX Gravel Bike REAR Wheel 8/9/10/11/12 Speed
warranty
We pride ourselves in our quality so for extra peace of mind, we offer a full 1 year warranty on all our wheels (Terms and conditions apply)
Price Promise
If you find a wheel of the same quality elsewhere for cheaper, let us know and we will beat the price..
DESCRIPTION
Brand - Madspeed7

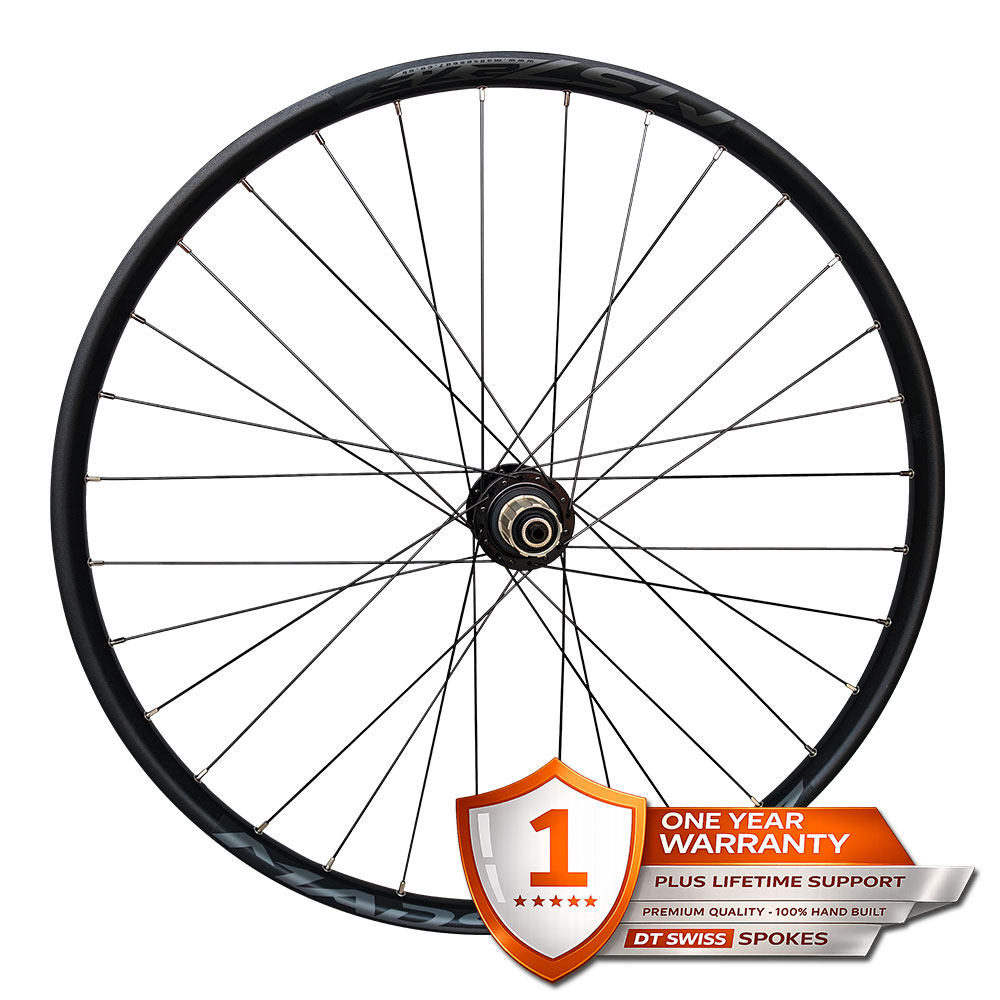

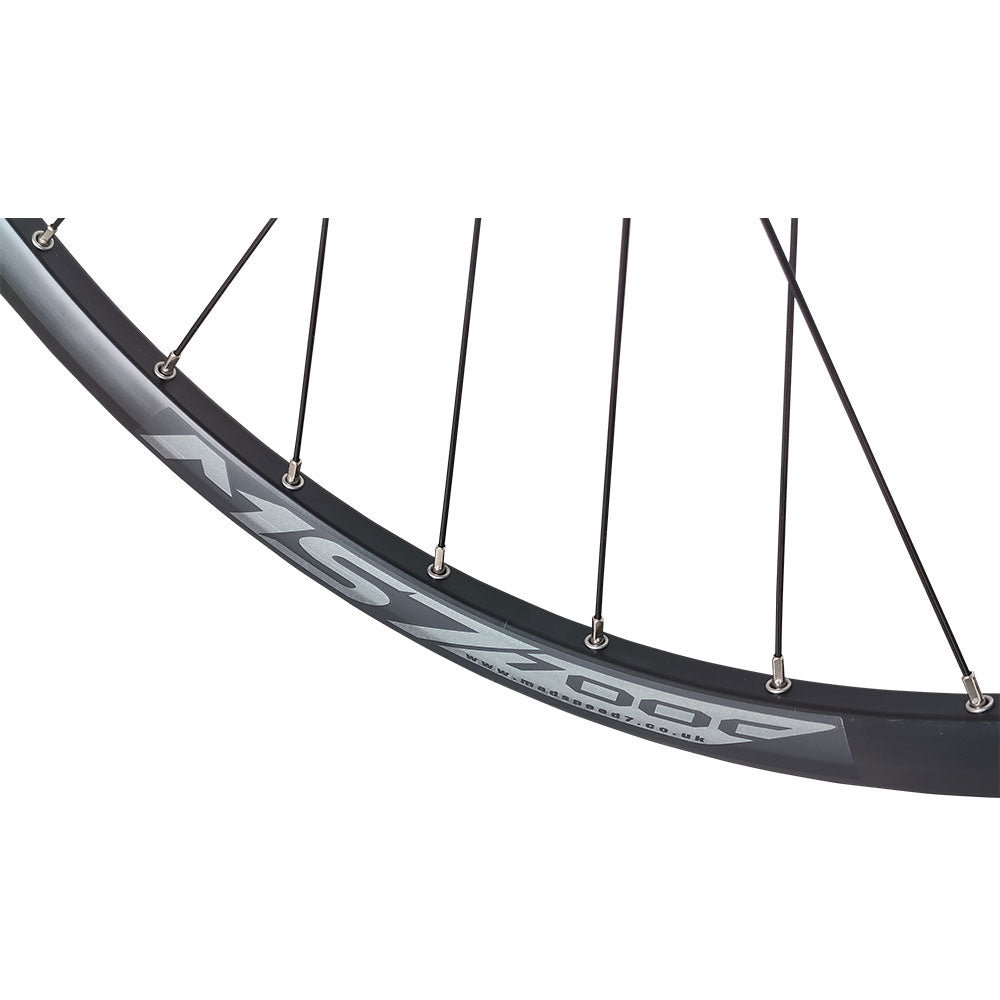

High quality 700c (ETRTO 622x25) hybrid/cyclocross/gravel bike rear wheel
Precision 100% hand built wheel
Choice of freehub - HG, SRAM XD or Shimano Microspline
Choice of hub type - QR / Thru axle
Suggested maximum system weight of 135kg (total weight of fully kitted up rider, bike and luggage)
Recommended tyre width 35mm - 70mm wide
Wheel weight – 1145g
Please note 12mm is not included. For QR wheel, standard QR skewer is included.

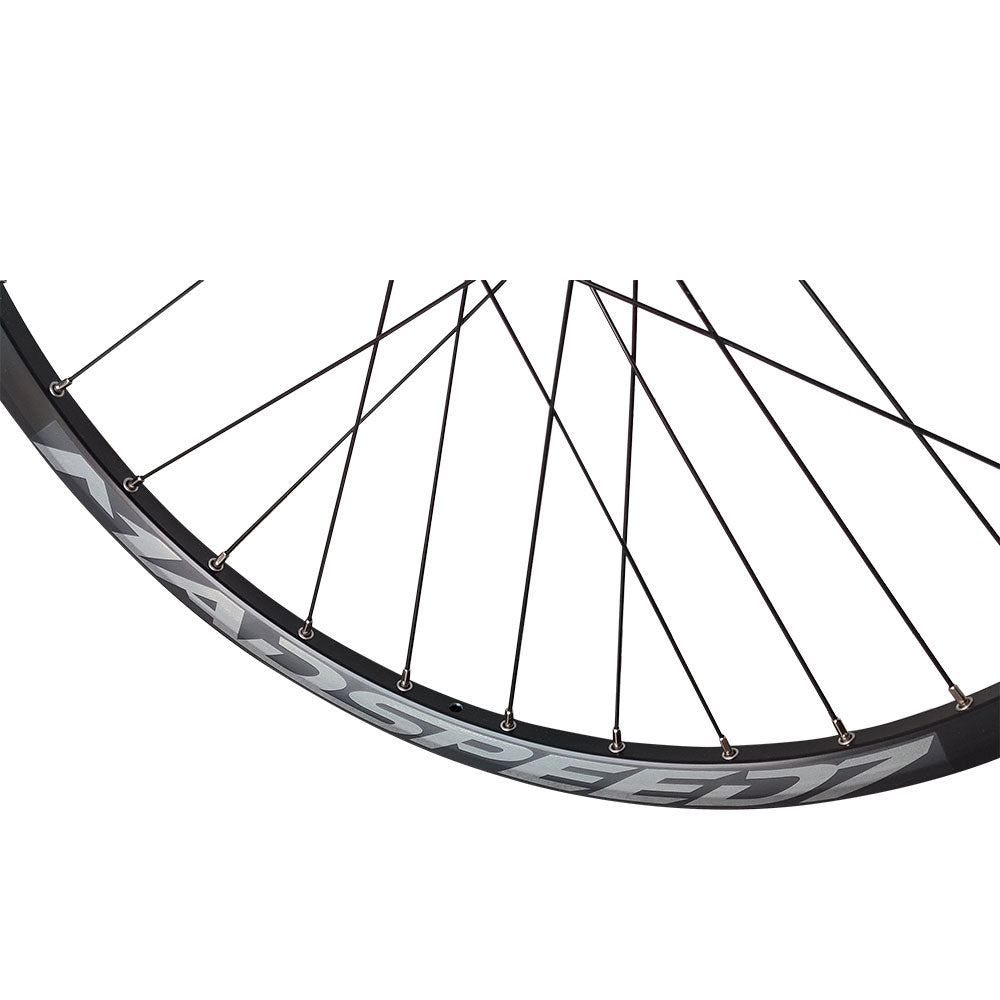

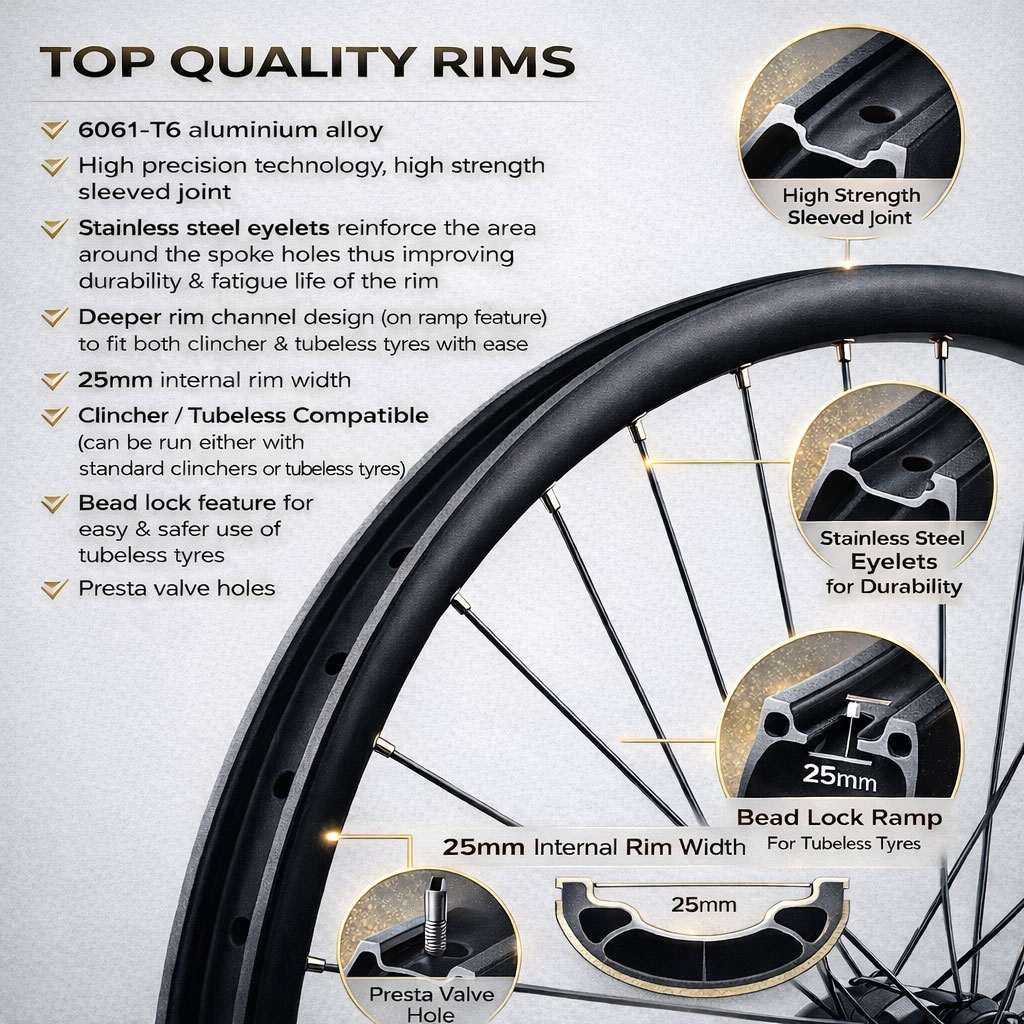

Rim
6061-T6 aluminium alloy
High precision technology, high strength sleeved joint
Stainless steel eyelets reinforce the area around the spoke holes thus improving durability & fatigue life of the rim
Deeper rim channel design (on ramp feature) to fit both clincher & tubeless tyres with ease
25mm internal rim width
Clincher / Tubeless Compatible (can be run either with standard clinchers or road tubeless tyres)
Bead lock feature for easy & safer use of tubeless tyres
Presta valve hole
Hub
Premium quality Taiwan sealed bearings
Rear hub choice - QR 10x135mm / thru axle 12x142mm (4x sealed bearings)
Smooth NBK precision bearings from Taiwan
Sealed cartridge replaceable units
Rear Cromo steel axle for maximum stiffness & durability

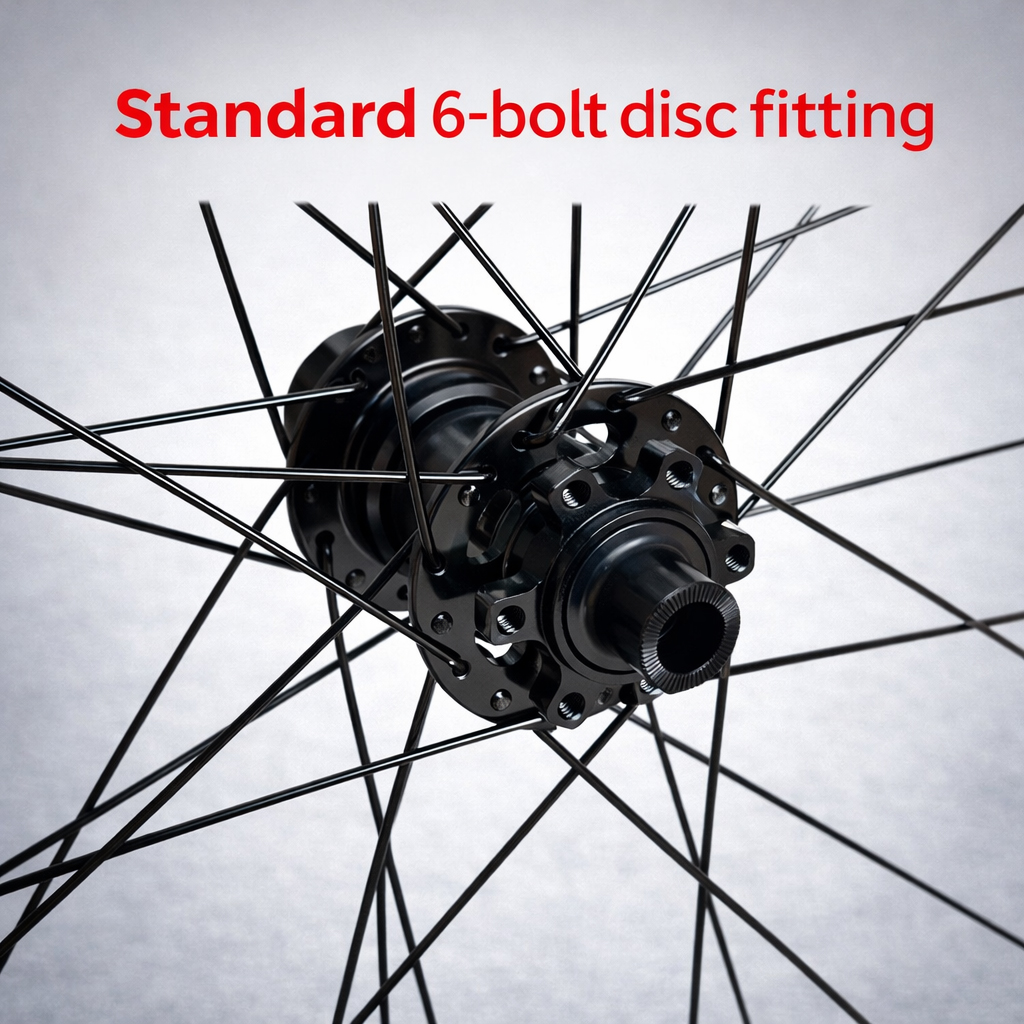

6-bolt disc brake mount

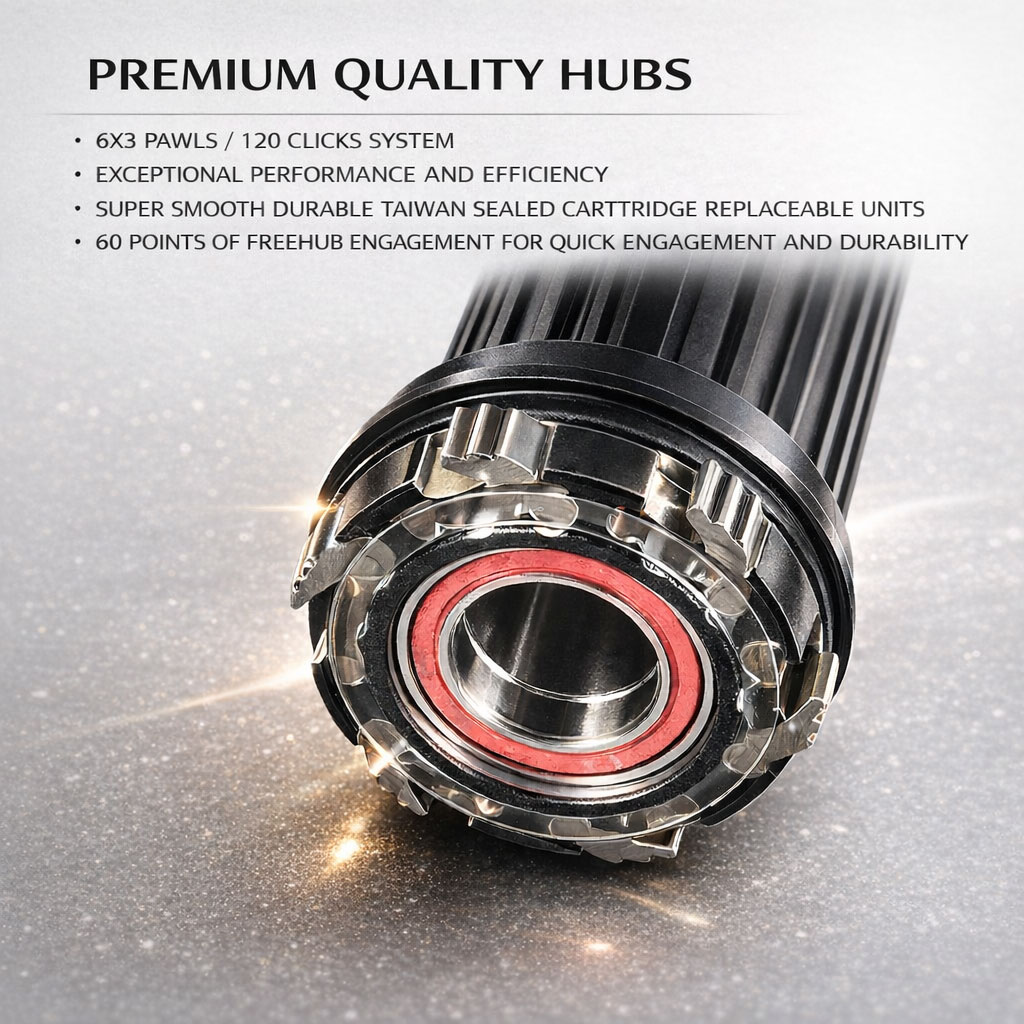

60 points of freehub engagement (6-degree engagement), 6x3 pawls (each pawl has 3 teeth) for quick engagement and durability

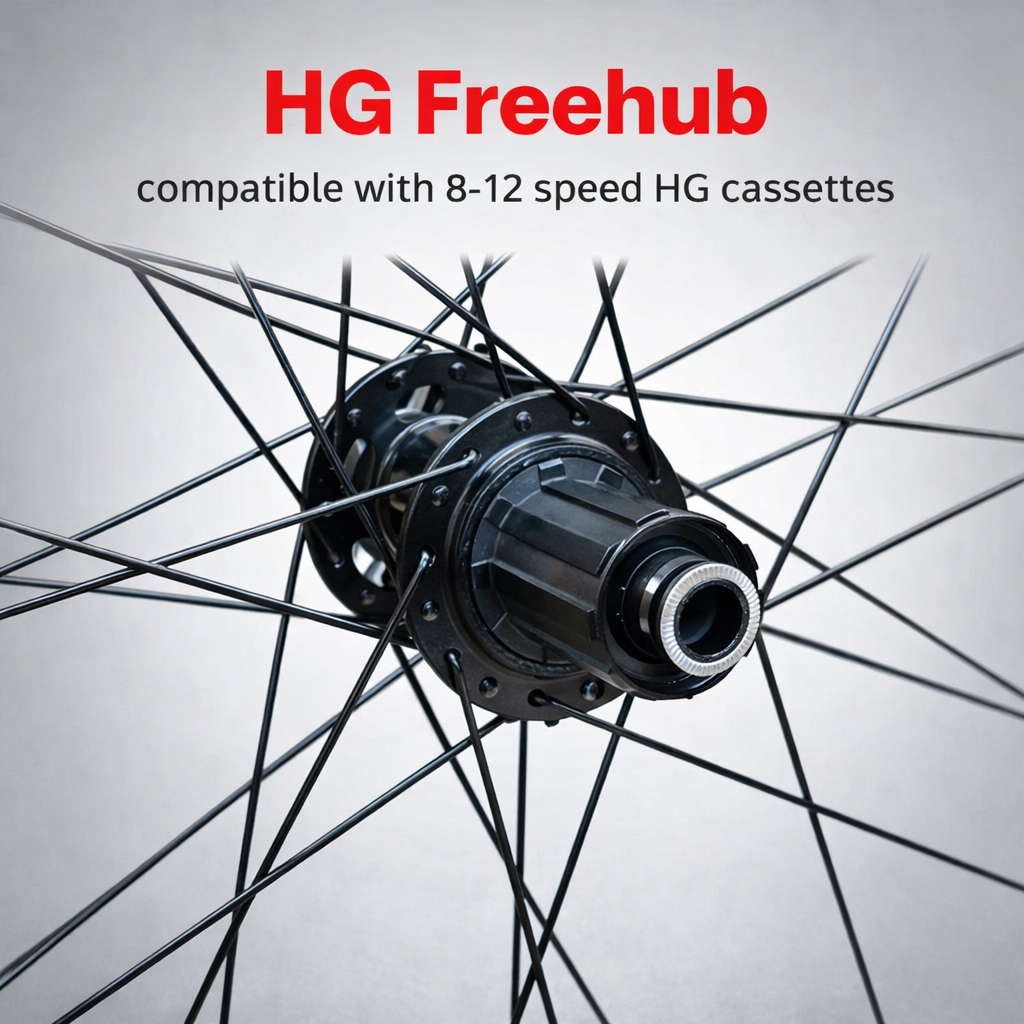

HG freehub – Compatible with HG-standard 8–12 speed MTB cassettes, including Shimano and SRAM HG-type cassettes

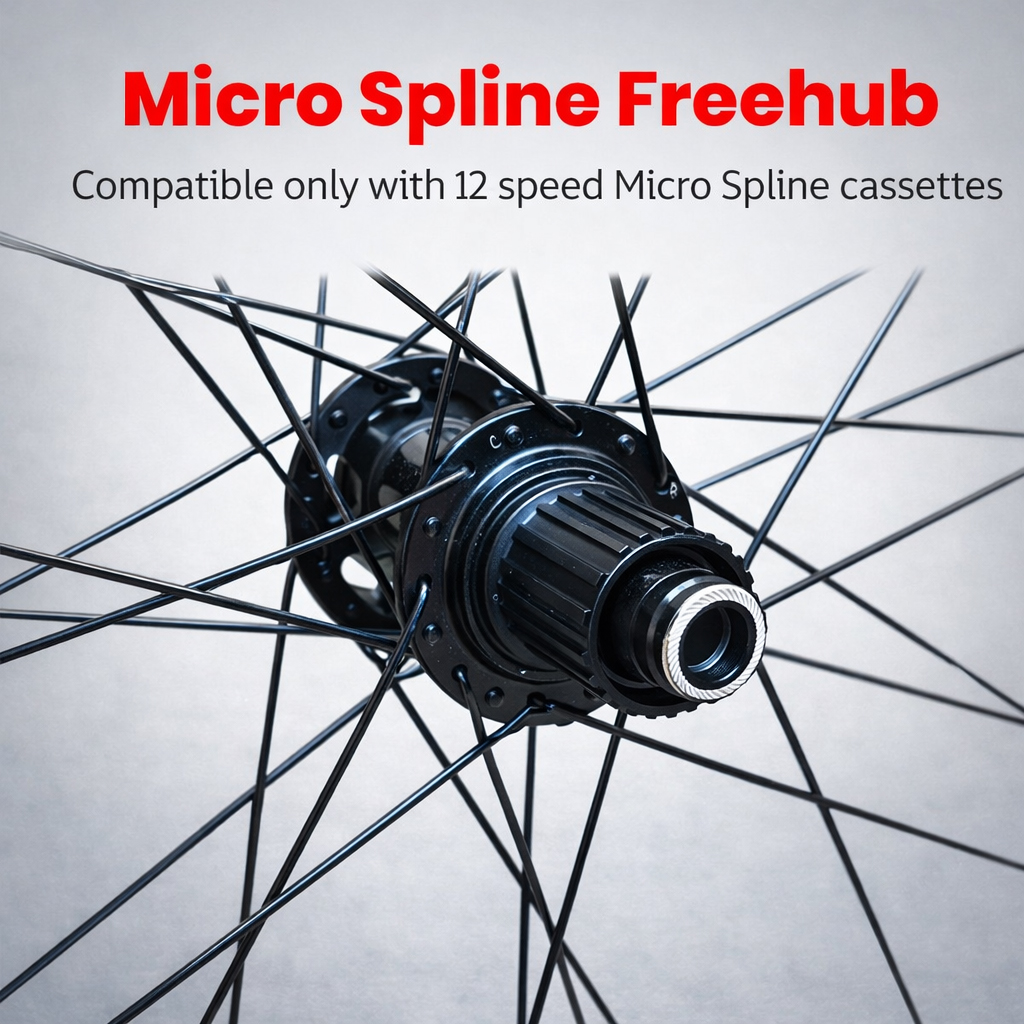

Microspline freehub – Compatible with Shimano Micro Spline–standard 12-speed MTB cassettes

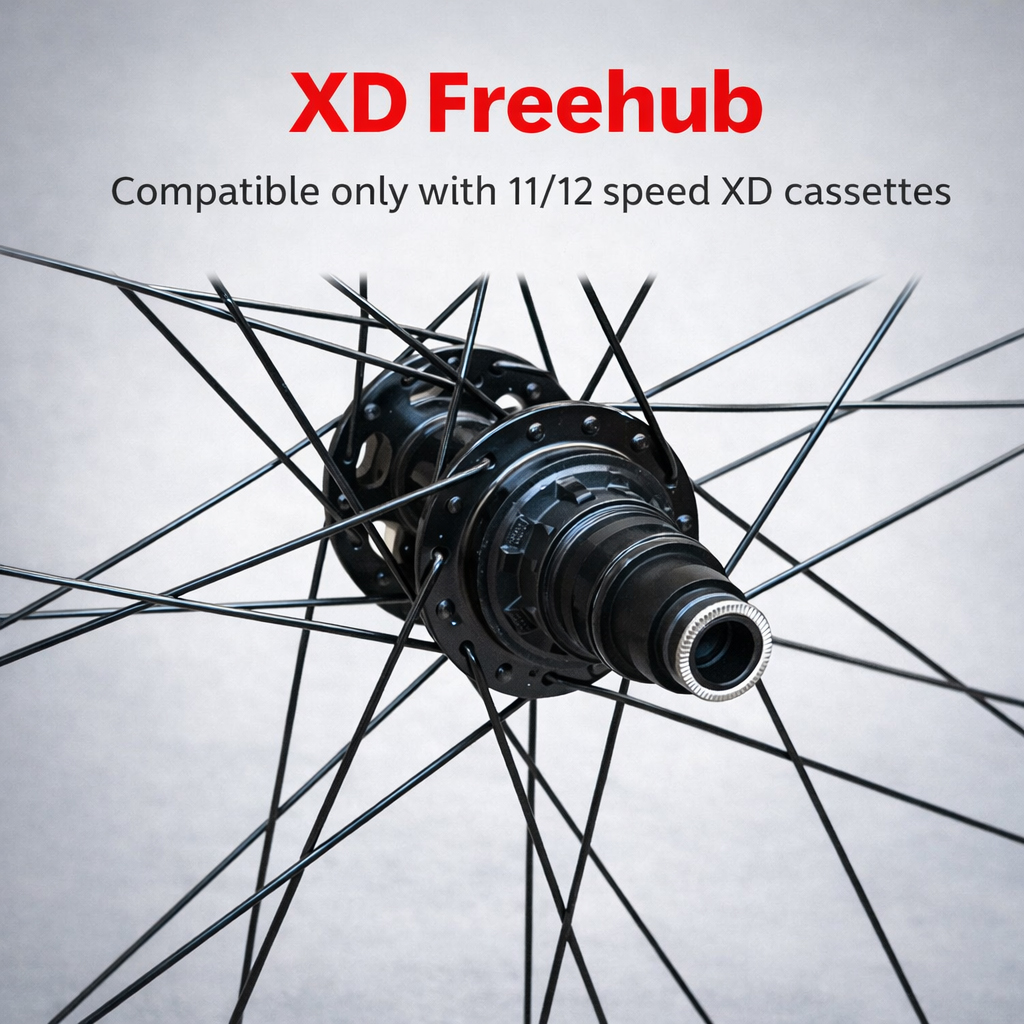

XD freehub – Compatible with SRAM XD–standard 11/12-speed MTB cassettes (including SRAM and other XD-compatible brands)
PLEASE NOTE - If you intend to fit an 11 and 12 speed cassettes to this wheelset, please contact us first to confirm compatibility before purchase.
Spokes
DT SWISS Champion 2.0 stainless steel J-bend spokes
32 front & rear spoke count, in a 3 cross lacing pattern paired with brass nipples
J-bend spokes allows for easy sourcing and replacement

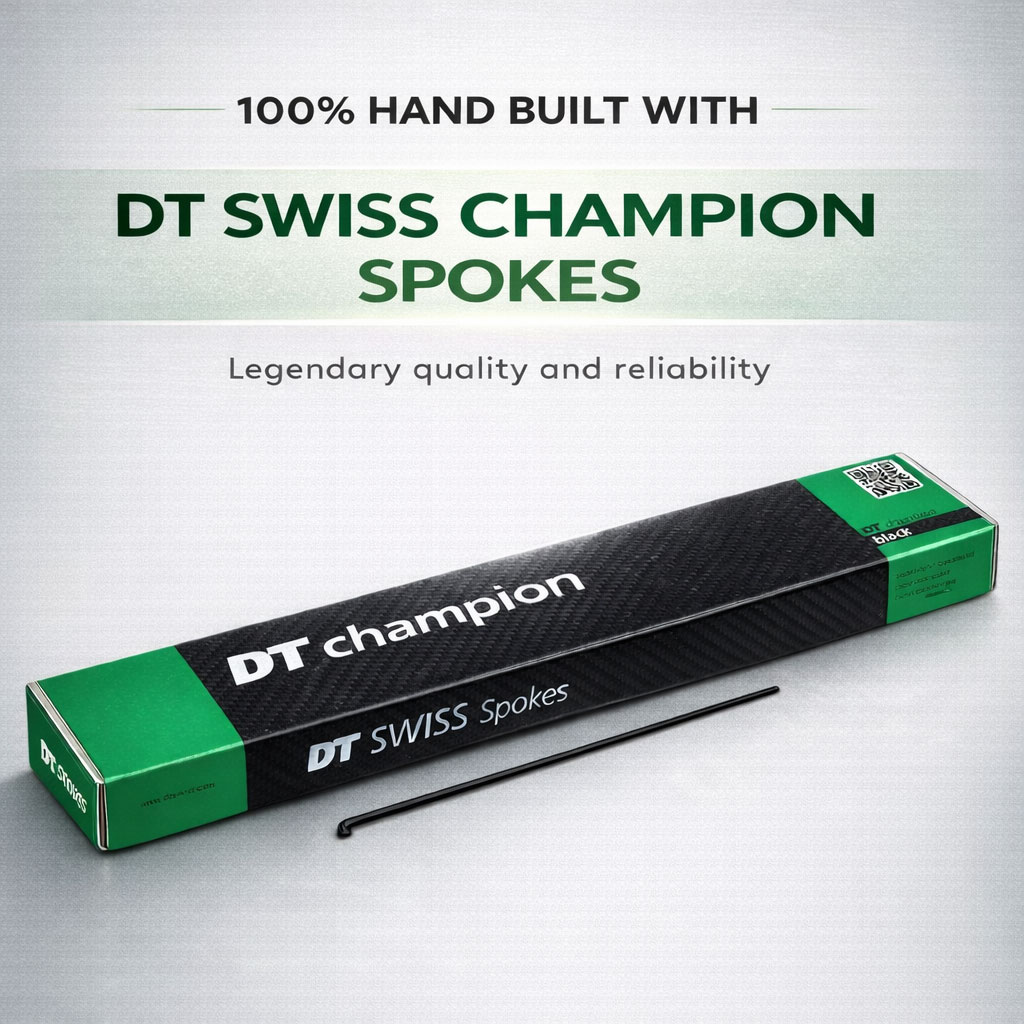

DT SWISS Champion Spokes
The DT Swiss champion spoke is a classic all rounder for every day use, offering DT's legendary quality and reliability.
Made from X5 stainless steel, containing chrome for rust resistance and nickel for strength. The rolling of the nipple thread removes no metal from the spoke and preserves the grain of the material, maximising strength and greatly reducing the likelihood of failure at the threads, a common issue with lower quality spokes.
Check the size printed on your tyre sidewall
How to choose the correct wheel size
To choose the correct replacement wheel, check the size printed on the sidewall of your current tyre. This is the most accurate way to confirm the wheel size you need.
- If your tyre says 26", choose a 26" wheel.
- If your tyre says 27.5", choose a 27.5" wheel.
- If your tyre says 29", choose a 29" wheel.
- If your tyre says 700C, choose a 700C wheel.
Please do not measure the outside diameter of the wheel, as this can give the wrong size.
If you are unsure, send us a message before ordering and we will be happy to help.
