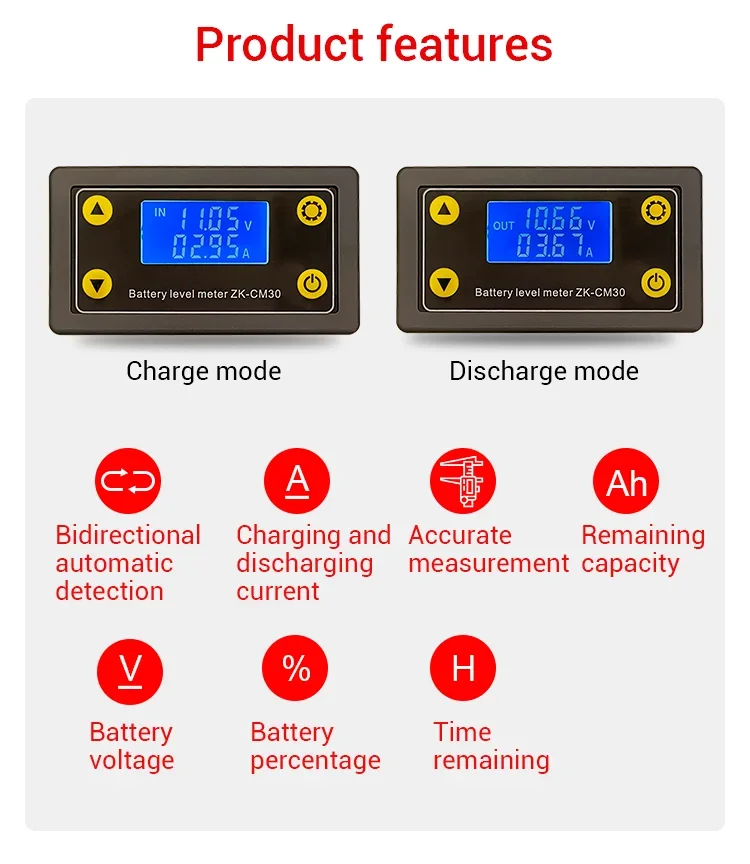

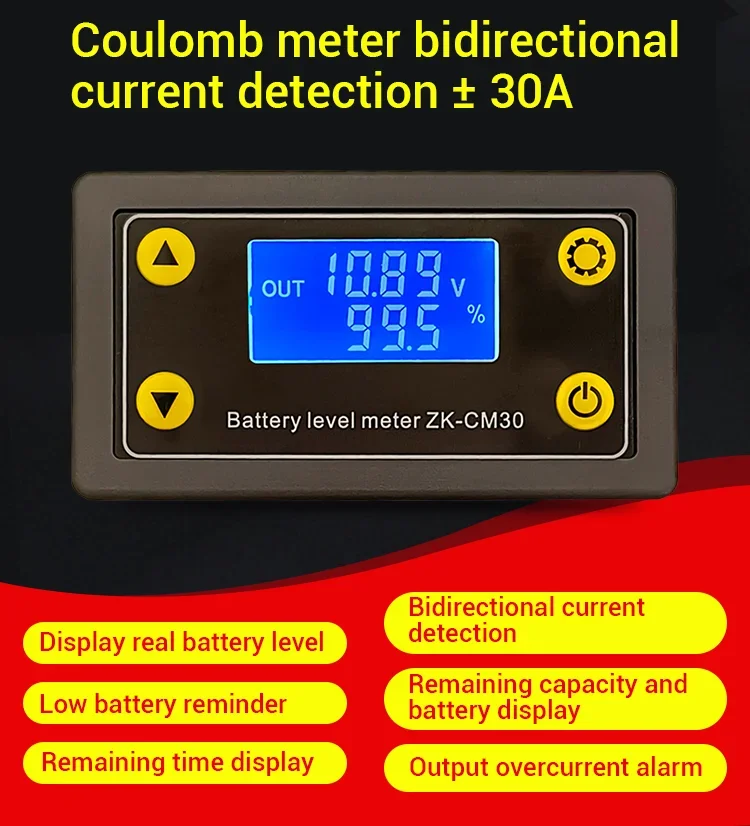

Product Feature:

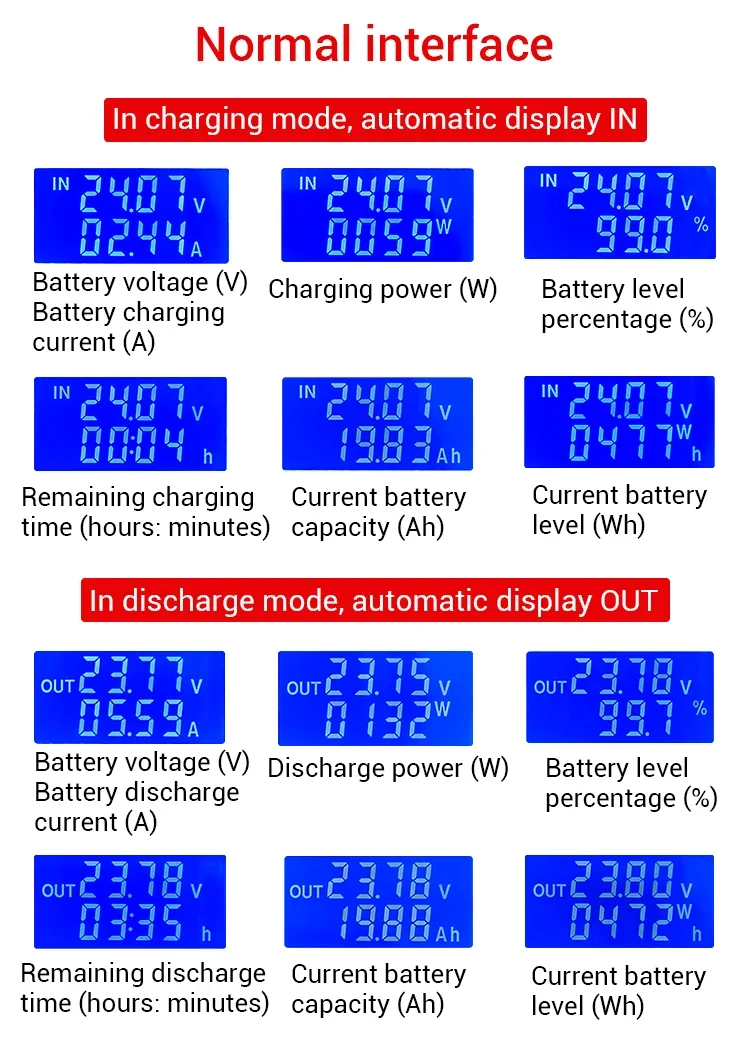

1. Able to accurately and real-time detect parameters such as voltage, current, power, true capacity, and remaining usage time of the battery pack.
2. Use high-precision clock crystal oscillators to ensure the accuracy of time and ensure electricity statistics.

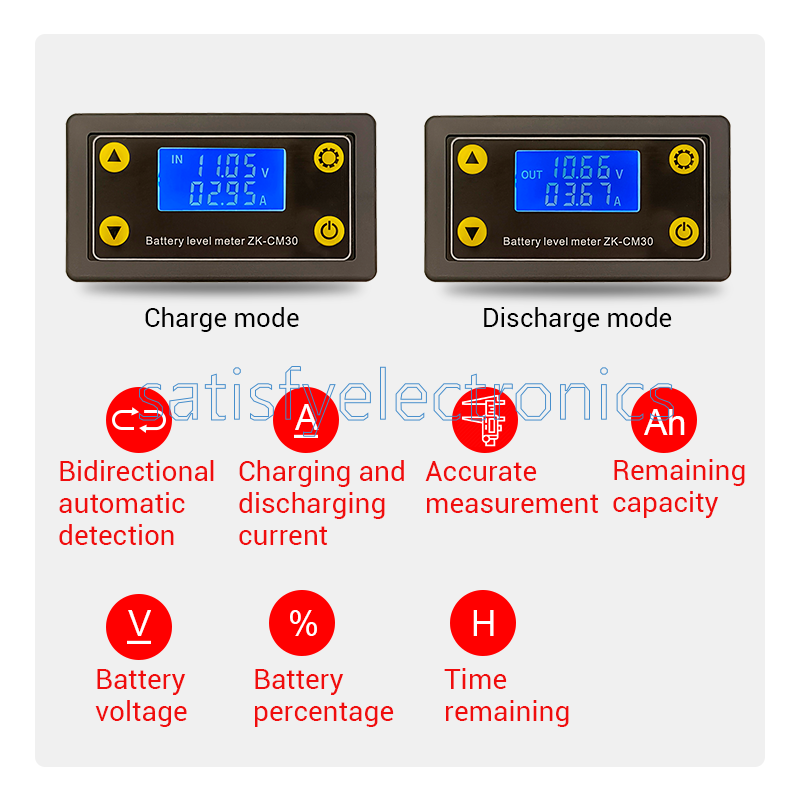

3. Bidirectional automatic detection, precise measurement, intelligent control, and accurate understanding of the working status of the battery at any time.

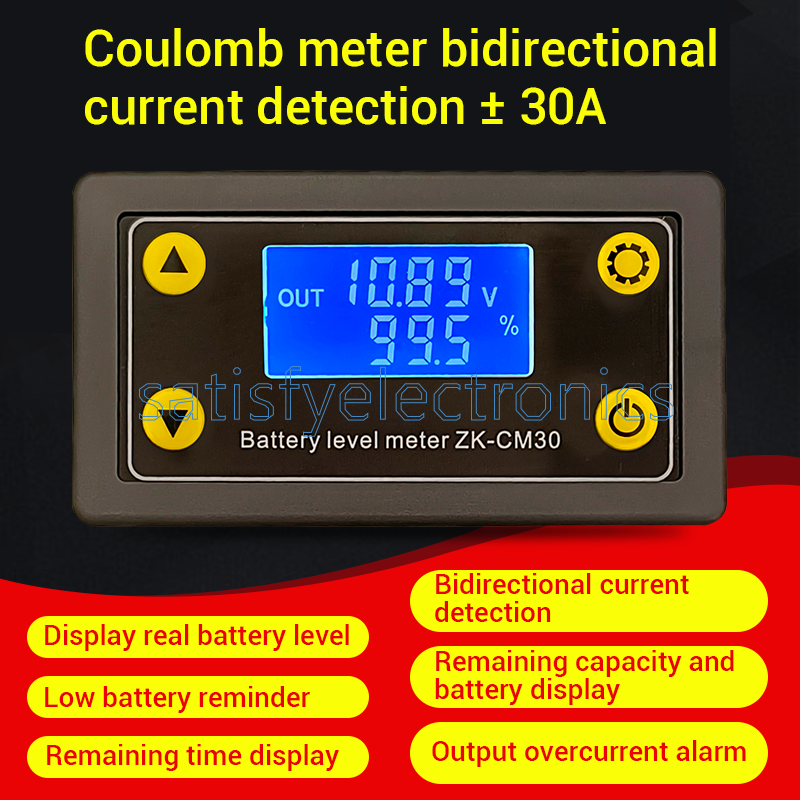

4. It has functions such as backlight display, low battery reminder, and output overcurrent alarm, with stable performance.
5. Suitable for various battery packs such as lithium batteries, lithium iron phosphate, nickel hydrogen, etc. with working voltages ranging from DC6V to 60V and working currents within 30A.

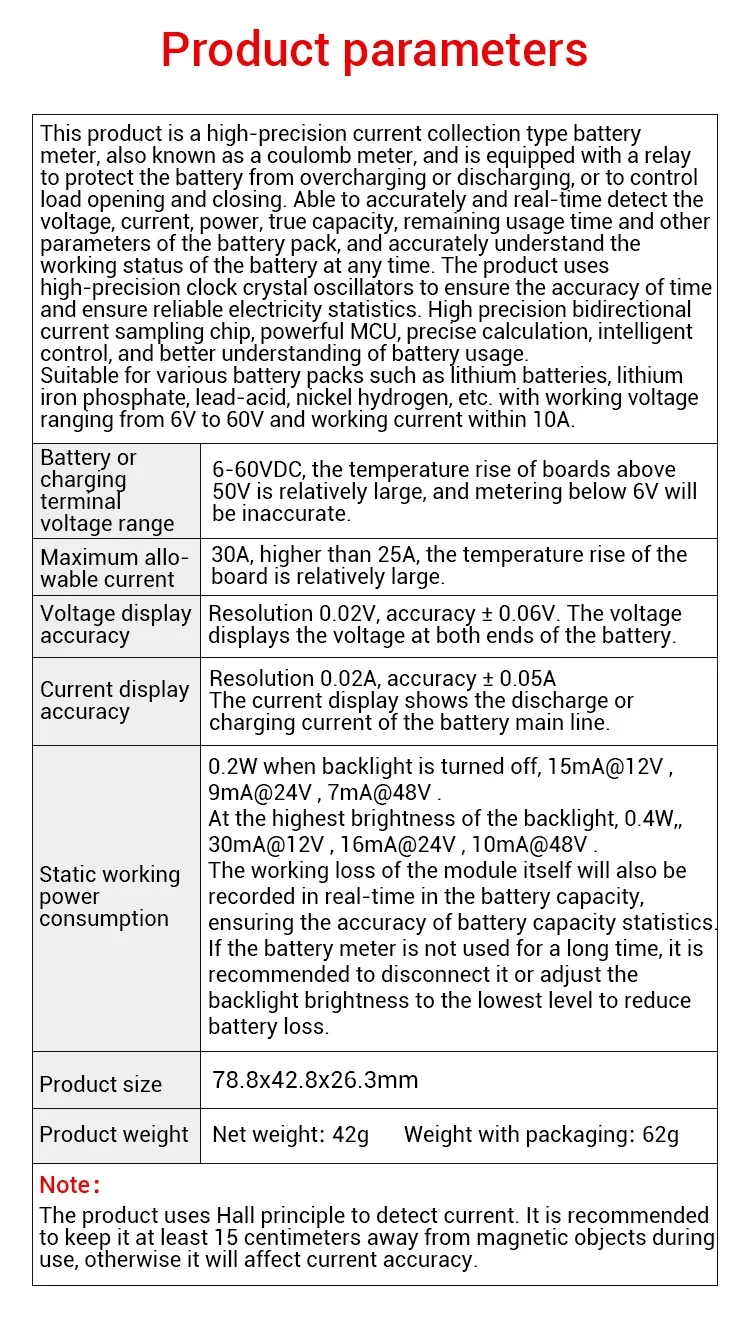

Product parameters:
Working voltage: DC 6~60V
Working current: ± 30A
Voltage resolution: 0.02V
Voltage accuracy: ± 0.06V
Current resolution: 0.02A
Current accuracy: ± 0.05A
Static working power consumption: 0.2W when the backlight is turned off, 0.4W when the backlight is at its highest brightness

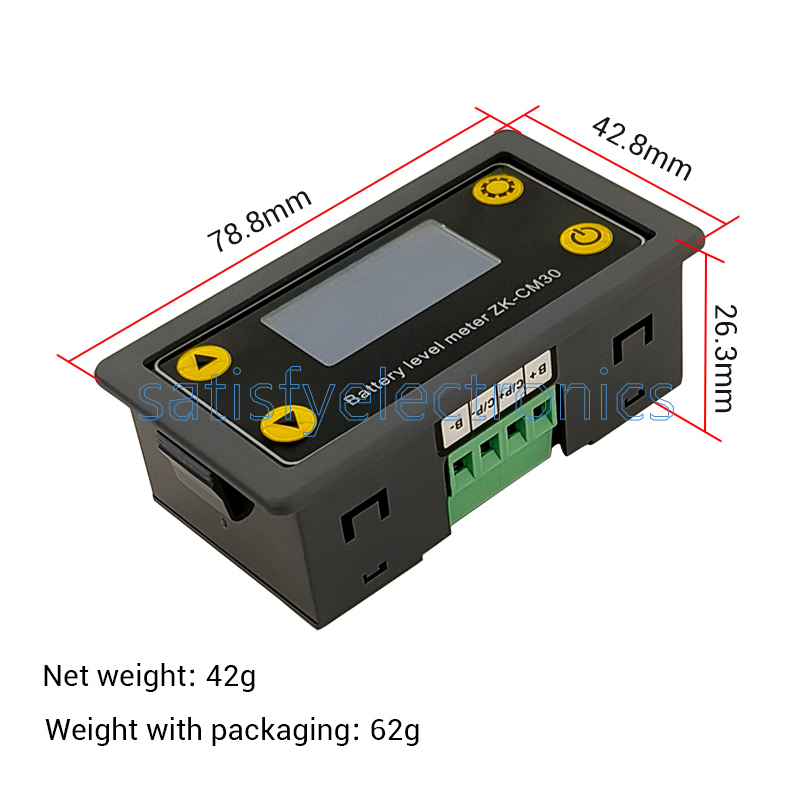

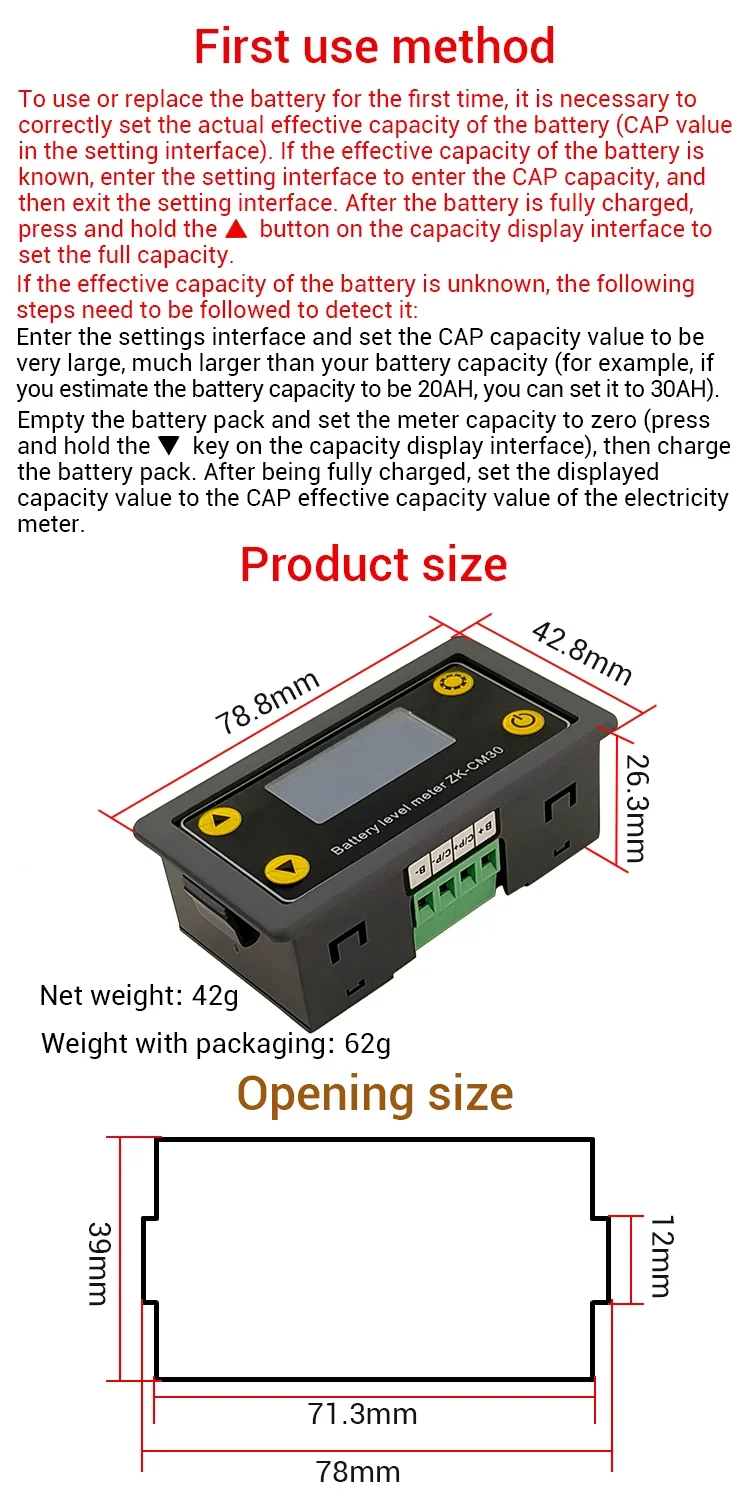

Product size: 78.8 * 42.8 * 26.3mm
Packaging list:
Power meter * 1
First use method:
To use or replace the battery for the first time, it is necessary to correctly set the actual effective capacity of the battery (CAP value in the setting interface). If the effective capacity of the battery is known, enter the setting interface to enter the CAP capacity, and then exit the setting interface. After the battery is fully charged, press and hold the long button on the capacity display interface to set the full capacity.
If the effective capacity of the battery is unknown, the following steps need to be taken to detect it: enter the setting interface and set the CAP capacity value to be very large, much larger than your battery capacity (for example, if you estimate the battery capacity to be 20AH, you can set it to 30AH)
Empty the battery pack and set the meter capacity to zero (press and hold the "▼" button on the capacity display interface), then charge the battery pack.
After being fully charged, set the displayed capacity value to the CAP effective capacity value of the electricity meter.
