• Frame Dimensions: 330 x 400 x 240mm (15.7″*13″*9.4″)

• Engraving Area: 300 x 180 x 45mm (12.2″*7.1″*1.6″)

• Power Adapter: 24V 5A Adapter

• Stepper Motor: Fuselage length 34mm, 42 step motor 1.3A 0.25NM Torque

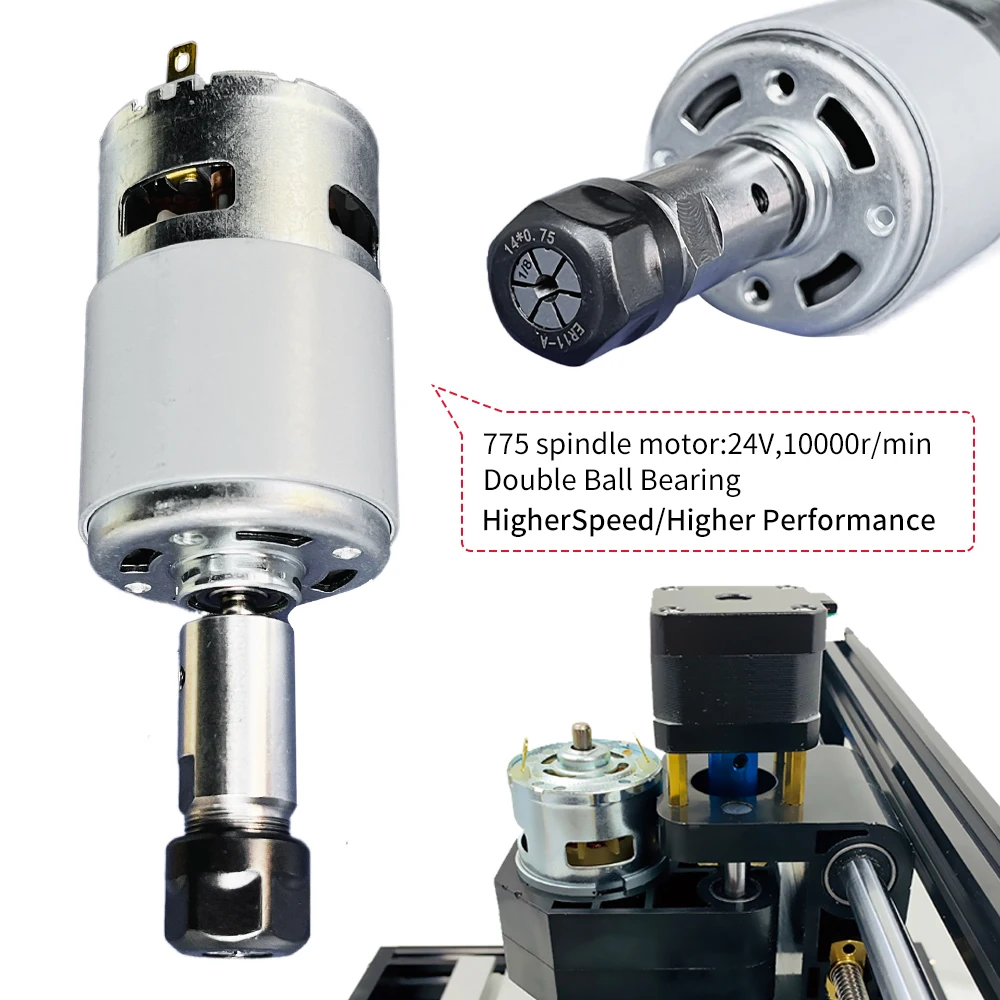

• Spindle: 775 spindle motor 24V:10000r / min

• Supported System: Windows XP / Win 7 / Win 8 / Win 10

• Drill bits: Tip 0.1mm, 20 degree, diameter 3.175mm(10pcs included)

• clamps: 4pcs, Hold the thickness of 0-30mm, size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm

• Can engraved plastic, wood, acrylic, PCB, PVC, wood or other like materials

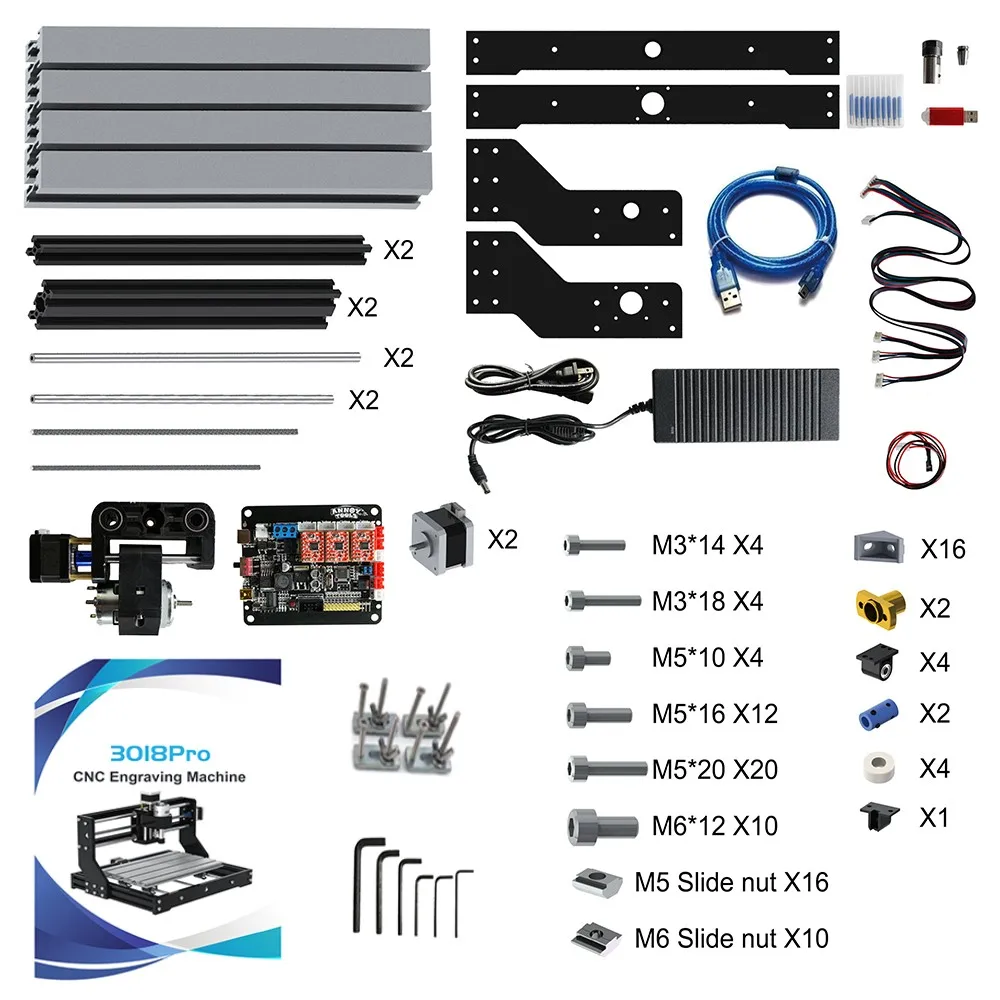

In order to avoid transportation damage, the delivery is delivered in bulk, and the er11 needs to be manually installed on the 775 motor when it arrives.

10,000 revolutions is to turn on the motor, and the motor will rotate at its maximum power, which does not mean that it will always maintain a rotational speed of 10,000.

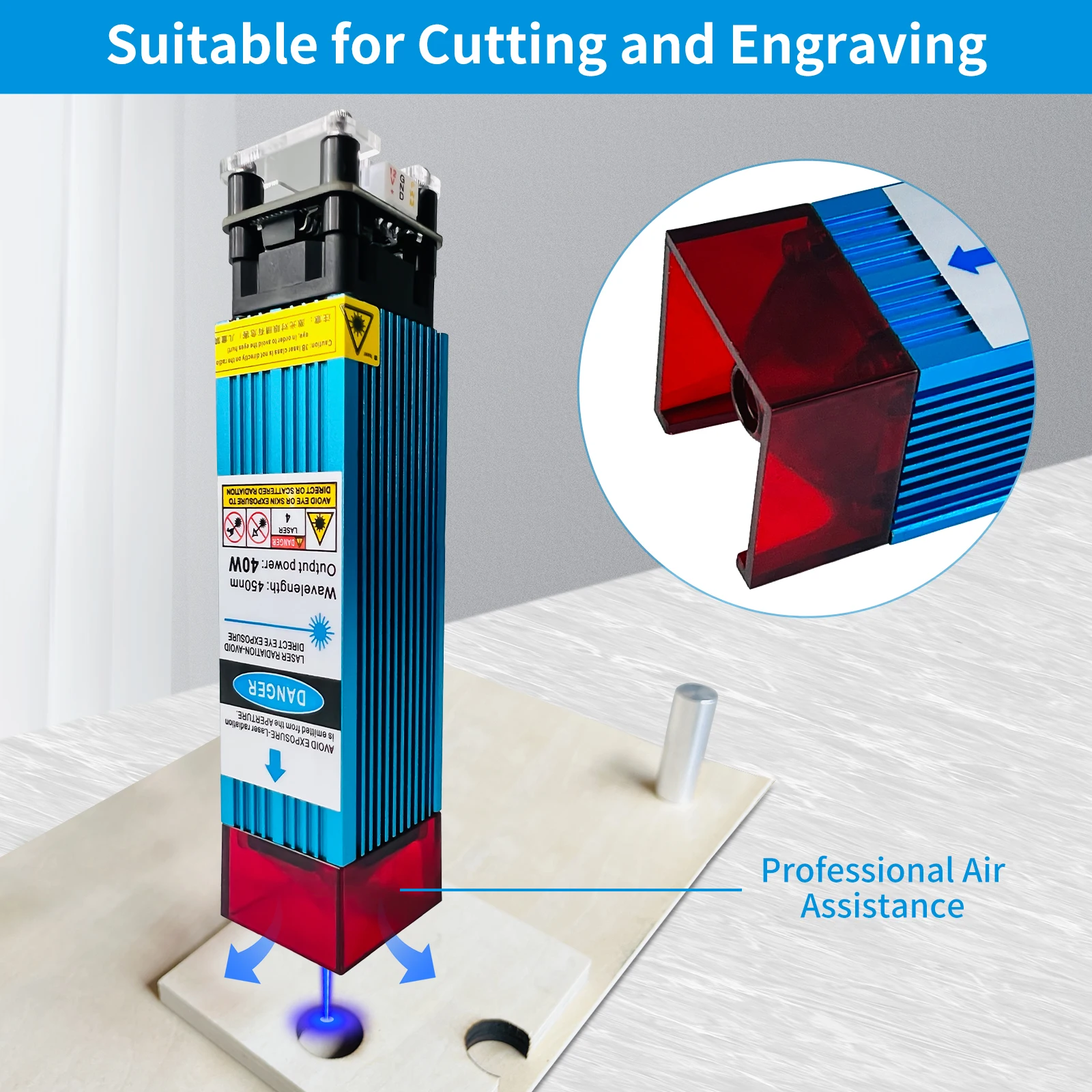

40W Laser Module

• FAC technology

• Optical power output：5.5W

• Wavelength：450nm

• Beam Shape：Dot(fixed focues)

• Working Voltage：DC 12V

• Input Voltage：DC12V 3-4A

• PWM/TTL Input：DC 5V

• Life Time：10000-20,000 hours

• Heatsink Material：Aircraft Aluminum +Blue Shell

• Luminous Color：Blue

• Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

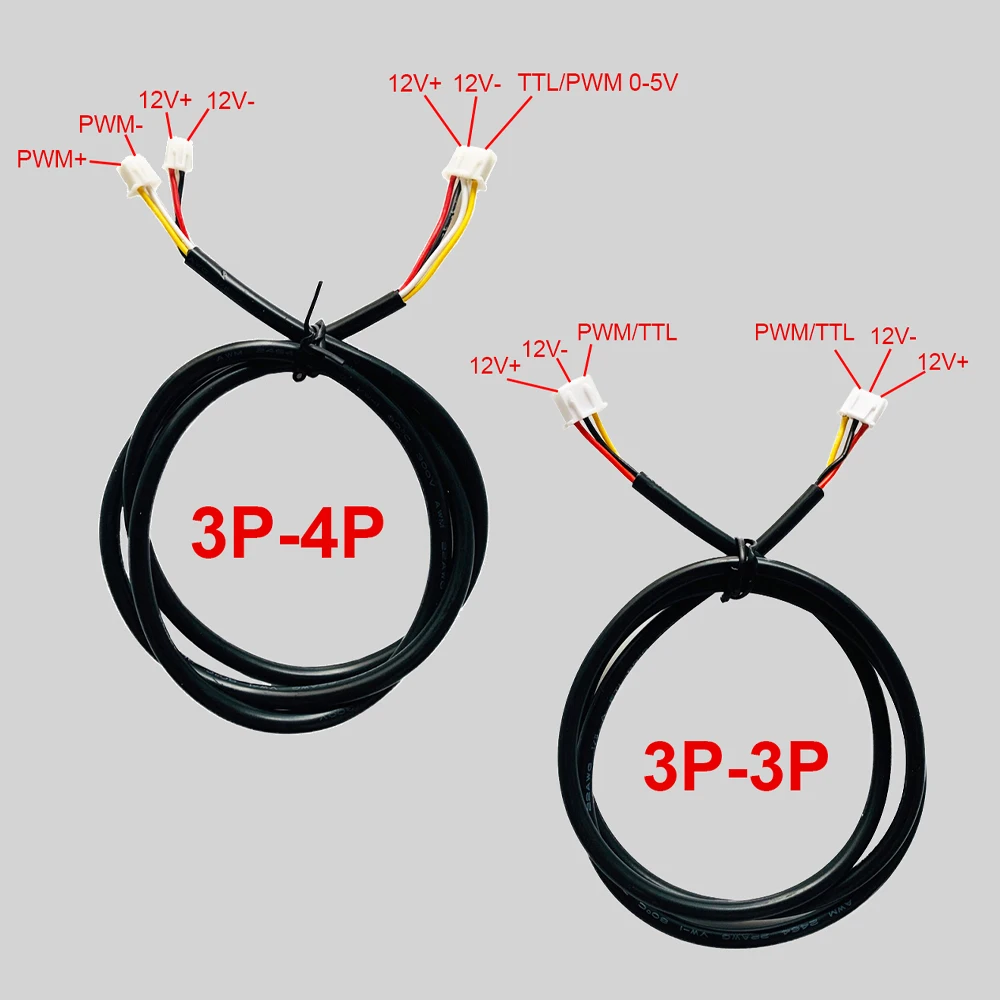

• TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation



FAQs:

Q1: Is assembly required for CNC 3018 pro max?

A1: Yes, CNC 3018 typically comes as a DIY kit and requires assembly. However, assembly is relatively straightforward, and most kits include detailed instructions to guide you through the process.

Q2: Is it suitable for CNC beginners?

A2: If you're a CNC hobbyist, this machine is a top-notch option. Its impeccable functionality and robustness will open up a whole new world of CNC possibilities for you. However, please be aware that we solely provide machine control software, and there might be a learning curve involved in generating personalized G-code. It may require some time and effort to get familiar with the process.

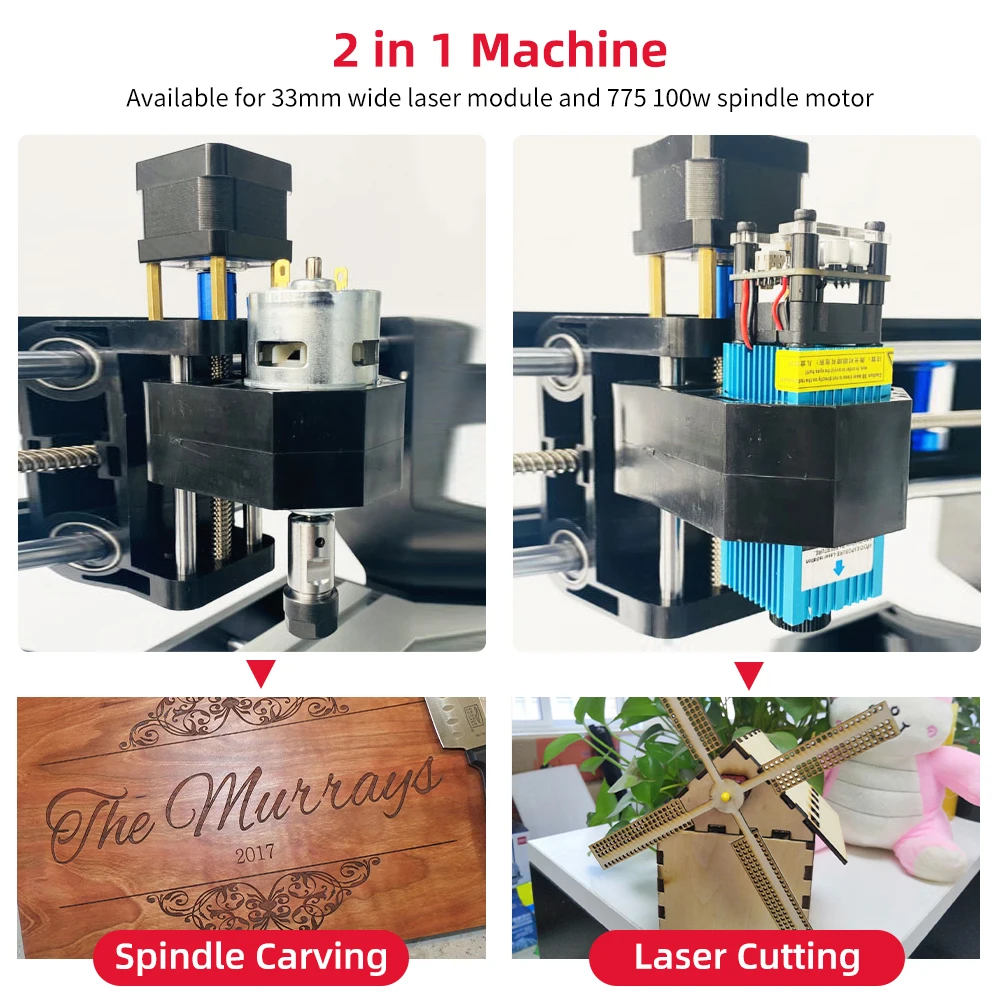

Q3: Does this CNC Router Machine support laser cutting/engraving?

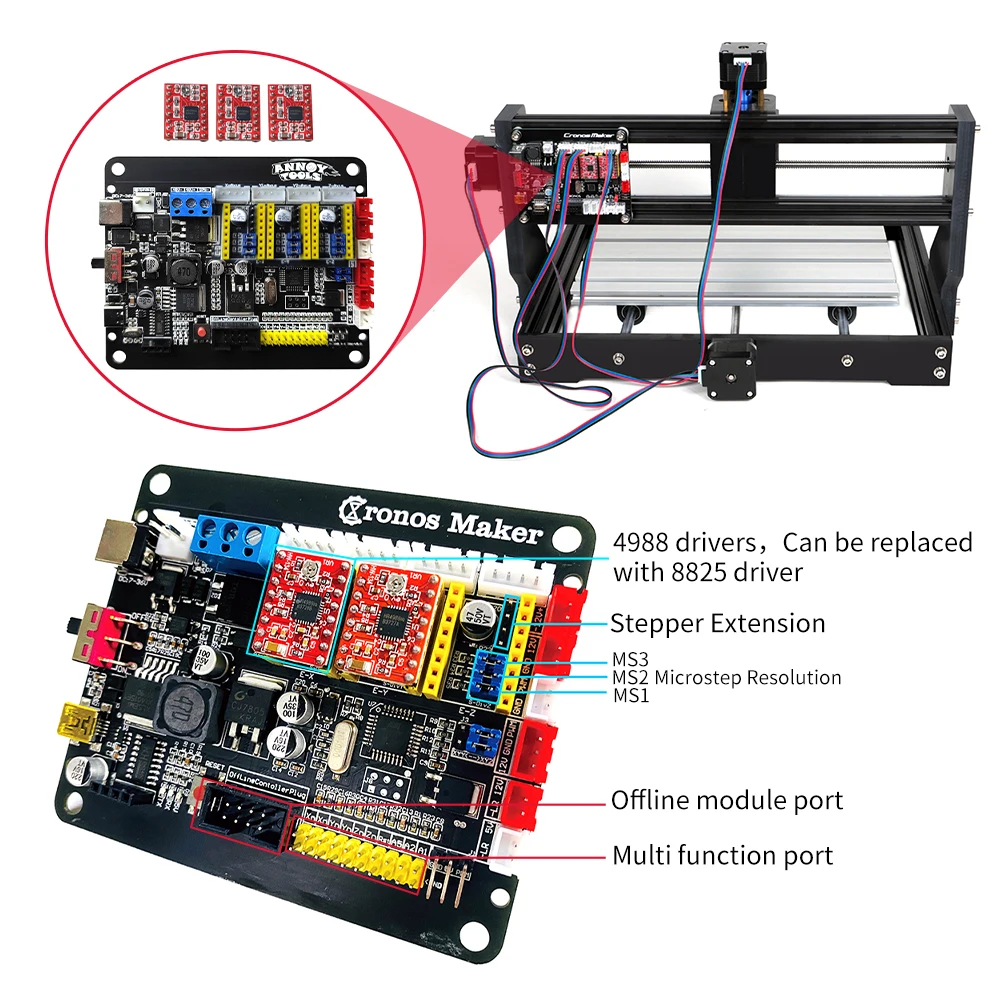

A3: The control board has a reserved 12V 3Pin laser interface, and an additional laser module is required to realize laser engraving/cutting.

Q4: What materials can I work with using CNC 3018?

A4: CNC 3018 Pro max can work with a variety of materials, including wood, plastic, acrylic, PVC, PCB, and soft metals like aluminum and copper. However, it may not be suitable for hard metals or extremely thick materials due to its compact size and power limitations.

Q5: Can I use different software with CNC 3018?

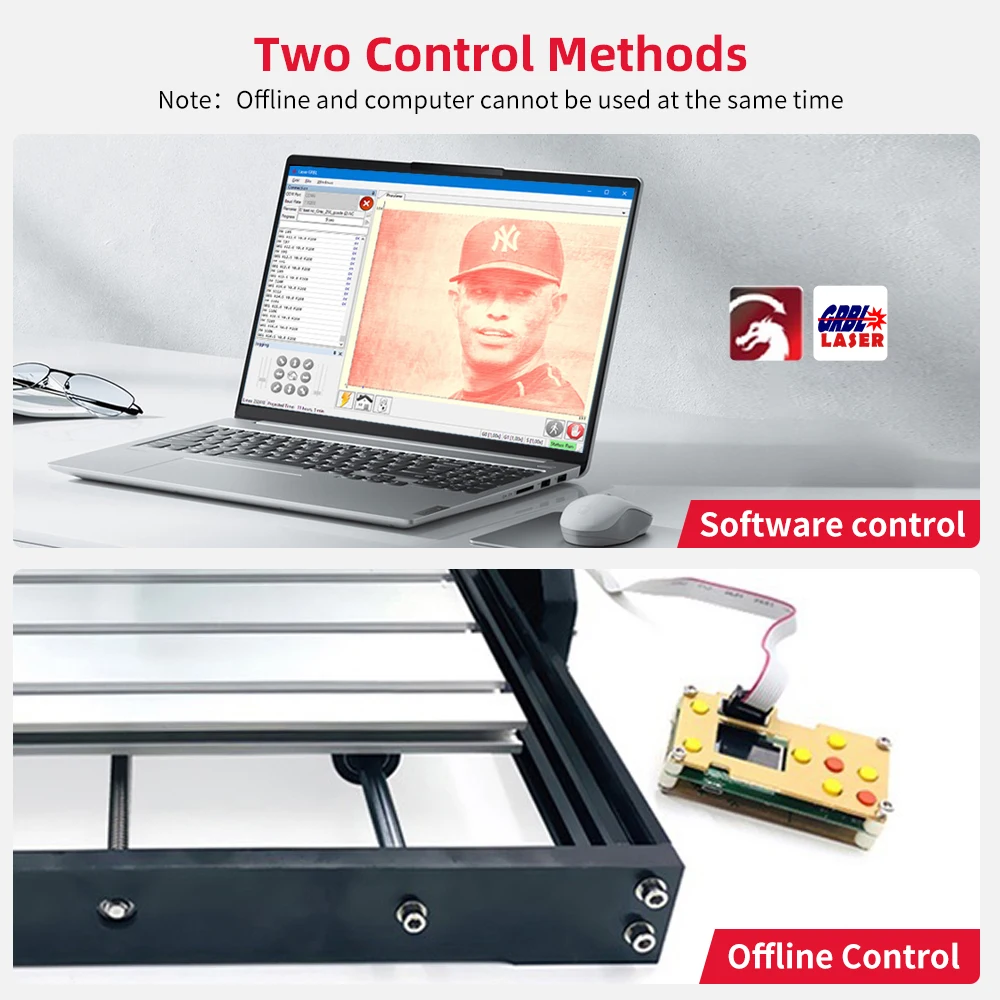

A5: Yes, CNC 3018 is compatible with various software options. The machine's control board is usually based on GRBL, allowing you to use popular CNC software like GrblControl, Candle, or Universal Gcode Sender to operate the machine.

Q6: Can the Mac computer system use it?

A6: Yes, as long as you use compatible software, it can be used normally, but we recommend using Windows system, the effect will be better and more convenient. (If you encounter problems and cannot solve them, Please told us for support).
