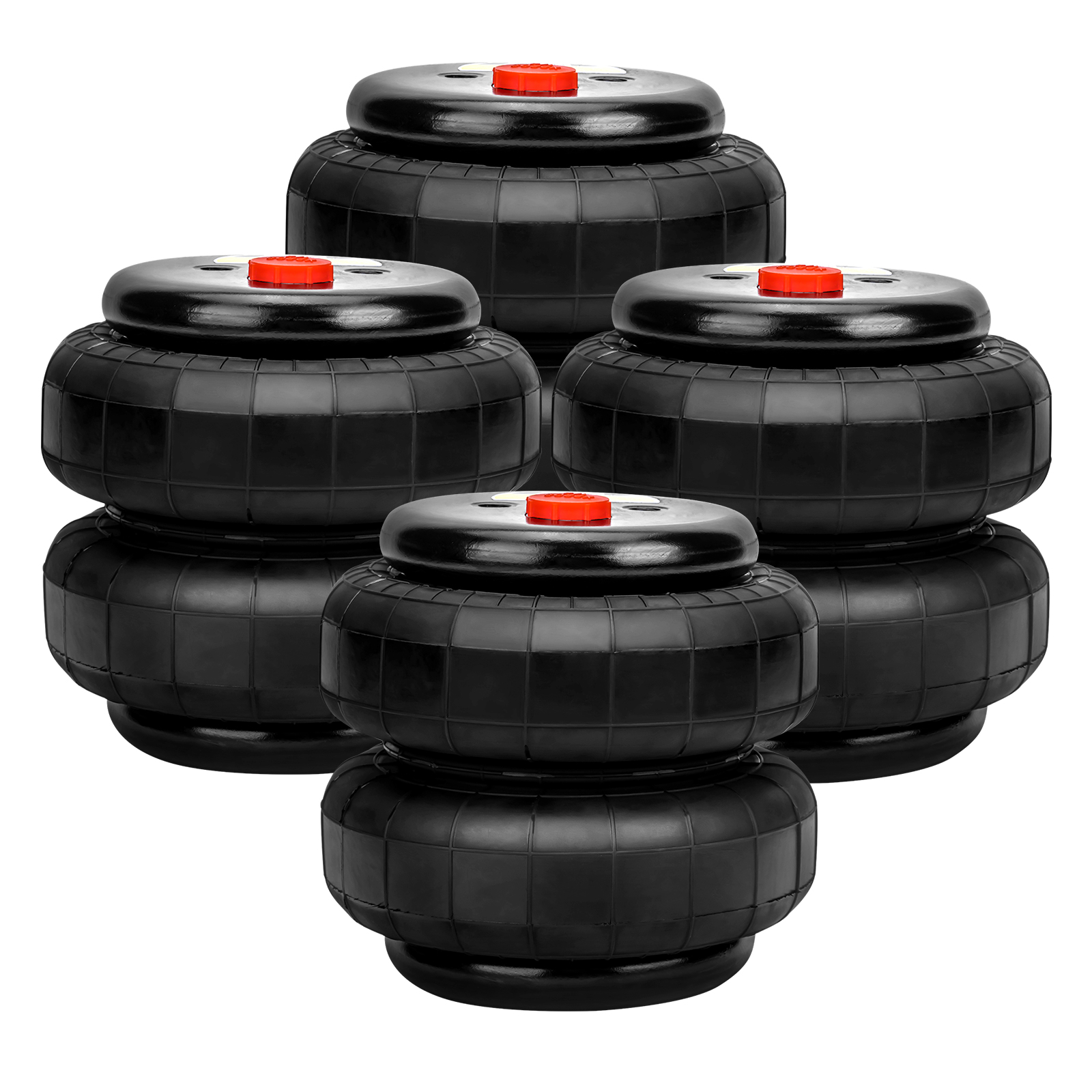

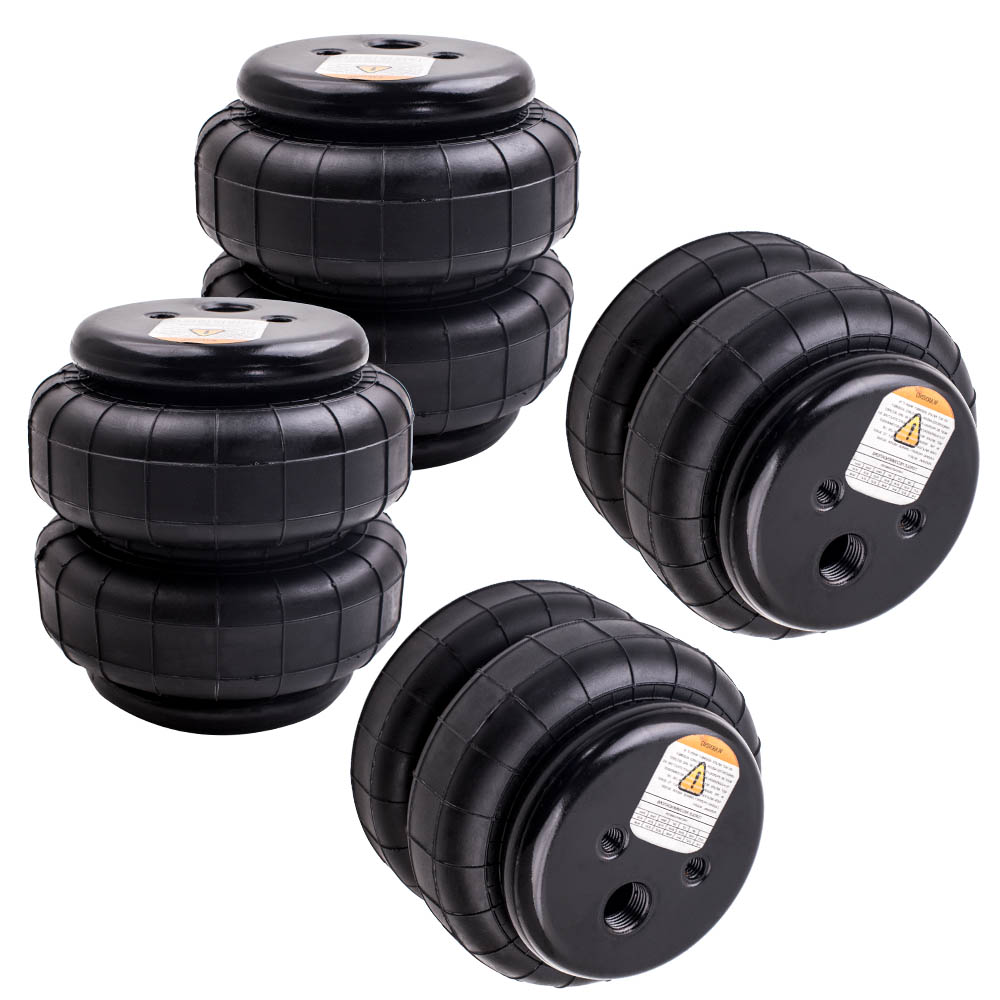

4 Universal Air Ride Suspension Bags Air Sleeve Bag 1/2"npt Single Port 2500lbs
Feature::
Air Tightness Test
MaXpeedingrods air spring bags past 24 hours air tightness test ≤2.0Mpa. Ensure no air leakage
Stress Test
MaXpeedingrods air spring bags past stress test over 5000000 times. Ensure high load-bearing capacity and long life
High quality material
MaXpeedingrods air spring bags are made of High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel
Works well in complicated climate
MaXpeedingrods air spring bags work well in temperature ≤+70° , ≥-40°, easily handle complicated climate
Specifications
| Min height | 72mm±5mm |
| Max height | 218MM±5mm |
| Working stroke | 146mm±5mm |
| Loading Cap. at 3.0bar | 2.88 KN |
| Loading Cap. at 7.0bar | 7.25 KN |
| Single air port size | 1/2NPT |
| Install hole size | 3/8-16UNC |
| Top plate diameter | 113 mm |
| Air spring bag body diameter | 148mm±2mm |
| Air spring bag capacity | 2500 LBS each |
Appliation
Universal Air Suspension Bags,Fits for most brand trucks
for GMC Sierra
for Ford F150/F250
for Chevrolet Silverado
for Dodge Ram 1500 2500 3500, etc
Please double check dimension before purchasing.
Package Includes:
4x Natural Rubber & Hi-tensile steel Air spring
Notice
- Professional installation is recommended
- Contact us please for whatever we can help
