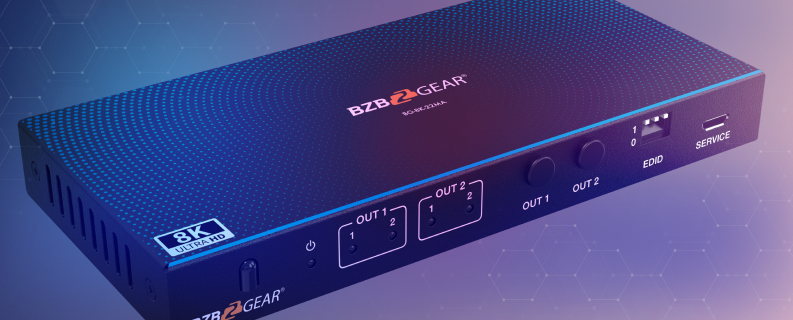

The 2x2 8K 60Hz HDMI matrix switcher is a high-performance device that allows you to switch between two HDMI input sources and send the output to two separate displays. It supports 8K resolution at 60Hz refresh rate for crystal clear picture quality. Additionally, it features audio de-embedding, allowing you to extract the audio from the HDMI signal and route it to an external audio system. The EDID management function ensures compatibility between the source and display devices by mimicking the EDID of the connected displays. This ensures optimal video and audio performance. This matrix switcher is a ideal for any professional A/V setup, home theater, and conference room.

In addition to 8K resolution at 60Hz, this 2x2 HDMI matrix switcher also supports 4K resolution at 120Hz, making it ideal for the gaming community who require the highest quality video and smooth frame rates for an immersive gaming experience. High refresh rates, such as 120Hz, can make a big difference for fast-paced games, making the image look smoother, and reducing motion blur. This feature makes this matrix switcher a great solution for gaming enthusiasts, who require the best quality picture and a seamless visual experience.

Furthermore, this matrix switcher is also compatible with 4:4:4 chroma subsampling and HDR, which means it can deliver more accurate color representation and better contrast, making it ideal for both gaming and professional video applications.

Recommended HDMI Cable
Video Resolution8K4K604K241080P
HDMI Cable TypeUltra HDMI 2.1HDMI 2.0HDMI 1.4HDMI 1.4
HDMI Cable Length (HDMI IN / OUT)3m/10ft8m/26ft12m/39ft15m/49ft
The use of a “Premium High Speed HDMI” cable is highly recommended.
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty

Video

Features

  • Secure Content
    HDMI 2.1 and HDCP 2.3 compliant
  • EDID management
    Seamless scaling for the best results
  • Compact design
    For easy and flexible installation
  • 8K and 4K@120Hz
    Video resolutions up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • Audio formats
    LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Control options
    IR remote control and front panel button switching

Specification

Technical
HDMI ComplianceHDMI 2.1
HDCP ComplianceHDCP 2.3
Video Bandwidth40Gbps
Video ResolutionsUp to 8K @ 60Hz 4:2:0 10bit, 8K @ 30Hz 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
Color Depth8/10/12-bit
Color SpaceRGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Audio FormatsHDMI input/output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Auido de-embedding output:
Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH
Analog: PCM 2.0
ESD ProtectionHuman-body model:
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input2x HDMI IN [Type A, 19-pin female]
Output2x HDMI OUT [Type A, 19-pin female]
1x OPTICAL [S/PDIF]
1x L/R [3.5mm Stereo Mini-jack]
Control1x SERVICE [Micro USB, Update port]
Mechanical
HousingMetal Enclosure
Silkscreen ColorBlack
Dimensions5.7”(W) x 2.7"(D) x 0.67”(H) [145mm(W) x 68mm(D) x 17mm(H)]
Weight0.59lbs [268g]
Power SupplyInput: AC 100~240V 50/60Hz, Output: DC 5V/2A
(US/EU standards, CE/FCC/UL certified)
Power Consumption6.2W (Max)
Operation
Temperature		32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity20~90% RH (no-condensing)
Recommended HDMI Cable
Video Resolution8K4K604K241080P
HDMI Cable Type Ultra HDMI 2.1HDMI 2.0HDMI 1.4HDMI 1.4
HDMI Cable Length
(HDMI IN / OUT)		3m/10ft8m/26ft12m/39ft15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.

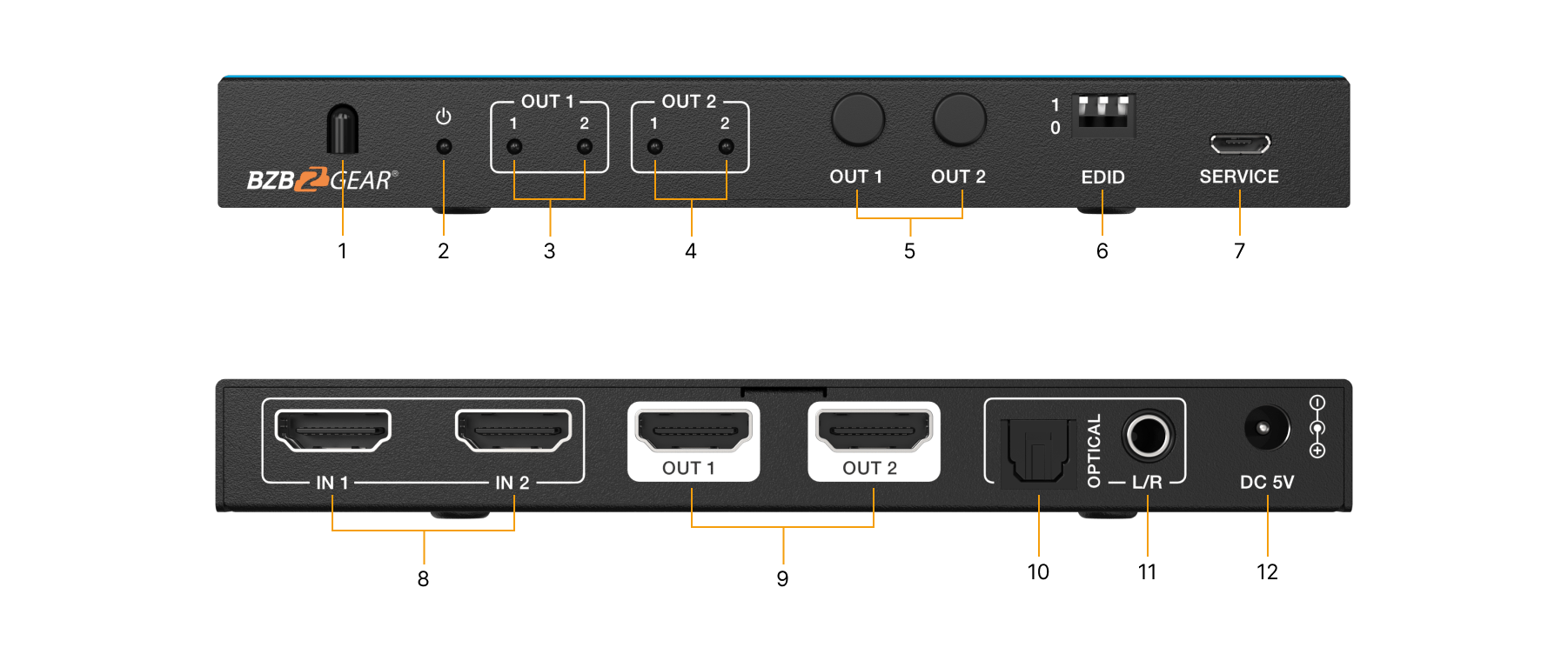

Interfaces

1. IR Window:
IR input signal receiving window.
2. POWER LED:
The power LED light is illuminated green when the device is working, and red when the device is in standby.
3. OUT 1 LED (1~2):
When the IN 1 or 2 port is selected as the signal source for the OUT 1 port, the corresponding green LED 1/2 will be illuminated.
4. OUT 2 LED (1~2):
When the IN 1 or 2 port is selected as the signal source for the OUT 2 port, the corresponding green LED 1/2 will be illuminated.
5. OUT 1~2 button:
Used to select the signal source for OUT 1/2 ports. Pressing the OUT ? buttons will allow the device to switch to either of the two connected HDMI input signals and distribute it to the corresponding output port.
6. EDID DIP switch:
Use the DIP switch to set EDID.
7. SERVICE:
Firmware update and debug port.
8. IN (1~2) port:
Connecting to an HDMI source device such as Bluray player or PS5 with an HDMI cable.
9. OUT (1~2) port:
Connecting to HDMI display devices such as TVs or Monitors with HDMI cables.
10. OPTICAL:
Optical fiber audio output port.
11. L/R:
Analog audio output port.
12. DC 5V:
DC 5V/2A Power input port.

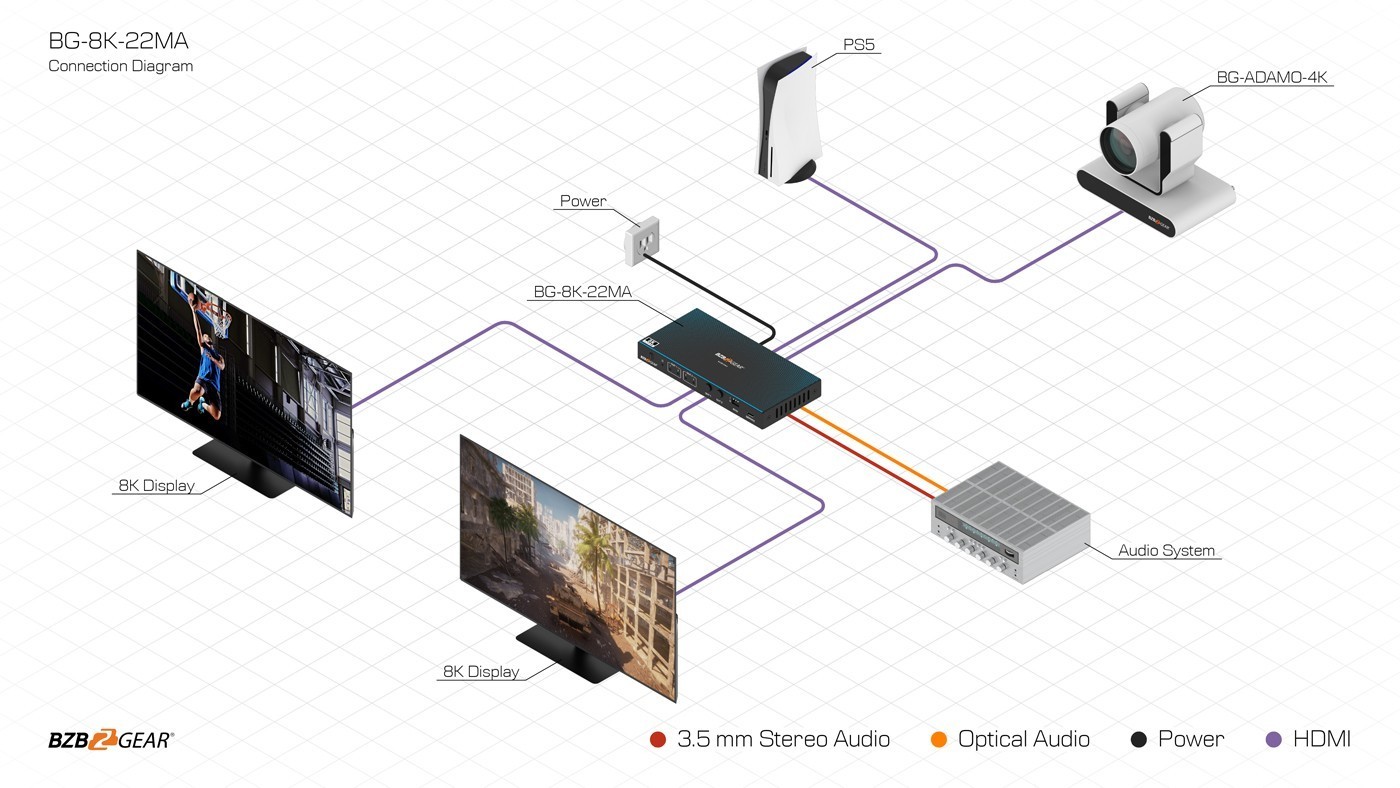

Connection Diagram

Package Contents

  • 1 x 8K HDMI 2x2 Matrix Switcher
  • 1 x IR Remote
  • 1 x 5V/2A Multinational Power Supply
  • 1 x User Manual
