HD 4.3" Car Replacement Rear View Mirror Monitor with OEM No1 Bracket
+Alloy US Car License Plate Frame Night Vision Waterproof Reverse Backup Camera
For Chevrolet Cruze: 2009 to 2018
NO.1 Applicable to bracket (Ford, GMC, Hummer, Chevrolet, Ford Mustang, Toyota, Lincoln, Mazda, Chrysler, Chrysler, Honda, Kia, Nissan, Buick, Dodge, Opel, Mitsubishi, Infiniti, Cadillac, Jeep, Subaru) models, please scroll to the bottom for detailed Equipped with models.
Monitor Features:
* OEM car rear view monitor.
* 4.3 inch TFT LCD display screen.
* HD 800*480 resolution.
* Special metal bracket perfect match your car.
* Auto switch to rear view image when you hand to reverse gear.
* Power: DC 12V, ≤ 2W.
* 2 Video input: AV1 for VCD/DVD, AV2 for rear view camera (camera not included).
* Note: Please make sure your original car bracket is same as our No.1 bracket (please contact with us if you need other models)
Package Include：
1x4.3 Inch Mirror Monitor
1xWire Cover
1xBracket(NO. 1)
1xPower Harness
1xCar Rear View Camera
1x6m video cable
1xPower cable
1xUser Manual
* OEM car rear view monitor.
* 4.3 inch TFT LCD display screen.
* HD 800*480 resolution.
* Special metal bracket perfect match your car.
* Auto switch to rear view image when you hand to reverse gear.
* Power: DC 12V, ≤ 2W.
* 2 Video input: AV1 for VCD/DVD, AV2 for rear view camera (camera not included).
* Note: Please make sure your original car bracket is same as our No.1 bracket (please contact with us if you need other models)
Specifications of Camera:
Image Sensor: Color CMOS PC1030.
Lens Angle: 170 degree.
Light vision: 7 Bright LED light with 1 Photoreceptor
Sensing area: NTSC 4.08 x 3.10 mm.
Effective Pixels: PAL: 804 * 776 pixels NTSC: 812 * 786 pixels
Horizontal Resolutions: 480 TV lines.
Minimum Illumination: 1LUX/F1.2
Video output: RCA connector, 1.0 V p-p, 75 ohm.
Power Consumption: 60 mA.
Power Supply: DC 12 V.
Size: 12.21" x 6.34" x 1.06" ( 310 x 161 x 27 mm ).
White balance:automatic
The backlight compensation: automatic
Working temperature: 20 ° C-from 70 ° C, humidity RH95 biggest %
Storage temperature:-40 ° C ~ 80 ° C, humidity RH95 biggest %
Lens Angle: 170 degree.
Light vision: 7 Bright LED light with 1 Photoreceptor
Sensing area: NTSC 4.08 x 3.10 mm.
Effective Pixels: PAL: 804 * 776 pixels NTSC: 812 * 786 pixels
Horizontal Resolutions: 480 TV lines.
Minimum Illumination: 1LUX/F1.2
Video output: RCA connector, 1.0 V p-p, 75 ohm.
Power Consumption: 60 mA.
Power Supply: DC 12 V.
Size: 12.21" x 6.34" x 1.06" ( 310 x 161 x 27 mm ).
White balance:automatic
The backlight compensation: automatic
Working temperature: 20 ° C-from 70 ° C, humidity RH95 biggest %
Storage temperature:-40 ° C ~ 80 ° C, humidity RH95 biggest %
Compatible With Universal for 12V Car, SUV, Pickup Vehicle ,etc.
Camera Highlights:
170°Wide Viewing Angle Backup Camera: 170 degree visible range designed backup camera is perfect for checking unseen blind spots in your vehicle’s mirrors when reversing your car, and can be adjusted 30 degree by loose screw. In addition, the reverse cameras would be perfect for avoiding car crashes while driving in the dark.
HD Night Vision Designed: The rear view camera is equipped with 8 high definition IR leds, which can make you see very clear at night or in a dark underground parking garage. 640x480 capture resolutions and support NTSC TV system.

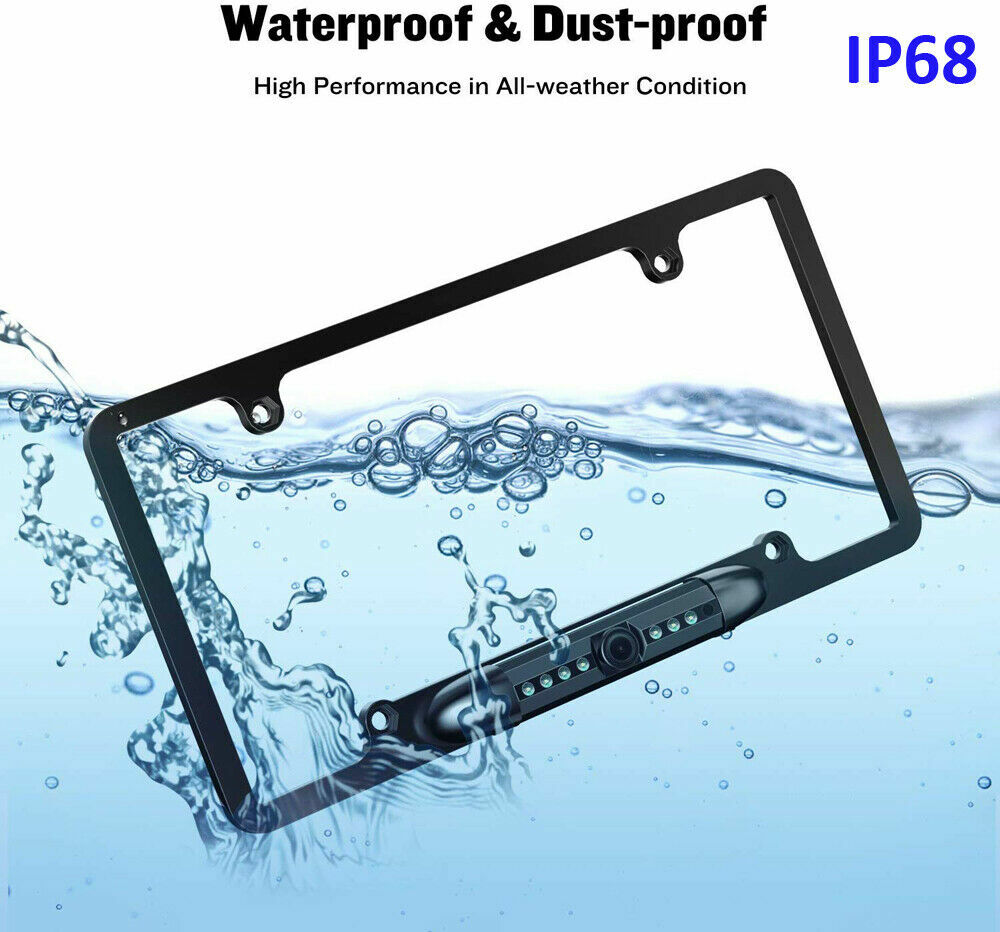

Premium License Plate Frame: Stylish heavy duty chrome plated frame, which is suitable for all vehicles that use a standard US license number plate holder.
How to install :
It can be easily installed on the license plate, compatible with standard U.S. or Canada license plates.
1.Clean the camera installation surface.
2.Mount the camera on the license plate.
3.Fix the camera temporarily with the existing screws.
4.Connect the camera to the power and monitor.
5.Change the shift lever to the R (Reverse) range to view the rear image of the vehicle.
6.Use the L-wrench to adjust the camera for a best viewing angle.
7.Tighten the retaining hex screws firmly, fix the camera.
1.Clean the camera installation surface.
2.Mount the camera on the license plate.
3.Fix the camera temporarily with the existing screws.
4.Connect the camera to the power and monitor.
5.Change the shift lever to the R (Reverse) range to view the rear image of the vehicle.
6.Use the L-wrench to adjust the camera for a best viewing angle.
7.Tighten the retaining hex screws firmly, fix the camera.
Package Include：
1x4.3 Inch Mirror Monitor
1xWire Cover
1xBracket(NO. 1)
1xPower Harness
1xCar Rear View Camera
1x6m video cable
1xPower cable
1xUser Manual
