Product Description

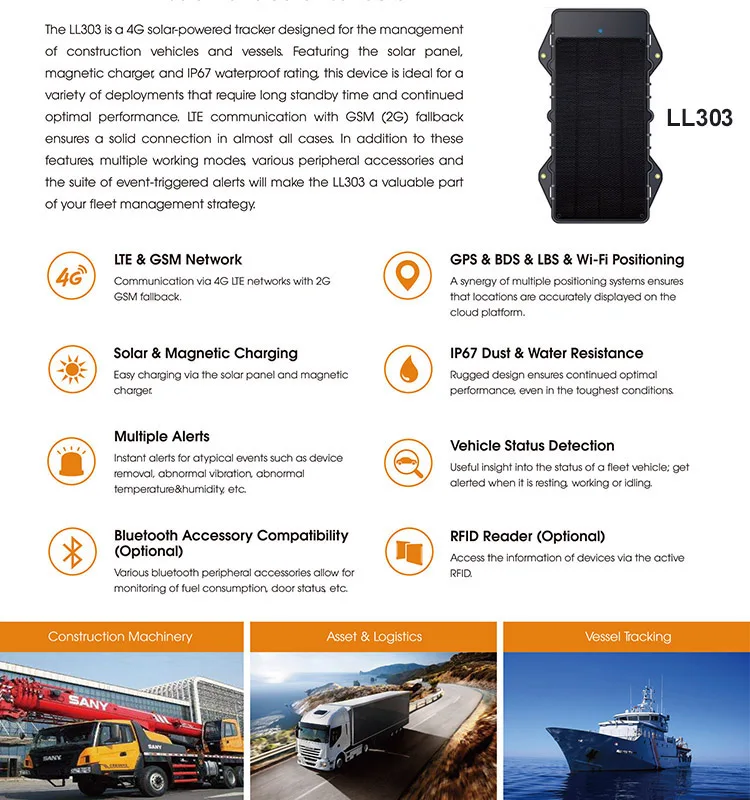

JIMI jm LL303 4G solar power gps tracker with 10000mAh industry grade battery

Model:JM-LL303

Feature:
GPS & LBS Positioning
4G network with 2G fallback signal
IP67 waterproof
fuel sensor,temperature sensor,RFID reader is optional
Solar power with 10000mAh industry grade rechargeable battery


Technicial Parameter:



GNSS
Positioning systemGPS+BDS+LBS+WiFi+AGPS
Positioning accuracy<2.5m CEP
Track sensitivity-165dBm
Acquisition sensitivity-148dBm
TTFF (open sky)Avg. hot start ≤1sec
Avg. cold start ≤32sec

Cellular

Communication networkLTE Cat1/GSM
Frequency
LL303-C:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LL303-E:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
LL303-L:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8

Power

Battery10,000mAh/3.7V industrial-grade Li-Polymer battery
Solar power5V/390mA (Standard Operating Voltage/Current @STC)
STC: Direct illumination with 38,000lux halogen lamp on the test bench.
Magnetic charger5V/2,000mA
Working modesMode 1: Regular GPS mode
Mode 2: Tracking mode
Mode 3: Power-saving mode
Standby timeUp to 2 years in power-saving mode

Interface

LED indicationCellular (Green), Power (Red)
SIMNano-SIM
Tamper proofHall effect sensor

Physical
specification

Dimensions200.0 x 90.0 x 25mm (without base)
Weight480g (without base)

Operating
environment

Operating temperature–20℃ to +70℃
Operating humidity5%~95%, non-condensing
IP ratingIP67

Feature

SensorsAccelerometer, Temperature&humidity sensor, Hall effect sensor
BlE versionSupport BLE 5.0 protocol
ScenariosLow battery alert, Tamper alert, Vibrating Alert
