Features & Details

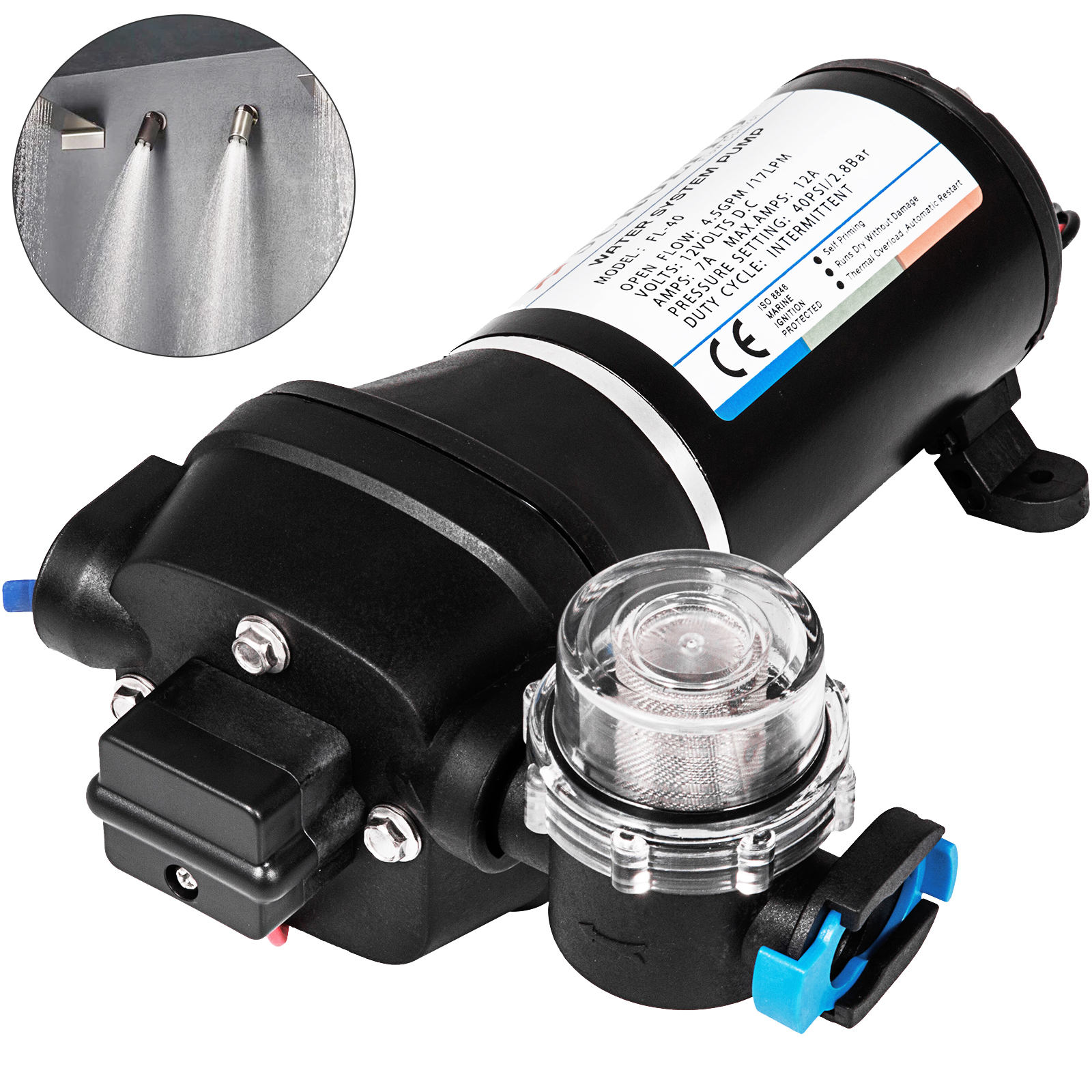

- 【DURABLE MATERIAL】- The diaphragm water pump is composed of high-strength cast iron with powder-coated that is waterproof and rust-proof for long-lasting uses.
- 【POWERFUL AUTOMATIC PRESSURE PUMP】- This pump is a fully automatic self-priming pump, the max flow of 17 L/min, inlet PSI set at Max 40PSI(2.76Bar), power for the Pump: AC 12V.
- 【SAFETY PROTECTION】- The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection. Long-life pump with quiet operation and no leak.
- 【QUICK INSTALLATION】- The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
- 【FOR VARIOUS USES】- The misting booster pump can be applied in food, beverage filling, and liquid transfer. The kind of pump is known as a clean machine, road-works requirements, cooler system.
Key Features
Cast Iron Material
The Sprayer Diaphragm Pump is made of high-strength cast iron with powder-coated that is resistant to chemical corrosion.
Superior Design
The diaphragm pump is specially made for the pressurization system, permanent DC magnetic drive. Automatic self-priming pump with the max flow of 17 L/min, inlet PSI set at Max 40PSI(2.76Bar). Fully sealed, high stable pressure. Handles liquids up to 60°C. Runs dry without damage. Out-off when pressure reached or on close of tap.
Thermal Protection
The self-priming automatic pump has a built-in thermal protector and provides automatic Pressure Protection.
Metal Filter Included
Metal filters can be connected to the diaphragm water pump for stable performance.
Fast Assembly
The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
Wide Application
Ideal for automotive marine/RV/caravans, agricultural spraying, general industrial, sprayer fixtures.
The diaphragm pump is specially made for RV/MARINE Yachts and any other pressurization system. All the pumps have been strictly tested and inspected by the QC department to guarantee proper operation. When installed correctly, marine duty freshwater Pumps provide years of quiet operation.
- Durable Material
- Powerful Automatic Pressure Pump
- Safety Protection
- Quick Installation
Specification
- Model: FL-40
- Voltage: 12V, 9.2A
-
Flow: 17 L/min
- Insert size: 1/2”hose barb, thread
- Outlet size : 1/2”hose barb, thread
- Type: 3 Chamber Diaphragm
- Self-priming: 6 feet [within 2M]
- Inlet PSI: 40PSI [2.76Bar] Max
- Run Dry: Yes
- Net weight: 2.4kg
Package Content
- 1 X Diaphragm Water Pump
- 1 x Filter
- 3 x Fitting
People Who Bought This Item Also Bought
The diaphragm pump is specially made for RV/MARINE Yachts and any other pressurization system. All the pumps have been strictly tested and inspected by the QC department to guarantee proper operation. When installed correctly, marine duty freshwater Pumps provide years of quiet operation.
- Durable Material
- Powerful Automatic Pressure Pump
- Safety Protection
- Quick Installation
Key Features
-
Cast Iron Material
The Sprayer Diaphragm Pump is made of high-strength cast iron with powder-coated that is resistant to chemical corrosion.
-
Superior Design
Thediaphragm pump is specially made for the pressurization system, permanent DC magnetic drive.Automatic self-priming pump with the max flow of 17 L/min, inlet PSI setat Max 40PSI(2.76Bar). Fully sealed, high stable pressure. Handles liquids up to 60°C. Runs dry without damage. Out-off when pressure reached or on close of tap.
-
Thermal Protection
The self-priming automatic pump has a built-in thermal protector and provides automatic Pressure Protection.
-
Metal Filter Included
Metal filters can be connected to the diaphragm water pump for stable performance.
-
Fast Assembly
The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
-
Wide Application
Ideal for automotive marine/RV/caravans, agricultural spraying, general industrial, sprayer fixtures.
-
Package Content
- 1 X Diaphragm Water Pump
- 1 x Filter
- 3 x Fitting
Specification
- Model: FL-40
- Voltage: 12V, 9.2A
-
Flow: 17 L/min
- Insert size: 1/2”hose barb, thread
- Outlet size : 1/2”hose barb, thread
- Type: 3 Chamber Diaphragm
- Self-priming: 6 feet [within 2M]
- Inlet PSI: 40PSI [2.76Bar] Max
- Run Dry: Yes
- Net weight: 2.4kg
 |
 |
 |
|
| 40PSI Misting Pump | 17PSI Misting Pump | 12V Macerator Pump | |
| Model | FL-30 | FL-40 | VV-RVMP-12 |
| Voltage | 12V, 2.2A | 12V, 9.2A | 12A , 6A |
| Port Size | 3/4"19 mm | 3/4"/19.05 mm | / |
| Flow | 10 L/min (2.63 GPM) | 17 L/min | 45.4L/min（12 GPM） |
| Insert size | 1/2” hose barb, thread | 1/2”hose barb, thread | 3" / 75 mm |
| Outlet size | 1/2” hose barb, thread | 1/2”hose barb, thread | 1" / 25.4 mm |
| Type | 3 Chamber Diaphragm | 3 Chamber Diaphragm | / |
| Self-priming | 6 feet(within 2 m) | 6 feet [within 2M] | 6 feet [within 2M] |
| Run Dry | Yes | Yes | Yes |
