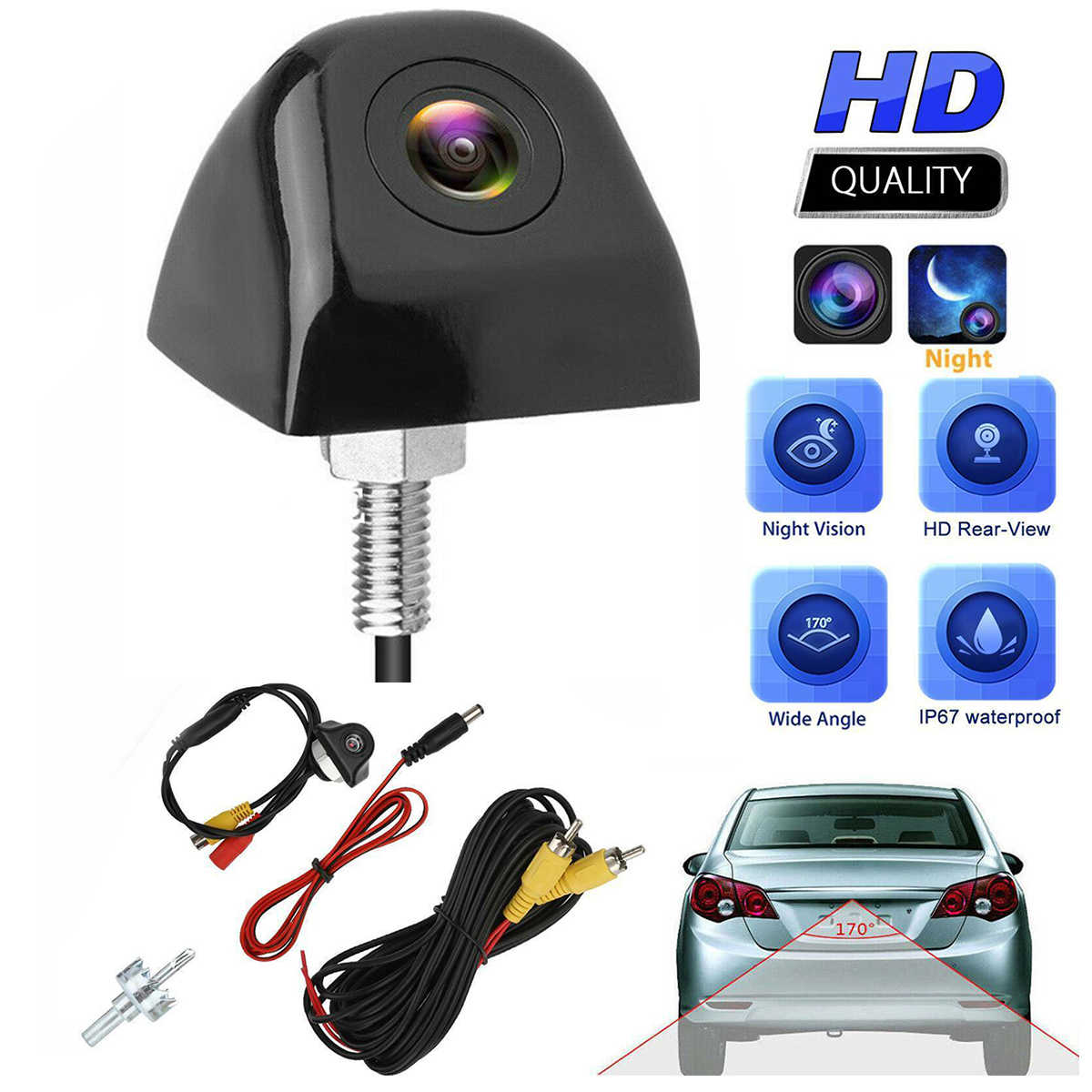

Features:

- Brand new and high quality.

- Compact design, easy to install and operate.

- Anti fog glass, 1/4" CMOS imaging sensor.

- Night vision camera with high sensitivity.

- High definition and up to 170 degrees wide viewing angle.

- Support NTSC/PAL video system and can give you a full sight of the back of your car when you are driving.

- IP68 waterproof design, shock-proof and anti-jamming functions.

- It helps to avoid incidents, accidents abrasion and ensure your safety.

- Can connect to any type of monitor with a composite yellow RCA jack.

- Applicable to variety of vehicles: car, truck, RV, etc.

- Fit front/side/back of the car. (Blue loop control guide lines, White loop control mirror image)

Specifications:

Image Sensor: 1/4" CMOS

Effective Pixel: 656 x 492 Pixels

Scanning System: 2:1 Interlace

Min Illumination: 0.2 Lux

Resolution:480TVL

Video Format: PAL/NTSC(Automatic throw-over)

Lens Angle: 170 / 135 degrees

Sensor Area: 4.08 x 3.12mm

Shutter Speed: 1/60-1/20000

Gamma Coefficient: 0.45

Video Output: 1.0 VP-P, 75 OHM

Dynamic Range: > 63.5db

S/N Ratio:> 45.6db

Water-proof: IP68

Power Supply: DC 12V

Operating Temperature: -20 ~ 70℃ (RH95% Max.)

Storage Temperature:-40 ~ 85℃ (RH95% Max.)

Image pipeline feature: Auto exposure, AWB, AGC, Auto ficker detection and cancellation

Video Cable Length: 19.7 Ft /6M

Power Cable Length: 3.3 Ft /1M

Package Included:

1 x Car Rear View Camera

1 x Video Cable

1 x Power Cable

1 x User Manual
