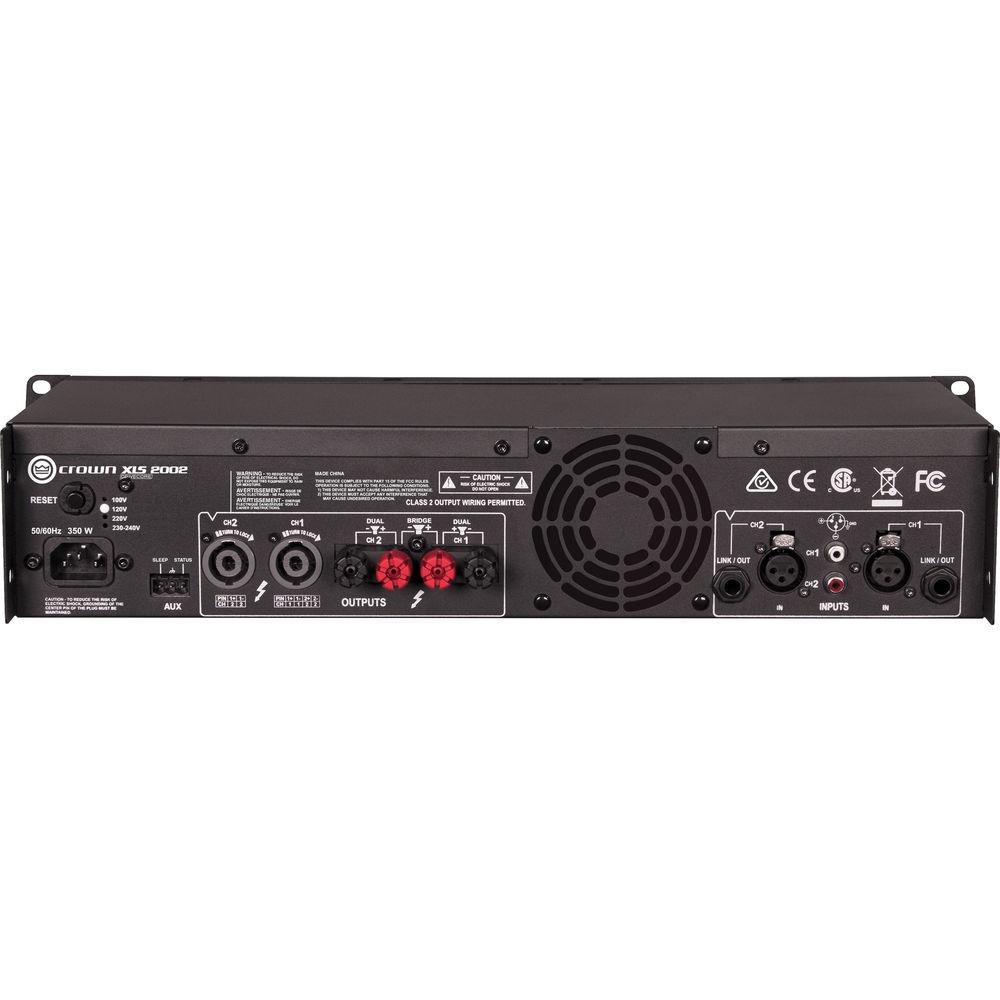

For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.
You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.
Power Cord
| Connectors | Input: 2x XLR 2x RCA 2x 1/4" / 6.35 mm (can be used as a loop-thru to other amplifiers) Output: Binding Post (Channel 1 & 2): 2 pair 4-Pole speakON: 2 (Channel 1 offers Channel 1 & 2 wiring or Bridge Mode wiring) |
| Sensitivity | 1.4 Vrms |
| Amplifier Power | 1050 W at 2 ohm per channel 0 650 W at 4 ohm per channel 375 W at 8 ohm per channel 2100 W at 4 ohm bridged 1300 W at 8 ohm bridged |
| Frequency Response | At 1 W, 20 to 20,000 Hz: +0 dB, -1 dB |
| Signal to Noise Ratio | >103 dB (at 0.775 Vrms sensitivity, Signal to Noise is 6 dB lower) |
| THD | <0.5% |
| Intermodulation Distortion | <0.3% |
| Damping Factor | >200 |
| Crosstalk | At 1000 Hz: >85 dB At 20,000 Hz: >55 dB |
| Dimensions (W x H x D) | 19 x 3.5 x 10.7" (48.3 x 8.9 x 27.2 cm) |
| Weight | 10.8 lb (4.9 kg) |
