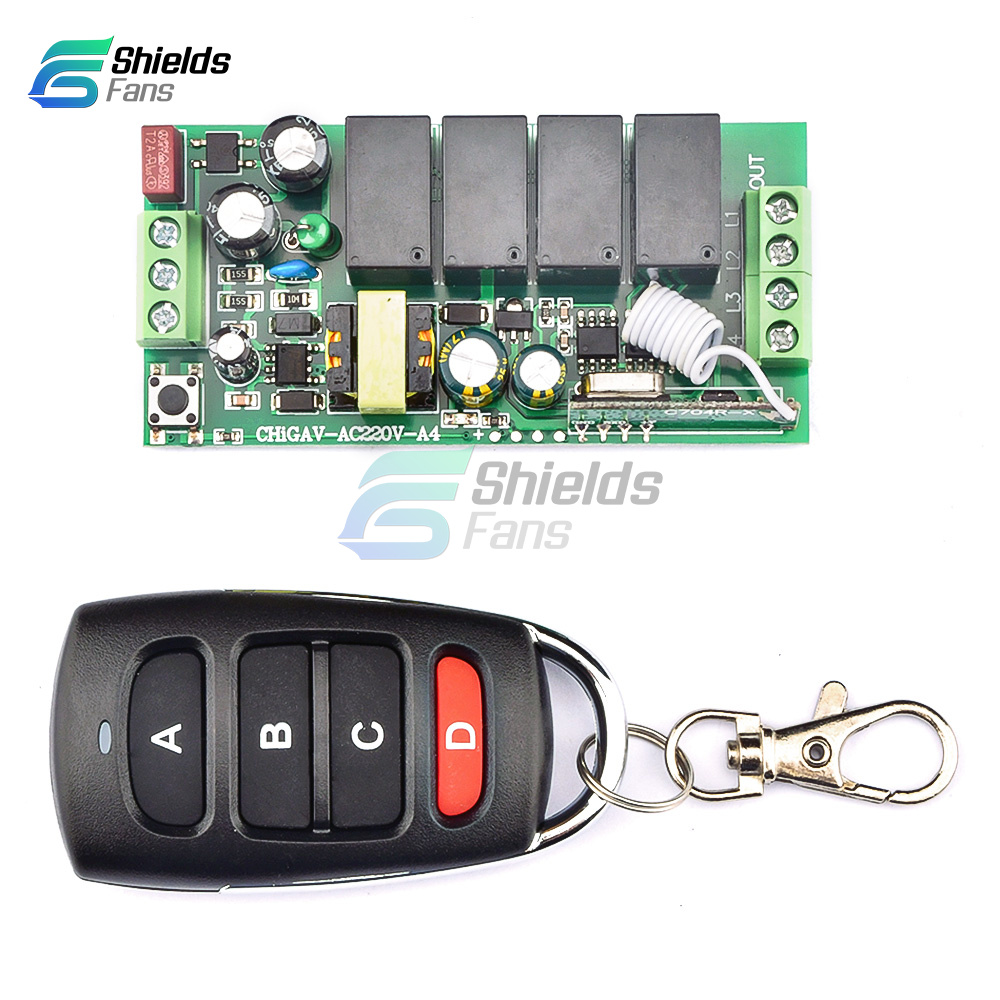

AC 220V 433MHz Wireless RF Remote Control Relay Switch 4 Channel Receiver Board
Features:
1. Stable and reliable performance
2. Easy to use
3. Safe and reliable
4. The new smart switch can control one or more indoor devices. This product is based on electrical practices and adopts advanced electronic circuit design.
5. Products are widely used in remote control water pump switches, wireless remote control machine switches, wireless remote control sockets, wireless lamps, various wireless home appliances control, etc.
1. Stable and reliable performance
2. Easy to use
3. Safe and reliable
4. The new smart switch can control one or more indoor devices. This product is based on electrical practices and adopts advanced electronic circuit design.
5. Products are widely used in remote control water pump switches, wireless remote control machine switches, wireless remote control sockets, wireless lamps, various wireless home appliances control, etc.

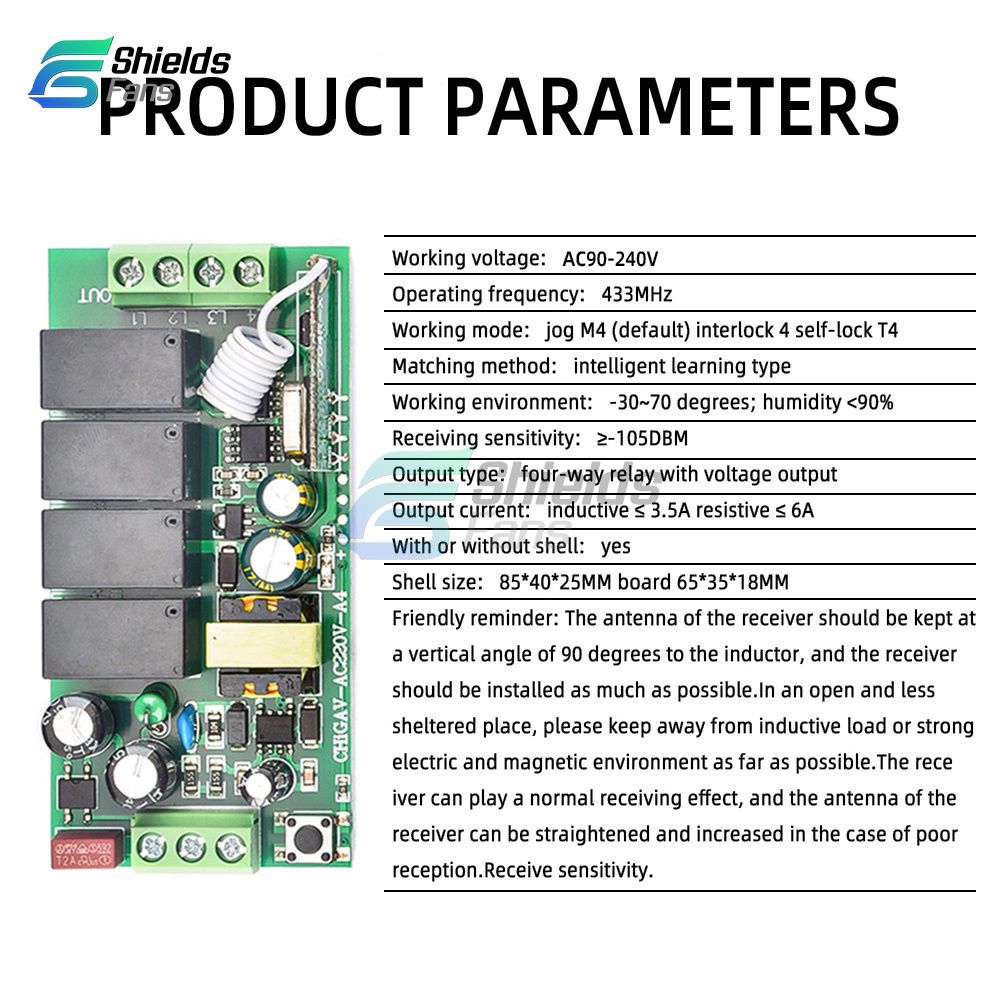

Product parameters:
Working voltage: AC90-240V
Working frequency: 433Mhz
Matching method: intelligent learning type
Working voltage: AC90-240V
Working frequency: 433Mhz
Matching method: intelligent learning type

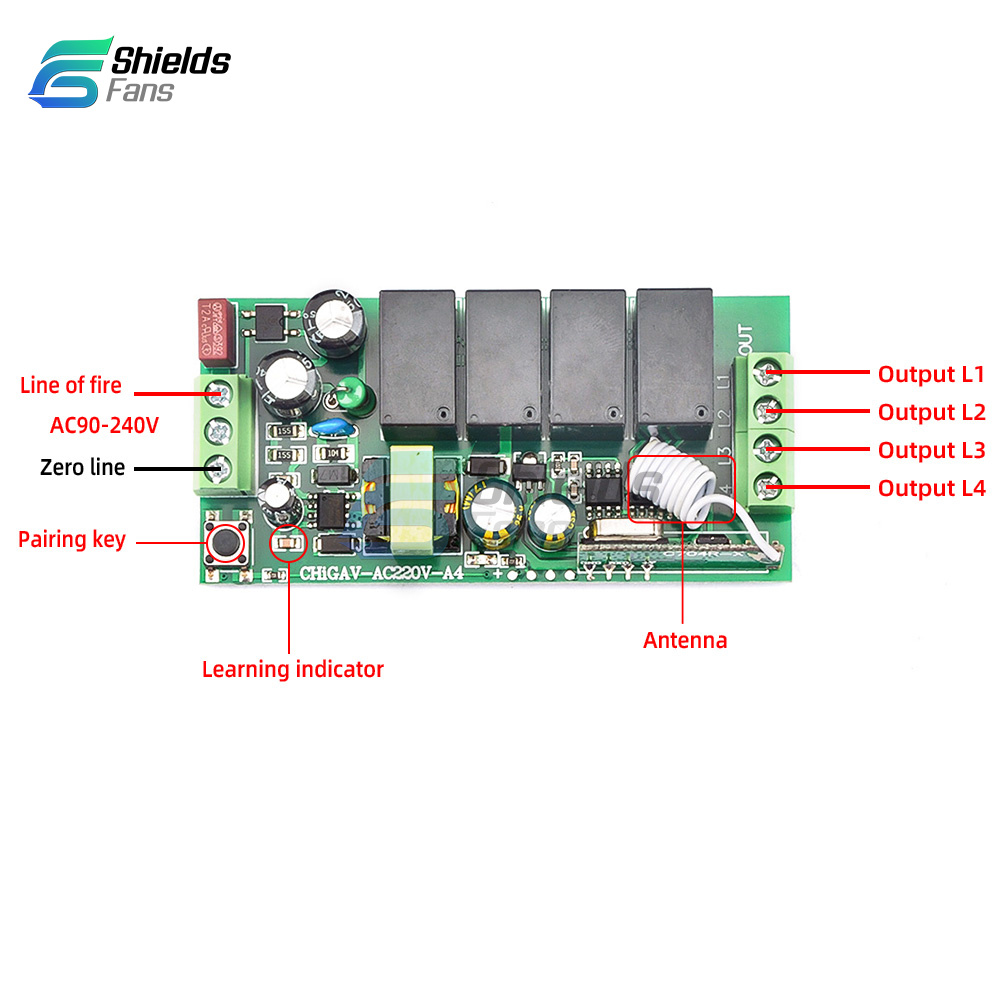

Product operation learning pairing code:
1. Jog learning method:
Press the code pairing button on the control board once, and the LED indicator flashes once. After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel flashes 3 times and the code is successfully paired.
1. Jog learning method:
Press the code pairing button on the control board once, and the LED indicator flashes once. After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel flashes 3 times and the code is successfully paired.
2. Self-locking learning method:
Press the code pairing button on the control board twice continuously, the LED indicator flashes 2 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED
The indicator light flashes 3 times continuously and the code pairing is successful.
Press the code pairing button on the control board twice continuously, the LED indicator flashes 2 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED
The indicator light flashes 3 times continuously and the code pairing is successful.
3. Interlocking learning method:
Press the control panel code pairing button 3 times in a row, the LED indicator flashes 3 times along with it, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times continuously and the code pairing is successful.
Press the control panel code pairing button 3 times in a row, the LED indicator flashes 3 times along with it, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times continuously and the code pairing is successful.
4. Two-way jog and two-way self-locking learning method:
Press the control panel code pairing button 4 times in a row, the LED indicator flashes 4 times, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times continuously and the code pairing is successful.
Press the control panel code pairing button 4 times in a row, the LED indicator flashes 4 times, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times continuously and the code pairing is successful.
5. Two-way jog and two-way interlocking learning method:
Press the code pairing button on the control panel 5 times continuously, the LED indicator will flash 5 times, and after the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times continuously and the code pairing is successful.
Press the code pairing button on the control panel 5 times continuously, the LED indicator will flash 5 times, and after the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times continuously and the code pairing is successful.
6. Two-way interlock and two-way interlock learning method:
Press the control panel code pairing button 7 times in a row, the LED indicator flashes 7 times, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times continuously and the code pairing is successful.
Press the control panel code pairing button 7 times in a row, the LED indicator flashes 7 times, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times continuously and the code pairing is successful.
Clear data:
Press the control panel code pairing button 8 times continuously, the LED indicator will flash 8 times, then the LED indicator will automatically flash 8 times continuously, then the code clearing is completed, and all the remote control key codes that have been learned before are cleared.
Press the control panel code pairing button 8 times continuously, the LED indicator will flash 8 times, then the LED indicator will automatically flash 8 times continuously, then the code clearing is completed, and all the remote control key codes that have been learned before are cleared.
Explanation of the output method:
1. Self-locking: Press the same remote control button, press it once, the relay will turn on, and press it again, the relay will turn off.
2. Interlocking: Press the "A" key of the remote control, the relay will be turned on, and press the "B" key of the remote control, the relay will be turned off.
3. Jog: press the "A" button of the remote control, the relay will be turned on, release the "A" button of the remote control, the relay will be turned off. If you keep pressing the "A" button of the remote control, the relay will be on all the time, and when you release the remote control, the relay will be off.
1. Self-locking: Press the same remote control button, press it once, the relay will turn on, and press it again, the relay will turn off.
2. Interlocking: Press the "A" key of the remote control, the relay will be turned on, and press the "B" key of the remote control, the relay will be turned off.
3. Jog: press the "A" button of the remote control, the relay will be turned on, release the "A" button of the remote control, the relay will be turned off. If you keep pressing the "A" button of the remote control, the relay will be on all the time, and when you release the remote control, the relay will be off.
Precautions:
1. Do not operate with power on, the power should be turned off to operate, and the power should be turned on after the detection is confirmed.
2. When the voltage of the remote control is insufficient, please replace the battery in time (when the battery voltage of the remote control is insufficient, the general remote control distance becomes closer).
3. When using wireless electronic products, you should avoid metal masks, large electronic equipment, electromagnetic fields, etc. There are strong sources of interference, so as to avoid the remote control and the receiving distance being short or unable to work normally.
1. Do not operate with power on, the power should be turned off to operate, and the power should be turned on after the detection is confirmed.
2. When the voltage of the remote control is insufficient, please replace the battery in time (when the battery voltage of the remote control is insufficient, the general remote control distance becomes closer).
3. When using wireless electronic products, you should avoid metal masks, large electronic equipment, electromagnetic fields, etc. There are strong sources of interference, so as to avoid the remote control and the receiving distance being short or unable to work normally.

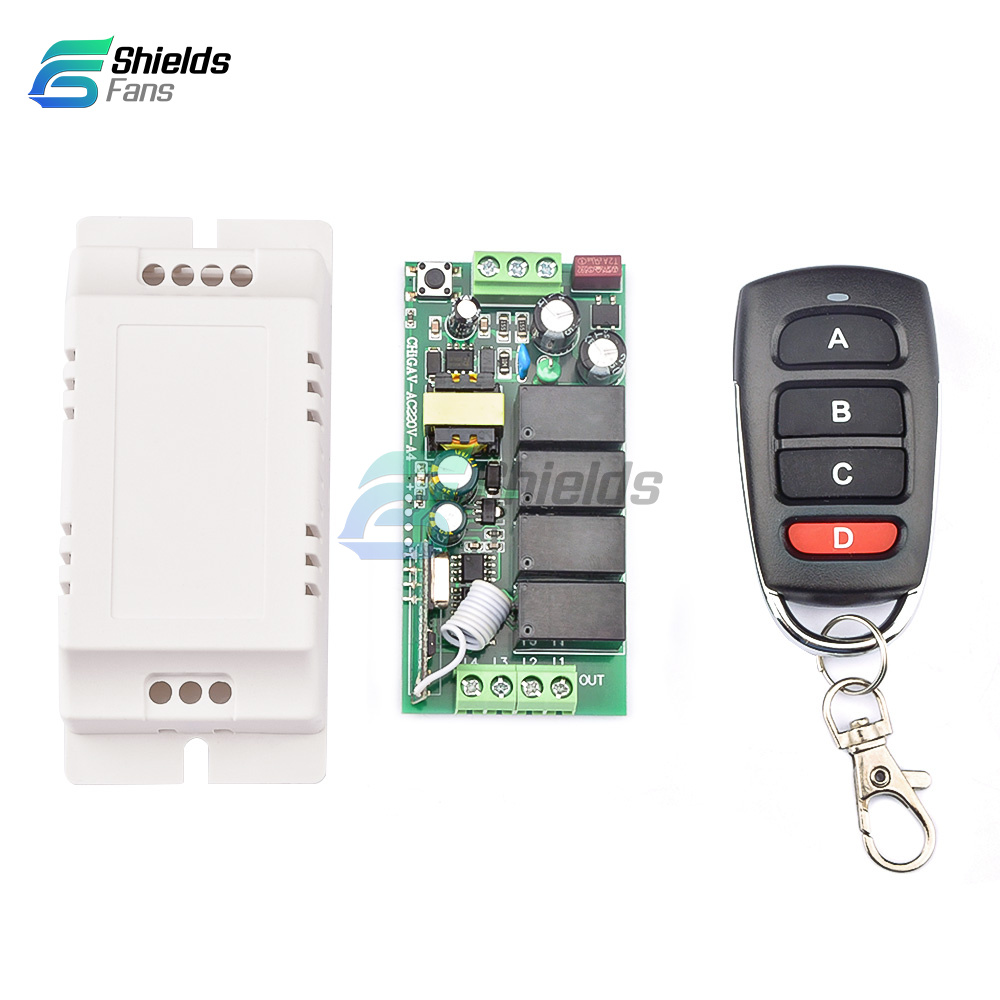

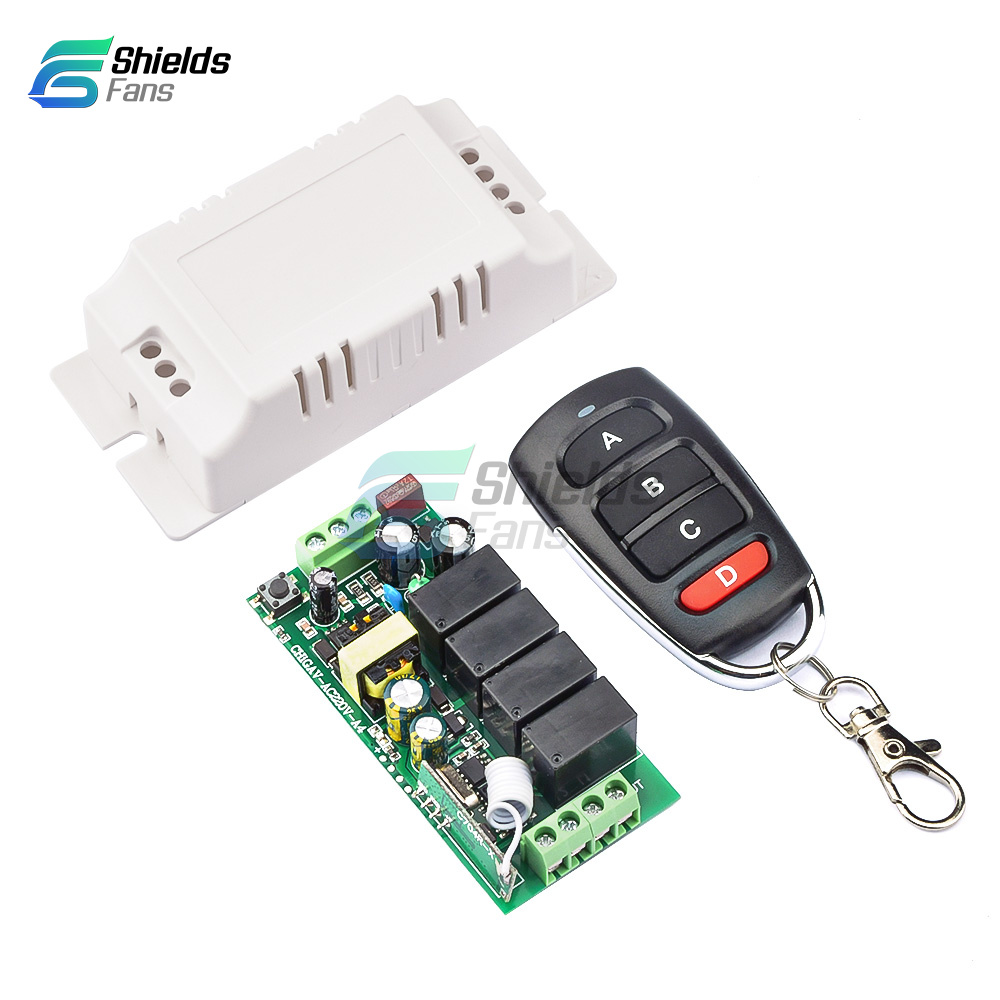

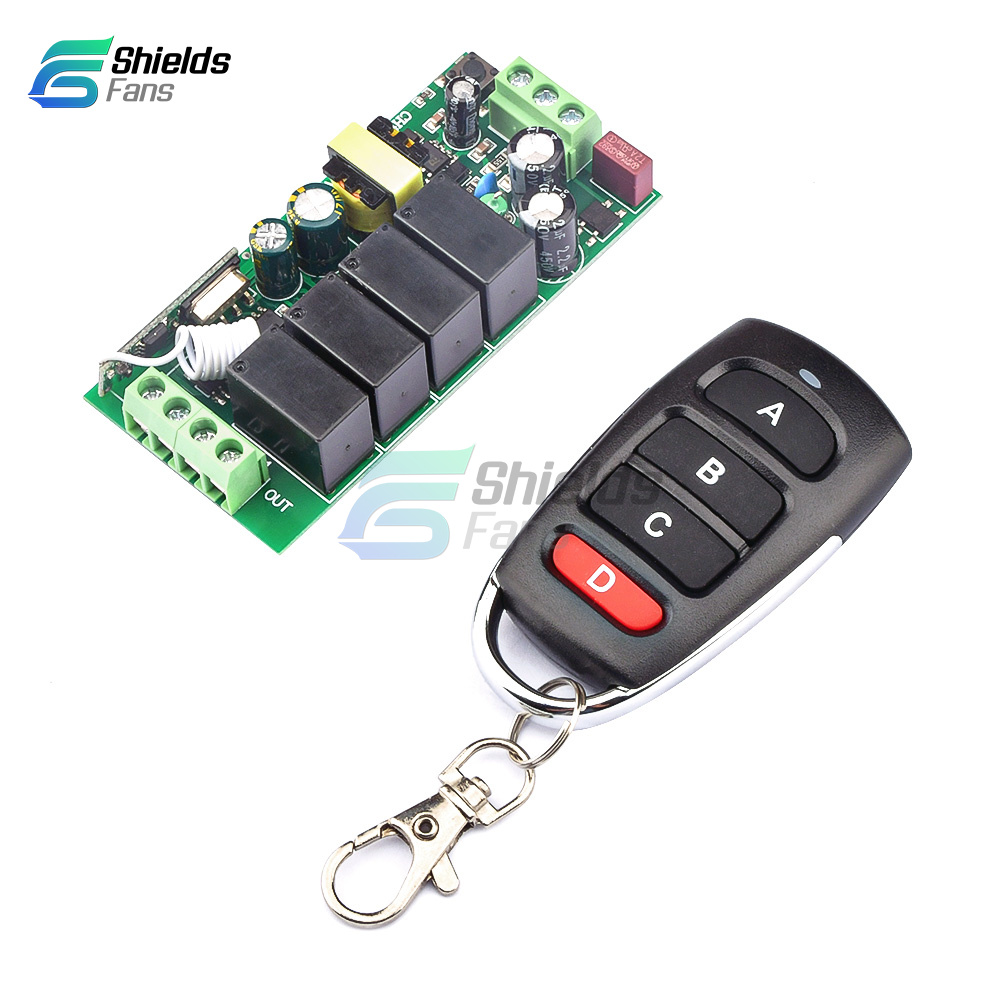

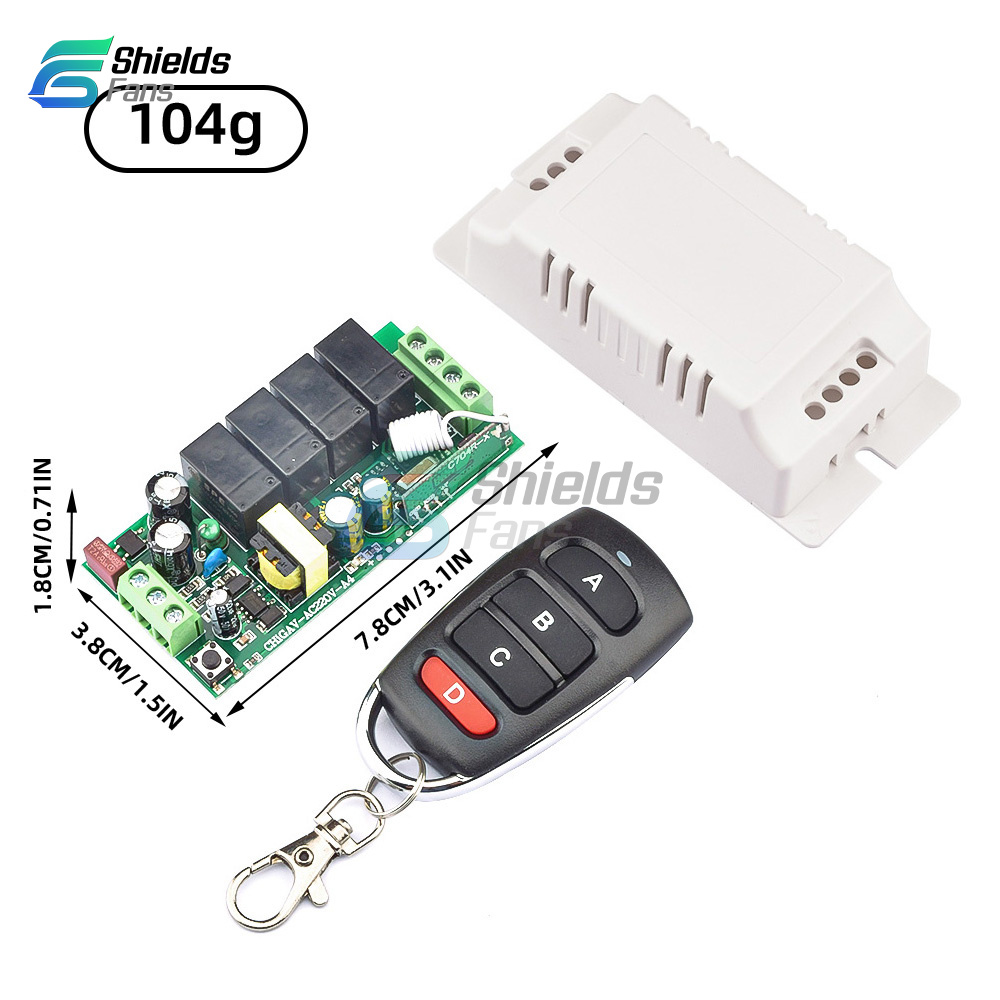

Package Included:

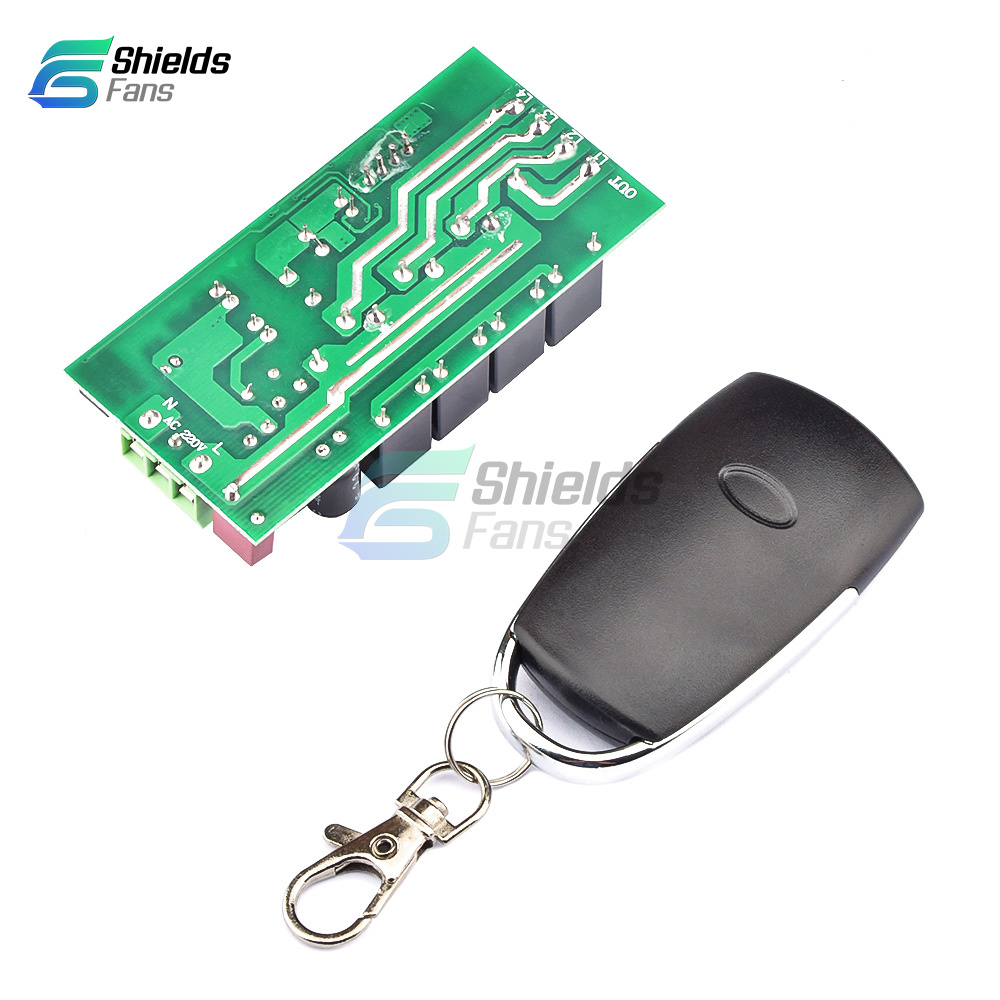

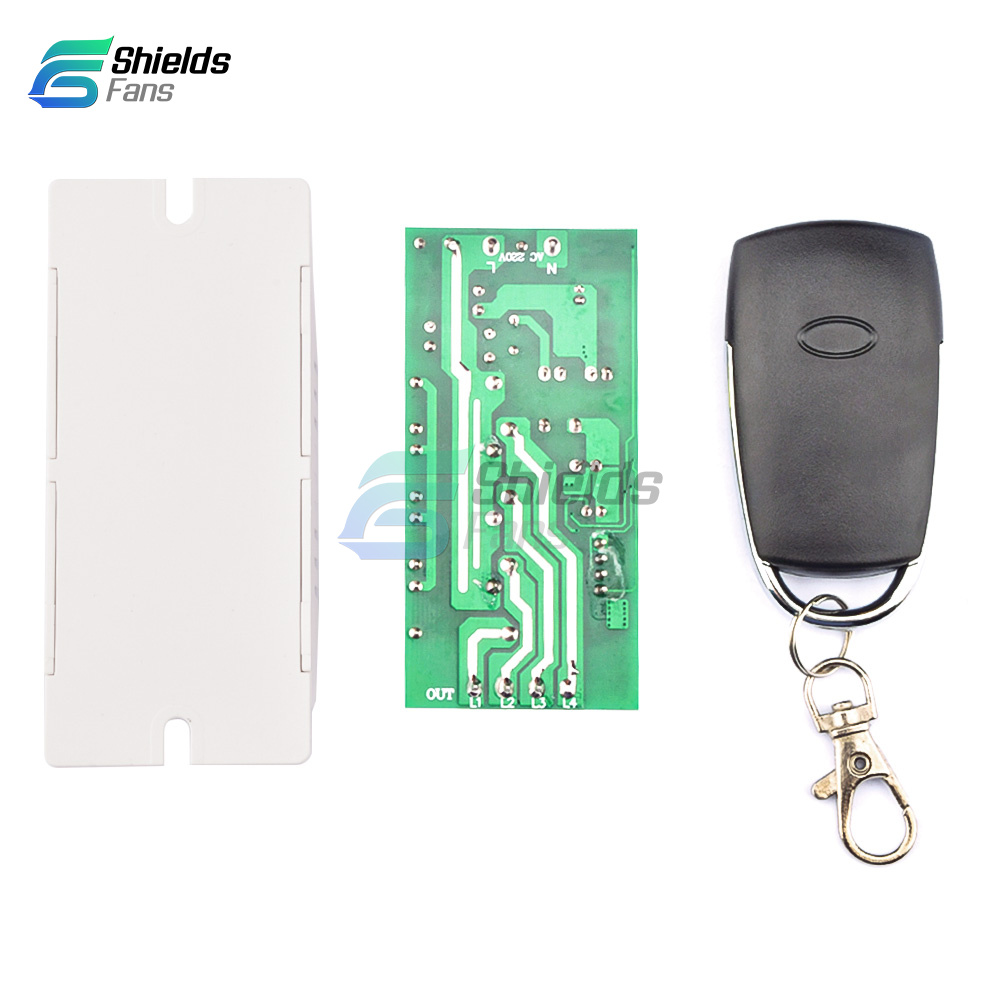

1x switch transceiver module
1x 4-way remote control
1x switch transceiver module
1x 4-way remote control
