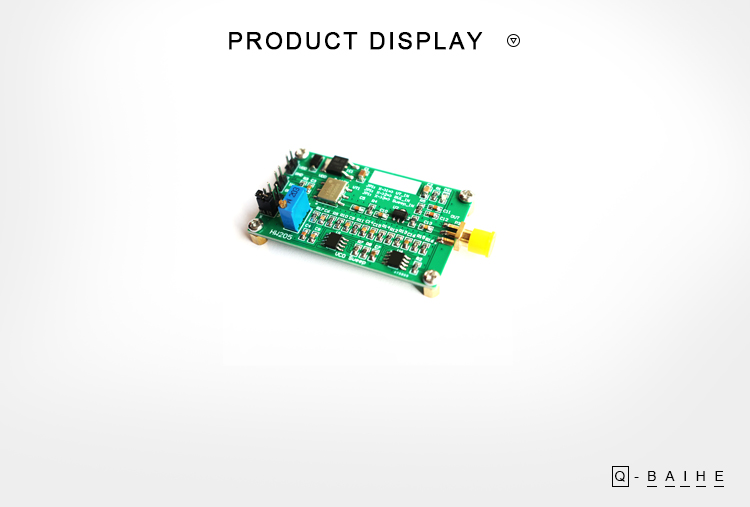

| Title： | HW205 2.4G 5.8GHz VCO Generator Module With Sweep Power Generator With Sweep | ||
| Specification: | Output frequency range：5725~5850 MHz Output frequency range：2300~2485 MHz Maximum output amplitude：<15dBm dBm Working voltage：7~12 V Size 60*35 mm |
||
| Interface Description: |
P1 interface: VDD: positive power supply;
GND: negative pole of power supply; P2 interface: VT_IN: Input tuning voltage (VCO) signal (0~9V). GND: The negative pole of the power supply. P3 interface: output signal. (RP SMA KE KHD outer screw inner hole) JP1 jumper: select external or internal (potentiometer) or sweep frequency input tuning voltage,
JP1: x->1 => VT_IN; JP1: x->2 => RV1_IN; JP1: x->3 => Sweep_IN; RV1: Internal (potentiometer) input tuning voltage;The sweep frequency is about 30KHz
. |
||
| Package: | 1*VCO Generator Module | ||
