Description

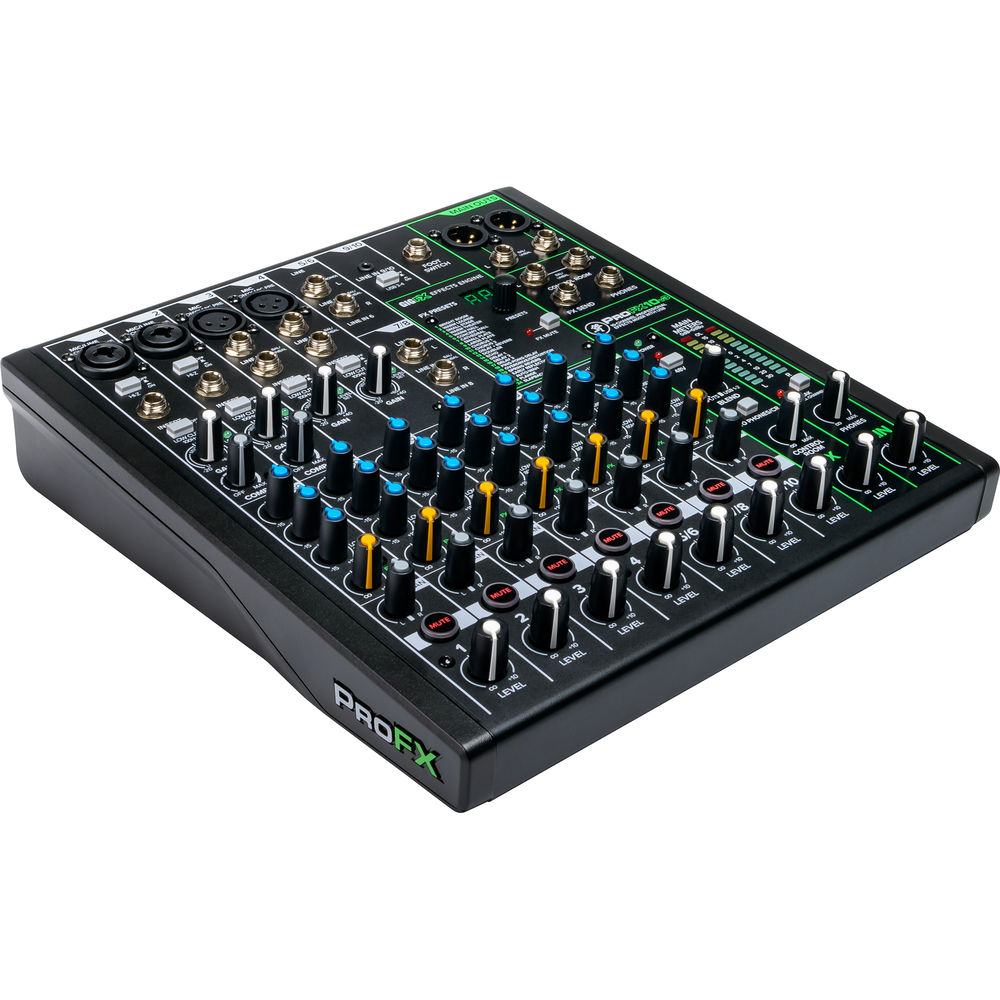

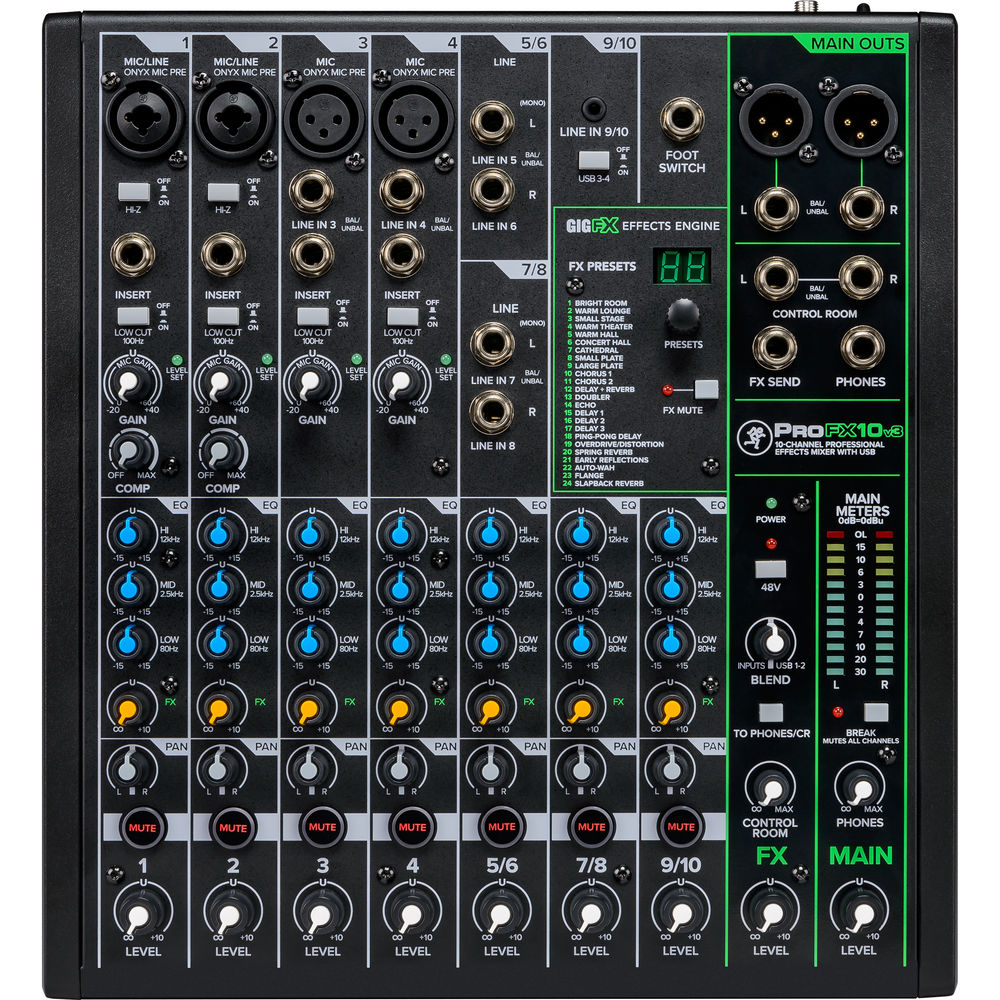

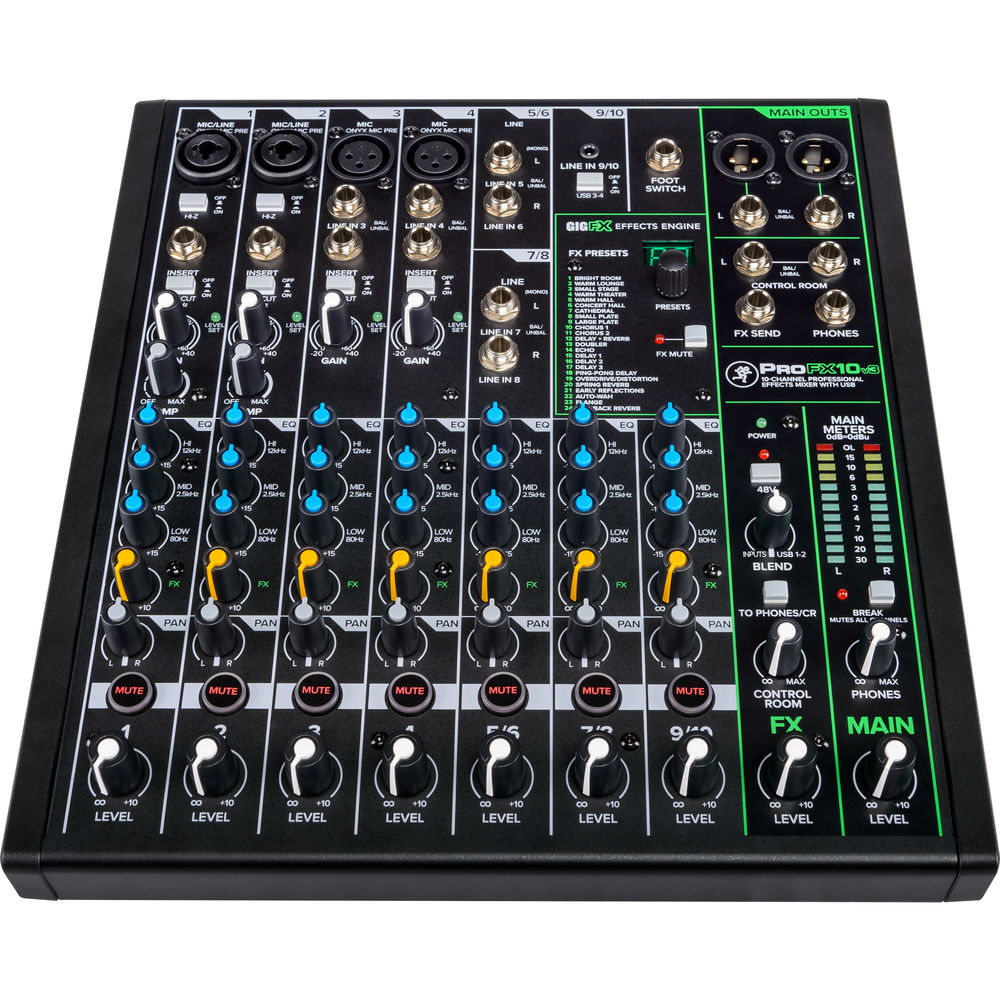

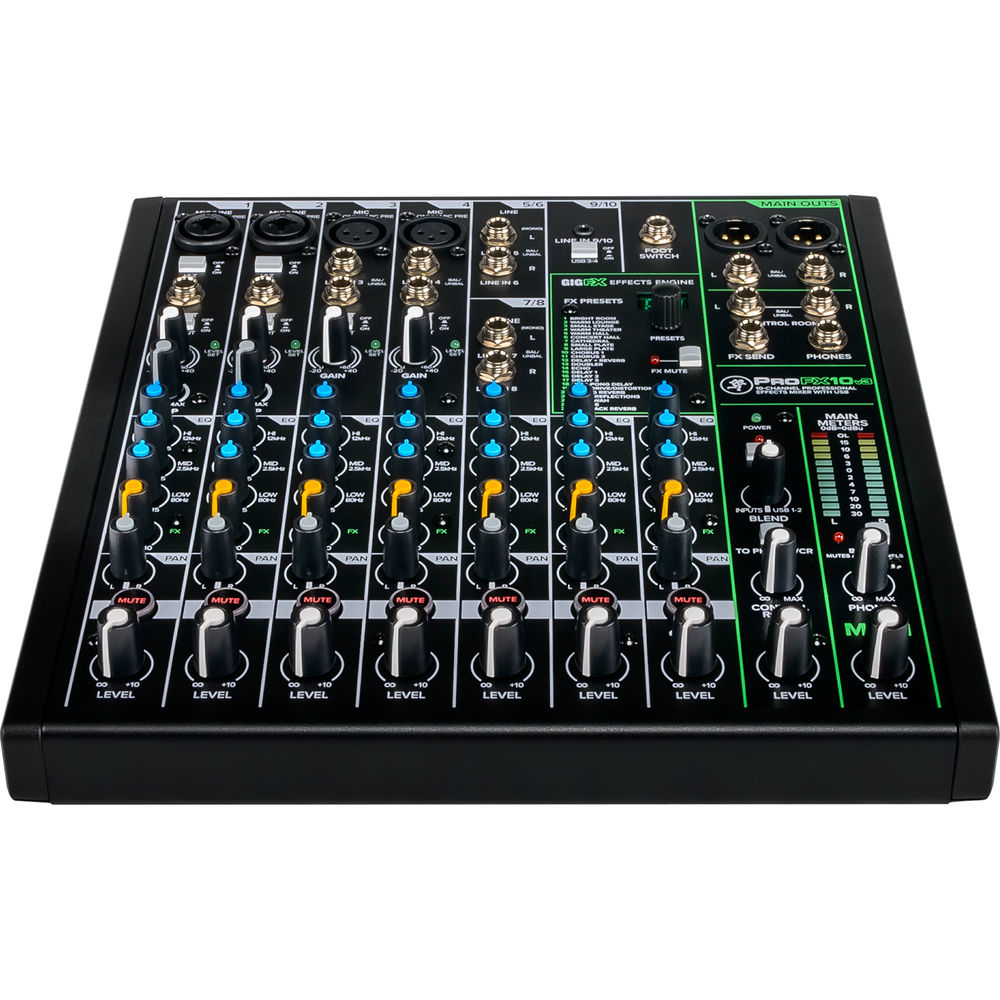

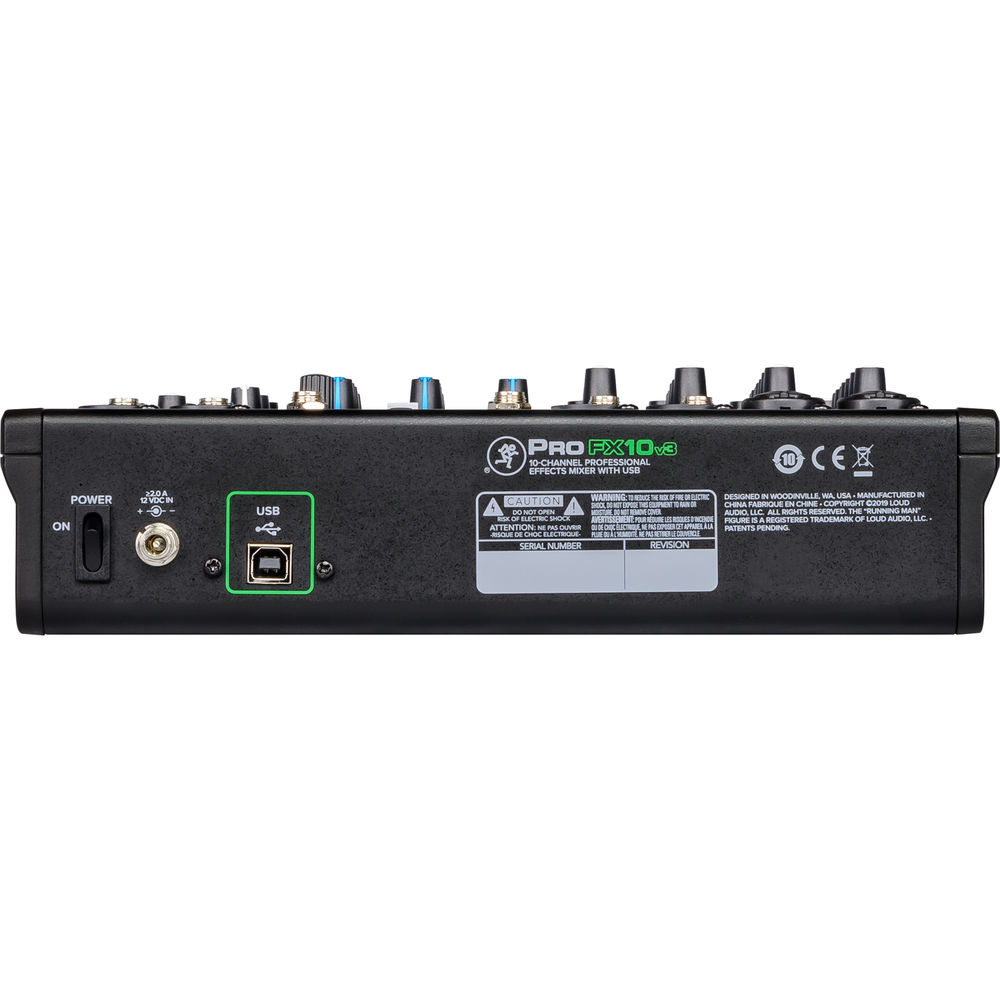

The Mackie ProFX10v3 is a 10-channel mixing console featuring four Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring. Channels 1-2 offer combo XLR-1/4" mic/line connections and feature single-knob compression and Hi-Z (for guitar and bass), while channels 3-4 offer XLR or 1/4" inputs. Channels 1-4 include inserts, low-cut filters (100 Hz), and gain controls. Channels 5/6 and 7/8 offer two 1/4" inputs, while channel 9/10 use a 3.5mm stereo input. All channels offer 3-band EQ, dedicated FX send, pan, mute, and level controls. Engaging channel 9/10's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include a pair of control room outputs with level control, an input USB 1/2 blend control, a dedicated FX output, an FX level control, and an FX mute, which can also be controlled via the 1/4" footswitch input.

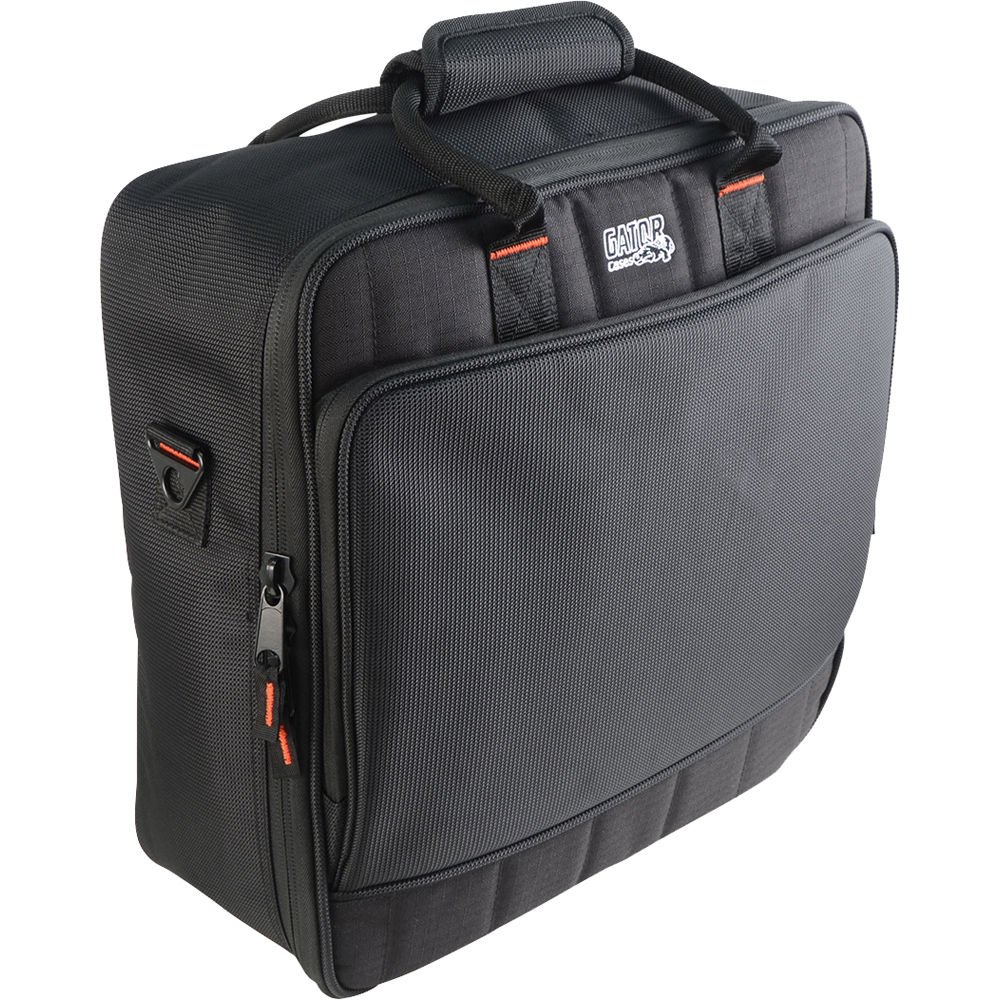

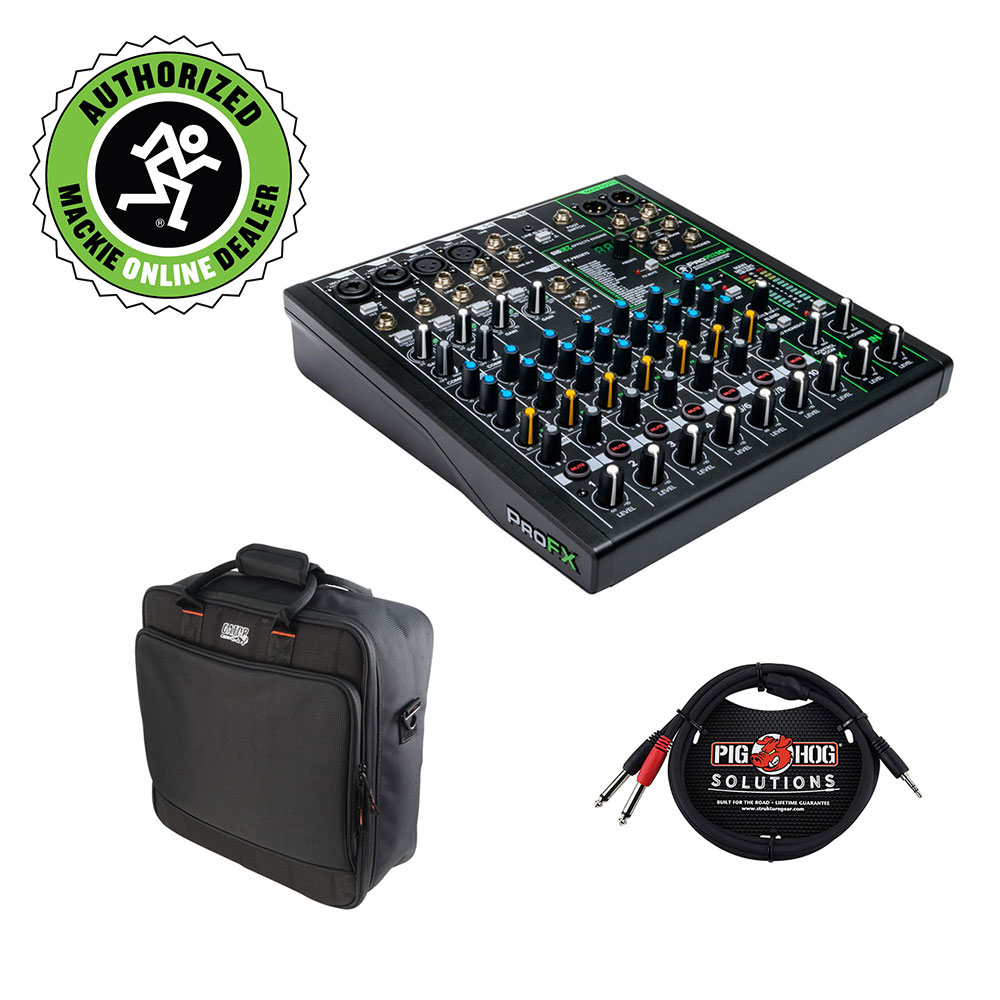

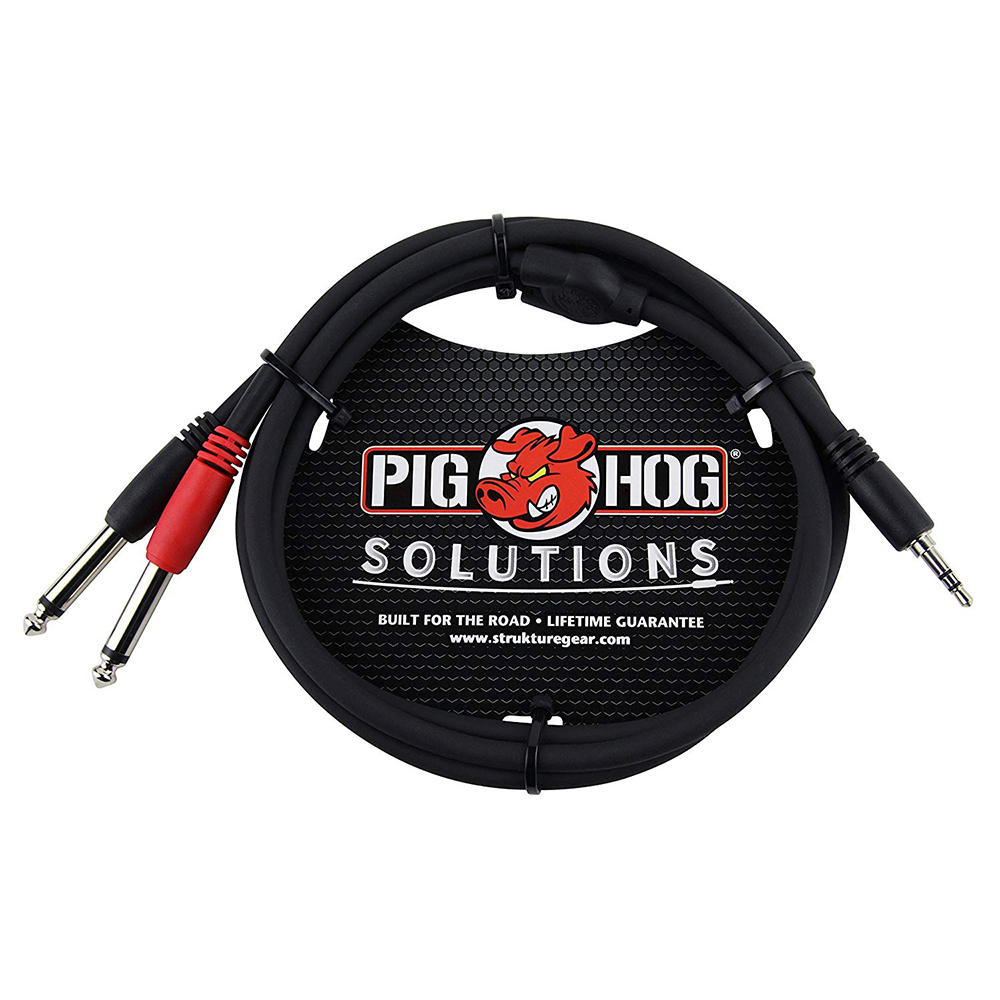

This bundle comes with a Gator Cases G-MIXERBAG-1212 is a padded nylon mixer/equipment bag designed to safely house a mixer or other equipment for musicians, audio engineers, DJs, and A/V techs in live stage applications, clubs, and mobile-recording rigs. Plus a Pig Hog PB-S3410 3.5mm Stereo to Dual 1/4 inch Mono (Male) Stereo Breakout Cable, 10 feet.

Box Contains

Mackie ProFX10v3 10-Channel Sound Reinforcement Mixer with Built-In FX

USB Cable
Power Supply
Software Download w/ Serial Number
1-Year Warranty

Gator Cases G-MIXERBAG-1515 Padded Nylon Mixer/Equipment Bag (15.5 x 15.0 x 5.5")

Limited Lifetime Warranty

Pig Hog PB-S3410 3.5 mm Stereo to Dual 1/4" Mono (Male) Stereo Breakout Cable, 10 Feet

Limited Lifetime Warranty

Item Includes

Box Contains

Mackie ProFX10v3 10-Channel Sound Reinforcement Mixer with Built-In FX

USB Cable
Power Supply
Software Download w/ Serial Number
1-Year Warranty

Gator Cases G-MIXERBAG-1515 Padded Nylon Mixer/Equipment Bag (15.5 x 15.0 x 5.5")

Limited Lifetime Warranty

Pig Hog PB-S3410 3.5 mm Stereo to Dual 1/4" Mono (Male) Stereo Breakout Cable, 10 Feet

Limited Lifetime Warranty

Specifications

Equivalent Input Noise	150-Ohm Source Impedance, 20 Hz to 20 kHz: Mic In to Insert Send Out, Max Gain -126 dBu
Residual Output Noise	All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu
Frequency Response	Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz
THD+N	22 Hz to 80 kHz Bandwidth: Mic In to Main Out (+4 dBu Output): <0.03%
Attenuation and Crosstalk	Adjacent Inputs at 1 kHz: -90 dB Inputs to Outputs at 1 kHz: -80 dB Fader Off at 1 kHz: -75 dB Mute Switch / Break Switch Mute at 1 kHz: -90 d
Common Mode Rejection Ratio	Mic In to Main Out, Max Gain, 1 kHz: 70 dB
Maximum Level	All Inputs: +22 dB Main Out XLR: +28 dBu All other Outputs: +22 dBu
Impedance	Mic In: 3.3 Kilohms Channel Insert Return: 10 Kilohms All Other Inputs: ≥20 Kilohms Phones Output: 25 Ohms All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced
Equalization	Low ±15 dB at 80 Hz Mid ±15 dB at 2.5 kHz High ±15 dB at 12 kHz Low Cut Filter 18 dB/octave at 100 Hz
Maximum Voltage Gain	Mic Input Channel to: Insert Output: 60 dB 1/4" Main Output: 80 dB XLR Main Output: 86 dB 1/4" Sub Output: 80 dB Aux Output (Pre-Fader): 80 dB FX Send: 90 dB USB Output: 70 dB Mono Line Input Channel to: Insert Output: 40 dB 1/4" Main Output: 60 dB XLR Main Output: 66 dB 1/4" Sub Output: 60 dB Aux Output (Pre-Fader): 60 dB FX Send: 70 dB USB Output: 50 dB Mic Input Channel to: Insert Output: 60 dB 1/4" Main Output: 80 dB XLR Main Output: 86 dB 1/4" Sub Output: 80 dB Aux Output (Pre-Fader): 80 dB FX Send: 90 dB USB Output: 70 dB Mono Line Input Channel to: Insert Output: 40 dB 1/4" Main Output: 60 dB XLR Main Output: 66 dB 1/4" Sub Output: 60 dB Aux Output (Pre-Fader): 60 dB FX Send: 70 dB USB Output: 50 dB Mic Input Channel to: Insert Output: 60 dB 1/4" Main Output: 80 dB XLR Main Output: 86 dB FX Send: 80 dB USB Output: 70 dB Mono Line Input Channel to: Insert Output: 40 dB 1/4" Main Output: 60 dB XLR Main Output: 66 dB FX Send: 60 dB USB Output: 50 dB Stereo Line Input Channel to: 1/4" Main Output: 20 dB XLR Main Output: 26 dB FX Send: 20 dB USB Output: 10 dB 1/8" Input to: 1/4" Main Output: 40 dB XLR Main Output: 46 dB FX Send: 40 dB USB Output: 30 dB USB Input to XLR Main Output: 46 dB
Digital Effects	Number of Presets: 16
Meters	Main L/R Mix: Two Columns of 12 Segments Each: OL, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
USB	Format: USB 2.0 I/O: 1 Stereo Input, 2 Stereo Outputs A/D/A: 24-Bit / 44.1, 48, 96, 192 kHz
Phantom Power	48 VDC to All Mic Channels Simultaneously
AC Power Requirements	Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Power Consumption: 30W
