Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

The ANI-0108HBC Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by CAT5E/6 cable. It also supports Transferring Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 165 feet/50 meters outside, also you can control the Sink in the Source side which is 165 feet/50 meters outside using the Splitter.

FEATURES

• Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0
• Full HD support: 1080p at 60Hz at 24 bit/pixels
• HDMI local loop out for HDMI input
• Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
• Operates for TMDS clock frequencies up to 165MHz
• Use single CAT-5E/6 cable to substitute HDMI cable to achieve long distances transmission
• UTP cable termination follows the standard of IEEE-568B
• Supports EDID control via EDID selector
• Transfer Bi-directional Infrared control signal together with the HDMI signal

Specifications:

• Frequency Bandwidth: 1.485Gbps

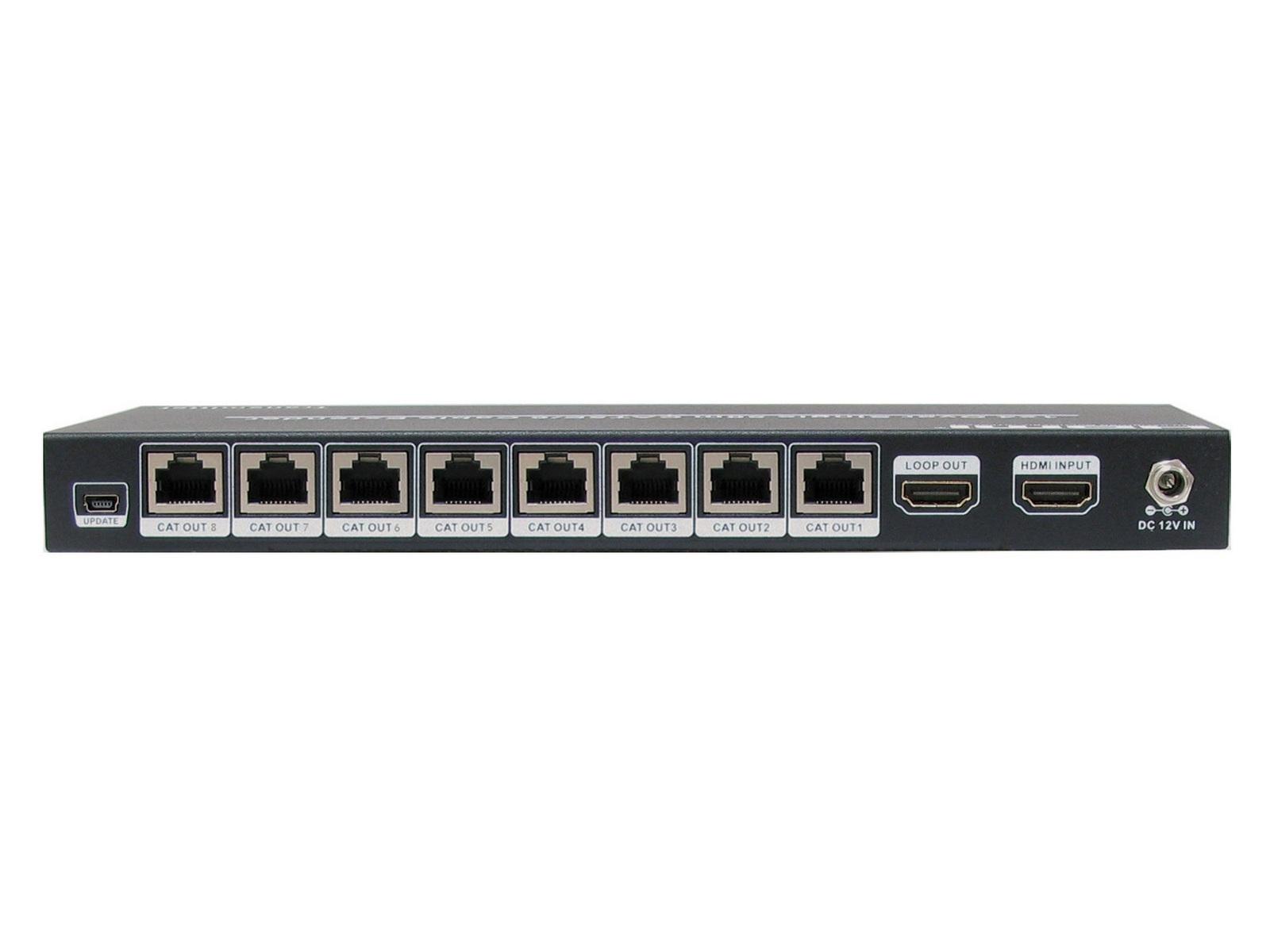

• HDMI Splitter Input/Output Ports:
• • 2x HDMI Female port
  • 8x CAT6
  • 1x IR Transmitter
  • 1x IR Receiver
• Receiver Input/Output Ports:
• • 1x HDMI Female port
  • 1x CAT6
  • 1x IR Transmitter
  • 1x IR Receiver
• Power Supply:
• • HDMI Splitter: DC 12V 2.5A
  • Receiver: DC 5V 1A
• ESD Protection Human Body Model:
• • ± 8kV (air-gap discharge)
  • ± 4kV (contact discharge)
• Dimensions:
• • Splitter (WxDxH): 4.6 x 9.8 x 1.25 in (118x250x32 mm)
  • Receiver (WxDxH): 1.9 x 3.2 x 1 in (49 x 81 x 25 mm)
• Weight:
• • Splitter: 10.5 oz / 300g
  • Receiver: 5.3 oz / 150g
• Operating Temperature: 0C ~ 40C / 32F ~ 104F
• Storage Temperature: -20C ~ 60C / -4F ~ 140F
• Relative Humidity: 20 ~ 90% RH (Non-condensing)
• Power Consumption (Max):
• • HDMI Splitter: 12W
  • Receivers: 1.5W

Package Includes:

• HDMI Splitter
• (8) Receivers
• (8) Wideband IR Tx
• (8) Wideband IR Rx
• Users Guide
• 12V 2.5A DC Power Supply adapter
• (8) 5V 1A DC Power Supply adapter
