Broadcast High Quality, High Performance, Uncompressed

Don't settle for low cost,cheaper, No quality item, Choose Optimal, Choose us.

Features

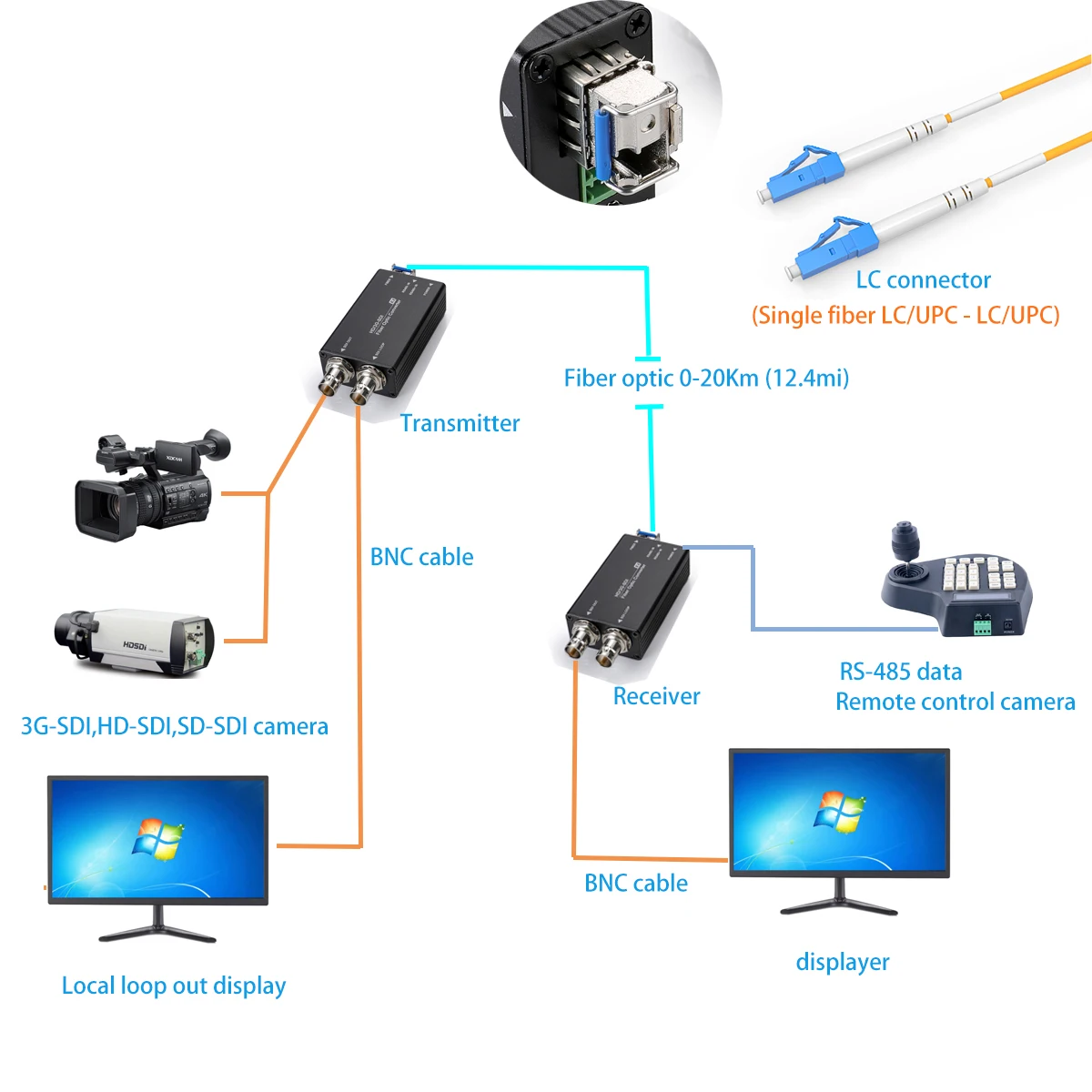

1. Extends uncompressed 3G-SDI,HD-SDI or SD-SDI video over a single fiber optic.

2. Support video resolution 1920x1080@60Hz max, backward compatible.1080P@ 30,25,24Hz and 1080I@60,50Hz.

3. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant.

4. Support retiming function and Video loop out function.

5. Support one reverse RS485 data.

6. Single-mode and multi-mode compatible, multi-mode transmission distance is 500M, single-mode transmission distance is 20KM .

7. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution.

8. LED Status Provide Rapid Indication of Operating Parameters.

9. Plug and play, No need to set.

Specifications:

1. Optical wavelength:1310nm-1550nm

2. Fiber Type: Single mode, Single fiber(default)

3. Working distance0~20km

4. Fiber connector: LC.

SDI Video:

1. Physical Interface:BNC

2. Max Resolution: 1920 x 1080 @60Hz

3. Video Input and Output Impedance:75Ω (unbalanced)

4. Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

5. Video Bits Rate: Max 2.97Gb/s

6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI

7. Support resolution 1080P60Hz 1080P59.94Hz 1080P30Hz 1080P25Hz 1080P24Hz 1080i60Hz 1080i50Hz 1080P50Hz 720P60Hz 720P50Hz PAL(576i50Hz) NTSC(480i60Hz)

Electrical & Mechanical:

1. Input Power Requirements: DC 5V

2. Power consumption ＜1.5W

3. Power physical interface micro-USB

4. Dimensions:73*42*21.9mm (LxWxH).

Data

1. Physical Interface: standard industry block terminal

2. Interface signal: RS-485 reverse direction

3. Baud Rate:0-400Kbps

4. BER< 10 -9

5. Operation Mode: Full duplex /half duplex

Environmental

1. Operating temperature: -20°C ~+75°C

2. Storage temperature: -40°C ~+85°C

3. Working humidity:0% ~ 95% (non-condensing)

4. MTBF:>100,000 hours

Package Include:

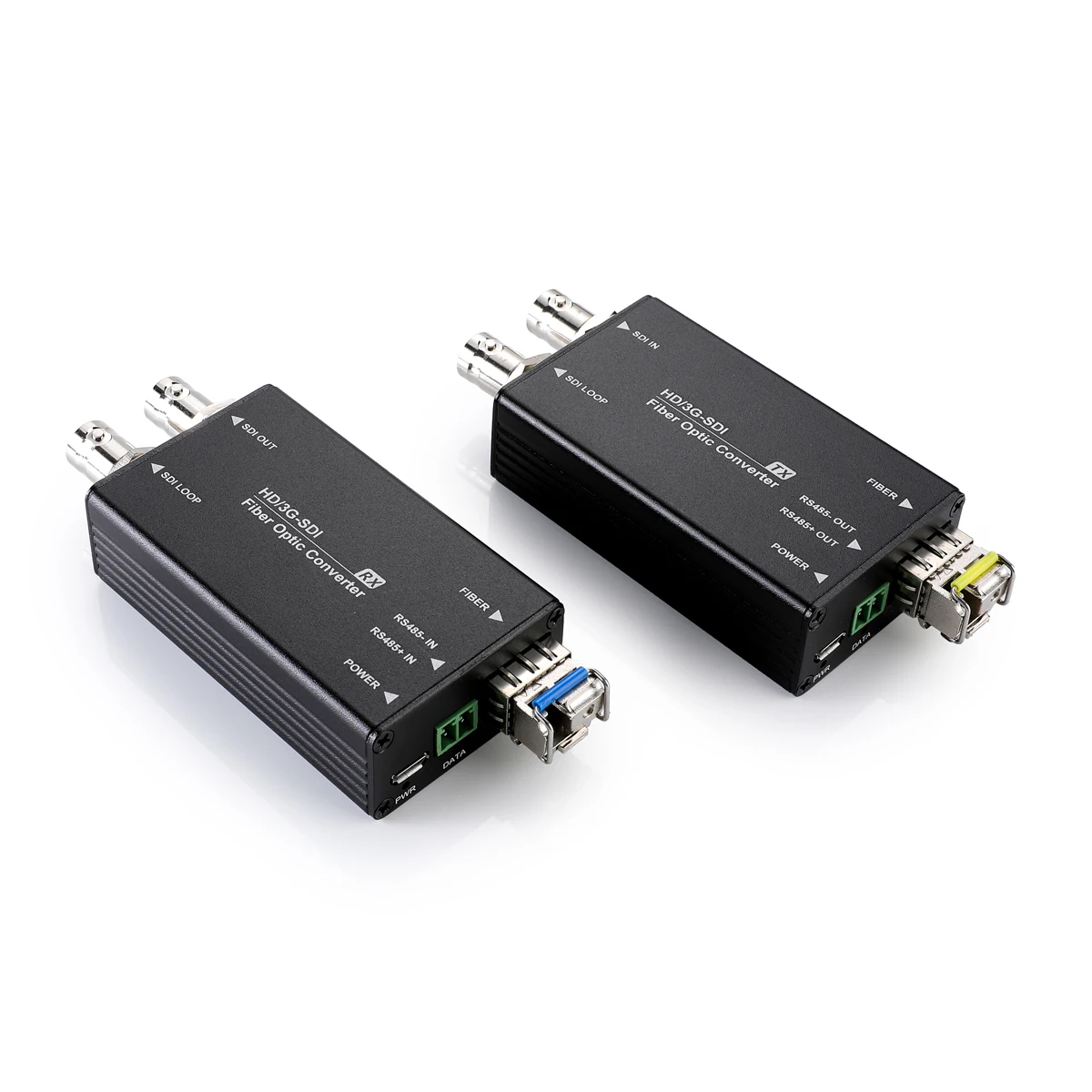

1 x 3G-SDI Transmitter

1 x 3G-SDI Receiver

2x Power supply adapter with Micro-USB connector

1 x 3M LC-LC S/M fiber patch cord

1x User Manual
