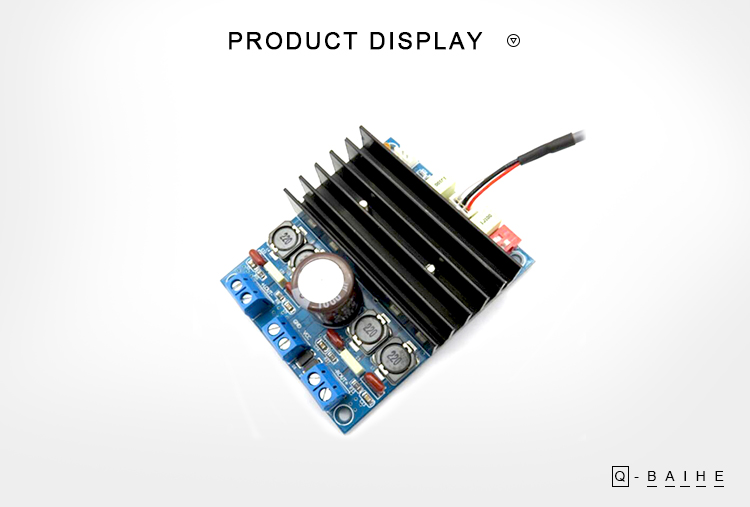

TDA7492 Dual Channel 50W*2 High Power Digital Power Amplifier Board High Quality

Quiescent current:

Rated output power:

Supply voltage:

DC single power supply, voltage DC10V-DC26V

DC12-24V

Maximum output current:

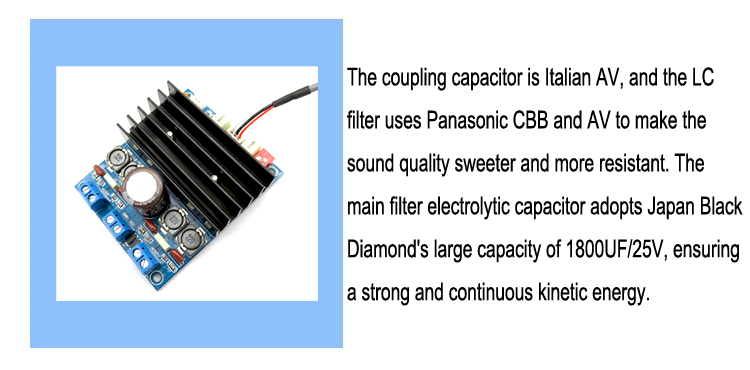

1. Coupling capacitor adopts Italian AV, LC filter adopts Panasonic CBB and AV, which makes the sound quality more sweet and resistant. The main filter electrolytic capacitor adopts Japanese black diamond large capacity 1800UF/25V, ensuring strong and continuous movement.

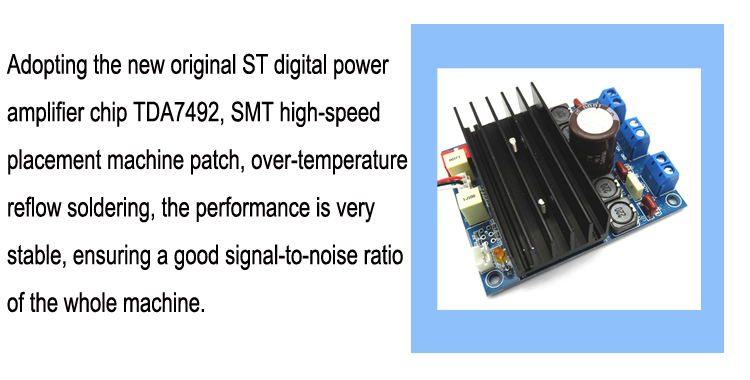

2. Using the new original ST digital power amplifier chip TDA7492, SMT high-speed placement machine patch, over-temperature reflow soldering, the performance is very stable, ensuring a good signal-to-noise ratio of the whole machine.

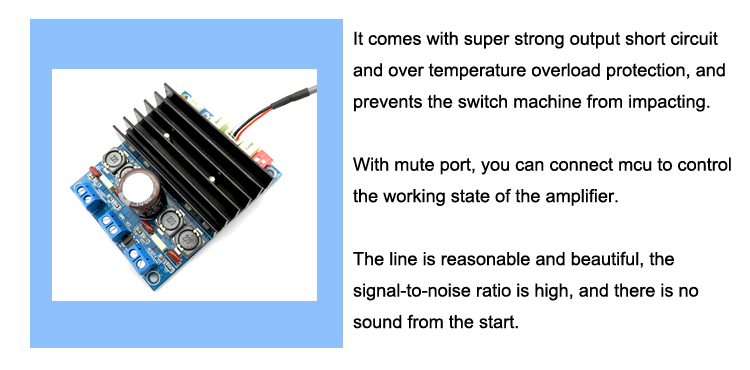

4. It comes with super strong output short circuit and over temperature overload protection, and prevents the switch machine from impacting.
5. With mute port, you can connect mcu to control the working state of the amplifier.
6. The line is reasonable and beautiful, the signal-to-noise ratio is high, and there is no sound from the start.

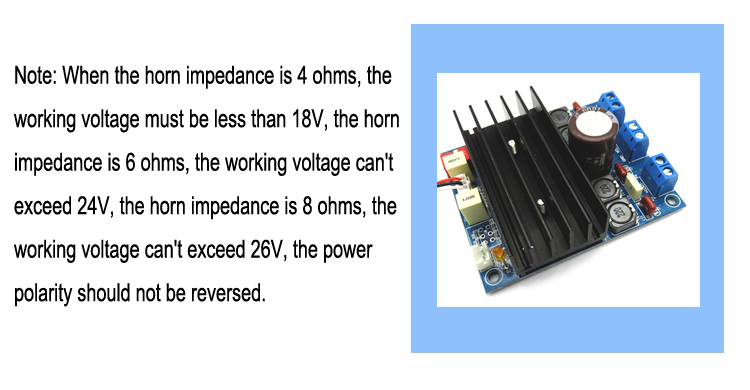

When the horn impedance is 4 ohms, the working voltage must be less than 18V, the horn impedance is 6 ohms, the working voltage can't exceed 24V, the horn impedance is 8 ohms, the working voltage can't exceed 26V, and the power polarity should not be reversed.

1*TDA7492 dual channel 50W*2 high power digital power amplifier board
