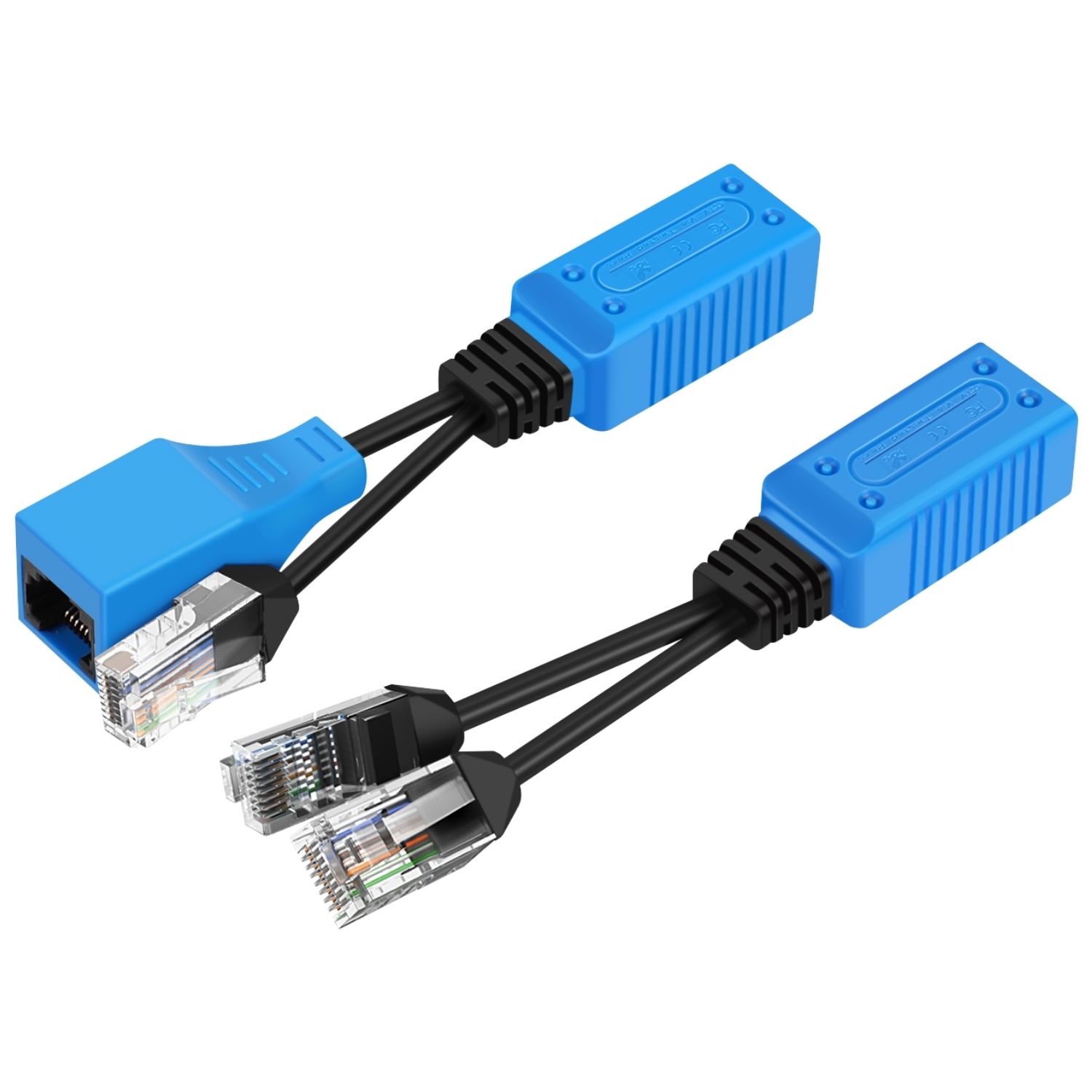

RJ45 Ethernet Cable Combiner/Splitter Kit (1 Pair), 2 Male to 1 Female & 1 Male 1 Female to 1 Female POE Data Adapter LAN Ethernet Network Extender Y Splitter Cat5 Cat5e Cat6 UPOE Cable for Security Monitoring Surveillance System

RJ45 Ethernet Cable Combiner/Splitter Kit (1 Pair), 2 Male to 1 Female & 1 Male 1 Female to 1 Female POE Data Adapter LAN Ethernet Network Extender Y Splitter Cat5 Cat5e Cat6 UPOE Cable for Security Monitoring Surveillance System

Introduction:

This RJ45 combiner carries two 10/100 mbps data line over one Cat6/Cat5e cable to two remote devices. You can easily integrate them to CCTV POE NVR system. Simplifies the installation process by allowing a single Ethernet cable to run for 2 devices

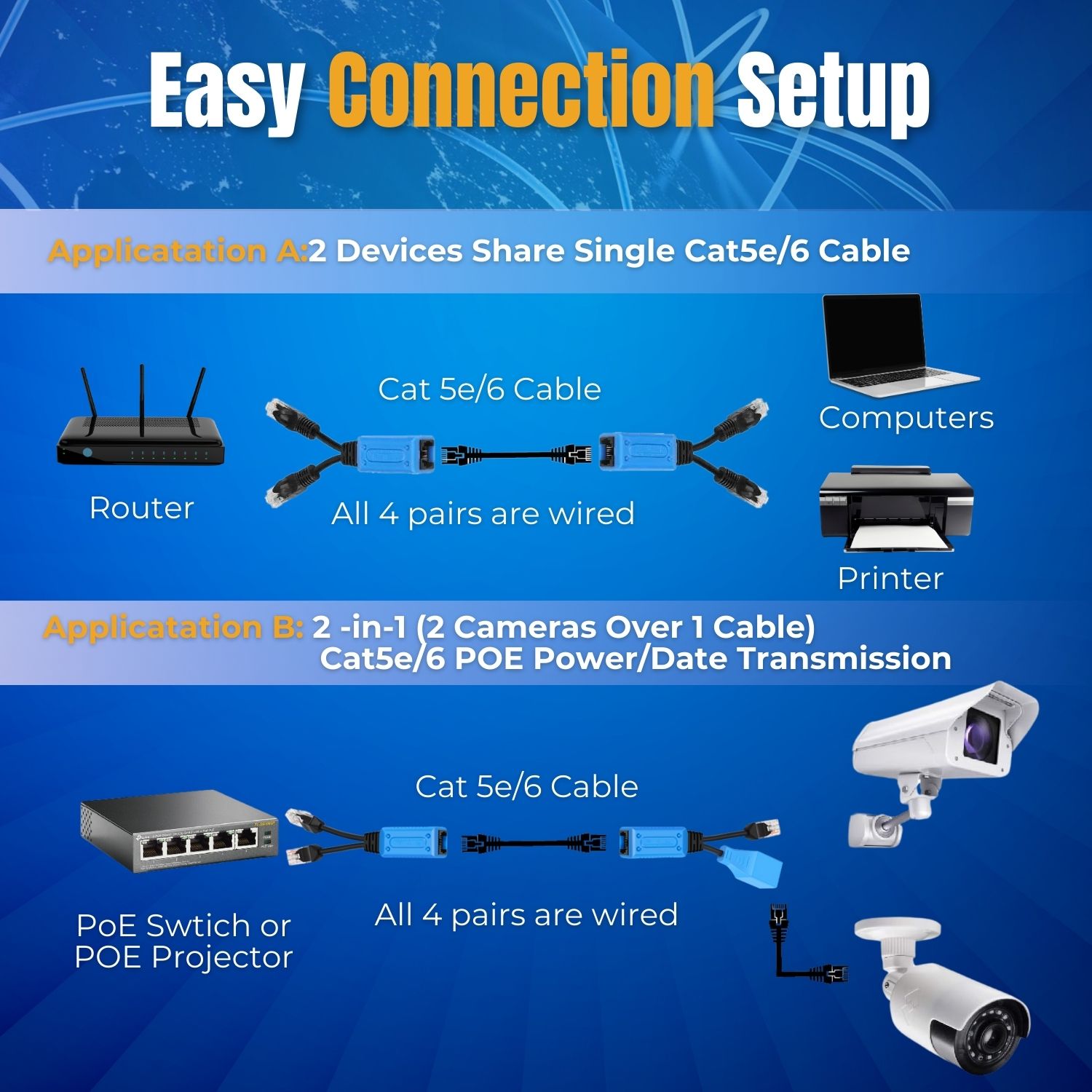

Apply TNP RJ45 Ethernet Cable Combiner/Splitter Kit to surveillance cameras:
1. Plug the two male ports of the first TNP Ethernet Adapter to ethernet ports on your POE switch or POE projector.
2. Plug your ethernet cable to the combiner port of the first adapter. Note: make sure you use a Cat5/Cat5e/Cat6 ethernet cable.
3. Plug the end of your ethernet cable into the splitter port of the second TNP Ethernet Adapter.
4. Plug the male port of the second TNP Ethernet Adapter to your surveillance camera, and connect the female port to your other surveillance camera with your ethernet cable.

Feature:

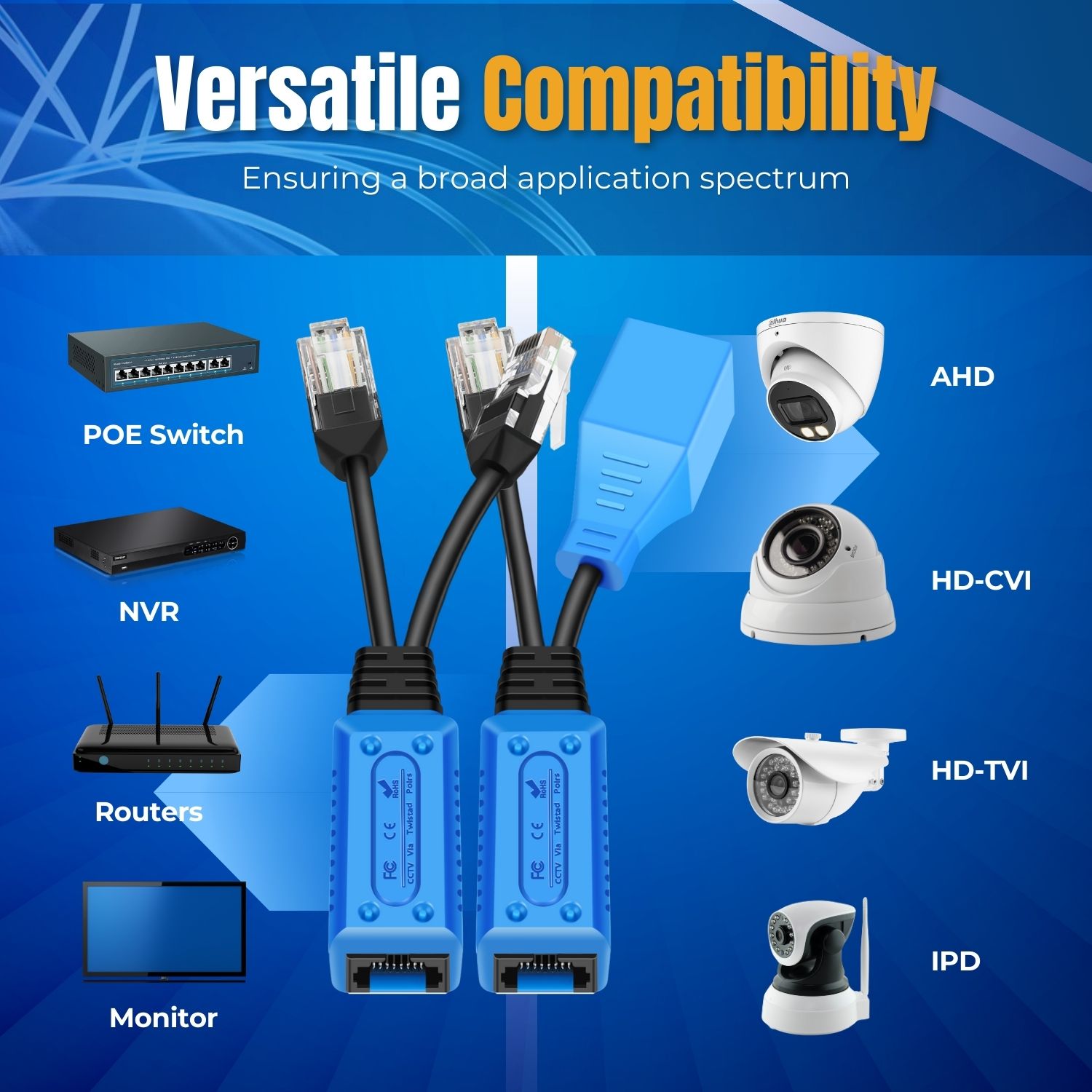

  • Compatible with HDCVI, AHD & TVI Signal; Transmit signal up to 1080P; Applicable for access points, routers, IP cameras, modems, switches and many more
  • Max Transmission Distance: HD CVI(720p): 300m (1080p): 200m; HD AHD (720p): 200m; HDTVI (720p): 300m (1080p): 200m

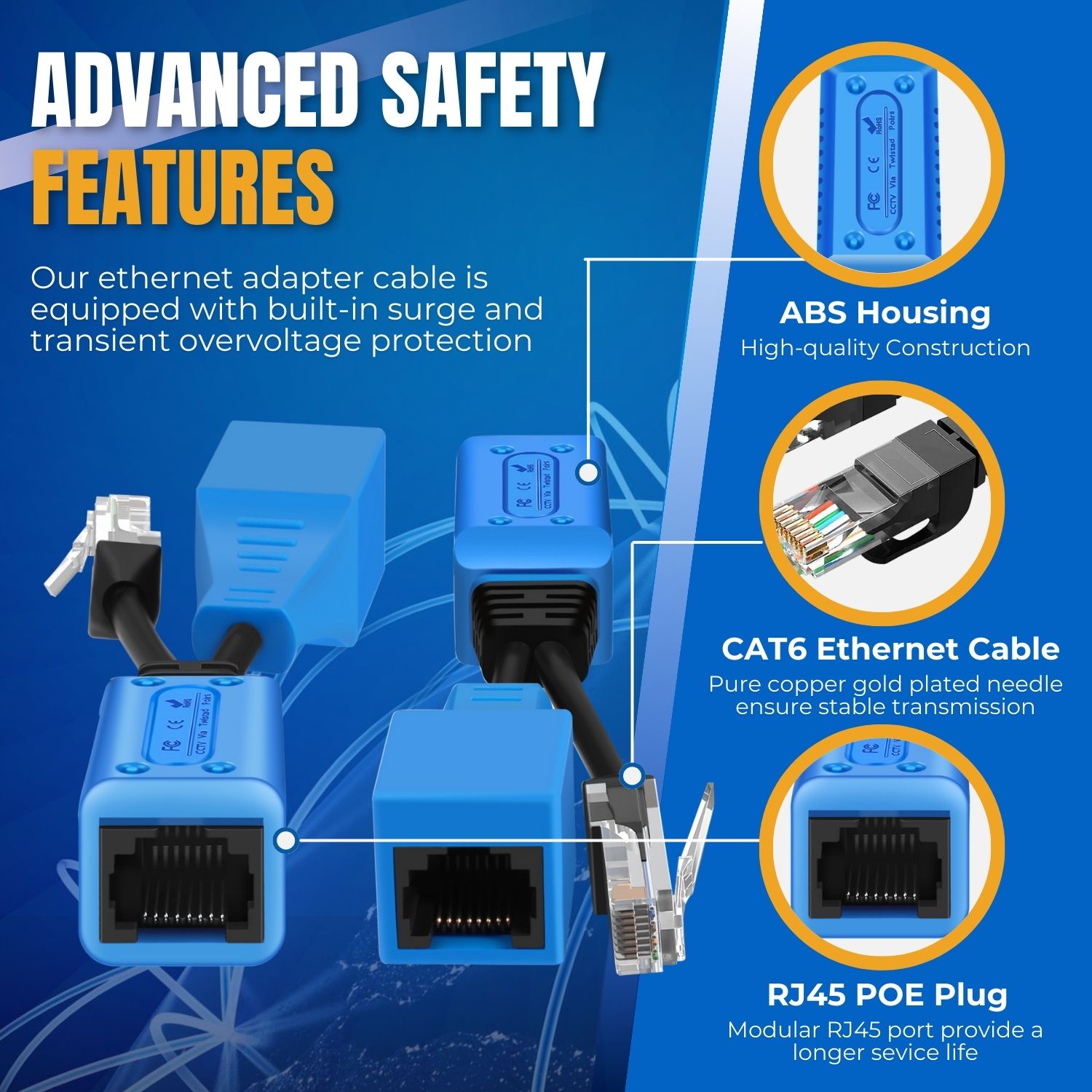

  • Built-in surge and transient overvoltage protection ensure safety during operation
  • Connect two male RJ45 to your switch, and remotely connect each to your camera, Wi-Fi or phone
  • Compatible with any 10/100 switch with or without PoE; also ideal for devices that does not support Power Over Ethernet

Specification:

  • Transmission Distance: (1080p): 200m; HD CVI(720p): 300m; HD AHD (720p): 200m; HDTVI (720p): 300m (1080p): 200m
  • Compatible Cable: Cat5/5e/6
  • 25 watts per circuit if CAT-6 is used

Package Content:

  • 1x RJ45 Ethernet Cable Combiner/Splitter Kit (1 Pair), 2 Male to 1 Female & 1 Male 1 Female to 1 Female POE Data Adapter LAN Ethernet Network Extender Y Splitter Cat5 Cat5e Cat6 UPOE Cable for Security Monitoring Surveillance System
