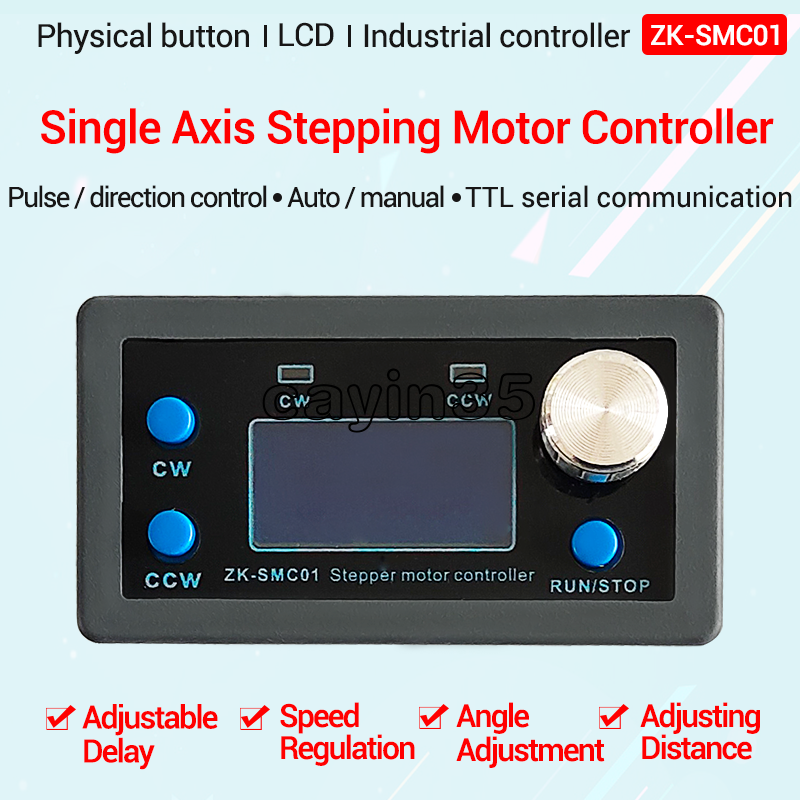

42 57 Stepper Motor Controller Positive and Reverse Angle Pulse Speed Control Board Programmable PLC Serial Communication

Product selling point

1: Widely used

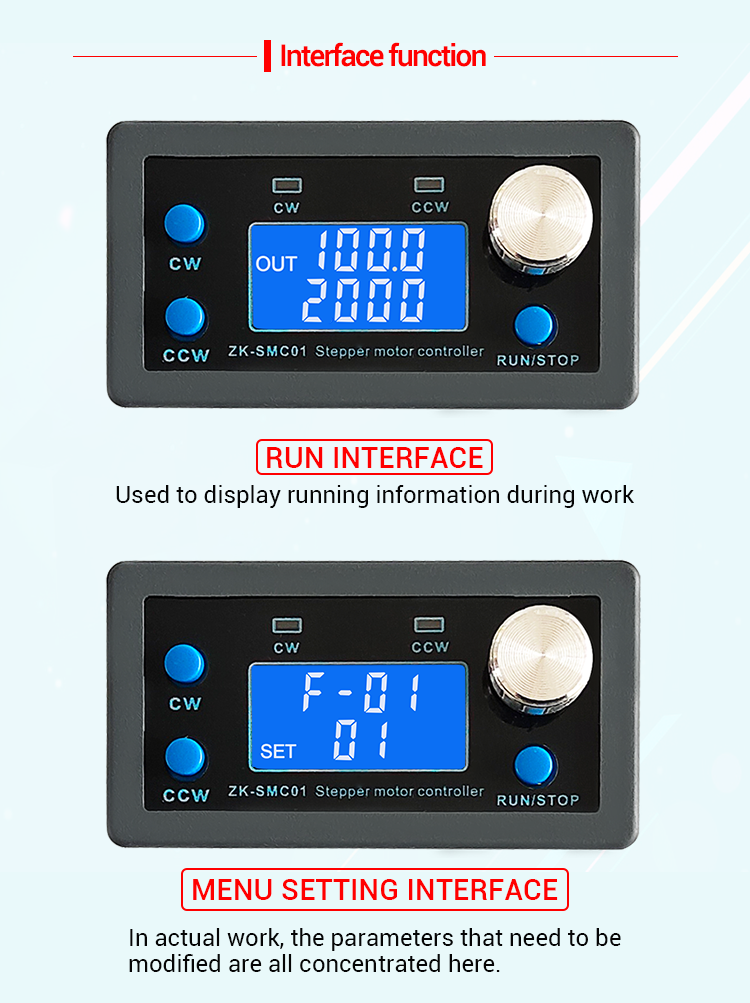

2: LCD display

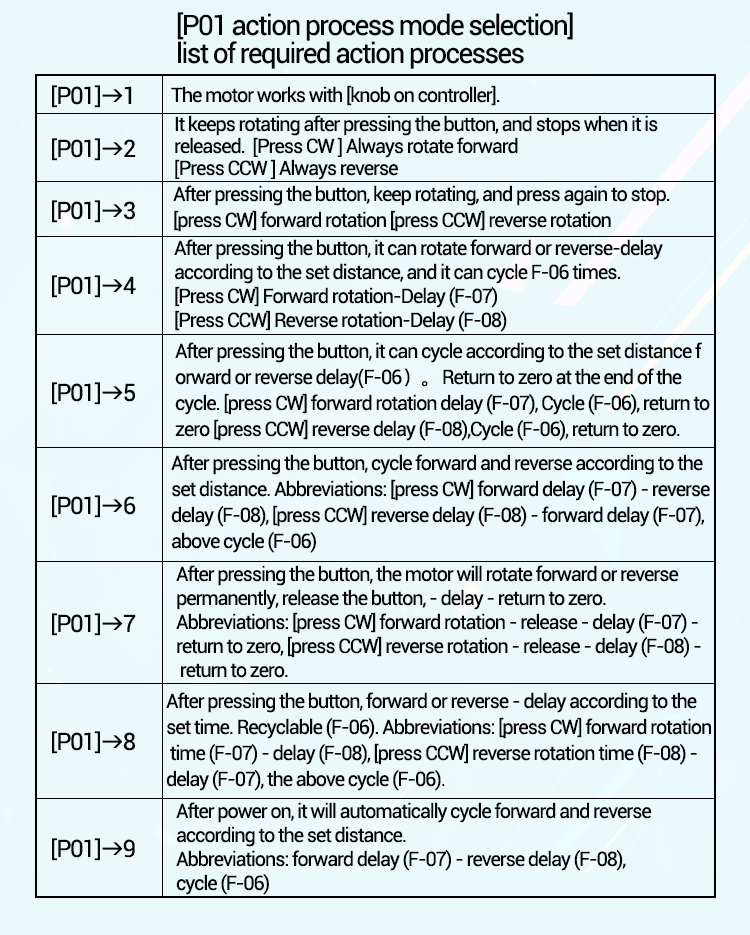

3: Automatic manual multi-mode

4: TTL serial communication

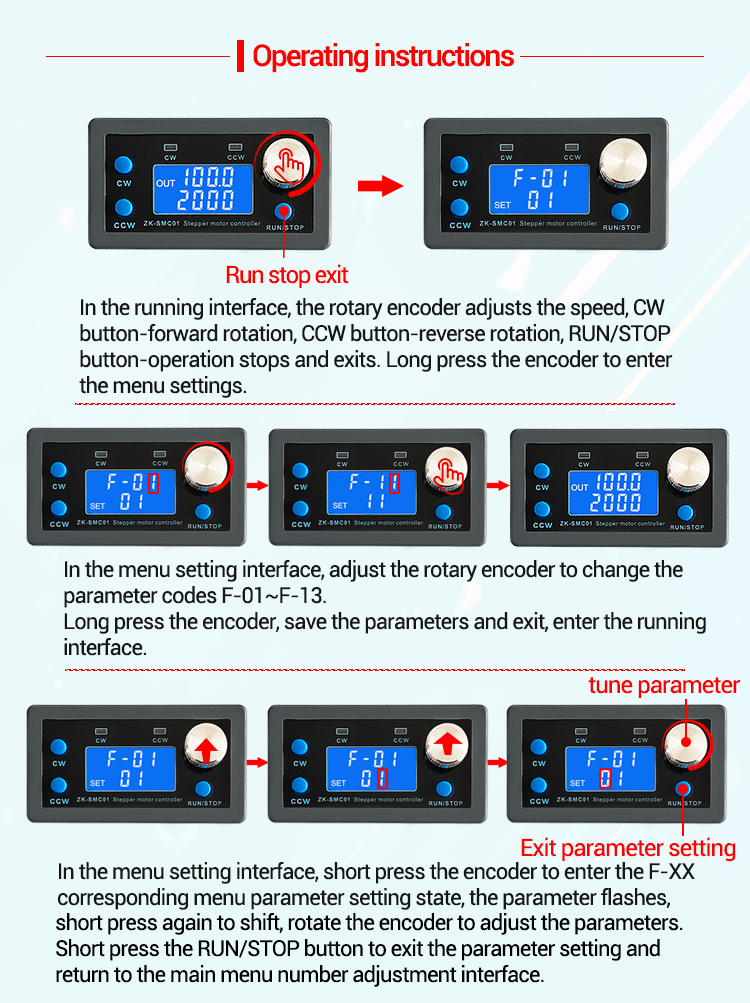

5: The main functions of the system: automatic, manual, setting, serial port control

pay attention

Electronic module products require you to have a certain electronic foundation, and read the product description carefully before use; the product is not designed for medical, life-saving, life-saving and other purposes, and cannot be used in dangerous places such as coal mines and oil depots. We will not take any such responsibilities. Guarantee; product profits are low, users' operating capabilities and use occasions vary greatly, and any electronic equipment cannot be foolproof. The owner of the equipment should prepare corresponding protective measures and risk management plans. If the equipment directly or indirectly causes any personal or property damage, the company is not responsible for compensation.

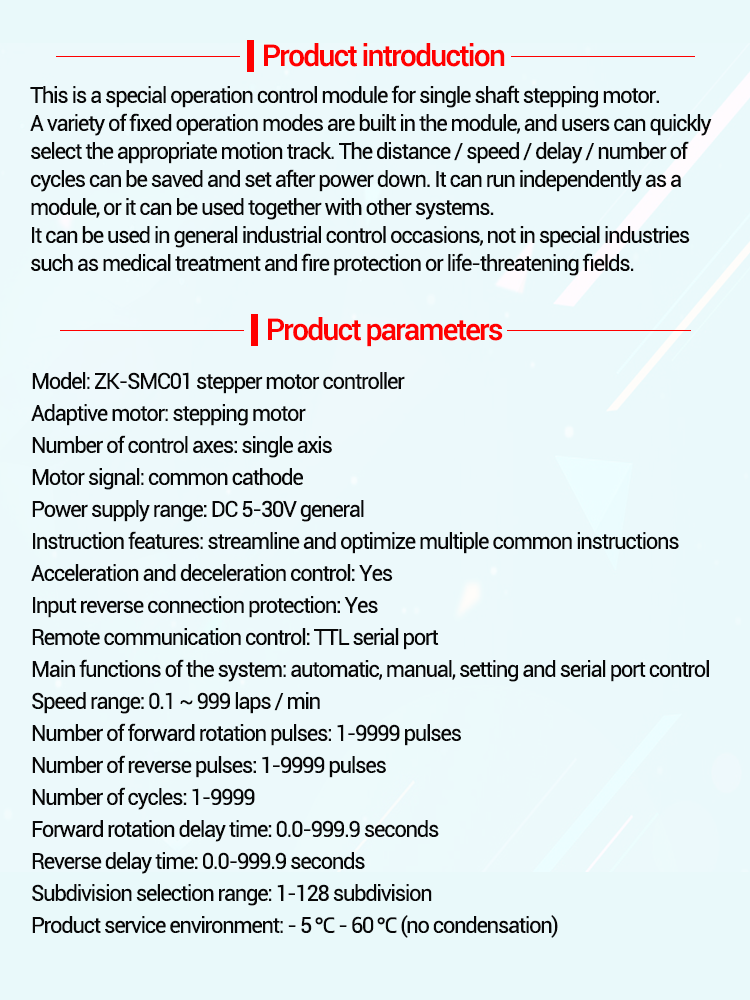

Product introduction

This is an operation control module specifically for single-axis stepper motors. The module has a variety of fixed operating modes built-in, and the user can quickly select the appropriate motion track. You can save and set the distance/speed/delay/cycle times after power-off. It can run independently as a module, or it can be used with other systems. It can be used in general industrial control occasions, but cannot be used in special industries such as medical treatment and fire fighting or life-critical fields.

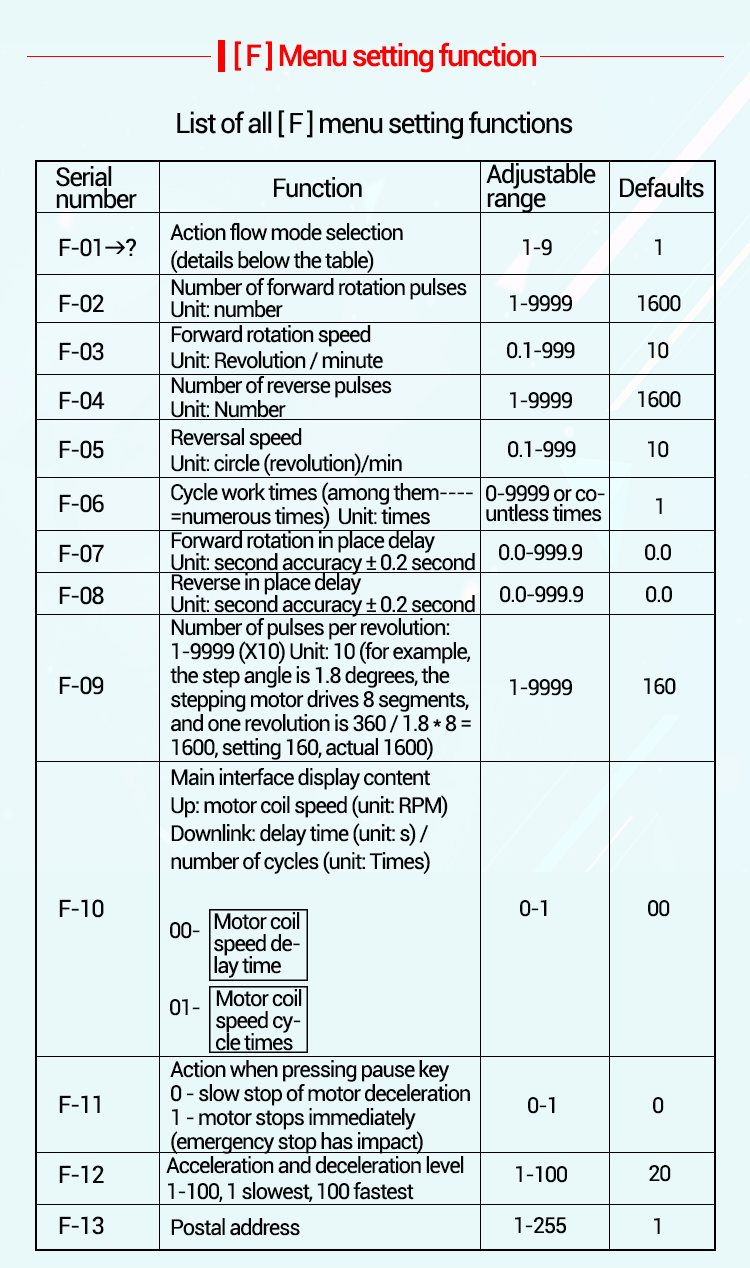

System parameters

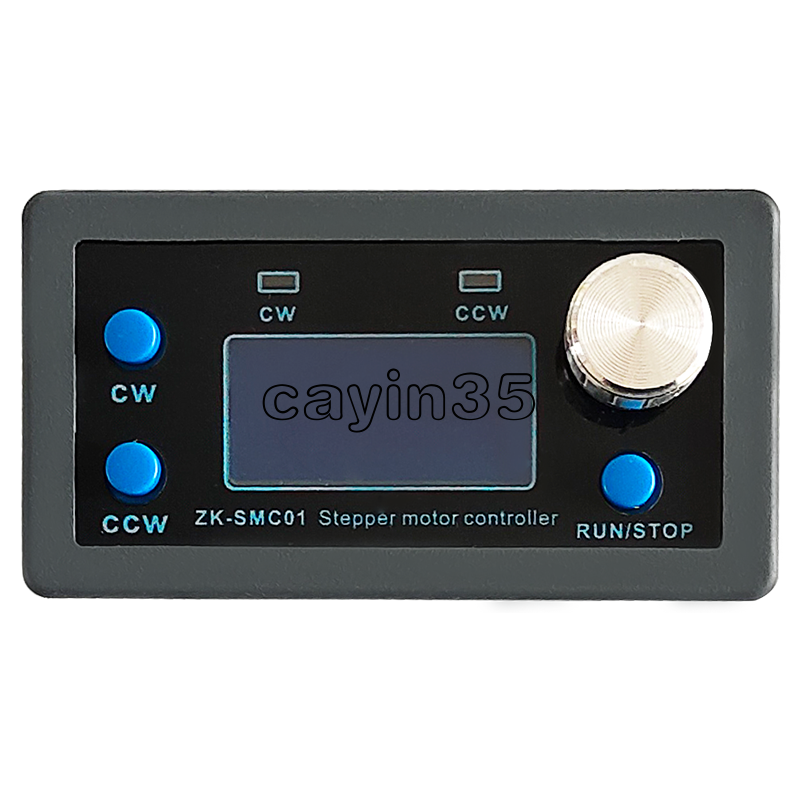

Model: ZK-SMC01 Step Motor Controller

Adapted motor: stepper motor

Number of control axes: single axis

Motor signal: common cathode

Power supply range: DC 5-30V universal

Instruction features: streamline and optimize multiple commonly used instructions

Acceleration and deceleration control: Yes

Input reverse connection protection: Yes

Remote communication control: TTL serial port

Main functions of the system: automatic, manual, setting, serial port control

Speed range: 0.1~999 laps/minute

Number of forward pulses: 1-9999 pulses

Number of reverse pulses: 1-9999 pulses

Cycle work times: 1-9999 times

Forward delay time: 0.0-999.9 seconds

Reversal delay time: 0.0-999.9 seconds

Subdivision selection range: 1-128 subdivision

Product use environment: -5℃-60℃ (non-condensing)

Checklist

1*Stepper motor controller

1*Plug cord
