1pcs 3.3" inch 4/8Ohm 20W HIFI Silk Cloth Dome Tweeter Treble Unit Speaker 85mm/3.35"
Description
Note: The tweeter must be isolated by a frequency divider or crossover capacitor. Otherwise, it may cause the tweeter to burn out after the amplifier is turned on.
Product Size: 3.3" inch
Category: Audio Speakers
Type: Treble
Optional Impedance: 4Ω, 8Ω
Rated Power: 20W
Frequency Response Range: 1KHz-20KHz
Sensitivity: 90dB
Voice Coil Bobbin: ACCAW
Cone Basin Material: Silk Cloth Dome Diaphragm
Magnetic Steel Parameter: Neodymium Magnet

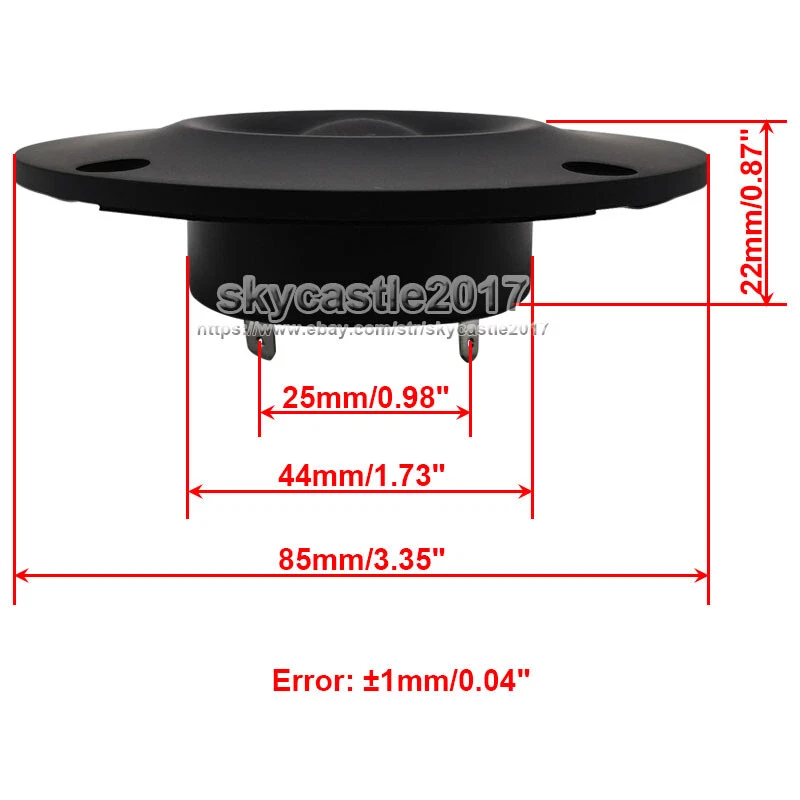

Panel Diameter: 85mm/3.35"
Panel Edge Thickness: 3mm/0.12"
Opening Hole Diameter: 44mm/1.73"
Installation Height: 16mm/0.63"
Voice Coil Inner Diameter: 25mm/0.98"
Screw Hole Inner Diameter: 4.5mm/0.18"
Screw Counterbore Inner Diameter: 8mm/0.31"
Total Height: 22mm/0.87"
Error: ±1mm/0.04"
Weight: 75g
Picture 3 of 11
Picture 4 of 10
Package Included:
Tweeter x 1
