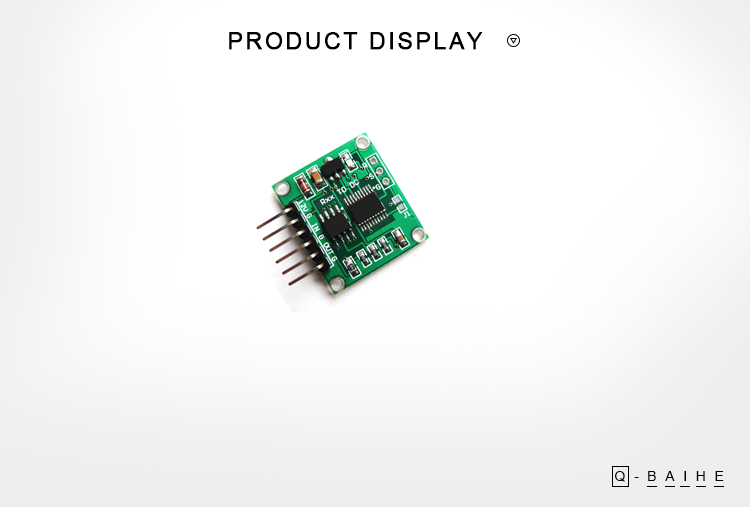

| Title： | Potentiometer Resistance To Voltage 0-500Ohm To 0-5V 0-10V Linear Conversion Transmitter Module | ||
| Working voltage: | 9V ~ 17V | Input resistance: | 0-500 ohms |
| Output voltage: | 0.00V ~ 5.00V/0.00V ~ 10.00V | Output mode: | J1 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit. |
| Drive mode: | No need to drive. | Dimensions: | (length) 26mm * (width) 23mm * (height) 10mm |
| Application range: | potentiometer, resistance to voltage signal; remote data acquisition and control equipment | ||
| Interface: | 12V: Power supply positive port (9V ~ 17V). G: Power ground interface. IN: Resistance input interface (0~500 ohms). G: Power ground interface. OUT: Signal output interface (0.00V ~ 5.00V /0.00V ~ 10.00V). G: Power ground interface. |
||
| Package: | 1*potentiometer resistance to voltage module | ||
