HT-7R

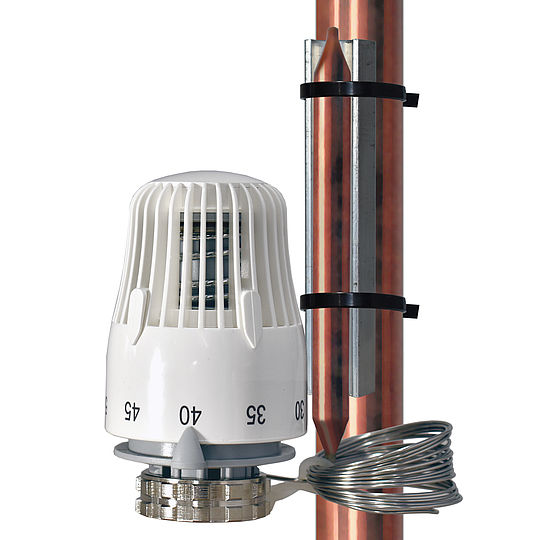

Thermostatic head with remote capillary.



Characteristics:

The head with a remote surface sensor is used to regulate the temperature or to limit the temperature at a remote installation site. This allows us to regulate the flow of the medium, for example: in the underfloor heating distributor.
The head has a temperature scale in the range of 20-60 ° C. Movable min / max limits allow the valve to be secured by accidentally changing the range by unauthorized persons.
The head fits M30x1.5 threaded valves, including: Heart, Honeywell, MNG, Oventrop, Comap D805, VALF, Watts, Danfoss

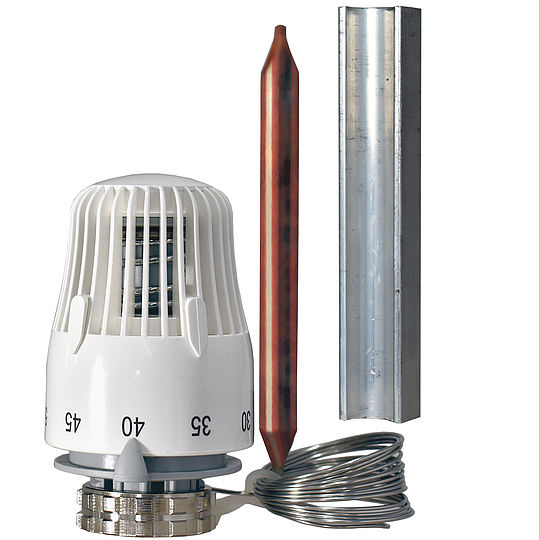

The auction concerns a thermostatic head with a remote capillary with a mounting bracket (# 5)

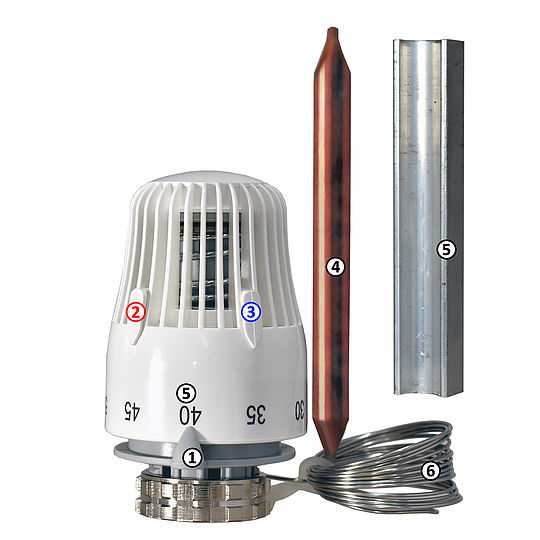

1. Indicator of the set temperature

2. Movable limitation of the maximum temperature

3. Movable limitation of the minimum temperature

4. capillary 2m

5. Holder for mounting on a pipe or manifold

Application example:

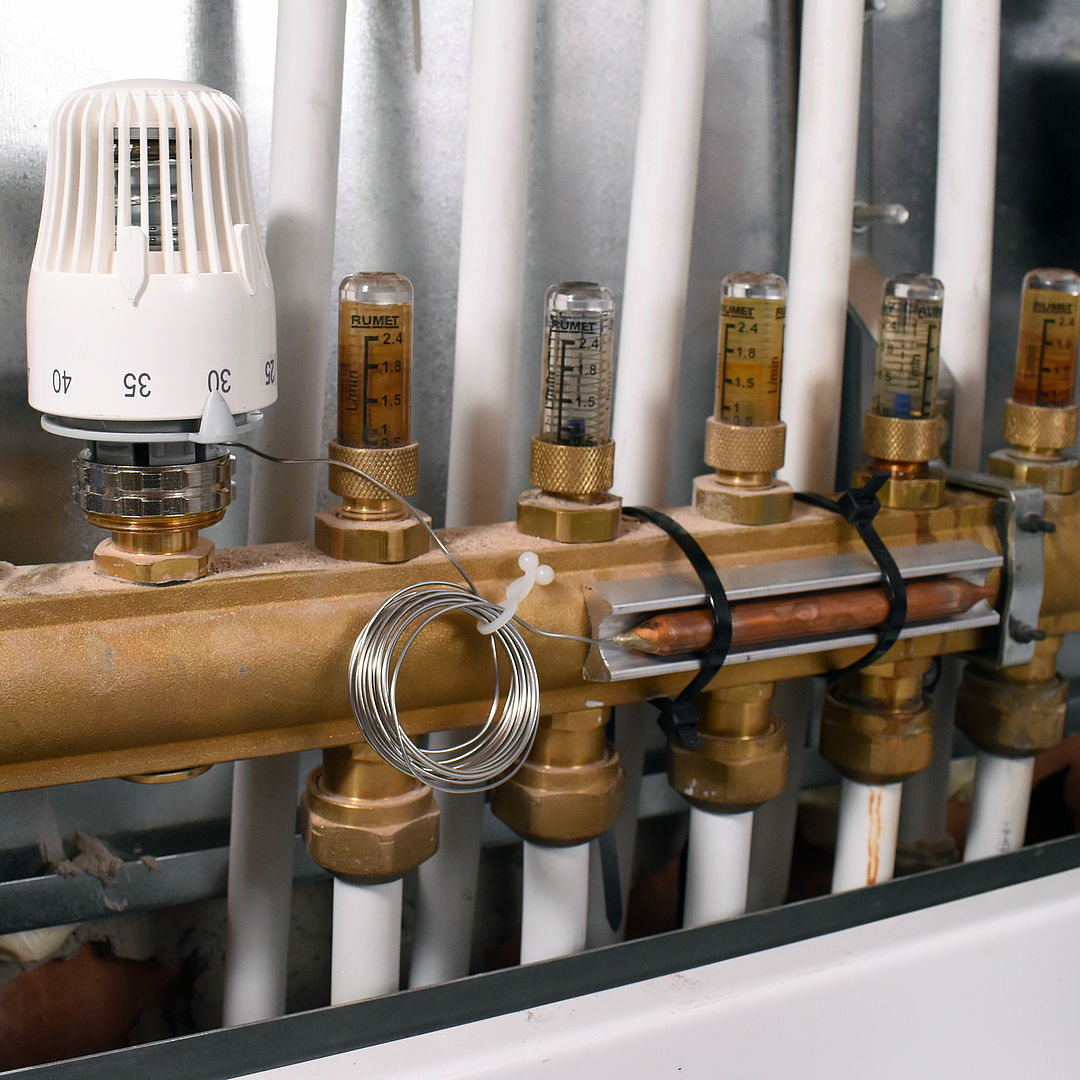

• Regulation of underfloor heating in a mixed system

• Setting for tanks, heat exchangers, CWU.

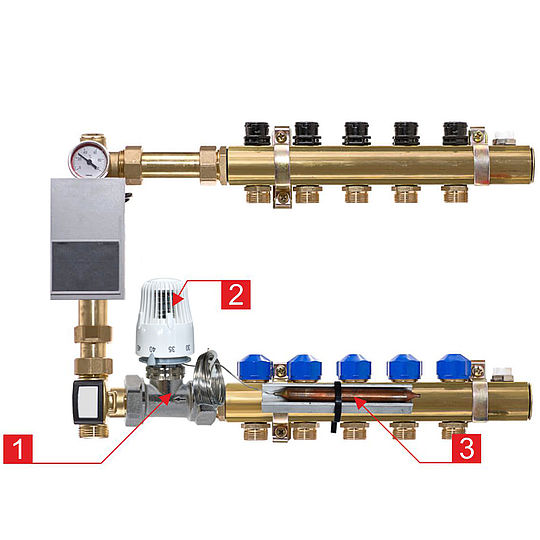

  1. Simple thermostatic valve

  2. Thermostatic head

  3. Remote capillary + profiled handle to the distributor

Technical specifications:

• Thread: M30x1.5mm

• Adjustment range: 20-60 ° C

• Capillary: 2 meters

• Movable temperature limits

• Pipe mounting bracket
