Renishaw EKL PEL1,2,3 Extension Set and 206 Styli Kit For M2 Probes - Warranty
Item Description:
Renishaw EKL PEL1, PEL2, PEL3 Autojoint Extensions & 206 M2 Stylus Kit fully tested with 90 Day Warranty.
What is included in this sale:
1 QTY: PEL1 (50 mm)
1 QTY: PEL2 (100 mm)
1 QTY: PEL3 (200 mm)
1 QTY: 206 Stylus Kit for M2 Probes
| Pos. | Part Number | Description |
| 1 | A-5000-7806 | M2 STY D1R L10 |
| 2 | A-5000-7807 | M2 STY D2R L10 |
| 3 | A-5000-3604 | M2 STY D3R L10 |
| 4 | A-5000-4154 | M2 STY D4R L10 |
| 5 | A-5000-4155 | M2 STY D5R L10 |
| 6 | A-5000-4156 | M2 STY D6R L10 |
| 7 | A-5000-4158 | M2 STY D8R L11 |
| 8 | A-5000-3603 | M2 STY D2R L20 |
| 9 | A-5000-4160 | M2 STY D3R L20 |
| 10 | A-5000-4161 | M2 STY D4R L20 |
| 11 | A-5000-3611 | M2 DSC D6R T1.2 L10 |
| 12 | A-5004-7589 | M2 CYL D1.5SLVS L11 |
| 13 | A-5004-7590 | M2 CYL D3SLVS L13 |
| 14 | A-5004-7588 | M2 PNT D3SLVS |
| 15 | A-5000-7809 | M2 DSC D18SLVS T1.5 |
| 16 | A-5000-7810 | M2 DSC D25SLVS T1.5 |
| 17 | A-5000-3614 | M2 HEM D18CE |
| 18 | A-5000-7534 | M2 ACC KNUCKLE OFFSET |
| 19 | A-5004-7592 | M3-M2 EXT L5SS |
| 20 | A-5000-3627 | M2 ACC CENTRE 5WAY |
| 21 | A-5004-7585 | M2 EXT L10 D3SS |
| 22 | A-5004-7586 | M2 EXT L20 D3SS |
| 23 | A-5004-7591 | M2 EXT L30 D3SS |
| 24 | A-5004-7582 | M2-M3 STYLUS TOOL |
| 25 | P-TL01-0150 | S3 HEX WRENCH 1.5 MM A/F |
| 26 | M-5000-3541 | S8 TP2 SPANNER (not pictured) |
| 27 | A-1015-7749 | COMP BOX ASSEMBLY (not pictured) |

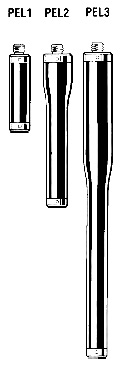

PEL1 EXTENSION
PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL1 is suited to the majority of applications that require an additional 50 mm of reach.
Compatible heads:
- PH10T PLUS
- MH8
- PH6
- PH1
- PHS1
Compatible probes:
- TP20
- TP200
- TP6
- TP2
PEL2 EXTENSION
PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL2 is suited to the majority of applications that require an additional 100 mm of reach.
Compatible heads:
- PH10T PLUS
- PH6
- PH1
- PHS1
Compatible probes:
- TP20
- TP200
- TP6
- TP2
PEL3 EXTENSION
PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL3 is suited to the majority of applications that require an additional 200 mm of reach.
Compatible heads:
- PH10T PLUS
- PH6
- PH1
- PHS1
Compatible probes:
- TP20
- TP200
- TP6
- TP2
What is a stylus?
In principle, styli are the CMM’s “tools”, providing the same relationship that turning tools have with lathes, and milling and boring tools have with milling machines.
When measuring with a touch-trigger probe, the machine uses the stylus to take the data points on the surface of the work piece.
Each touch generates a point that is defined using coordinate values in X, Y and Z. Feature, size, form and position can then be computed from these points.
By contrast a scanning probe takes continuous readings along the surface of a work piece. Sophisticated software uses this data to compute the size, position and form of features on the component.
Connecting thread
At a basic level, the choice of stylus always
relates to the connecting thread on your
coordinate measuring machine’s sensor – M5 usually M2, M3, M4 or M5.
This is a great price for Renishaw EKL PEL1, PEL2, PEL3 Autojoint Extensions & 206 M2 Stylus Kit fully tested with 90 Day Warranty.
Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.If you have any questions feel free to contact us. With 35 plus years of
experience with Renishaw products we can help with all of your application needs as well as your after sales support.
