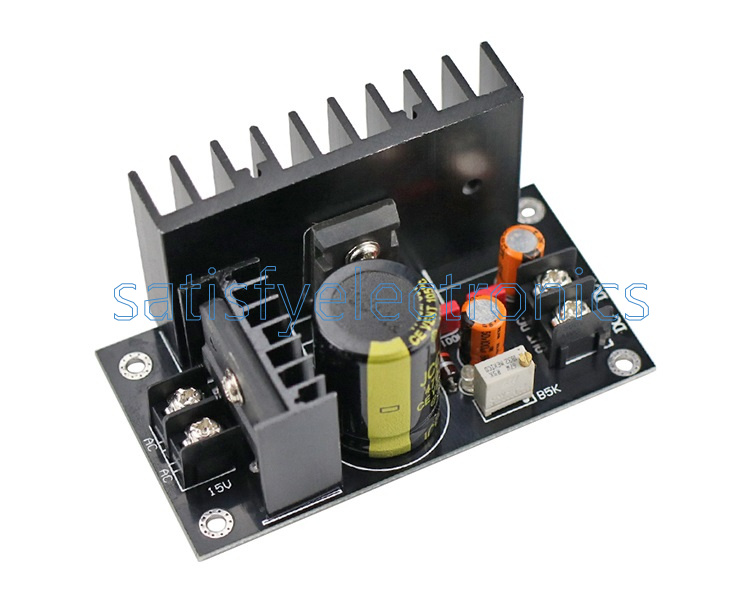

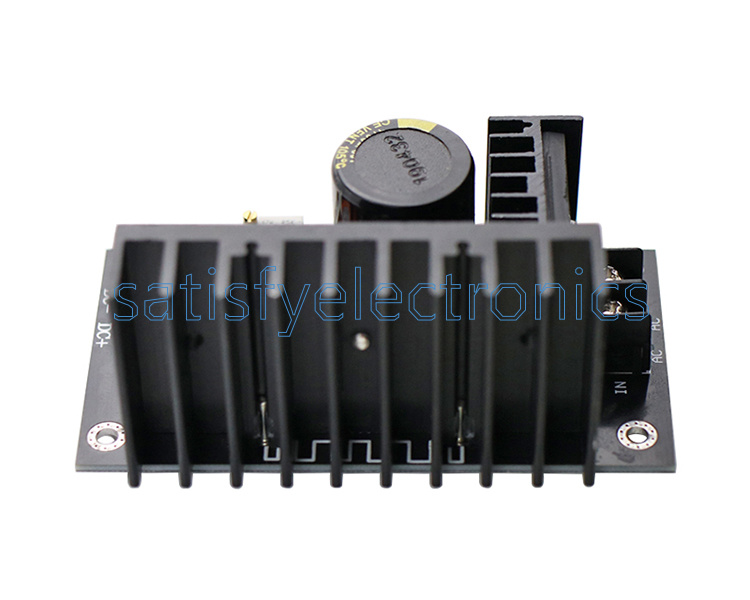

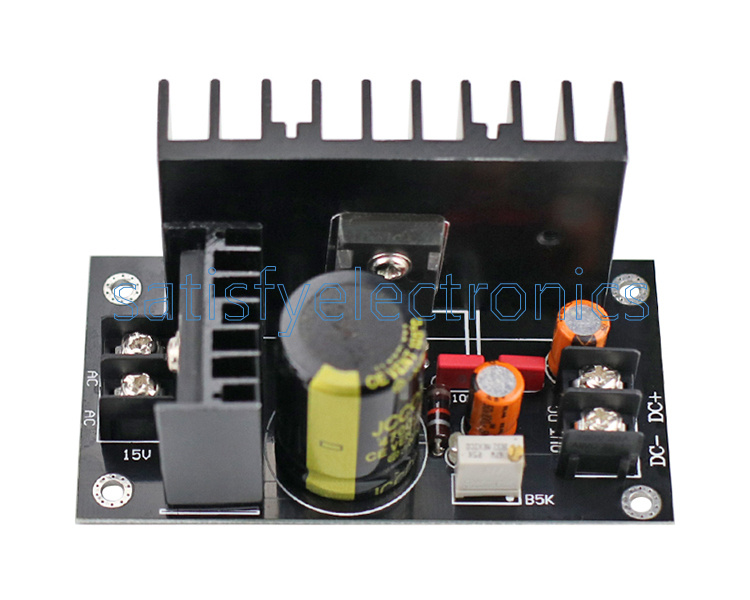

LT1083cp, high current, adjustable voltage, rectifier and filter power board

LT1083cp characteristic description (emphasis): It is a linear step-down block. Although the voltage adjustment can be adjusted from 2.5V to 37V, it is recommended that the working differential pressure be within 10V, because the power consumption is proportional to the pressure difference. The larger the output current, the smaller the output current. If the voltage difference is too large, the LT1083CP and some components will be very hot or even burn the components, and the current output will be very small.

As an analogy, if the output voltage is required to be 24V, the DC voltage before the voltage stabilization is ideally 26V, which is converted into an AC formula (26Vdc / 1.4 times = 18Vac), so it is ideal to find a transformer with only 18V output.

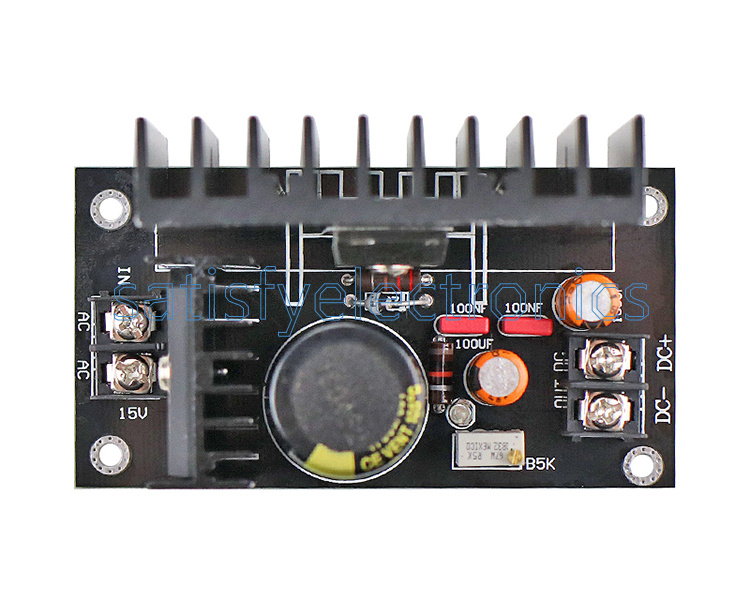

The plate of the product uses high-quality 1.6mm double-sided glass fiber board, double-sided wiring, tin plating process, the main filter capacitor pin installation adopts "lead pin / hard pin" coexisting design, and the capacitor diameter is 23MM filter capacitor.

The layout adopts the classic one-point grounding, the ground wire is all copper, and the components are symmetrically arranged, which is beautiful and generous.

Input AC voltage requirements: maximum 35V AC.

Output DC current: up to 7A (needed to work under small pressure difference).

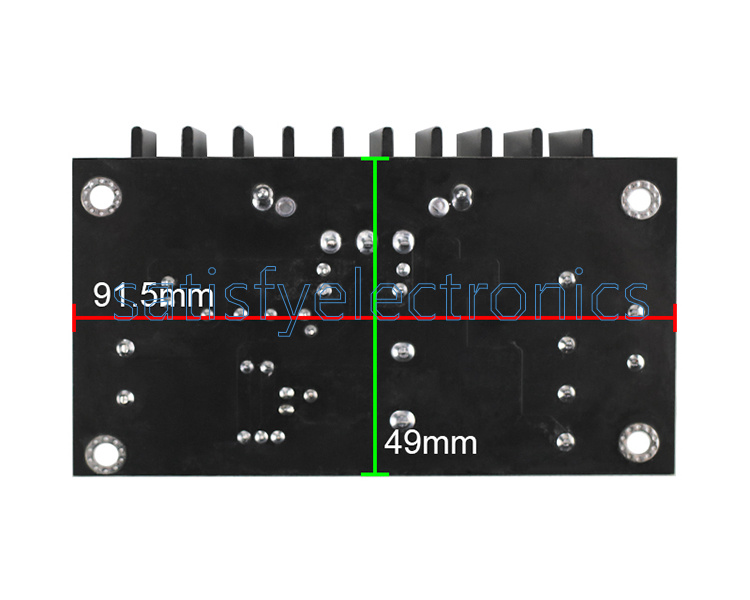

Board Size: 91.5mm*49mm.

Net weight: 118g/1pcs

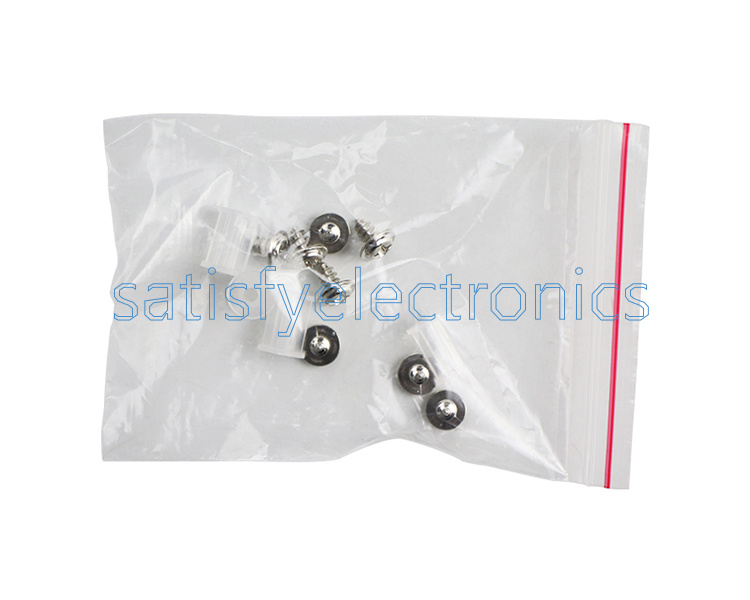

Package: 1pcs

Tips:A transformer is required for this AC input. It cannot be directly connected to the mains.
