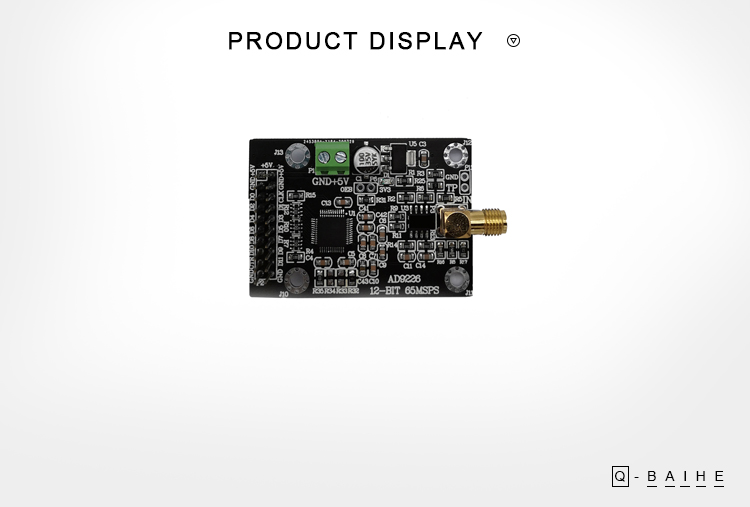

| Title： | AD9226 ADC Module 65M Acquisition Analog-to-Digital Converter FPGA Development Board Supporting | ||
| Module model: |
AD9226 |
Module type: | Analog to digital conversion module |
| Sampling rate: | 65M SPS (MAX) | ADC resolution bits: | 12 bits |
| Input voltage range: | 10VPP (±5V) | Power supply: | DC 5V |
| Provide routines: | Verilog FPGA source code | Example platform: | QuartusII EP4CE15F17C8 |
| Communication protocol: | 13-bit parallel SPI | Communication signal level: | 3.3V |
| Input impedance: | 50 ohms | Number of input channels: | 1 channel |
| Input interface: | SMA tuner/XH2.54 hole | Reference voltage: | internal 2V |
| -3dB analog bandwidth: | 320MHz | Output mode: | Parallel data |
| Module features: | High-speed ADC acquisition | Module application: | High-speed signal acquisition |
| Module interface type: | 13-bit data SPI parallel | Module size: | 54X37X23mm |
| Package: |
1*AD9226 Analog to Digital Conversion Module |
||
