Overview
Overview

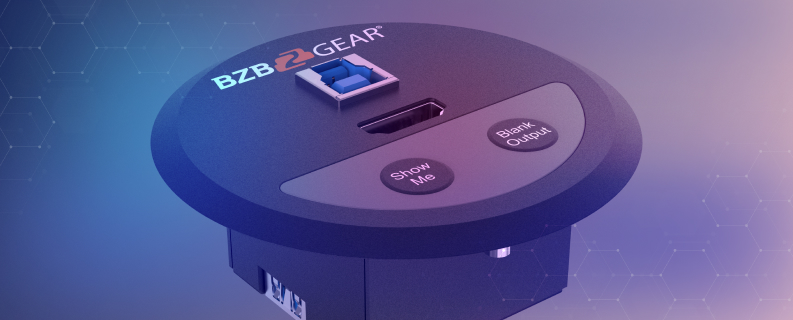

The BG-SC-GRHU is a table grommet for BZBGEAR’s BG-UHD-KVM41 switcher. Each grommet supports resolutions up to 4Kx2K@60Hz 4:4:4 and features an HDMI input, USB 3.0 connection, and controls for source selection and video mute.
Users can connect their devices via the HDMI or Type B USB inputs. The HDMI and Type-A USB outputs provide the direct connection to the switcher.
Each grommet additionally has a 3-pin terminal control block to connect to the GR1~GR4 ports of the BG-UHD-KVM41 switcher, providing support for workstations or conferencing setups with the need to easily switch between and control multiple computers.
Specification
| Video Input | |
| Input | (1) HDMI |
| Input Connector | (1) Female type-A HDMI |
| Video Output | |
| Output | (1) HDMI |
| Output Connector | (1) Female type-A HDMI |
| Control | |
| Control Connector | (1) Type-B USB, (1) Type-A USB, (1) 3-pin Terminal Block |
| General | |
| Resolution Range | Up to 4Kx2K @ 60Hz 4:4:4, HDR10, Dolby Vision |
| Operation Temperature | 14-25°F ~ +131-25°F / -10°C ~ +55°C |
| Storage Temperature | -25-25°F ~ +158-25°F / -25°C ~ +70°C |
| Relative Humility | 10%-90% |
| Dimension (W*H*D) | 3.0" x 1.2" x 3.0" [76mm x 29.6mm x 76mm] |
| Net Weight (g) | 0.23 lbs [105g] |
Interfaces

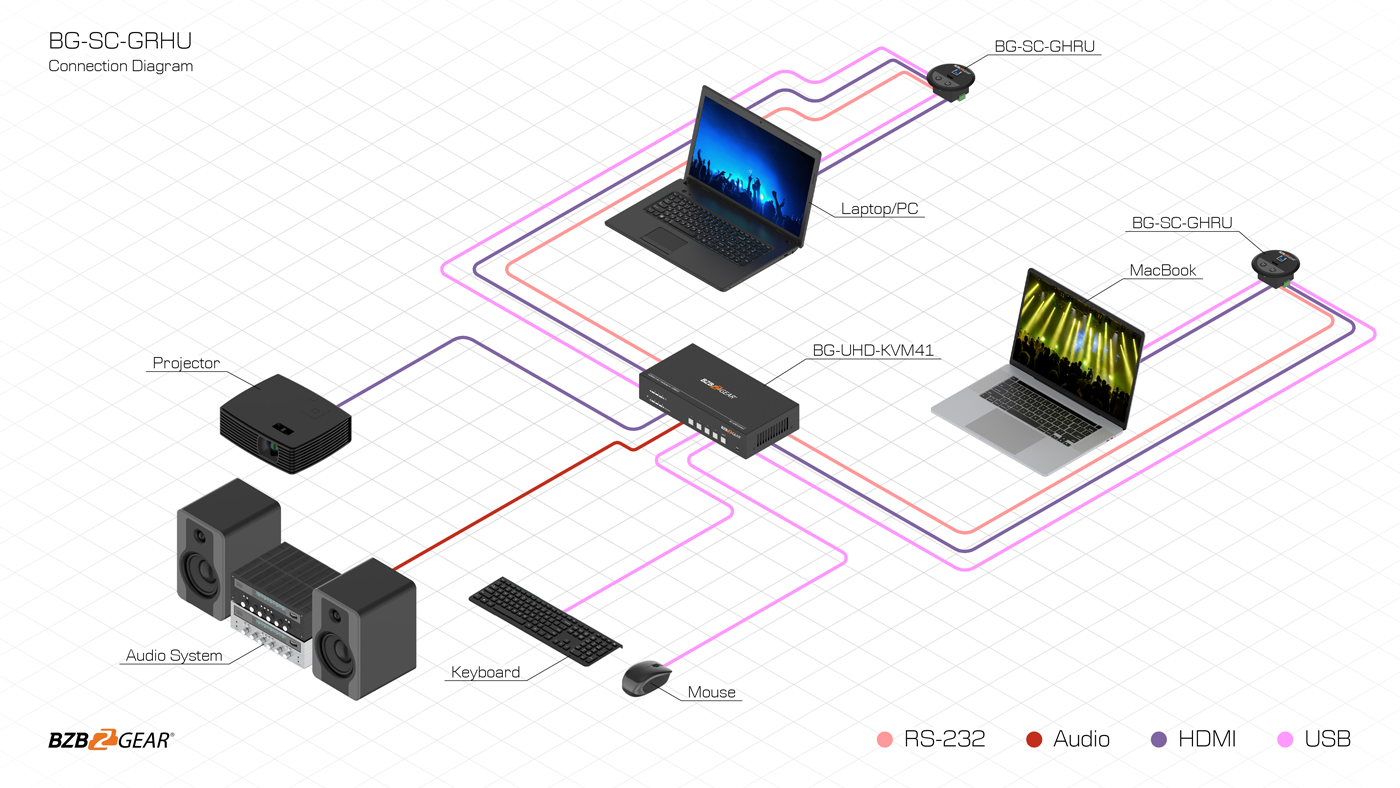

Connection Diagram
Package Contents
- 1 x BG-SC-GRHU Table Grommets
- 1 x 3-pin Terminal Block
- 1 x 2 Mounting Screws (PM3*8mm)
- 1 x 2 Mounting Screws (PM3*16mm)
- 1 x 2 Mounting Screws (PM3*25mm)
