Title：

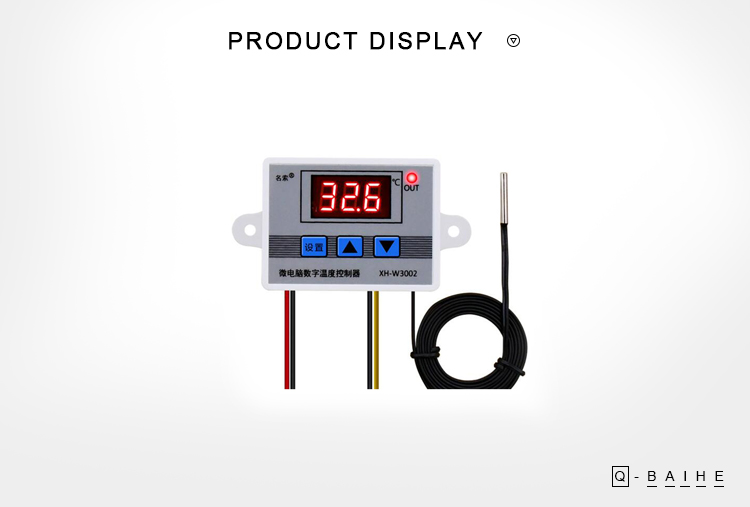

DC12V 0.1 Precision Microcomputer Digital Thermostat Temperature Control Switch

Output Power:

120W/240W/1500W

Temperature Range:

-50~110°C

Temperature Control Range:

 -50~110°C

Temperature Measurement Accuracy:

±0.2 °C

Temperature control Accuracy:

±0.1 °C

Output Type:

Direct Output

Measurement Input:

NTC10K L=1m Water Proof Probe

Mounting Hole Distance:

73mm

Introduction To Code And Features:

1, P0 represents the starting temperature, the setting range is -50~110 °C, the factory setting is 25
2, P0 stands for stop temperature, setting range -50~110°C, factory setting 40
3, P0 stands for temperature correction, setting range -10~10°C, factory setting 0
4, P0 stands for delayed start, the setting range is 0~10 minutes, and the factory setting is 0 minutes.

Application Examples:

1. Start temperature <stop temperature = heating mode
2. Start temperature > stop temperature = cooling mode

Common Fault Analysis:

1. How to restore the factory settings: When power is on, press and hold the up and down keys for about 3 seconds, display 888 and then jump to the detection temperature, and restore the factory settings successfully.
2. Display LLL: need to repair the sensor or replace the sensor
3. Display HHH: Sensor short circuit

Applications:

Various cabinets, control incubation temperature, refrigerator freezer, boiler water pump

Package:

1*DC12V 0.1 Precision Microcomputer Digital Thermostat Temperature Control Switch
