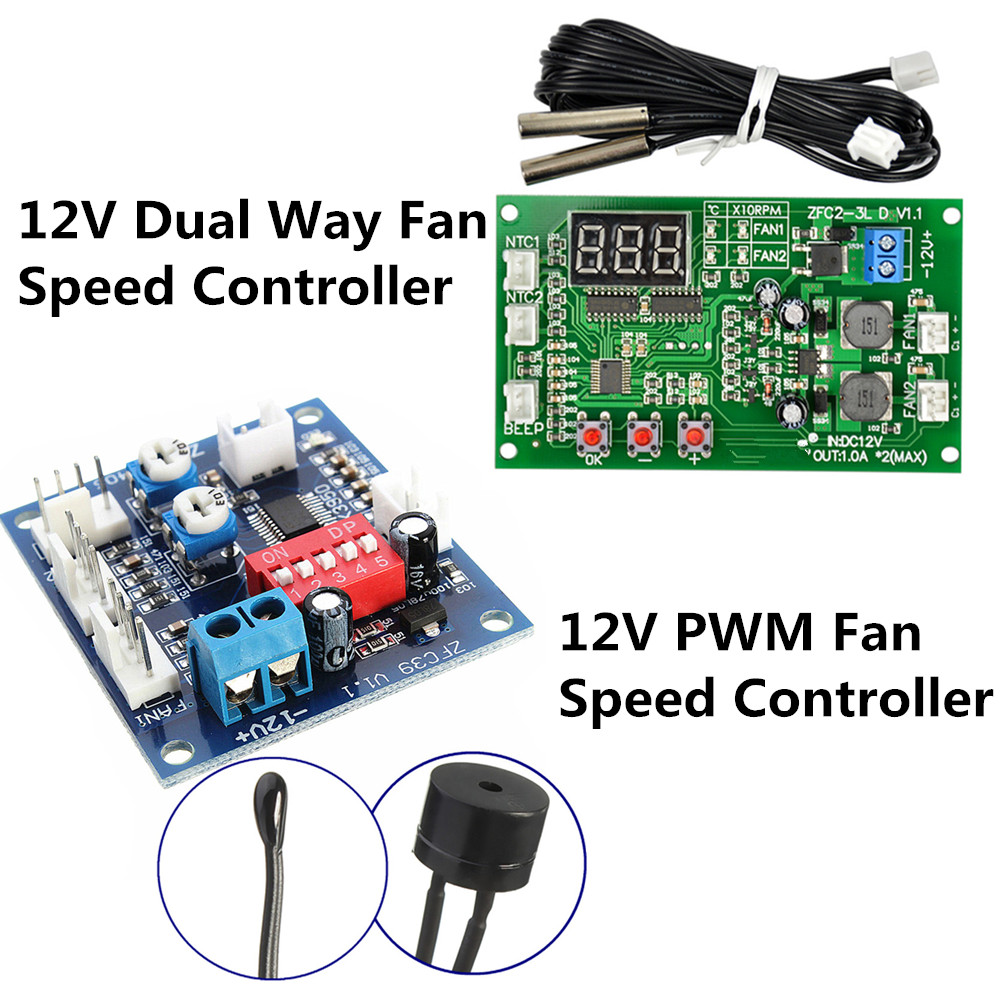

NEW 12V Dual Ways / PWM PC CPU Fan Digital Temperature Control Speed Controller

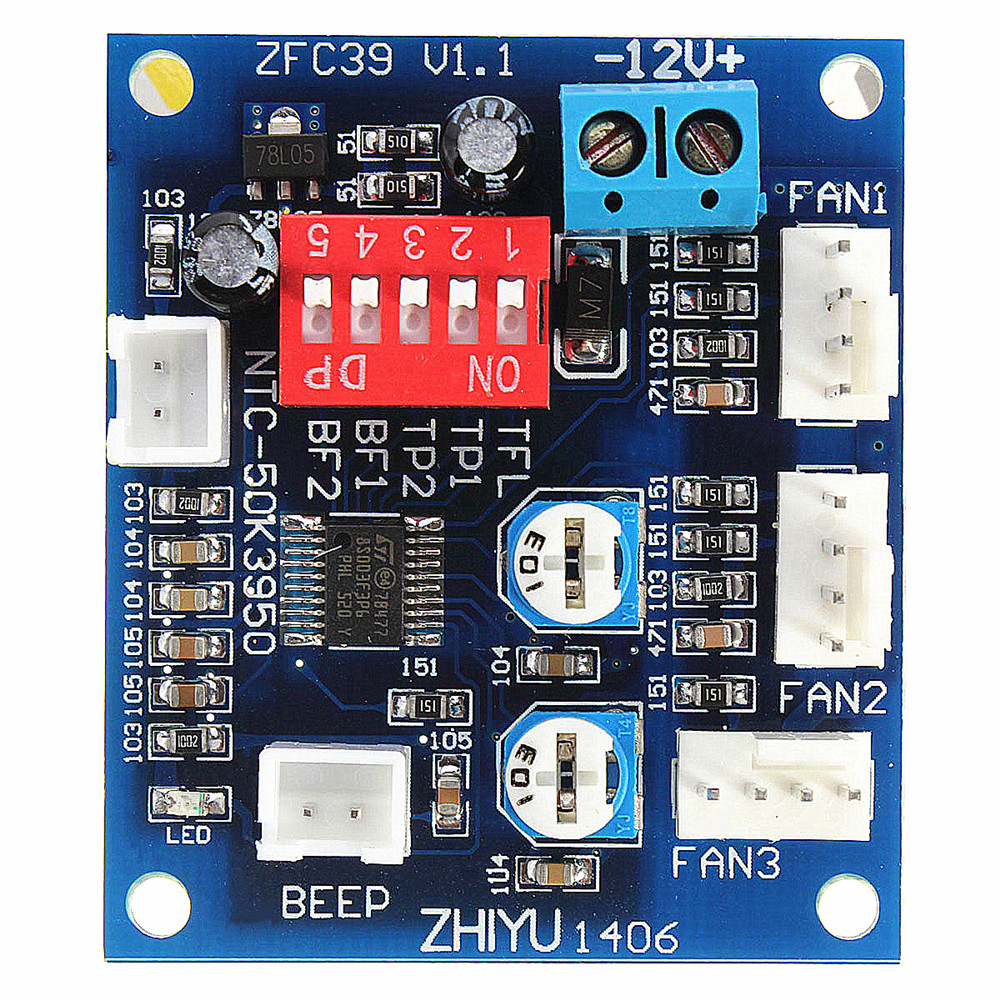

12V PWM  Fan Speed Controller

Features

Support all within 12V 5A fans, synchronous rectifier output, high efficiency! Even if a large current work does not require additional heat sink! A plurality of fans can be used in parallel (total current does not exceed 5A), supports automatic temperature control and manumotive speed control, temperature control speed with four temperature zones for setting up, easy to apply in a variety of applications! It can be opened with a three-wire fan monitoring function (stall warning).

Specifications

Working voltage:DC12V

Circuit load capacity: maximum current per output 5A, the bus currents up 9A

Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)
                     The second channel and the third channel 10% -100%

(Note: Above range only for PWM range, the actual control effect will vary depending on the fan.)

Temperature probe parameters: 50K B = 3950

Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%

Stall alarm minimum speed: 700-800 rpm

 Function setting switch Description:

TFL (No. 1): The lowest temperature channel PWM setting, when ON state FAN1 PWM minimum is 40%, when OFF the minimum PWM of FAN1 is 20%.

TP1 TP2 (No. 2,3): Temperature channel control temperature zones are interpreted as follows (need to used with the temperature probe):



TP1  TP2 Accelerating temperature Full speed temperature
OFF OFF 35℃ 45℃
ON OFF 40℃ 55℃
OFF ON 50℃ 70℃
ON ON 60℃ 90℃



When the temperature lower than the accelerated temperature, then output at the minimum rotation speed; when it exceed over the full temperature, then always output at full speed.

BF1 BF2 (No. 4,5): corresponds FAN1 FAN2 stall alarm function switch, when the corresponding open channel fan break down, the controller will alarm with soundand light (works with buzzle), alarm will automatically eliminated when the fan is rotated recovery . If BF1 and BF2 both are open (ON), the FAN1, FAN2 have any one or both stops, the controller will alarm!

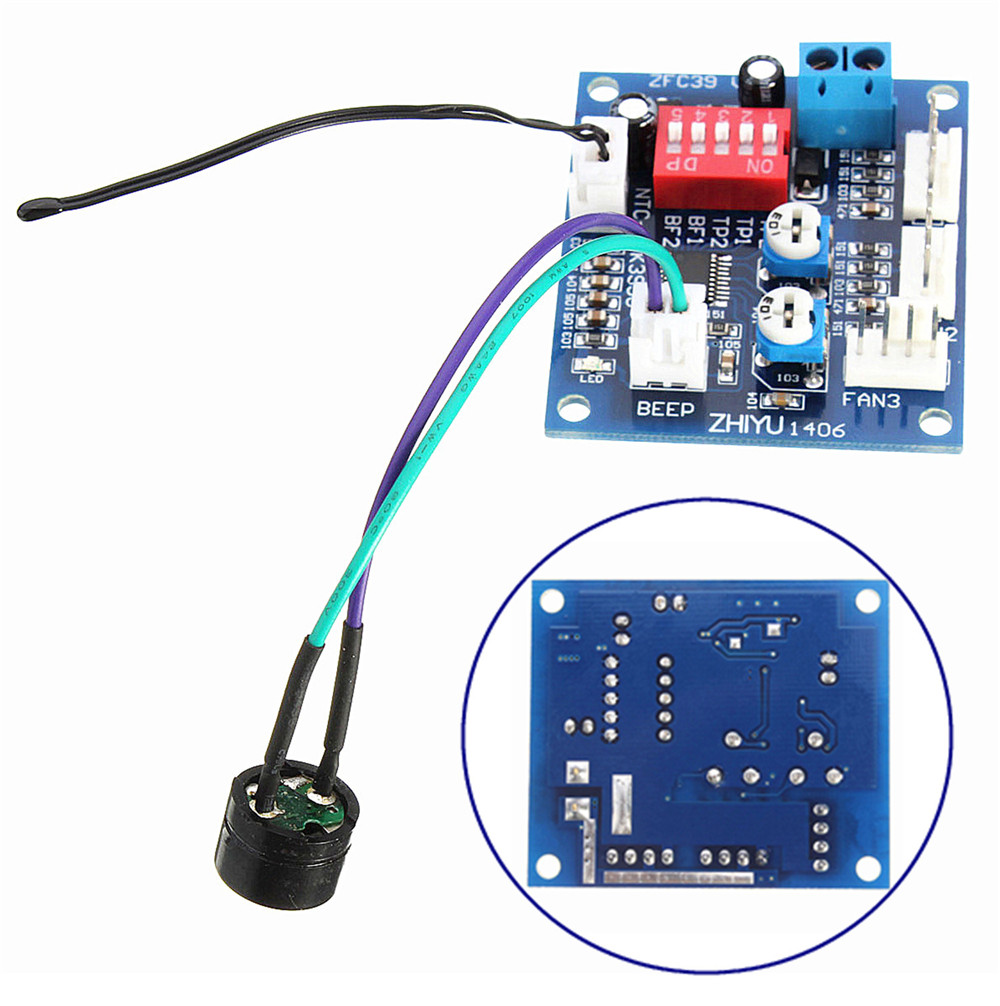

Package included

1x Speed controller

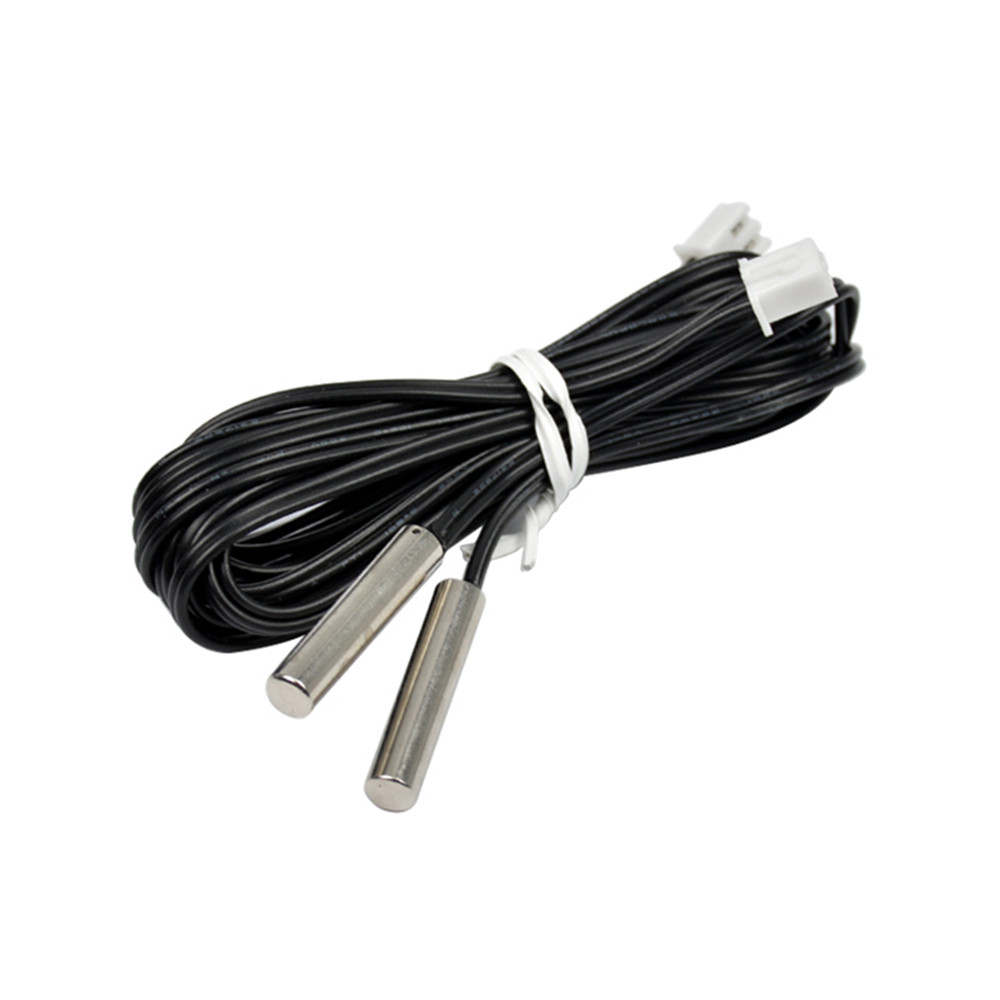

1x Temperature probe

1x Buzzle

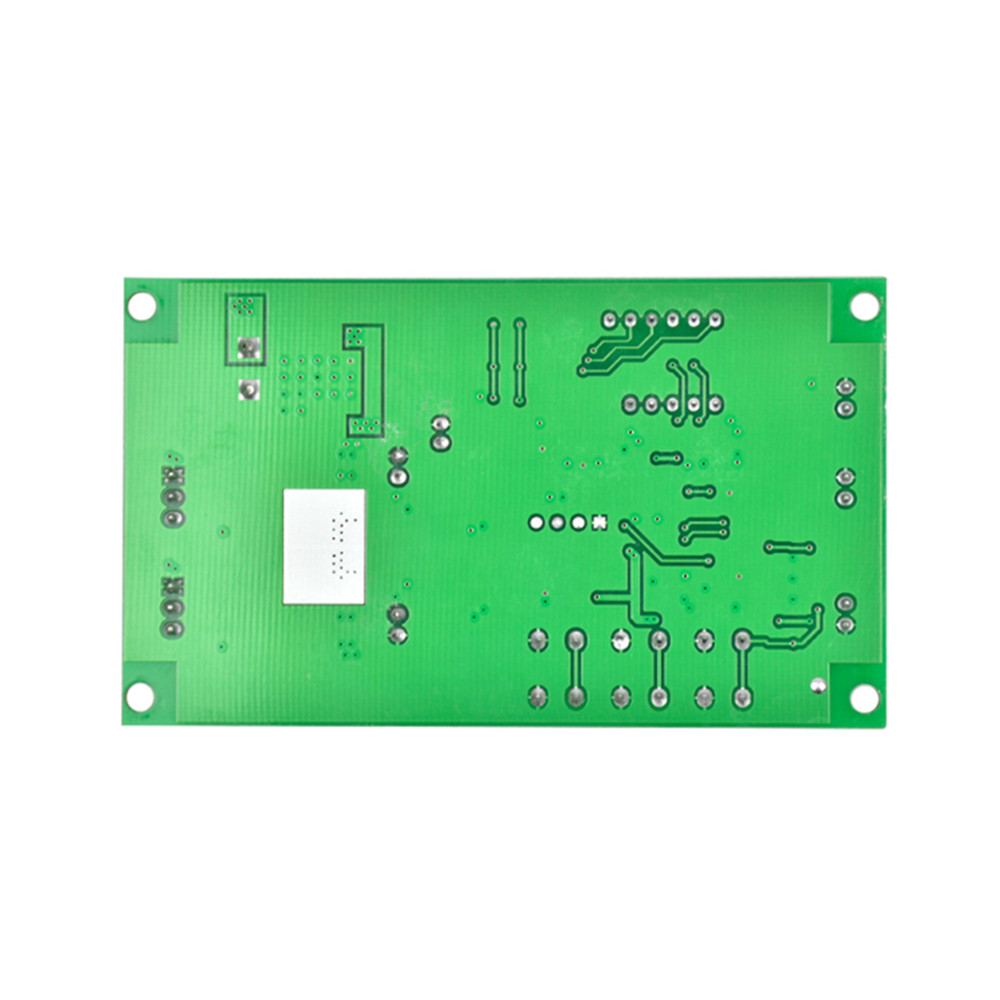

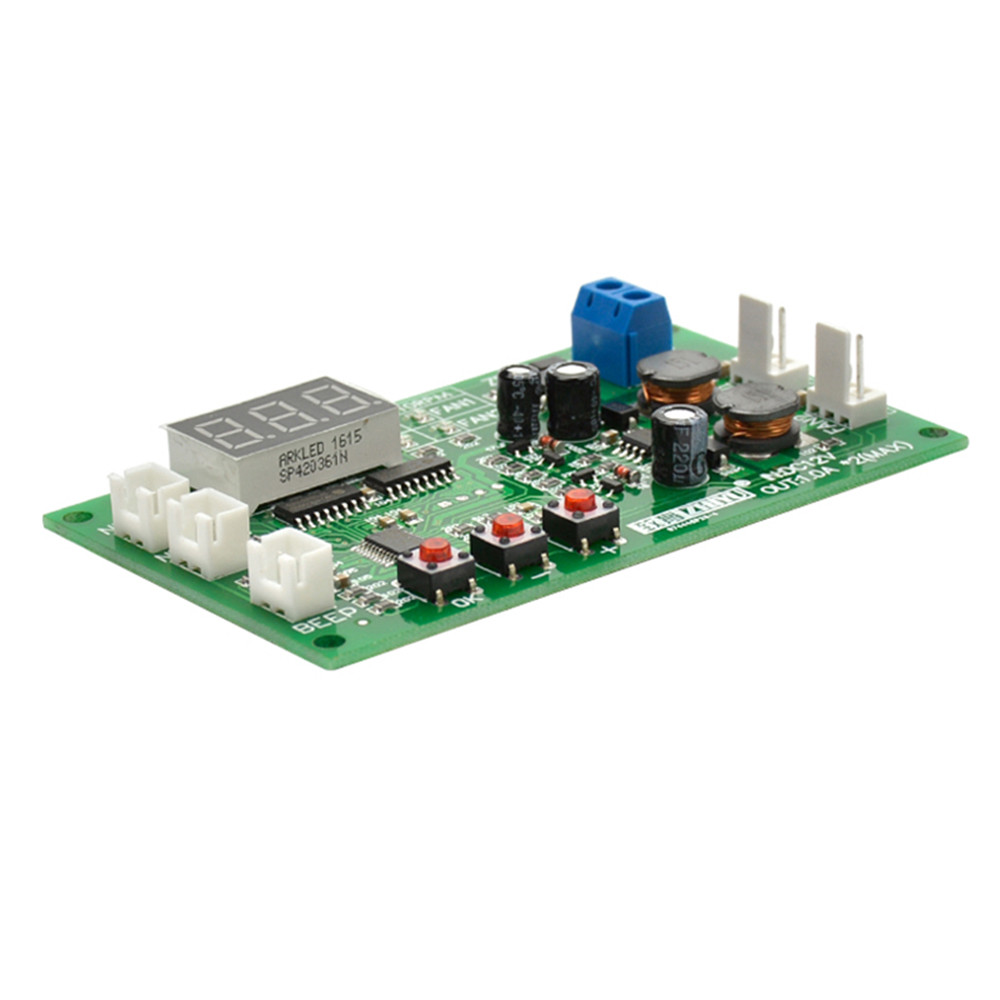

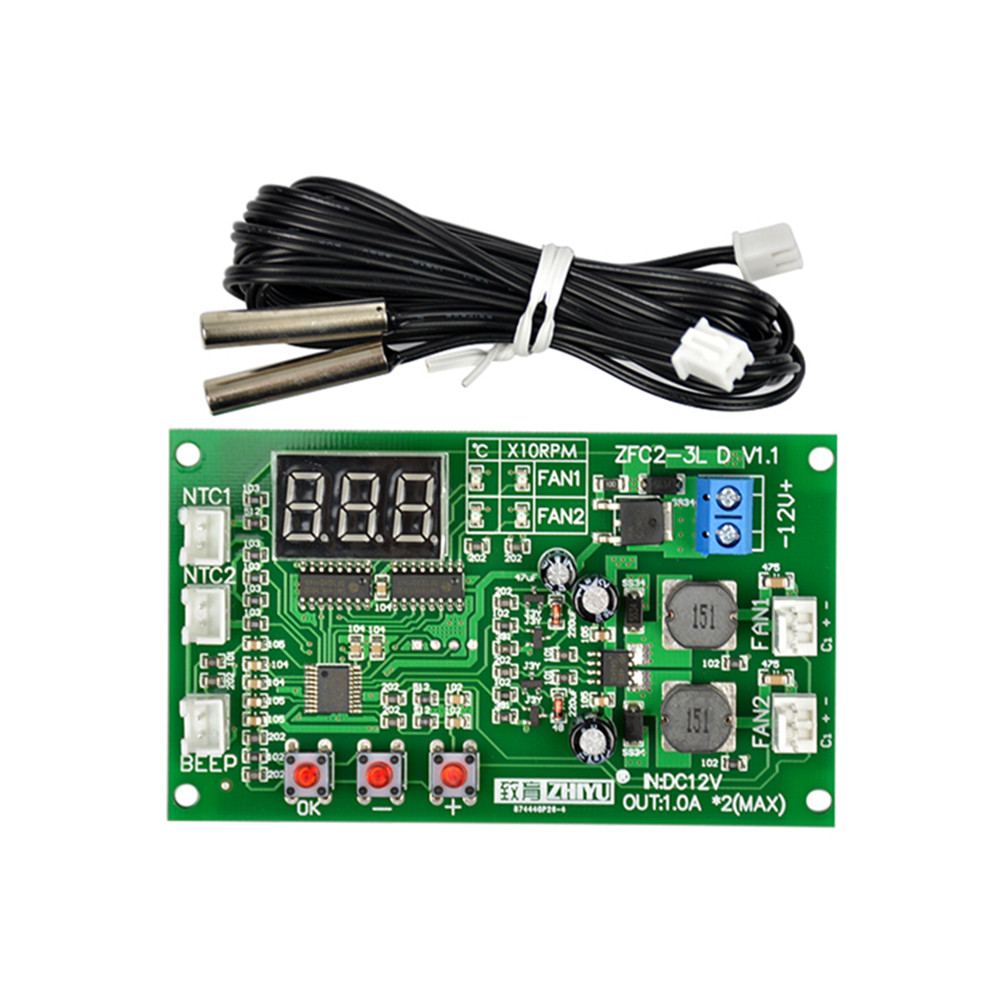

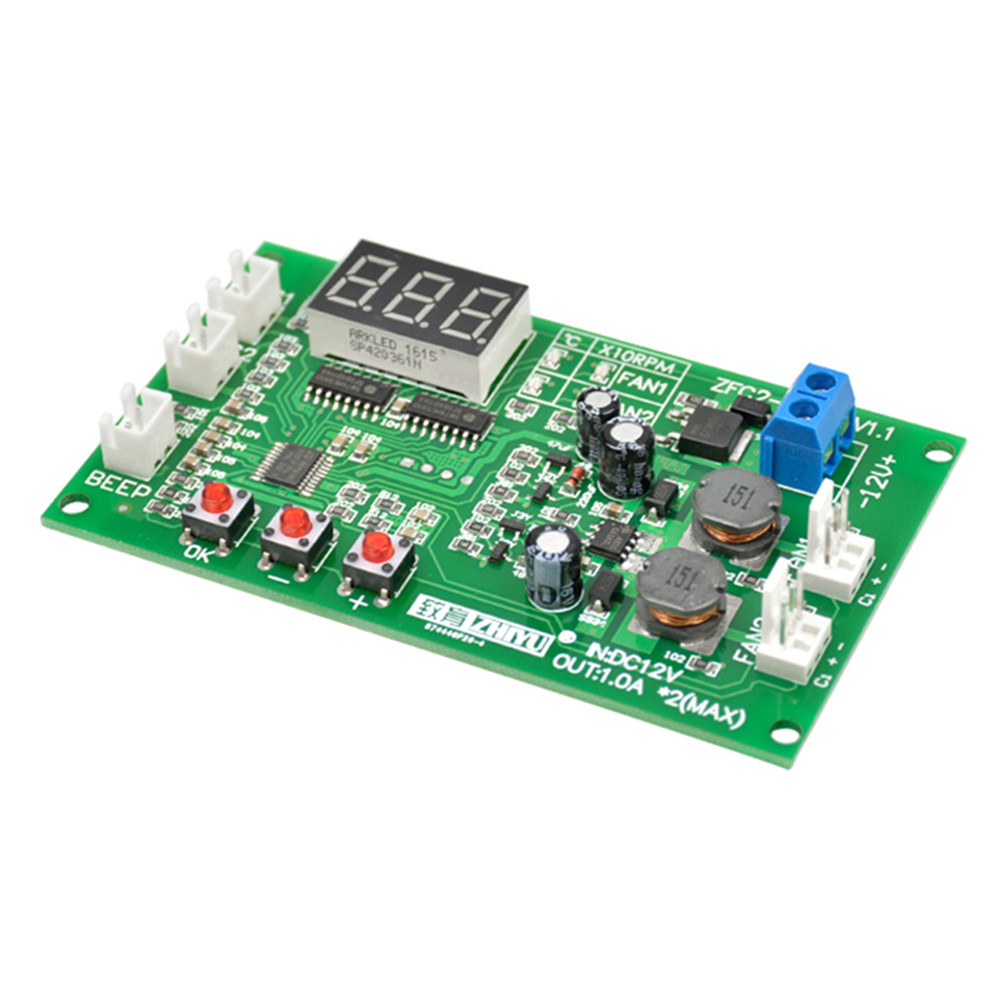

12V Dual Way Fan Speed Controller

Features:

When the temperature is the minimum speed) Manual speed setting:

Press the OK button to run the state about to enter the speed setting function, FAN1 two lights lit simultaneously on behalf of the current adjustment is a fan output size by pressing the + - buttons to adjust the minimum 1, maximum 100. After pressing the OK button to enter the set up of two fan output size setting, press the OK button again after setting is completed, exit and save the parameters.

Temperature control and stall alarm settings:

RUN mode, press the OK button to enter the temperature control and stall alarm setting,

Power supply voltage: DC12V Maximum range 11-14V low voltage display L u, excessive display H u,

Work efficiency: 90% (input 12V, output dual 0.8A 8V)

Output current: single channel maximum continuous output current 1.2A, dual channel at the same time using the total current can not exceed 2.0A, does not recommend the use of current less than 0.15A of the fan.

Over current protection: no
Temperature measurement error: 1%-0.5,
Thermistor : NTC 10K B = 3950

Package Included:
1x12V Dual Ways 3-wire Fan Digital Display Temperature Thermostat Speed Controller
