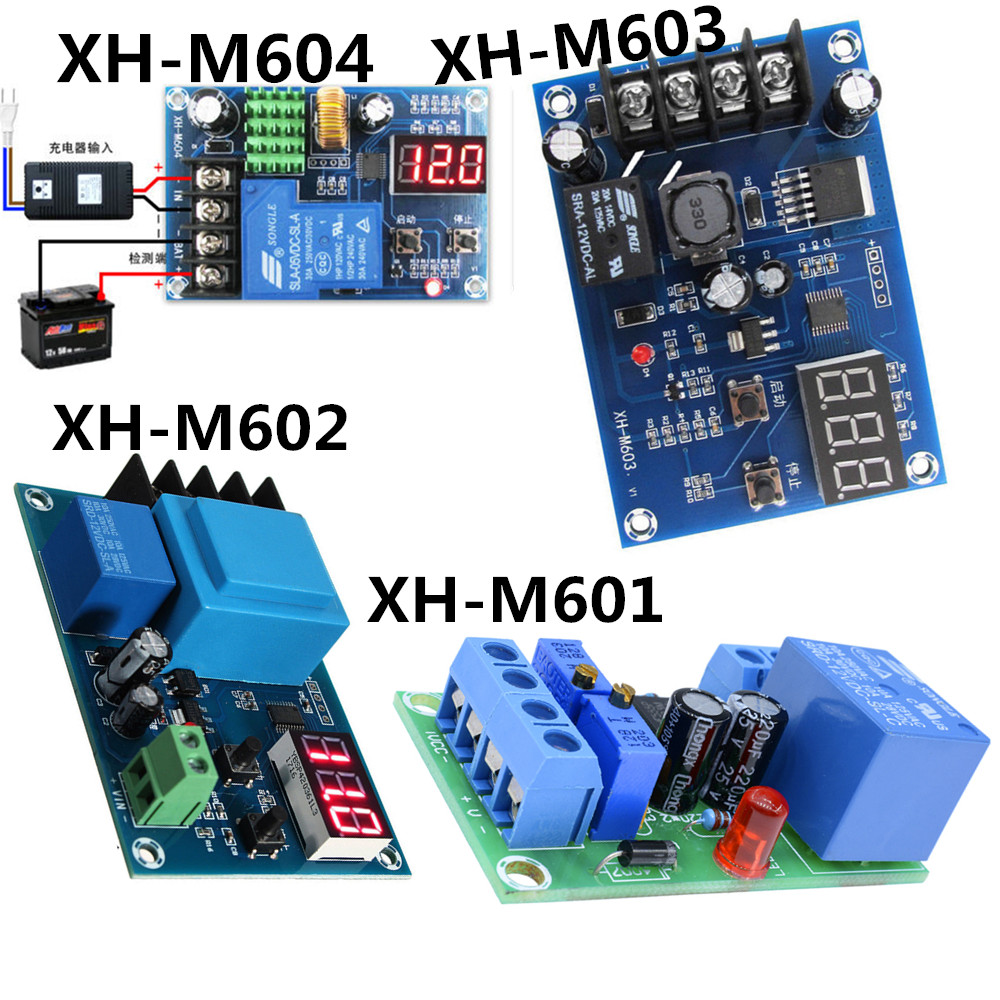

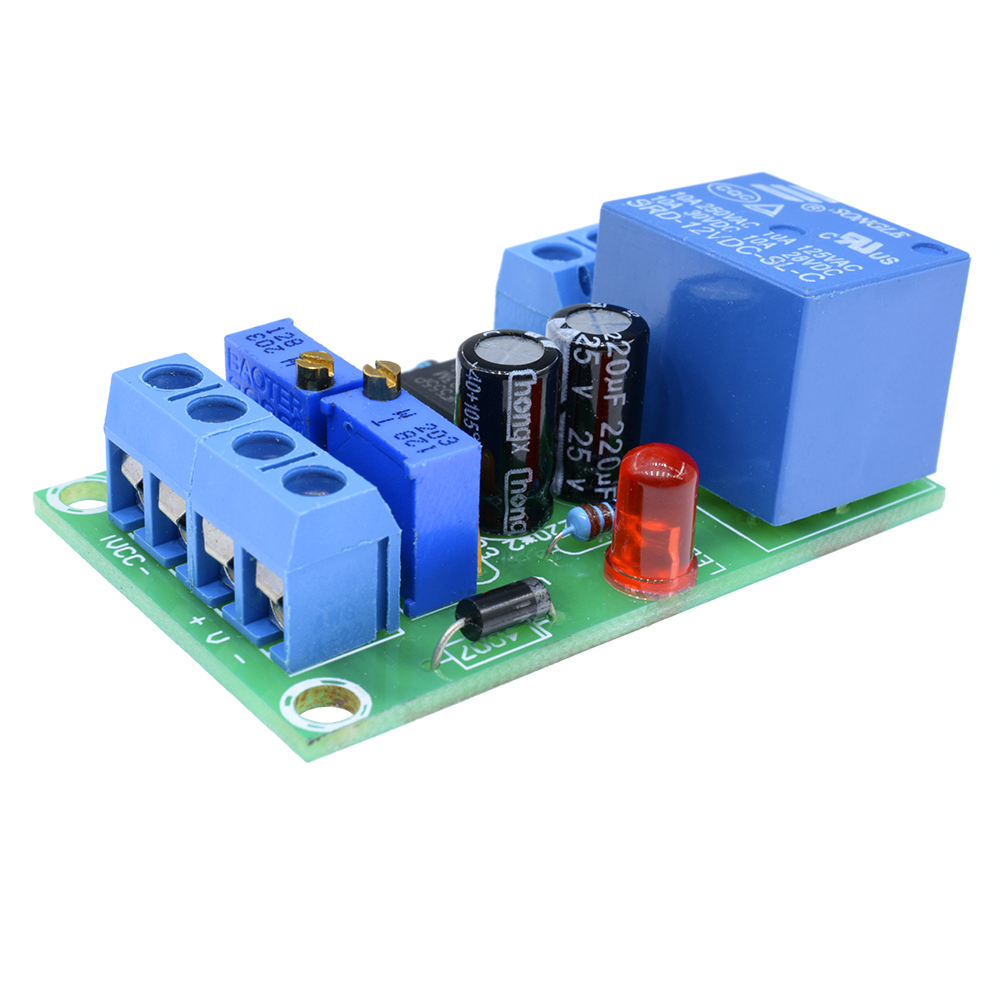

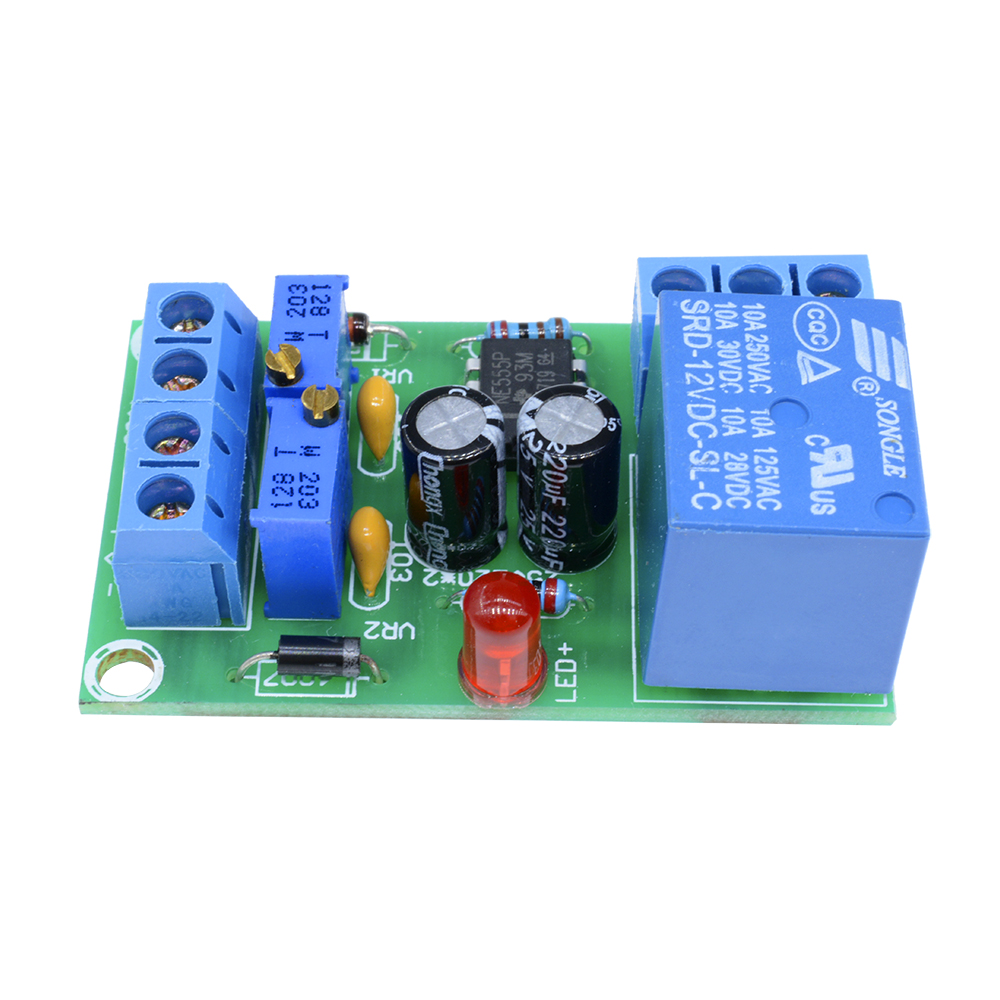

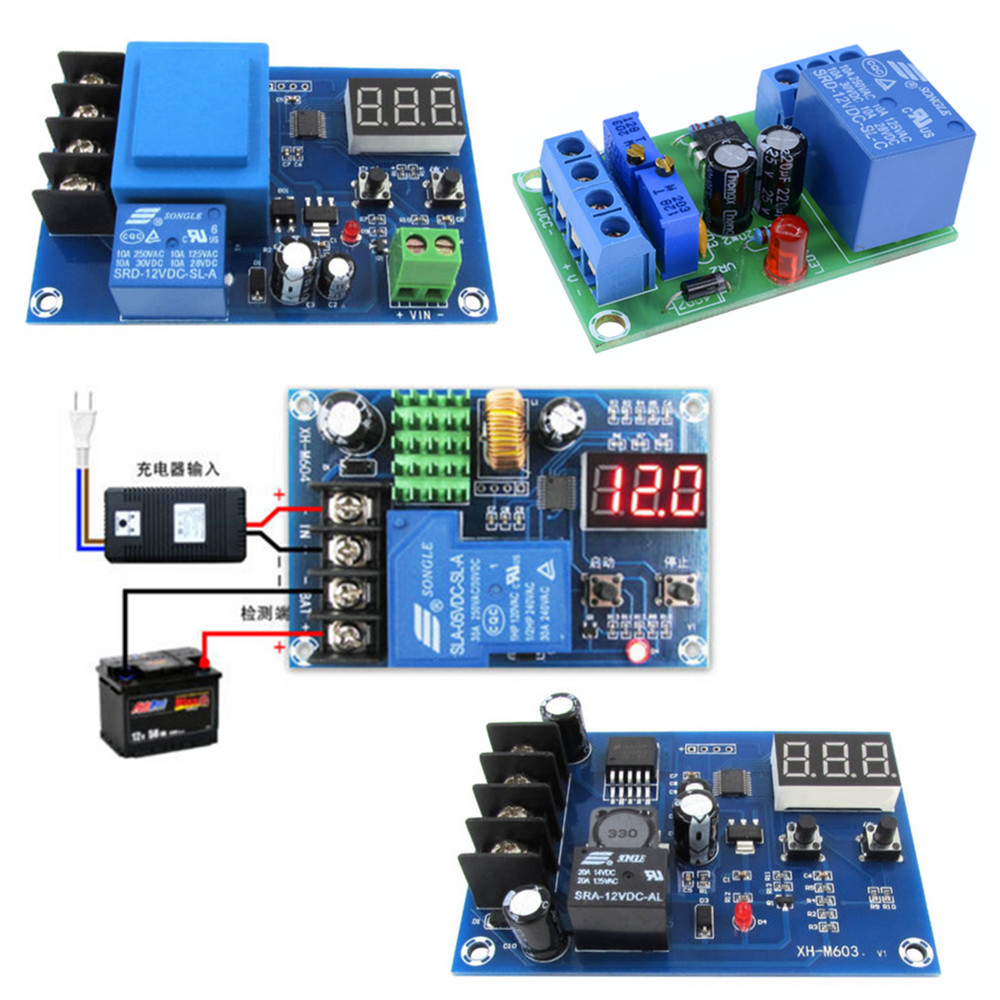

XH-M601 DC12V
Description:
Name: 12V Charger Power Control Board
Supply Voltage: 13.8V~14.8V
Relay Closing Voltage: 12.4V
Relay Opening Voltage: 14.8V
Voltage Error: ±0.1V
Voltage Detection Way: DC Voltmeter
Battery Charger Type: 12V Storage Battery
Potentiometer Adjustment: RP1 RP2 (pls be more carefully)
Board Size: 50mm x 32mm x 18mm (L*W*H)
Name: 12V Charger Power Control Board
Supply Voltage: 13.8V~14.8V
Relay Closing Voltage: 12.4V
Relay Opening Voltage: 14.8V
Voltage Error: ±0.1V
Voltage Detection Way: DC Voltmeter
Battery Charger Type: 12V Storage Battery
Potentiometer Adjustment: RP1 RP2 (pls be more carefully)
Board Size: 50mm x 32mm x 18mm (L*W*H)
Packing Included:1pc × 12V Smart Charger Power Control Board Storage Battery Charging Controller Module

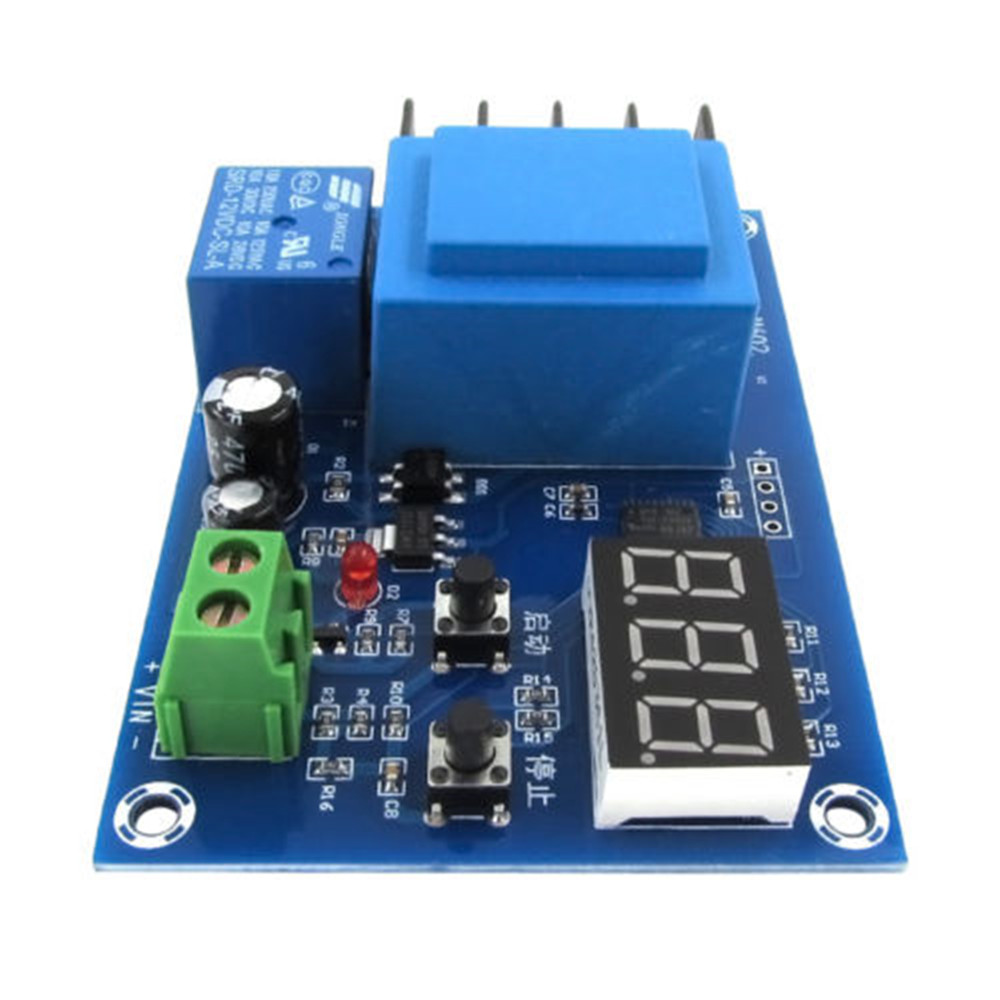

XH-M602 220V
Features:
The product name:Numerical control battery charging control module
input voltage:AC 220 V
Display precision:0.1v
Control precision:0.1v
output type: output switch
Voltage error:+0.1v/-0.1v
Scope of application:3.7v~120v all the lithium battery
input voltage:AC 220 V
Display precision:0.1v
Control precision:0.1v
output type: output switch
Voltage error:+0.1v/-0.1v
Scope of application:3.7v~120v all the lithium battery
Package included:1× CNC Lithium Battery Charger Control Switch Charging Protection Board 3.7-120V

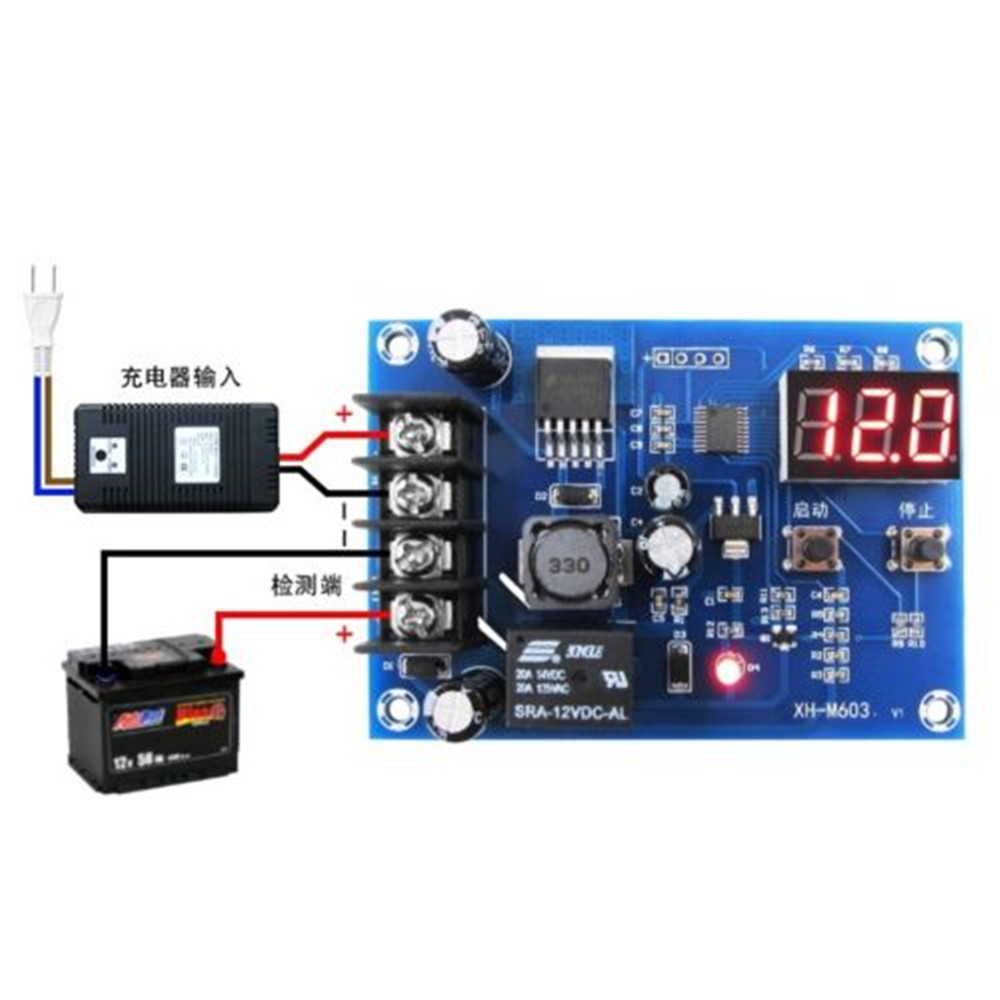

XH-M603 DC12V-24V
Description:
Product Introduction:

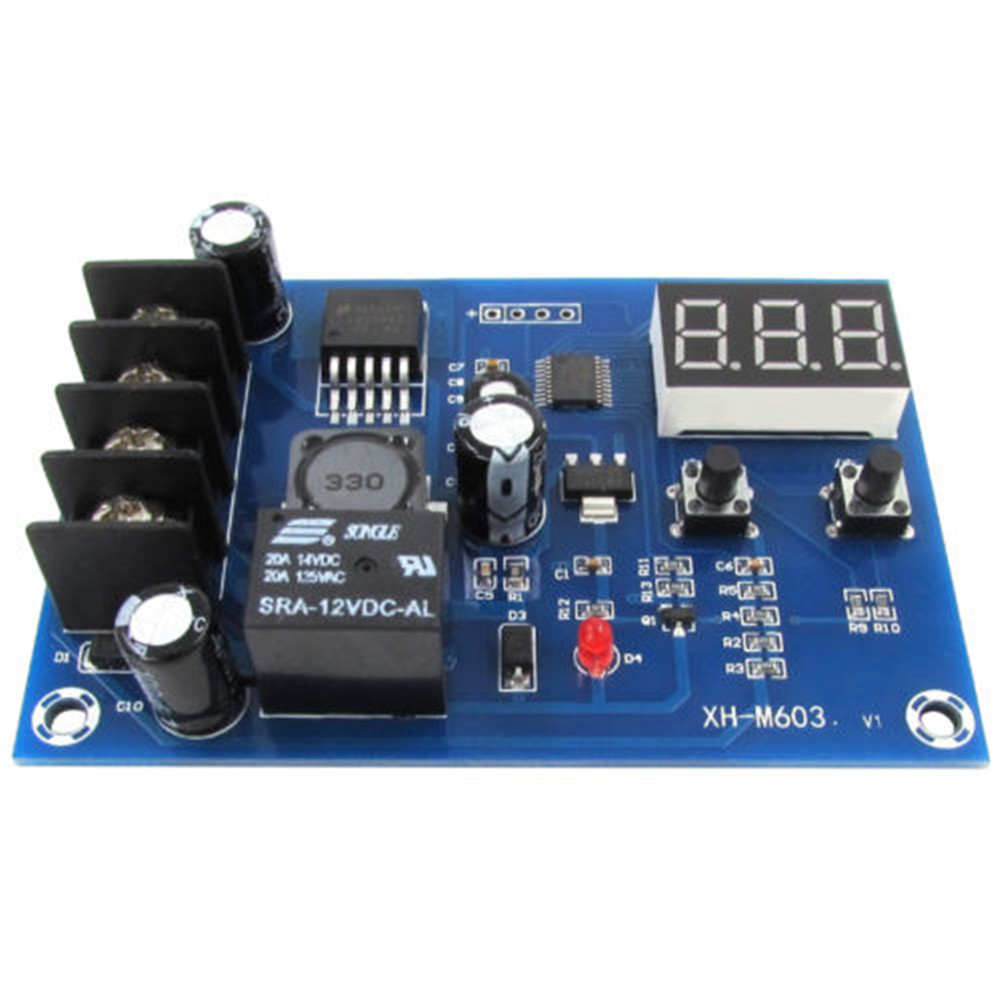

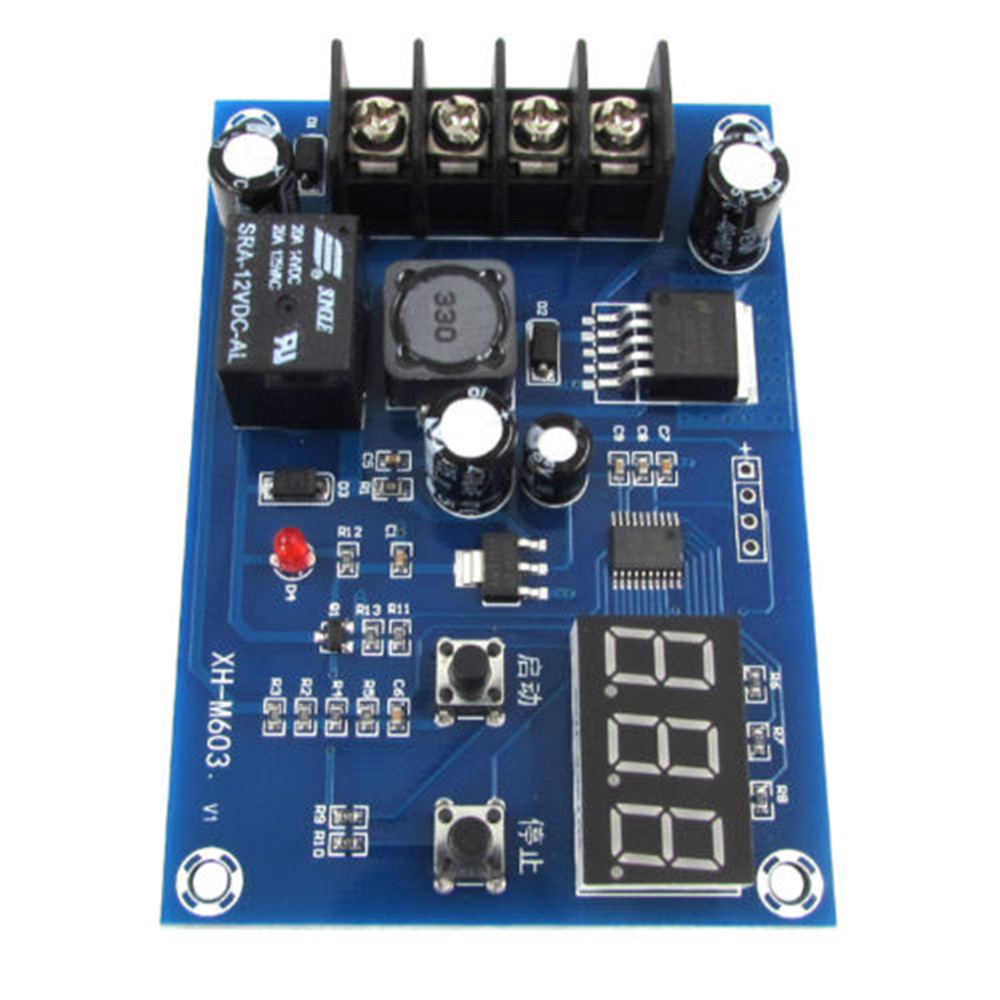

1.Model:XH-M603
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage battery
8.Size;82*58*18mm
Using Method:
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
Product Introduction:
1.Model:XH-M603
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage battery
8.Size;82*58*18mm
Using Method:
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
Package Included:1× DC12V-24V Lithium Battery Charger Control Protection Board /w LED Display XH-M603
XH-M60 DC6-60V
Description
Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V battery
Use: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V battery
Use: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
Package Included: 1 x Digital display Lead acid Battery Charge Control Module
Note：Just Charger Power Control Board, Not included Storage battery and voltmeter.
