Features

5inch 800 × 480 Hardware resolution

Capacitive touch screen, 5 point touch.

Support backlight control

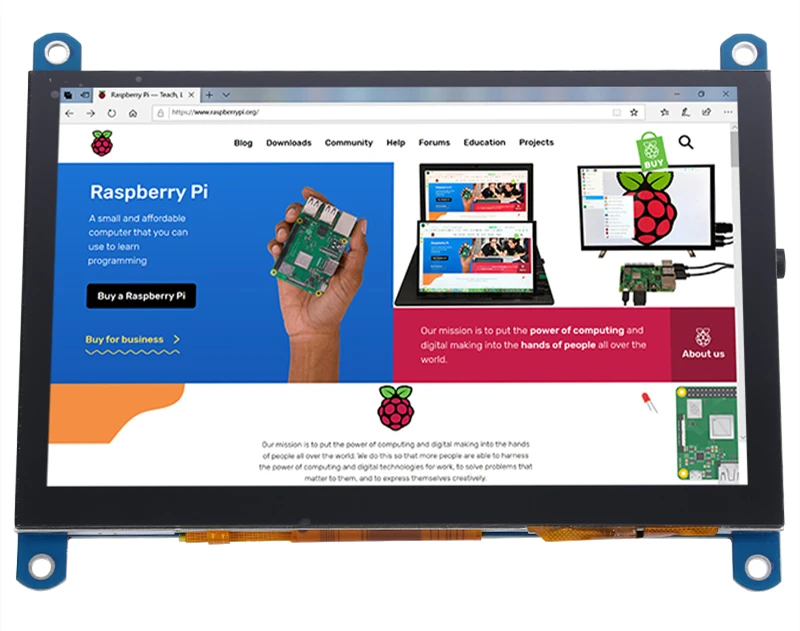

Support Raspberry Pi, Jetson Nano and other Demo boards,Windows,AIDA64.

Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive.

Parameters

LCD display size: 5 inch

Module structure:HDMI Display + USB Capacitive touch +PCB

Display resolution:800RGBx480 pixel,

Module dimensions:121.11x95.24mm

Color pixel arrangement:RGB stripe

LCD interface type: HDMI

CTP interface type: Micro USB

Operating temperture:-20 ~70C

Storage temperture:-30~80C

How to use with Raspberr pi

Step 1, Install Raspbian official image
Download the latest image from the official download.
Install the system according to the official tutorial steps.

Step 2, modify the “config.txt”
After the programming of Step1 is completed, open the config.txt file of TF card root directory and add the following code at the end of the file, save and eject Micro SD Card safely:

max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 800 480 60 6 0 0 0

Step 3, Drive the 5inch HDMI JRP5008 with the Raspberry Pi Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable;connect USB cable to one of the four USB ports of Raspberry Pi,and connect the other end of the USB cable to the USB port of the LCD;then supply power to Raspberry Pi; after that if the display and touch both are OK,it means drive successfully (please use the full 2A for power supply).

How to use with PC

Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable

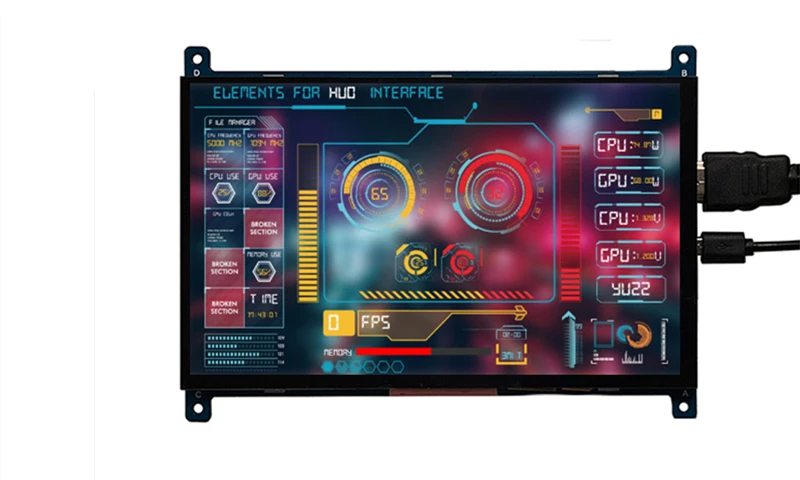

Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device.It can use as a secondary screen,use with AIDA64 to shows the status of your computer.

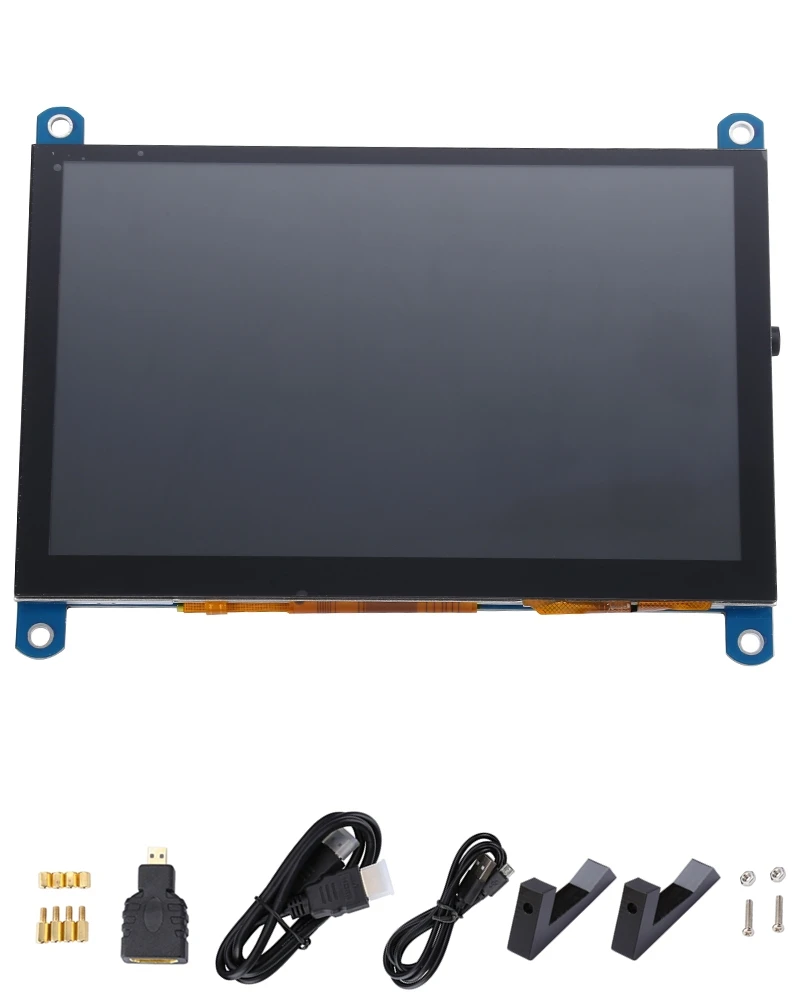

Package include:

1 x 5 inch LCD Display With Capacitive Touch
1 x HDMI cable
1 x USB cable
1 x HDMI to Micro HDMI adapter
4 x Srews

1 x Standard
