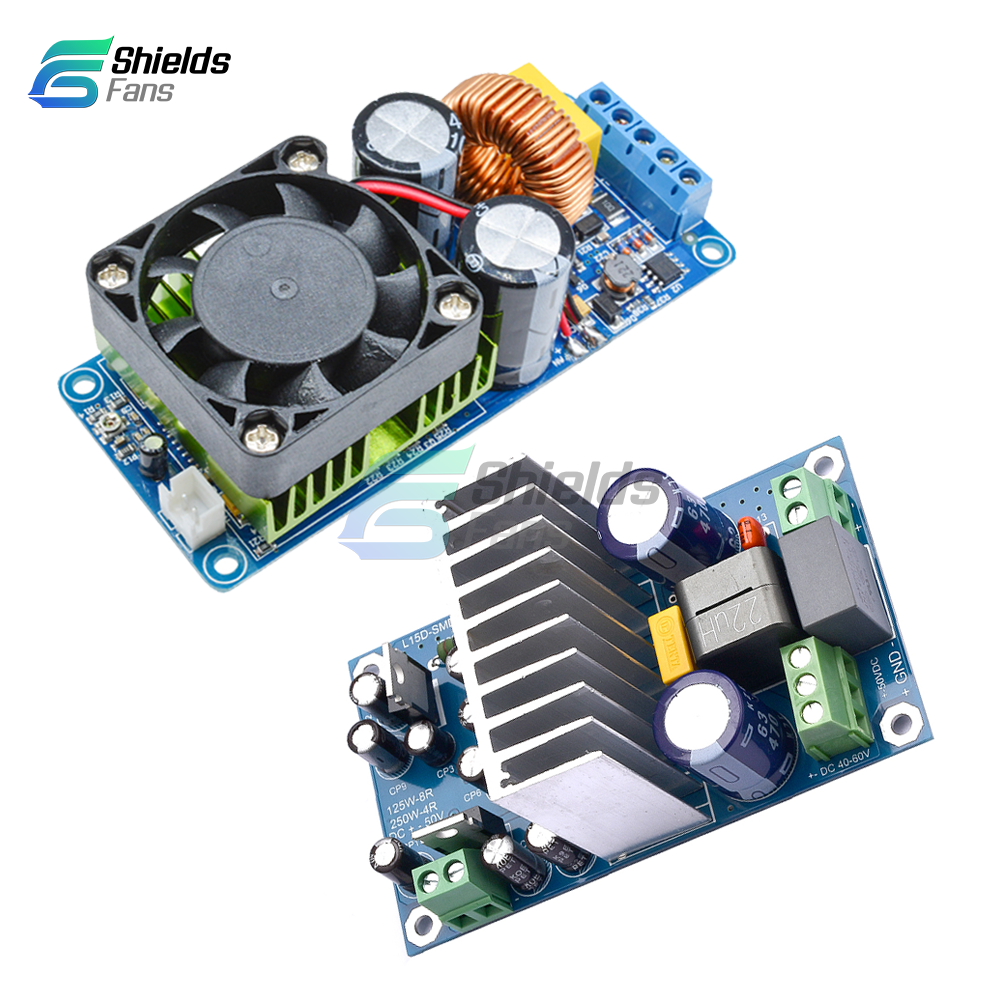

IRS2092S 250W 500W Mono Channel Digital Amplifier HIFI Power Amp Board With FAN

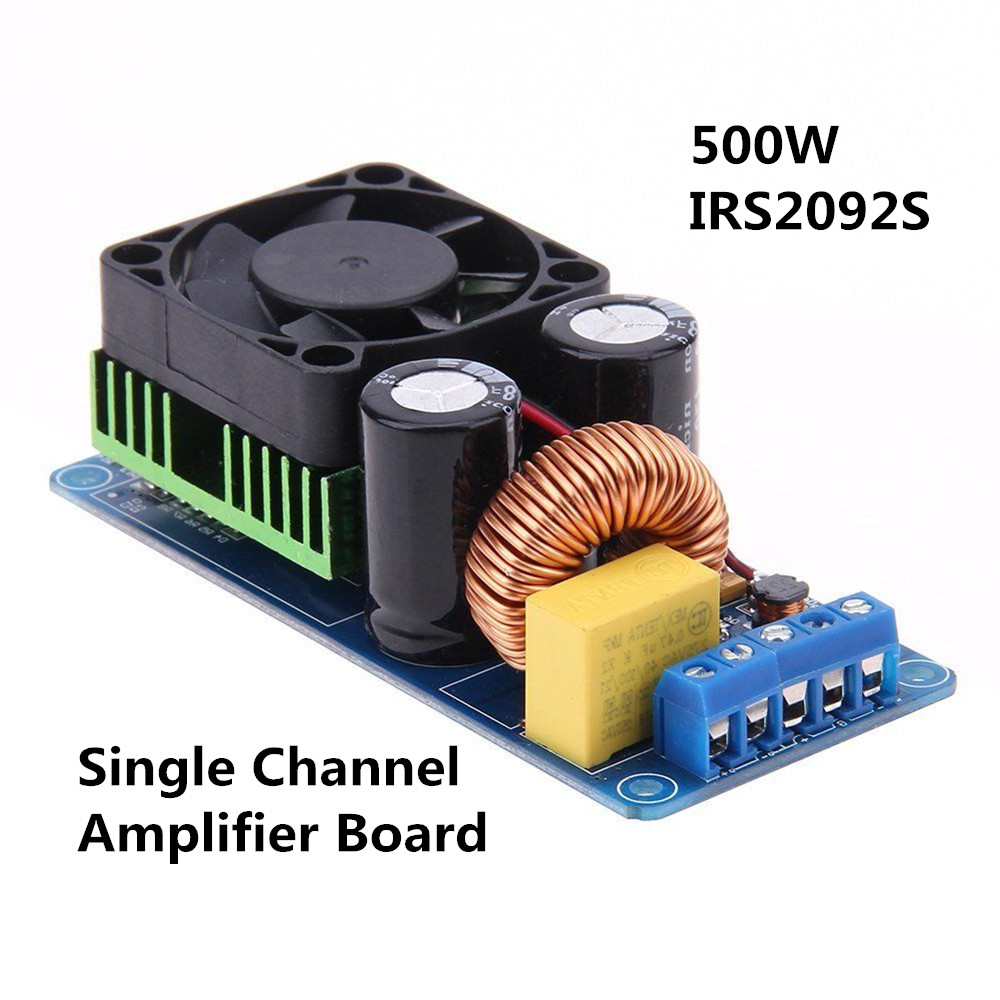

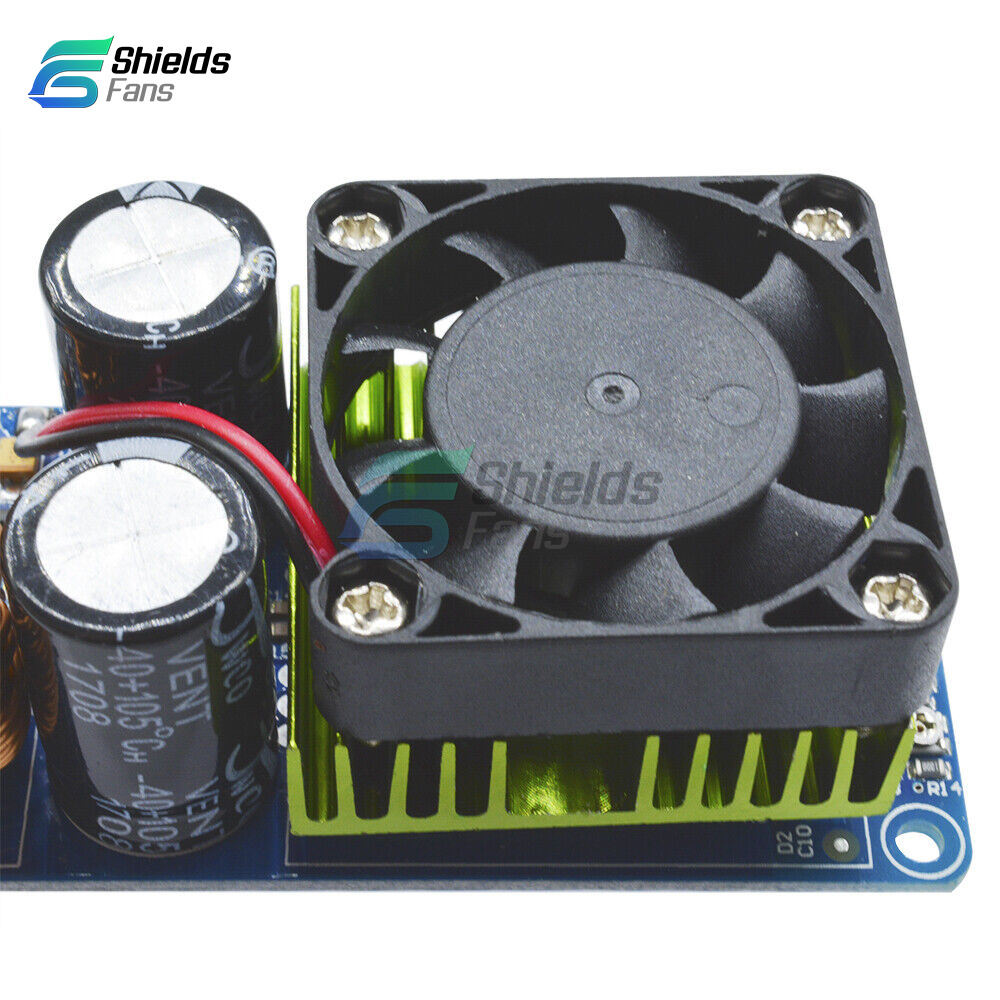

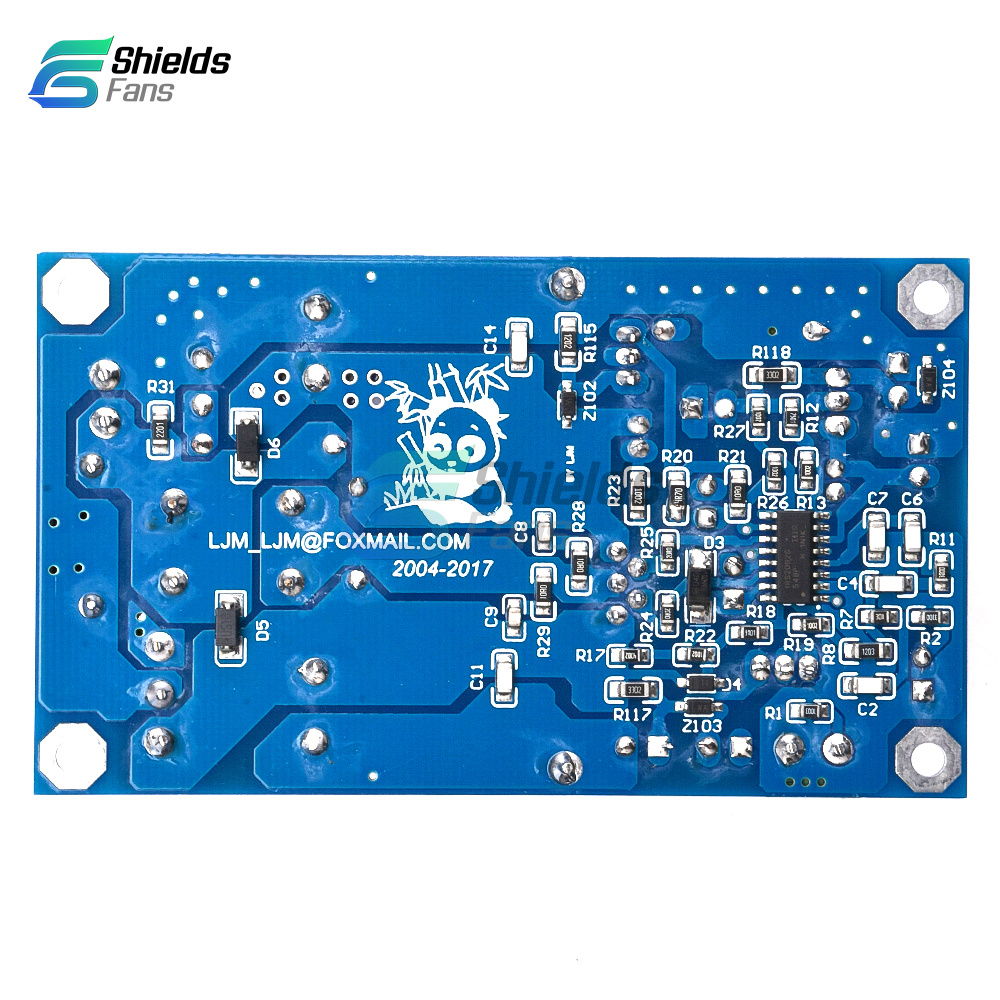

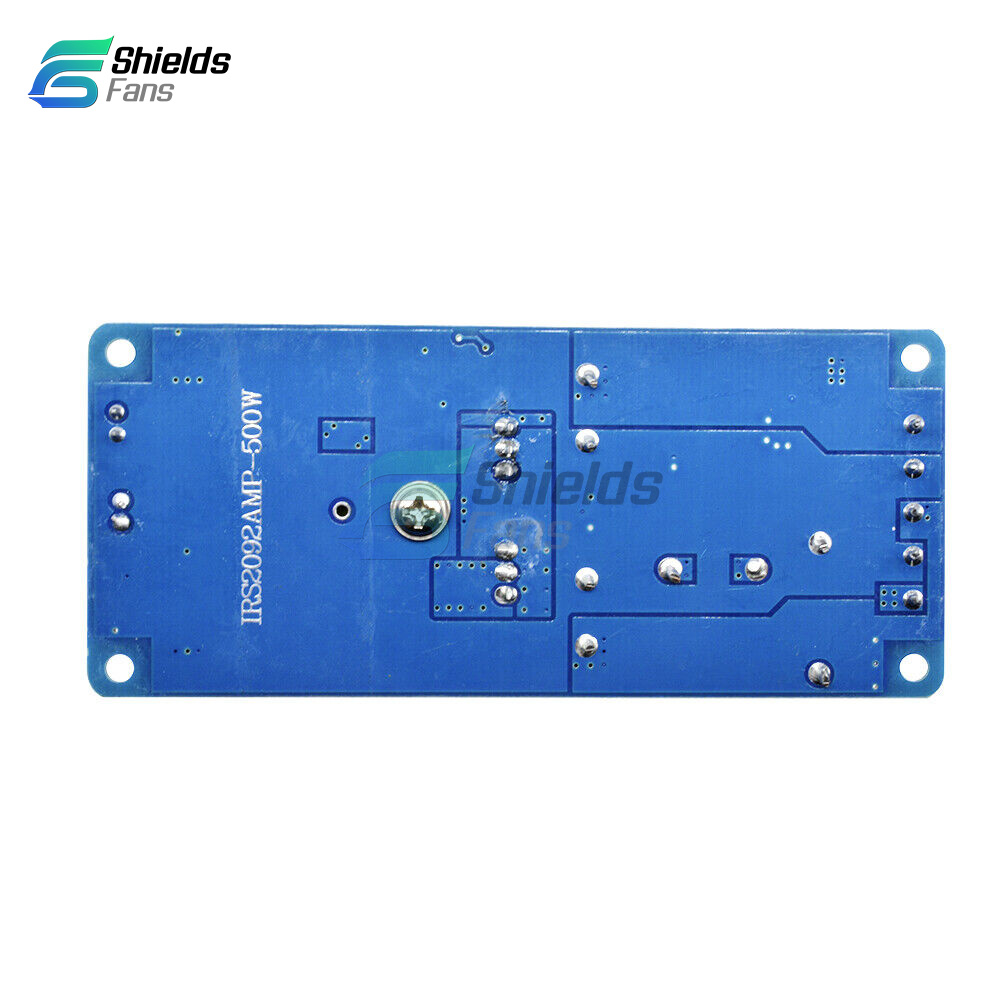

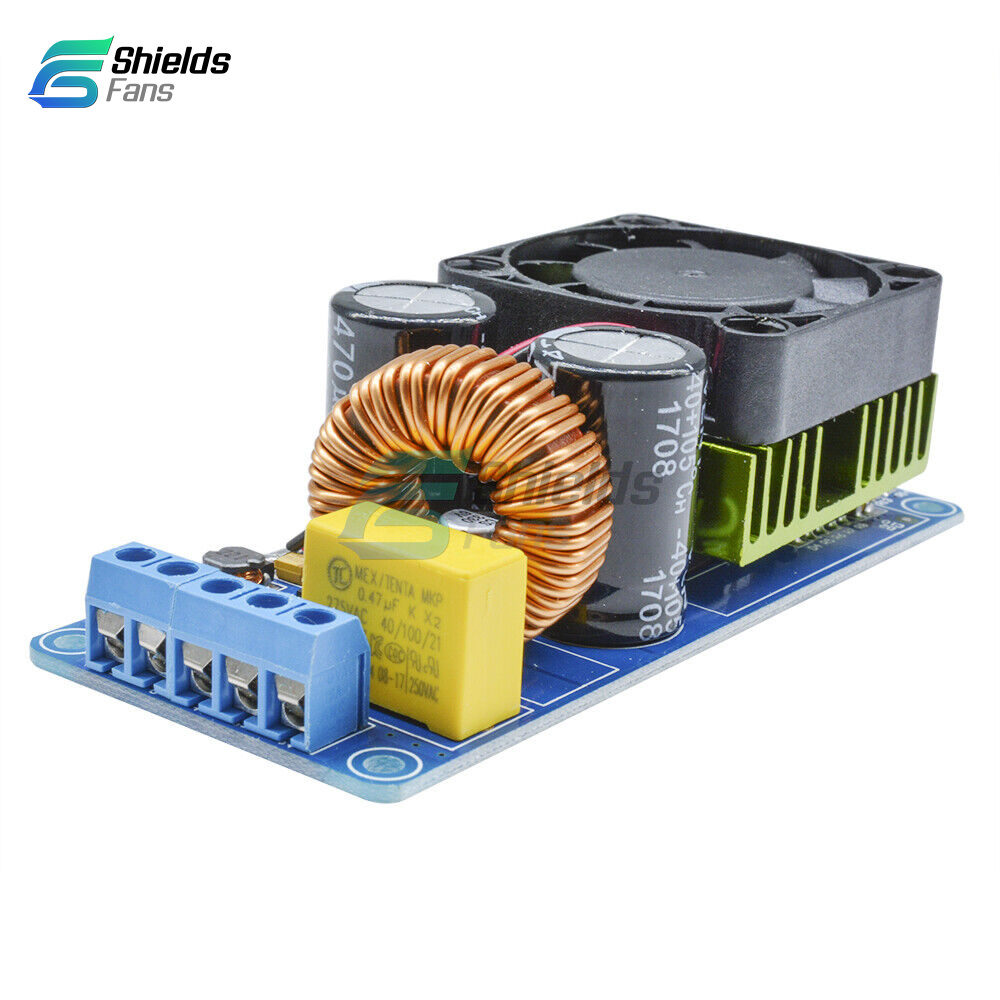

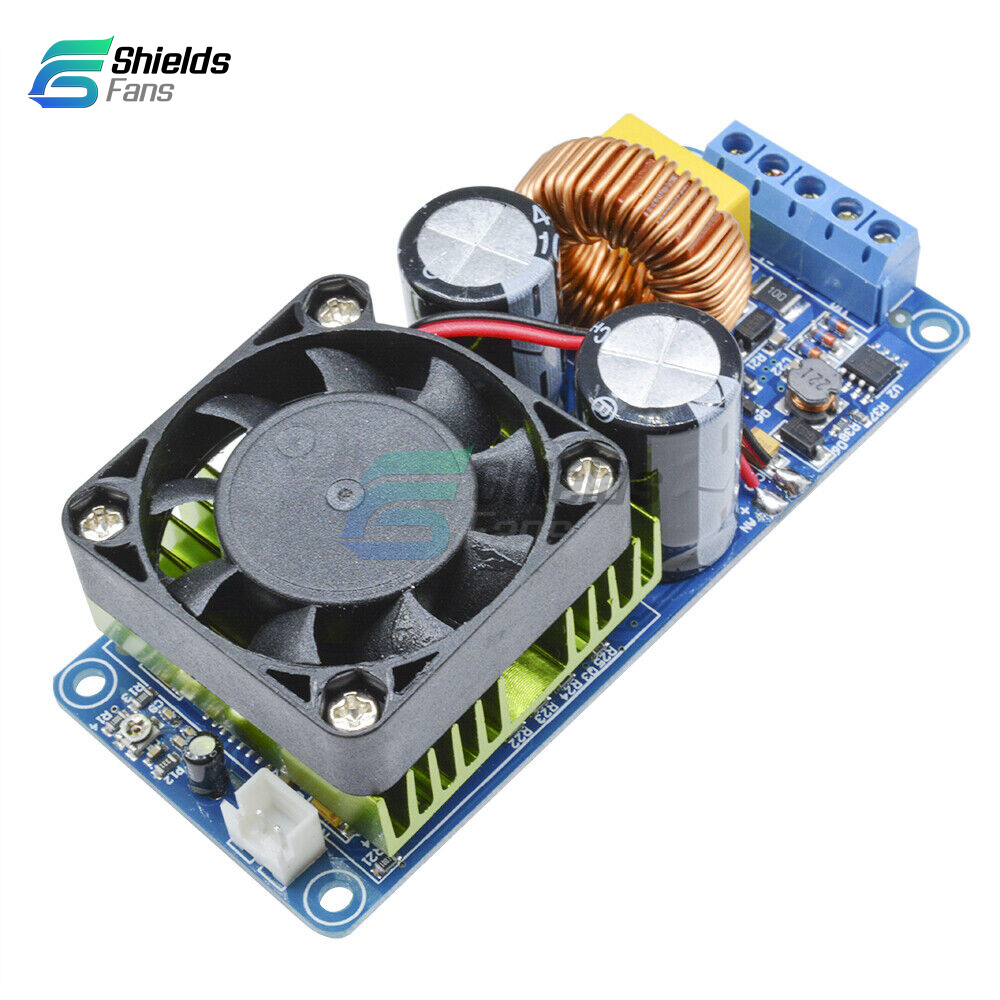

IRS2092S 500W Board with FAN
This is pure power amplifier board, the sensitivity of the input signal of 1.5V rms, if your input signal voltage can't reach this value,recommend add preamp.

Mono channel,for 2.0 channel need bid two.

Parameters:

1. Power supply: dual DC power supply ± 58 --- ± 70V
2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)
3. Efficiency:> = 90%
4. SNR: 90dB
5. The total harmonic distortion:

380W (± 65 power 4 ohm speaker, distortion <0.1%)
280W (± 65 power 8 ohm speaker, distortion <0.1%)

6. Frequency range: 20Hz-20KHz
7. Speaker: 4-8Ω
8. Voltage Magnification: 36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. That output DC bias protection speaker protection: Yes
12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!
13. Amplifier board size: length x width x height = 98x43x30mm
14. Weight: 95 g

use precautions:

1. Rated supply voltage is ±65V, ±58---±70V range, do not over 70V! positive and negative do not pick wrong
2. Recommended power supply ±65V
3. Recommended 4-8Ω / 10-18inch speaker
4. Carefully check before electricity, ensure the wiring is correct.

Package Contents: 1PCS X  Digital Amplifier Module

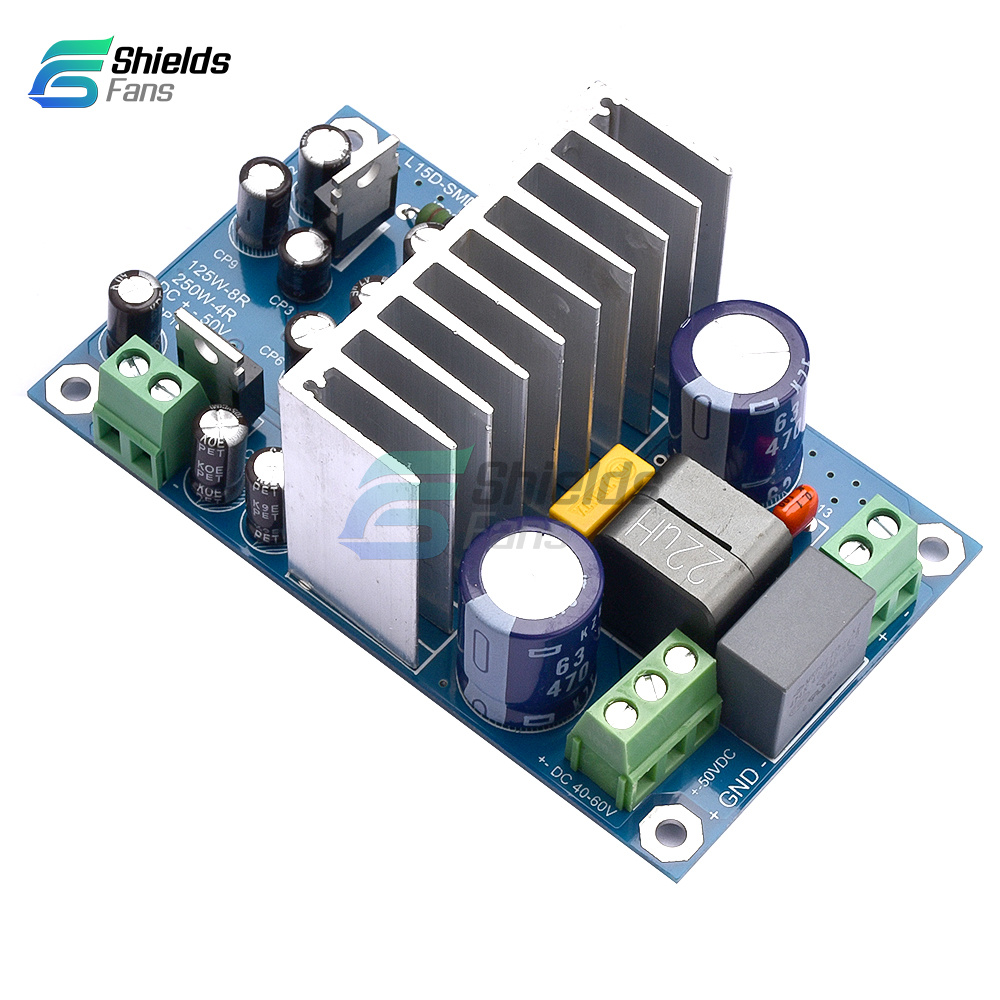

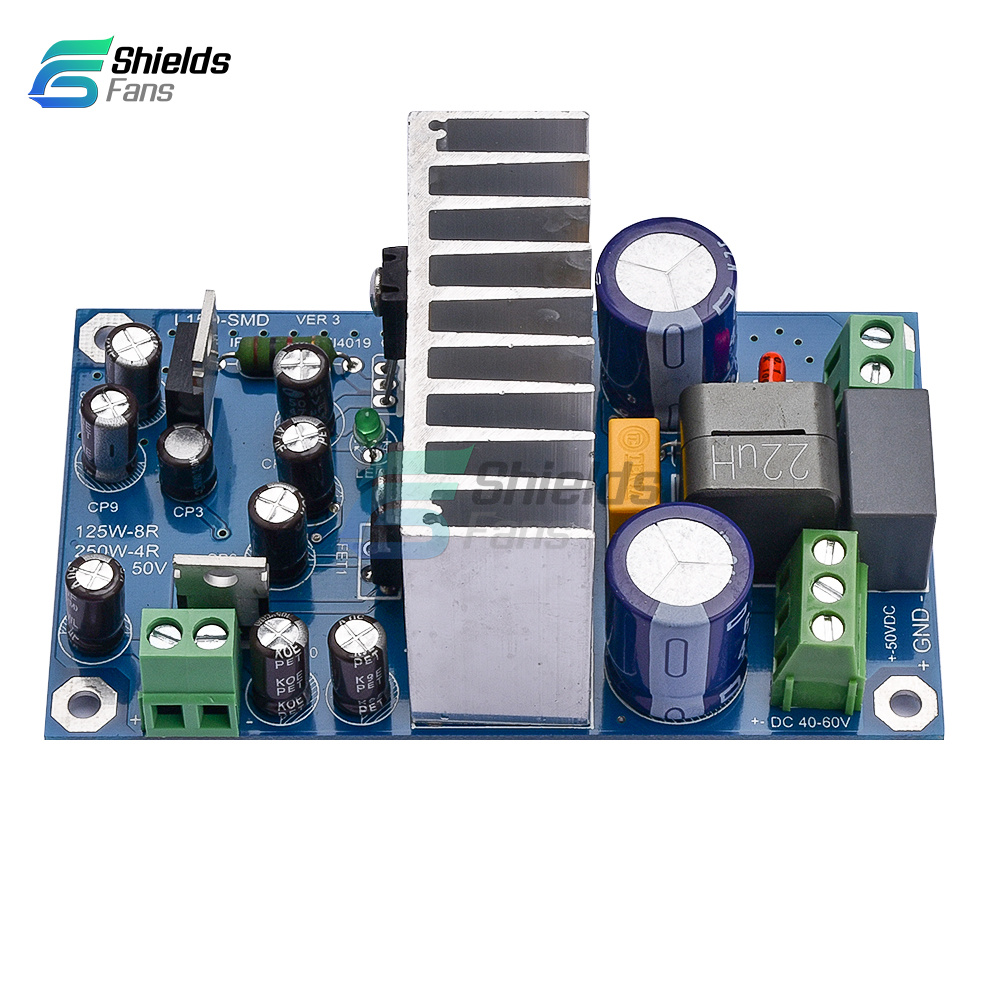

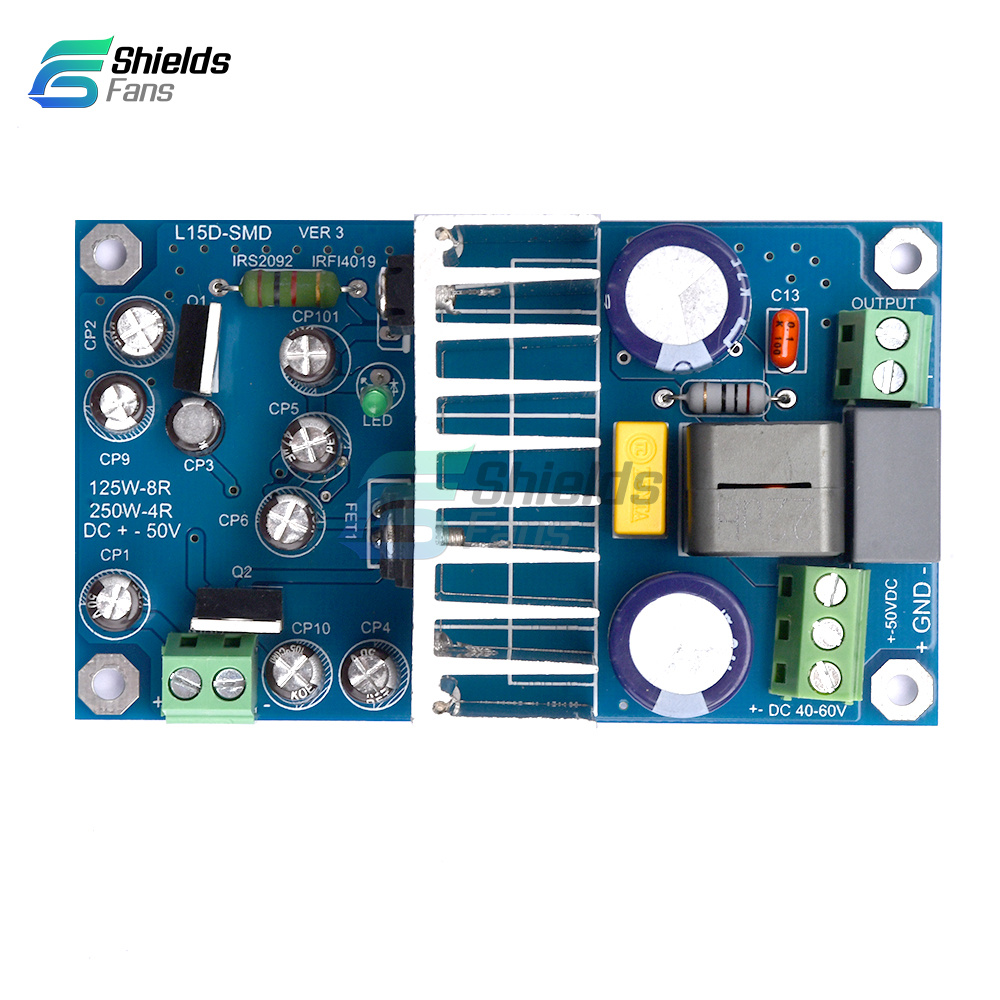

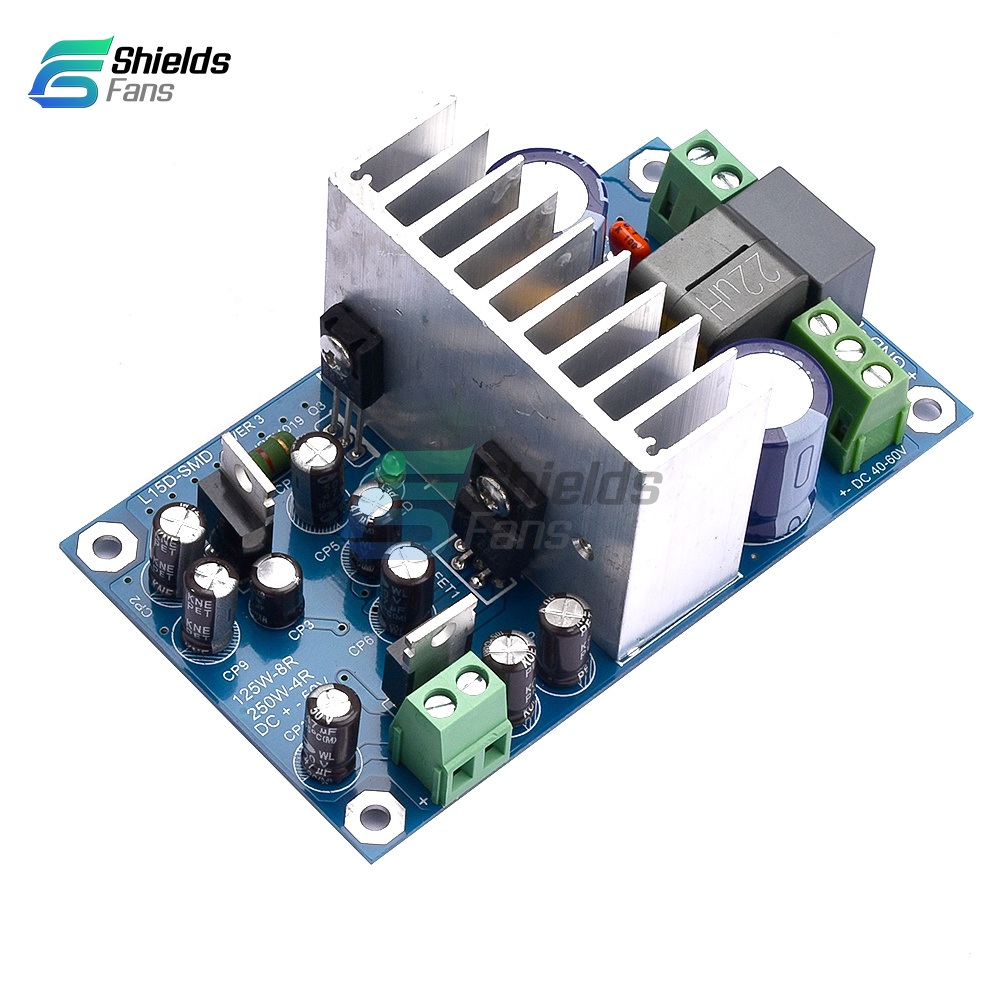

IRS2092S 250W Board

working voltage: DC + -50V( between + - 33V to + - 55V )
+ -50V  OUTPUT  =125W  8R  RMS. 250W  4R RMS

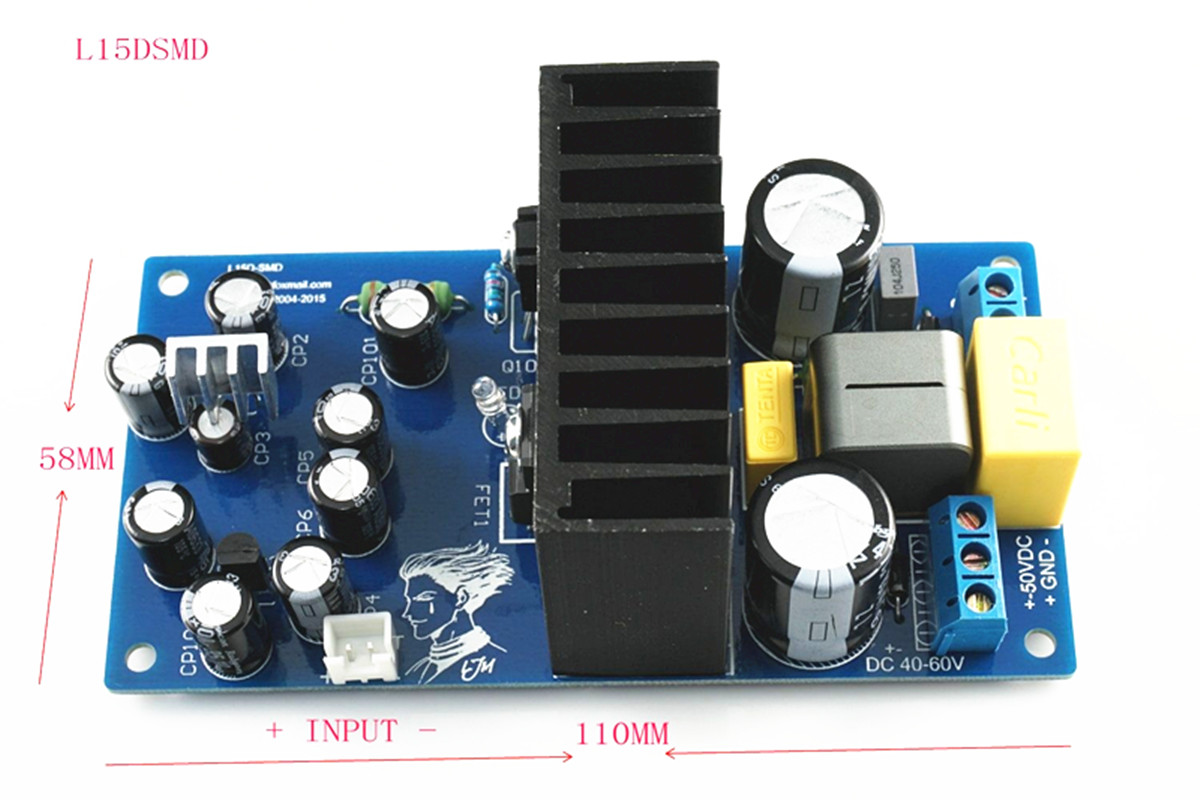

size:110MM*58MM*42MM
net weight:120g
Distortion: 0.007 % THD+N @ 60W, 4Ω
Voltage  Gain 36
Load Impedance : 4Ω
Total Idle Power Consumption: 7W
Channel Efficiency : 90%   250W 4Ω
Dynamic Range :  101 DB
Residual Noise : 200UV
Frequency Response :20HZ-35K HZ + -3DB
Thermal Performance: 30W ,55C degree
250W ,90C degree
IRAUDAMP7S instruction
Applications
AV receivers
Home theater systems
Mini component stereos
Powered speakers
Sub-woofers
Musical Instrument amplifiers
Automotive amplifiers

NOTE :
Recommendations of the working voltage, and power transformers.
8 ohms load transformer voltage AC dual 40V, + -DC 55V, power 150W sound track. 300W two-channel. Filter capacitor 6800UF * 2 or more
4 ohm load transformer voltage AC dual 35V, + -DC 48V power 250W sound track. 500W two-channel. Filter capacitor 10000UF * 2 or more
4 ohm load + -58V DC, 300W 4R mono power. 700W two-channel power. Recommendation transformer voltage AC dual 41V 1000W.

Package Included： 1* IRS2092S 250W High Power Class D Mono Digital Amplifier AMP Board
