Fitment:



- For 2005-2011 Toyota Tacoma



- HOLLANDER: 114-59473AL, 114-59472AR
- OE#: ‎81150-04173, 81110-04173, 81150-04163, 81110-04163- PARTSLINK: TO2502181, TO2503181

Features:



- Completely sealed: Prevents moisture from being trapped inside the housing
- One-way vent: Drives out moisture and avoids lens misting
- Multi-surface reflectors: Increase light output & distance
- PC lens: Impact resistance for an enhanced driving experience in any environment.



Specifications:



- Condition: 100% Brand New and High Quality

- Made of materials that meet or exceed OEM requirements

- Color: Chrome Housing + Clear Lens

- Low Beam / High Beam Bulbs Size: H4 Bulbs (bulb not included)

- Turn Signal Bulbs Size: 4157A Bulbs (bulb not included)- Position Light Bulbs Size: W5W Bulbs (bulb not included)



Package Includes:



- 1 Pair of Headlights (Driver & Passenger Side)



Installation:



1). How to install:

1. Undo the screws, clips, or retainer springs that hold the headlight in place.

2. Disconnect the wiring from the assembly.

3. Detach the headlight from the vehicle to replace it with a new one.

4. Fit in the new headlight assembly.

5. Fix the new headlight into place and make sure that the screws, clips, or retainer springs used are sealed.

6. Reconnect the wiring that was unplugged from the assembly.

7. Put back the grille and other components that you removed. Seal them back into place.

8. Test the new assembly.



2).How to adjust:

Before you begin to adjust the light, make sure to check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.

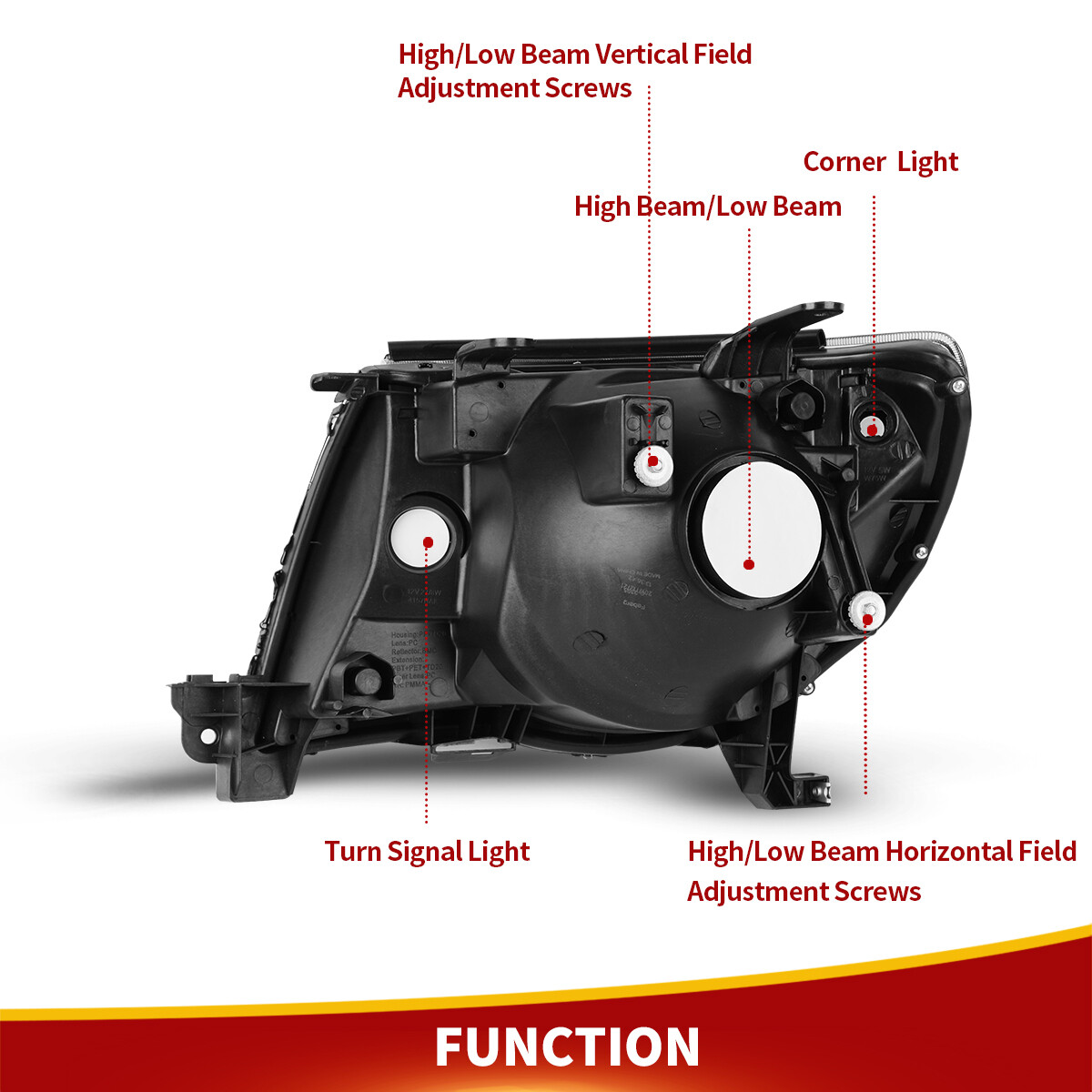

1. 【Find the adjustment screws】Firstly, locate the adjustment screws on your vehicle.

2. 【Adjust the headlights individually】The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.

3. 【Adjust the vertical field】The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.

4. 【Adjust the horizontal field】The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.

5. 【Test your results】
