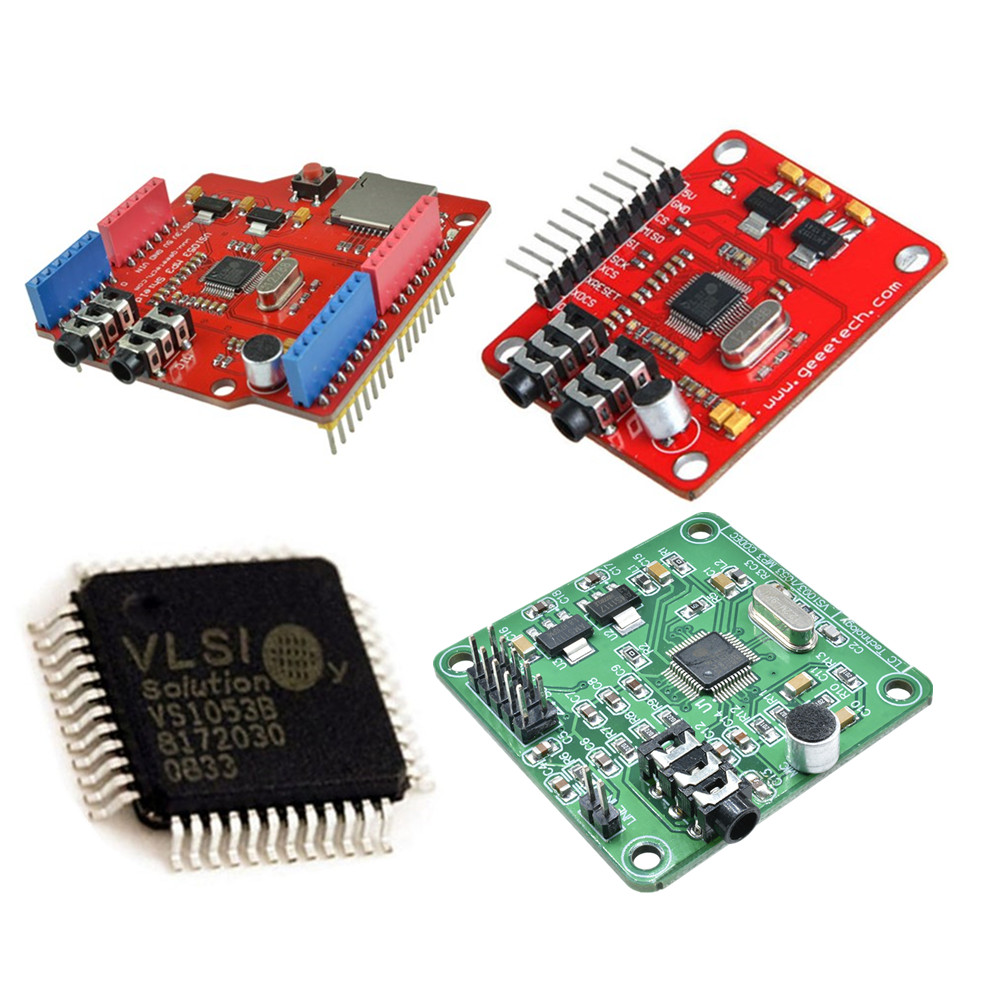

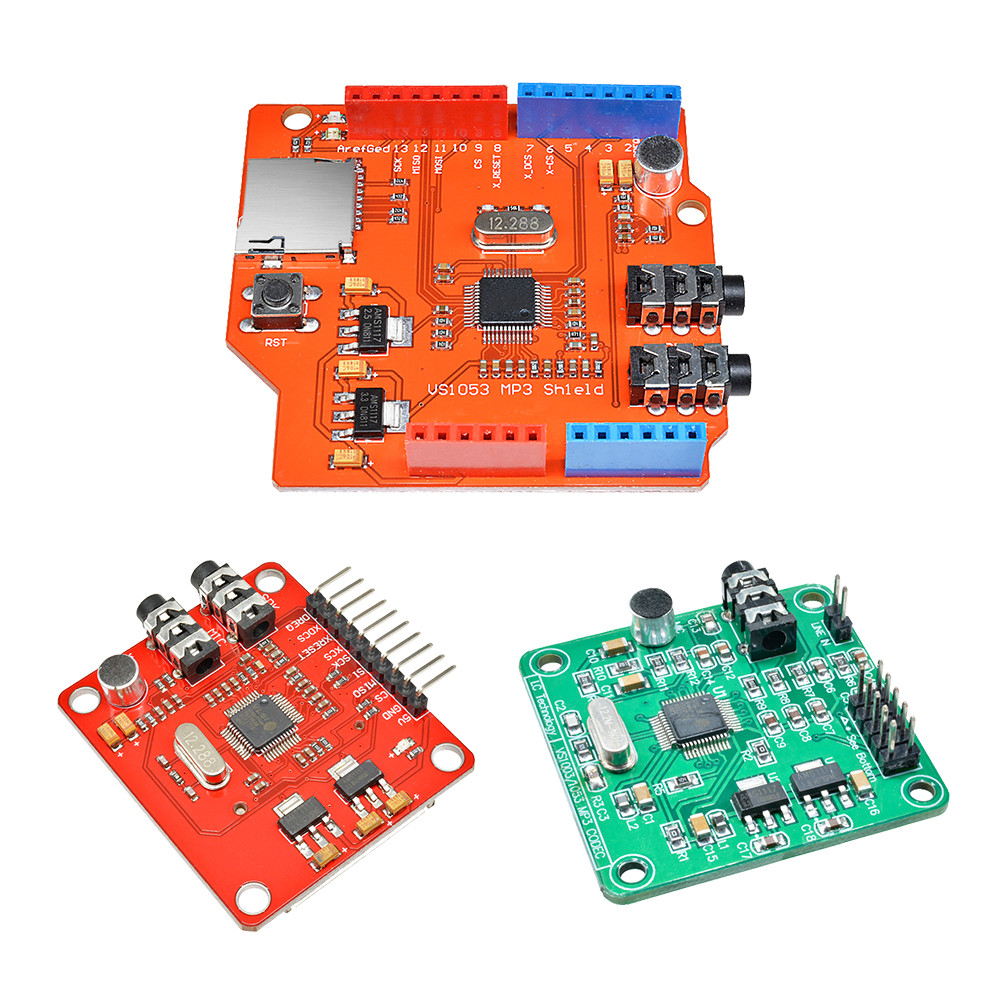

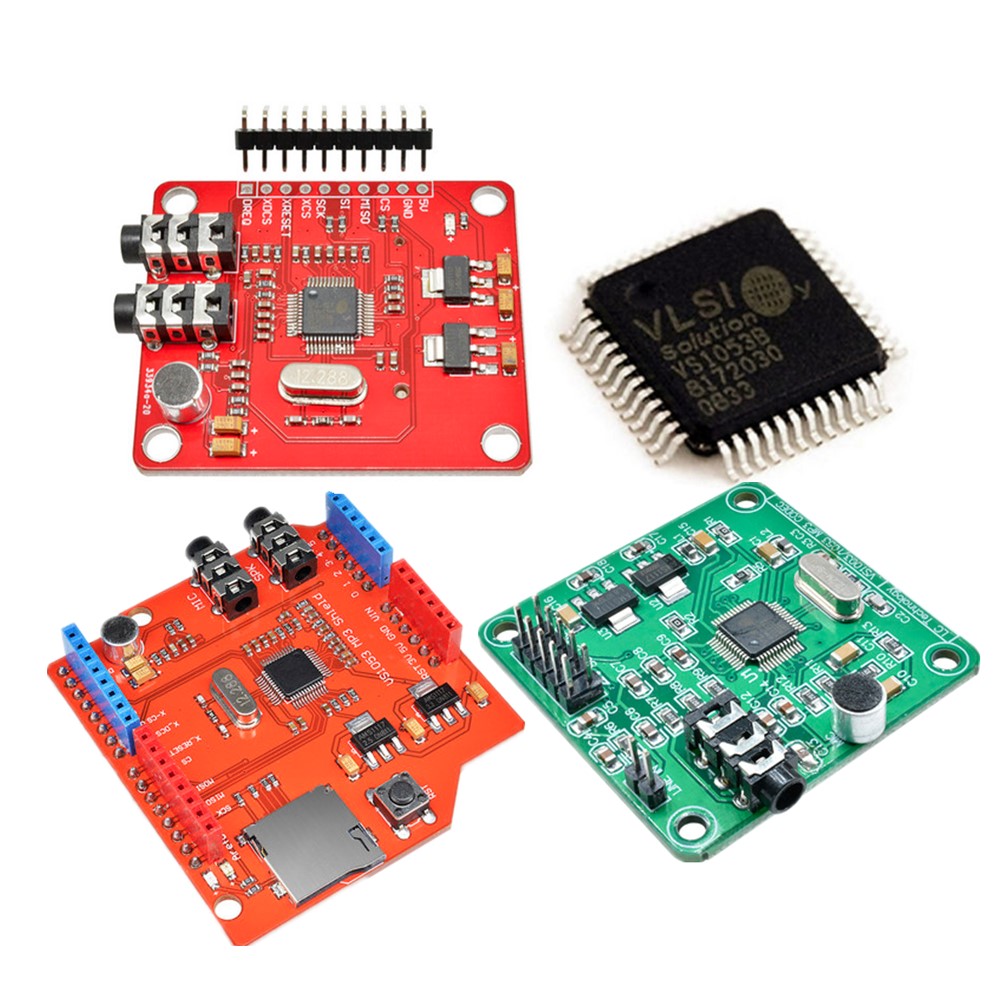

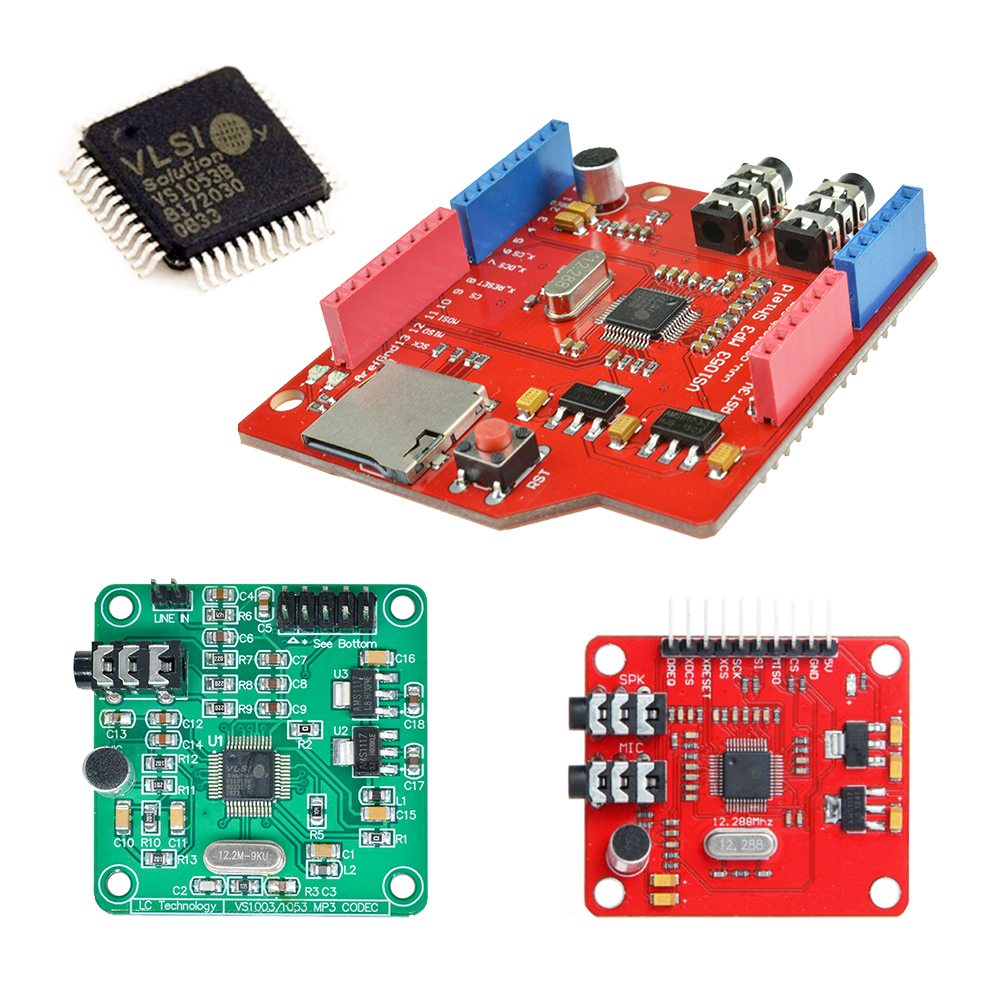

IC VS1053B VS1053 MP3 Music Shield Module TF/ SD Card Slot for Arduino UNO R3
VS1053B MP3 with TF Card Slot

Features:
Can play a variety of music formats, support for OGG encoding real-time recording
SPI interface, the control signal lines are led out
A headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
A single power supply: +5 VDC
12.288 Mhz crystal
TF card slot

Decodes formats:
Ogg Vorbis
MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
WAV (PCM + IMA ADPCM)
General MIDI 1 / SP-MIDI format 0

Package Included:
1 x VS1053B MP3 Module with TF Card Slot

VS1053 MP3 with SD Card Slot

Features:
Can play a variety of music formats, support for OGG encoding real-time recording
SPI interface, the control signal lines are led out
A headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
A single power supply: +5 VDC
12.288 Mhz crystal
SD card slot

Decodes formats Ogg Vorbis:
MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
WAV (PCM + IMA ADPCM)
General MIDI 1 / SP-MIDI format 0
Encodes formats from mic/line Ogg Vorbis with software plugin
IMA ADPCM
16-bit PCM

Package lncluded:
1 x VS1053 MP3 Module with SD Card Slot

VS1053 Module

Features:
SPI interface, the control signal line leads
1 headphones and audio output interface
1 a microphone for recording
1-line_in input interface
the power indicator
on-board 3.3V and 1.8V LDO chip AMS-1117, the largest provider of 800mA,
single power supply: +5 VDC, capacitor filter
12.288 Mhz crystal

Package Included:
1 x VS1053 MP3 Module Development Board

VS1053B  IC

Package Included:
1 x IC VLSI LQFP-48 VS1053B VS1053B-L QFP-48
