Quality Installation Products For Over 40 Years.


WORKTOP DRAINING GROOVE JIG.

Solid Laminate.

FOR THE PRECISE ROUTING OF SLOPING DRAINAGE GROOVES INTO WOODEN or COMPOSITE WORKTOPS.

*IN STOCK & READY TO DISPATCH WITH VERY QUICK DELIVERY.*
RRP £114.00.

Only 7 Available. Get yours now!

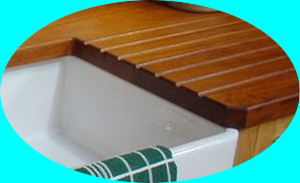

This is the best value for money jig of it's type ever offered anywhere. It will produce stunning sloping drainage grooves into any wooden or composite work surface.

This jig leaves all the others in the starting blocks in terms of quality. After all, why buy a crappy, flimsy MDF version when you can get this Solid Laminate Jig which will last a lifetime for just a few pounds more!!

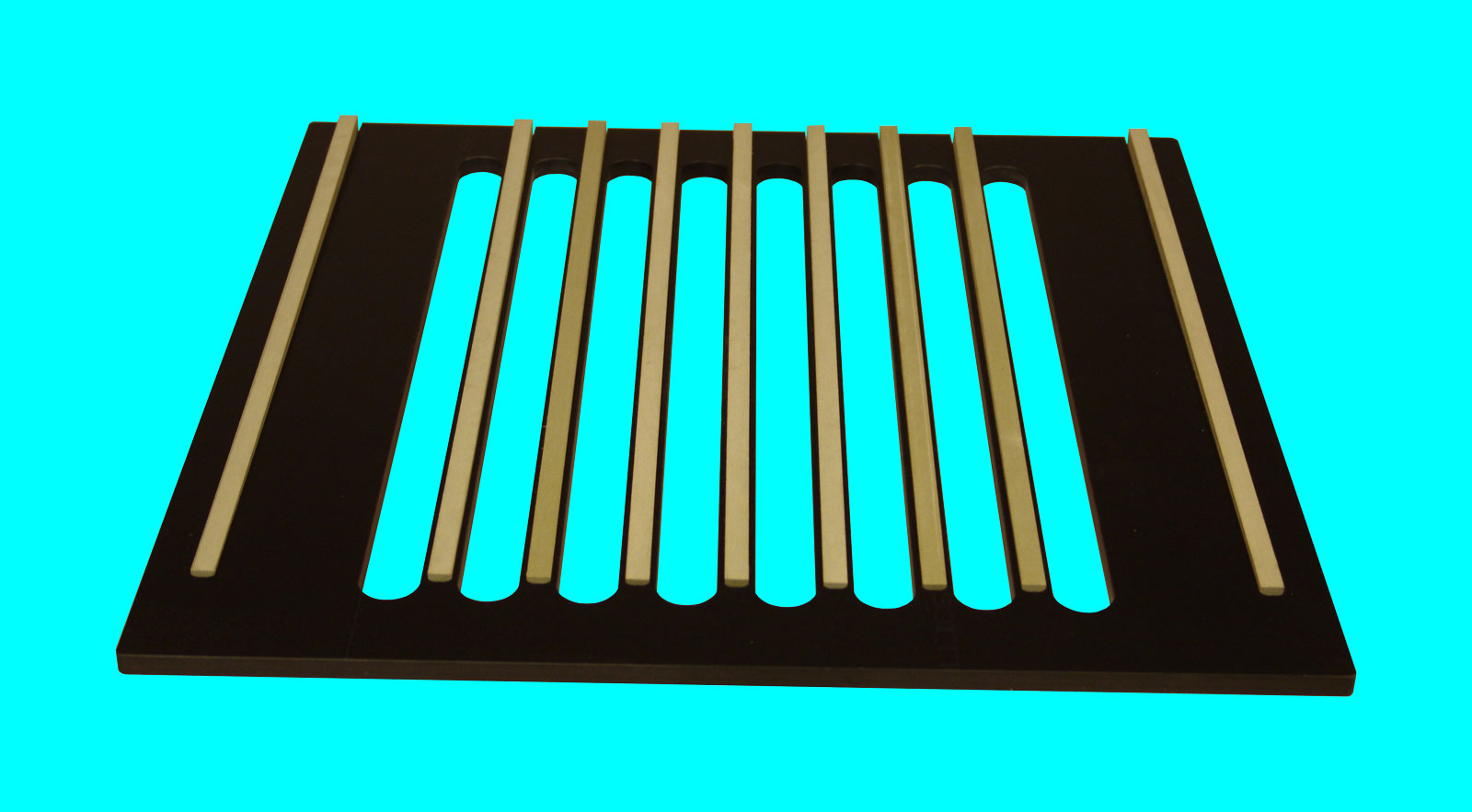

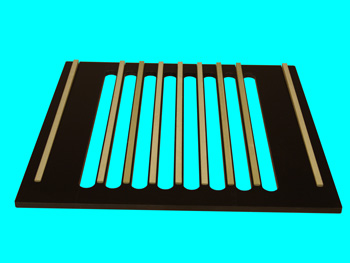

Unlike any other jig of it's kind this drainer jig is fully supported by wooden wedges either side of each groove. The wedges prevent damage to the worktop & provide the slope required for water run off, they also ensure that each groove you machine is is identical & perfectly even without any dips. The wedges are removable to facilitate machining of Hotrod grooves. It's so simple to use, just line it up on the worktop, clamp it & off you go.

This jig offers the ultimate longevity. It is made of exterior grade solid compact laminate, it will last a lifetime in professional use.

SPECIFICATIONS:

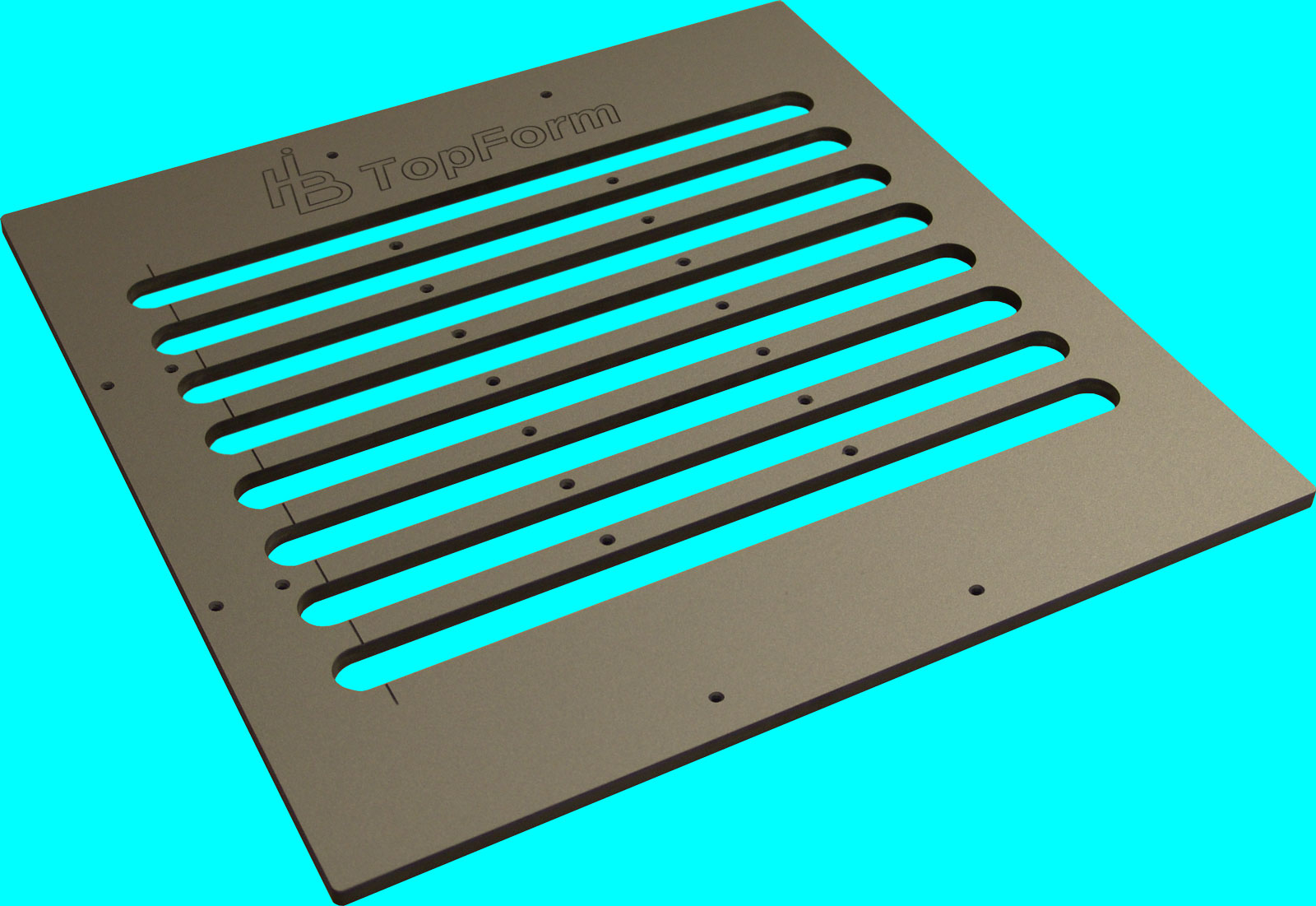

  • Made from hardwearing CNC machined, exterior grade compact laminate.

  • Durable anti friction surface, prevents friction with the router base plate

  • Machined to a tolerance of +/- 0.03mm (three hundredths of a millimetre)

  • Nine removable sloping wedges for total support, provides a 1° fall.

  • Grooves pitched at 50mm, 460mm long.

  • Sight marks for lining up.

  • Fixing holes for user made stops for repeat work.

  • Simple to use, suitable for first time user.

  • Dimensions = 600 x 600.

  • Colour / pattern: various.

  • Weight = 5kg.

THIS IS A QUALITY  ACCURATE TOOL, MADE IN THE UK TO EXACTING STANDARDS.


Additional equipment required to successfully use this jig.

1) A ½”  hand router fitted with a 30mm template guide.

2) A TCT ball nosed router bit diameter 10mm - 25mm to suit users choice.

3) Two padded G-clamps.


Standard delivery is 48 hour courier (two working days) although most deliveries are achived within 1 day after dispatch.  The cut off time for dispatch is 12.00 hrs

 If payment is confirmed by 12.00 hrs goods are usually dispatched the same day (Excludes  Fridays, Weekends, public holidays in England & other holiday notices published on this or any other website).

If you purchase after 12.00 hrs on a Thursday the goods will not be dispatched  until the following Monday on a next day 24 hr service, so you should receive your goods by the due date.

 DELIVERY COSTS QUOTED IN EBAY LISTINGS ONLY APPLY TO. ENGLAND, WALES & SOUTHERN SCOTLAND.

BUYERS LOCATED IN THE SCOTTISH HIGHLANDS & ISLANDS, NORTHERN IRELAND, IOM & CHANNEL ISLANDS, EIRE OR ANY OTHER DESTINATIONS OUTSIDE THE UK SHOULD CONTACT US FOR A QUOTE BEFORE BUYING OR BIDDING.

THIS IS NOT AN AUCTION, BUY IT NOW ONLY!
 THESE JIGS ARE VERY POPULAR SELL QUICKLY.
  DON'T WAIT UNTIL THE LAST MINUTE, YOU MAY BE DISAPPOINTED.


BY BIDDING OR BUYING YOU WILL HAVE AGREED TO OUR TERMS



© Topform Products (UK) 2004 - 2025

All Text & Photographs in this listing + the content of links are Copyright Property & may not be Copied, Duplicated or Published, either in part or in whole without the Written consent of the Owners.




Please Note:

These Jigs are below 1/2 price because they are factory seconds, there may be a cosmetic defect. They are guaranteed to function correctly.
