BCP-6000 Portable Bar Code Data Collector Laser Barcode Scanner NEW!!

Product Description

Fametech's BCP-6000 series is a cordless, battery operated portable barcode scanner. It offers the advantages in speed, reliability and ease-of-use, and in addition gives the operators greater mobility for scanning those tough to reach barcodes. It is equipped with a navigation keypad, large internal memory and a 128 x 64 LCD graphic display. The BCP-6000 comes with various input modes and is built with the concept of minimizing power consumption, and is therefore idea for environment that requires long working hours.

Features

• High quality Slim & stylish aluminum housing

• USB rechargeable battery

• Equipped with high performance Opticon Laser Barcode

• Over 40,000 scans per recharge

• Valid scan filtering

• Scanning Module for portable applications

• Mono 128 x 64 LCD graphic display LCD screen with blue back-light

• SDK is available for programmers

• All logs can be date & time stamped

• Easy-to-use configuration utilities

• Data retained even battery removed

• Outstanding Power-Saving Scheme; 24 hours of battery

• operation time, more than 100 hours of standby time.

• 4-button allows navigating or deleting records, input quantities, and scan

• Factory predefined operating jobs/sequence upon OEM Requests

Specification

Operation

Nominal Scan Rate	100 scans/sec.
Wavelength	670nm 10nm Laser
Maximum Pitch	65 degree
Minimum Skew	50 degree
Minimum Bar Width	4 mil
Scan Pattern	Single Scan Line
Buffer Capacity	224 KB for data retention
Display	128x128 graphic dots FSTN LCD display 16 x 4 line, 8 x 16 dot display pattern
Symbologies	EAN, UPC, I 2 of 5, Codabar, Code 39, Code 128, Code 32 China Postage, Code 11, MSI-Plessy, Code 4, RSS Codes.

Electrical

Working Voltage	3.2 V to 4.2 V
Power Consumption	Scanner sleeps with LCD on: 2.5mA Scanner sleeps with LCD off: 2mA Scanner operating with LCD backlight on: 140mA

Battery

Battery Type	Lithium-Ion
Battery Capacity	600mAH good for 40,000 per recharge
Charge Method	By usb cable or external power adaptor
Time Of Charge	About 2 hours

Software

Setup Software	Windows XP/Vista Supported
SDK	Communication SDK for uploading data
Certification	FCC Class A, CE

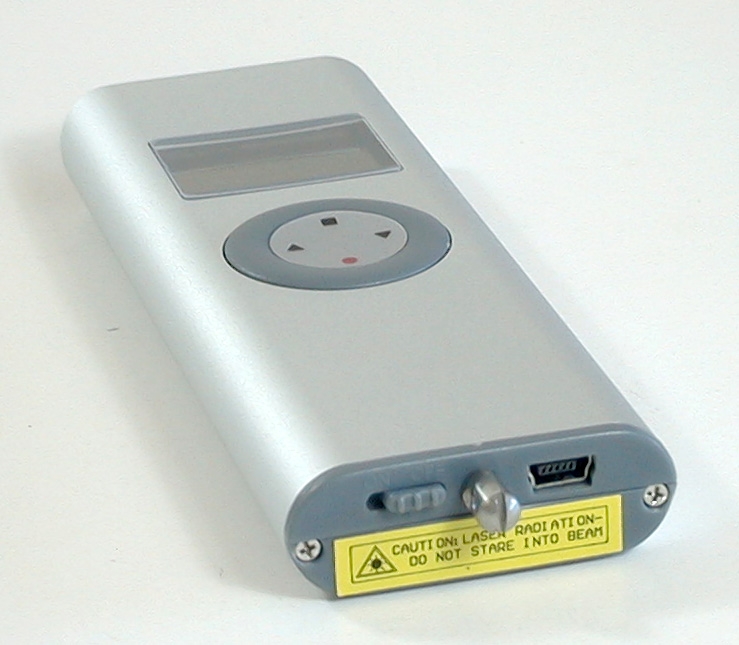

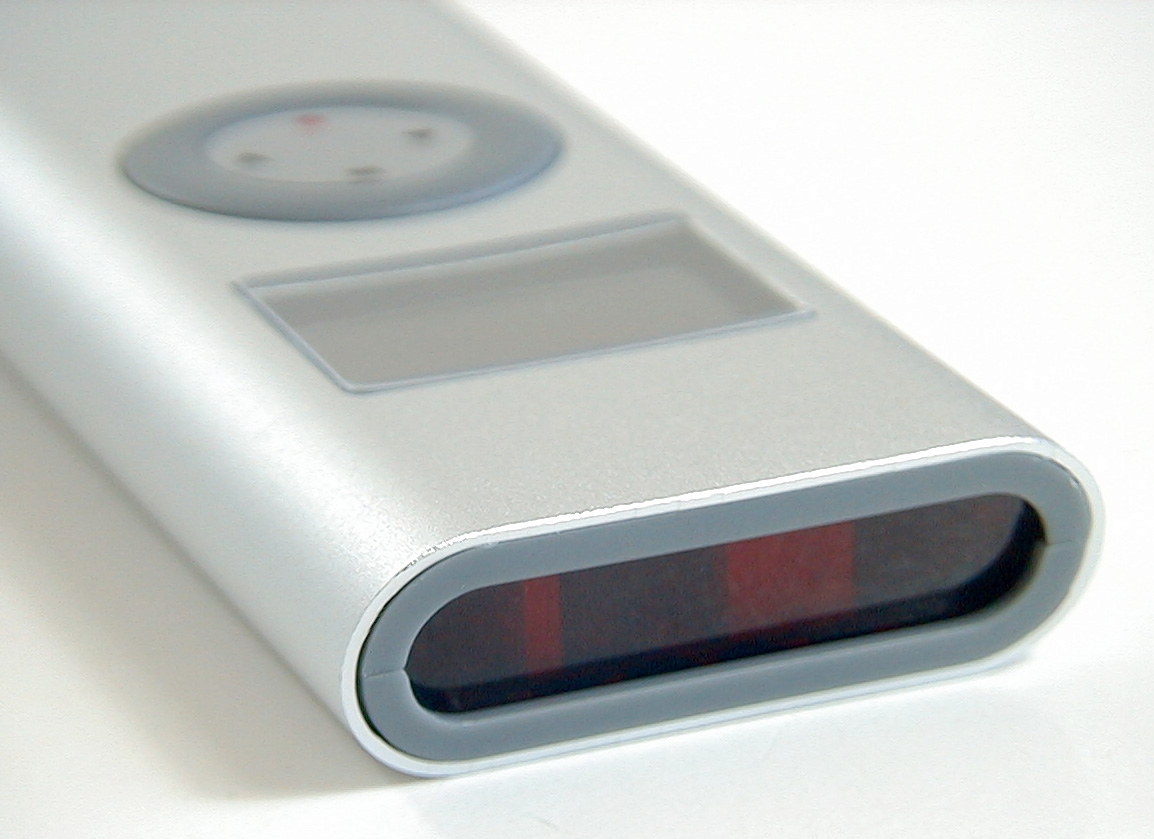

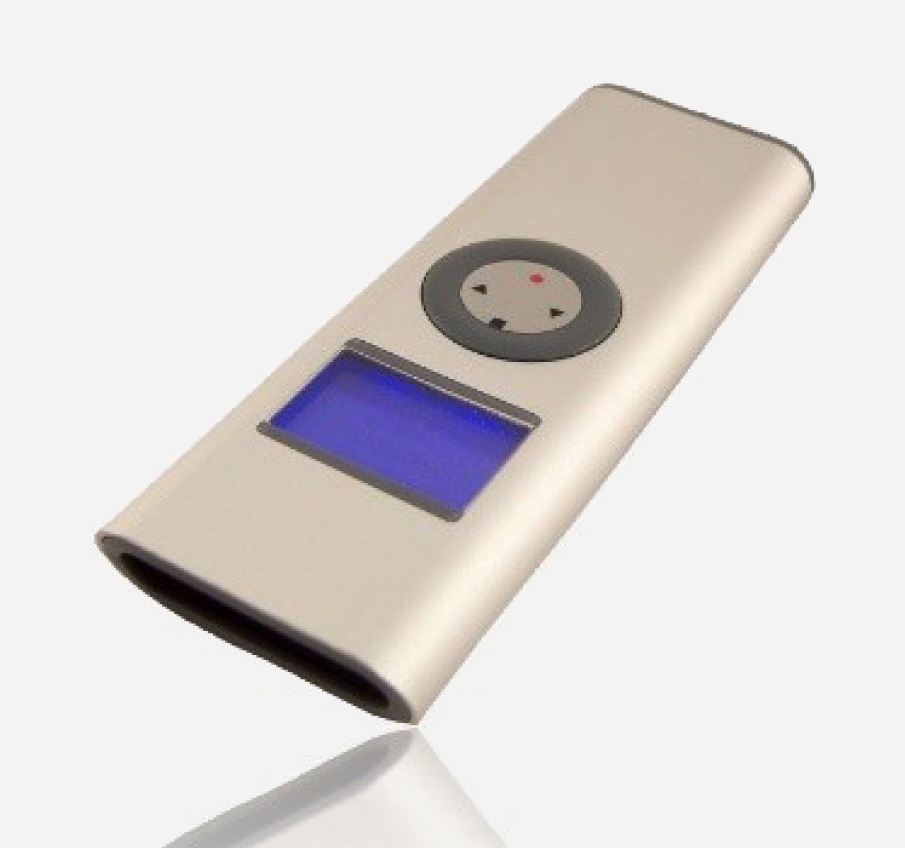

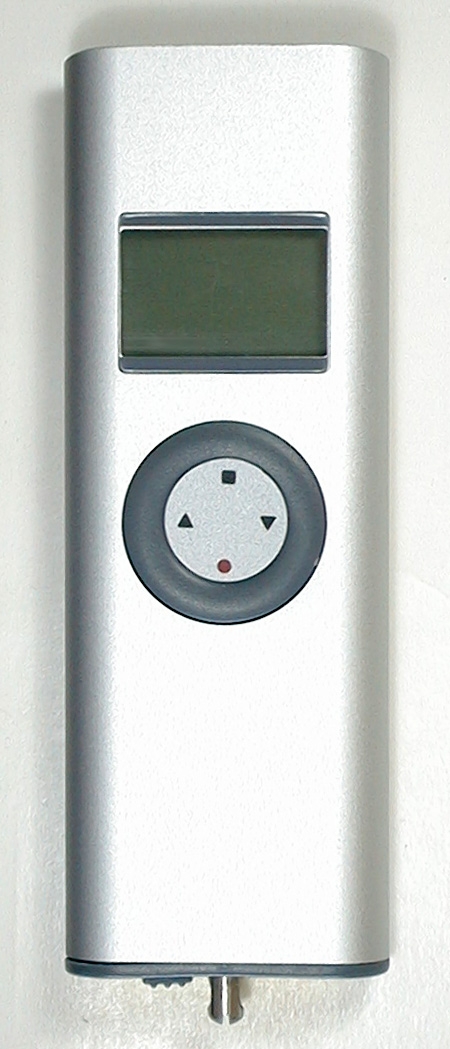

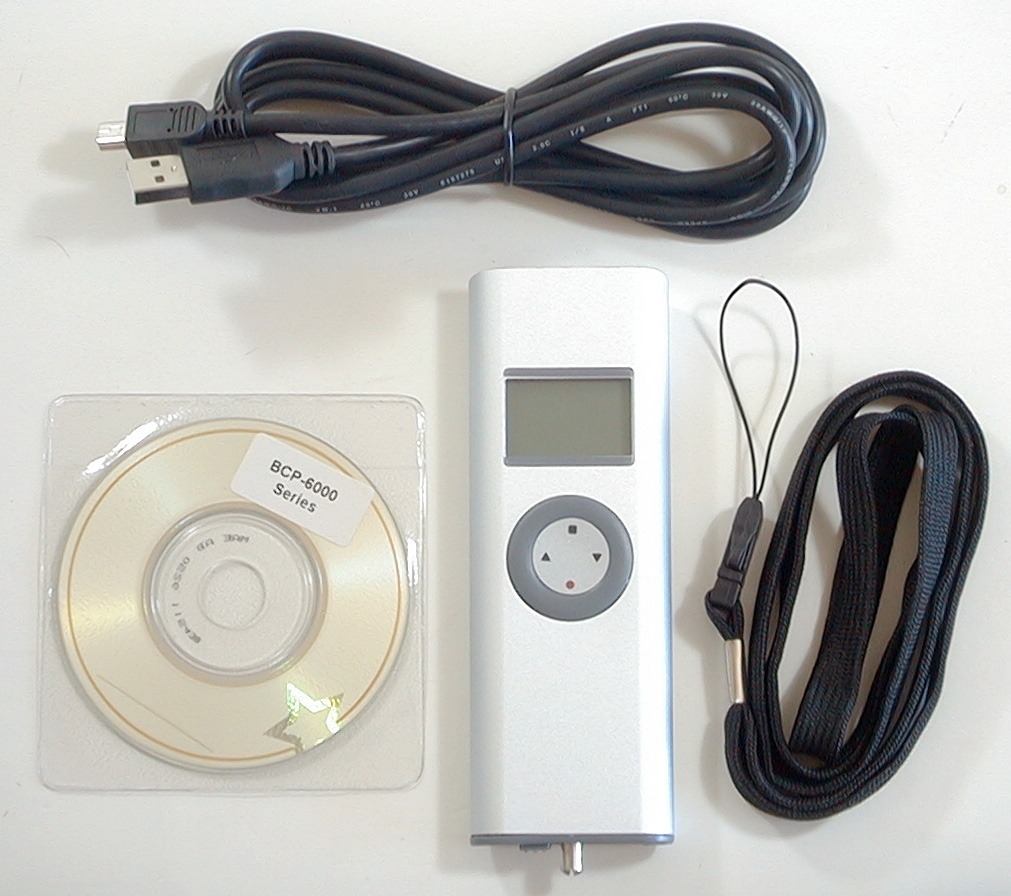

Photos

Click image to enlarge.
