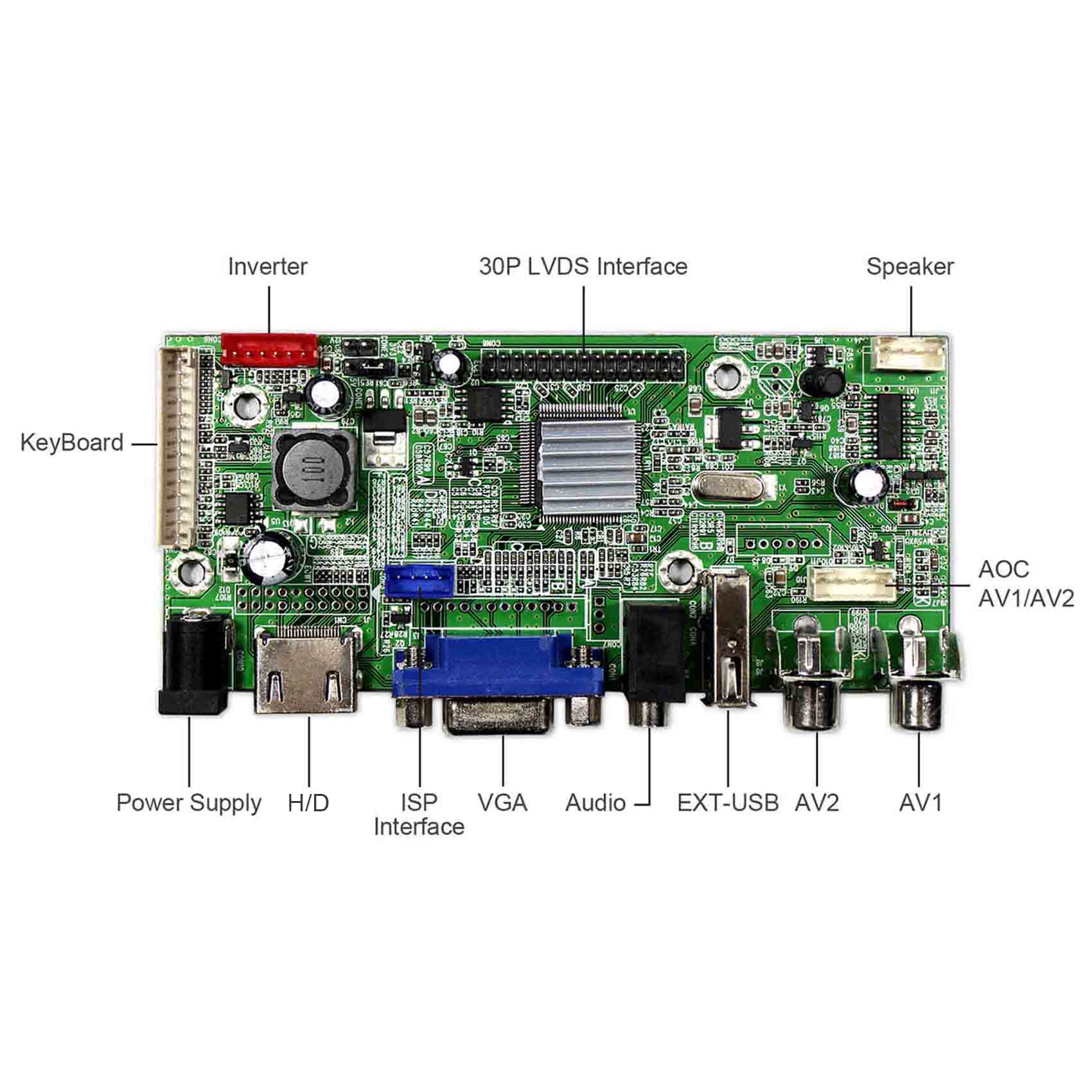

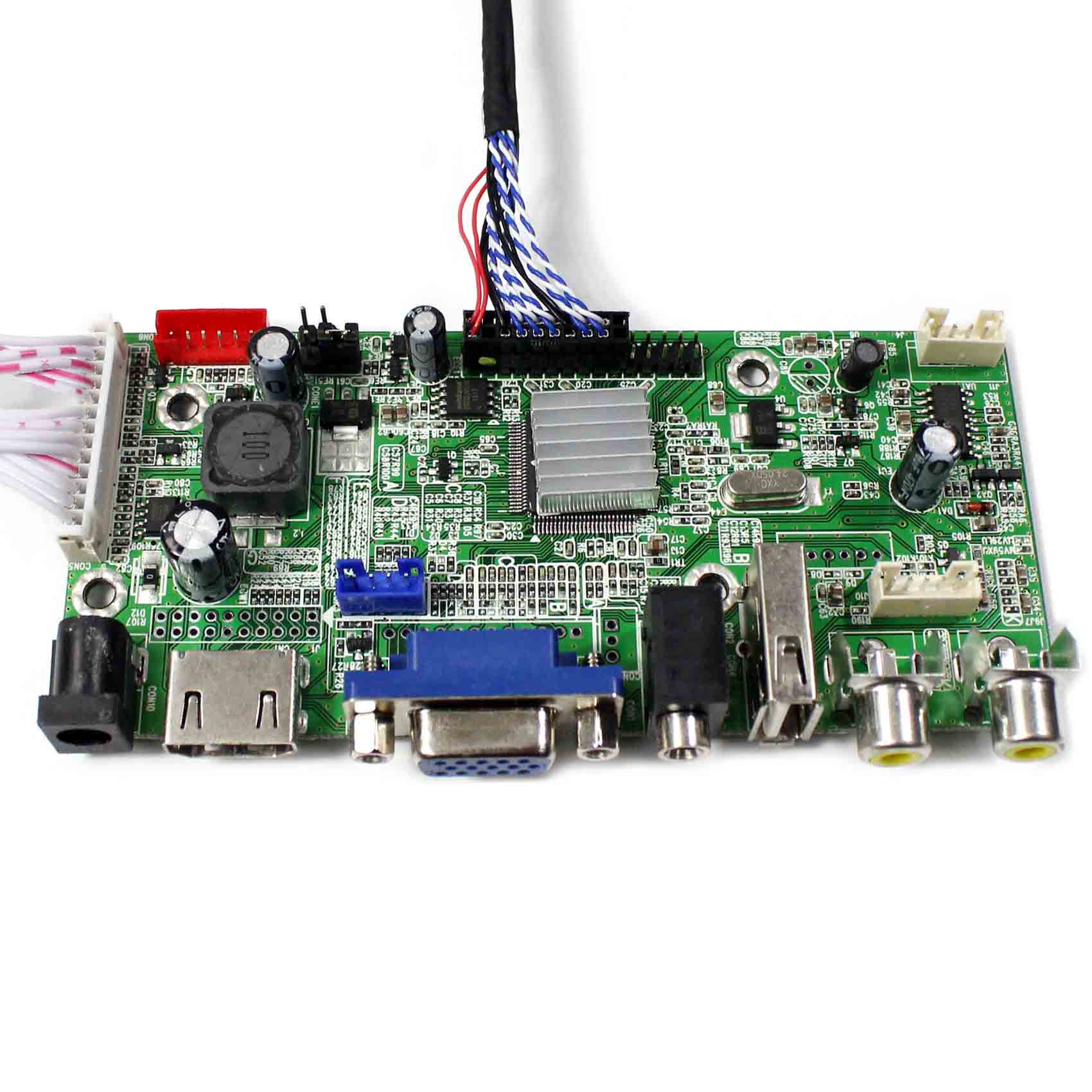

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm
7" AT070TNA2 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 165.75 × 105.39×3.7 (H×V×D)
Display Area 153.6 × 90(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

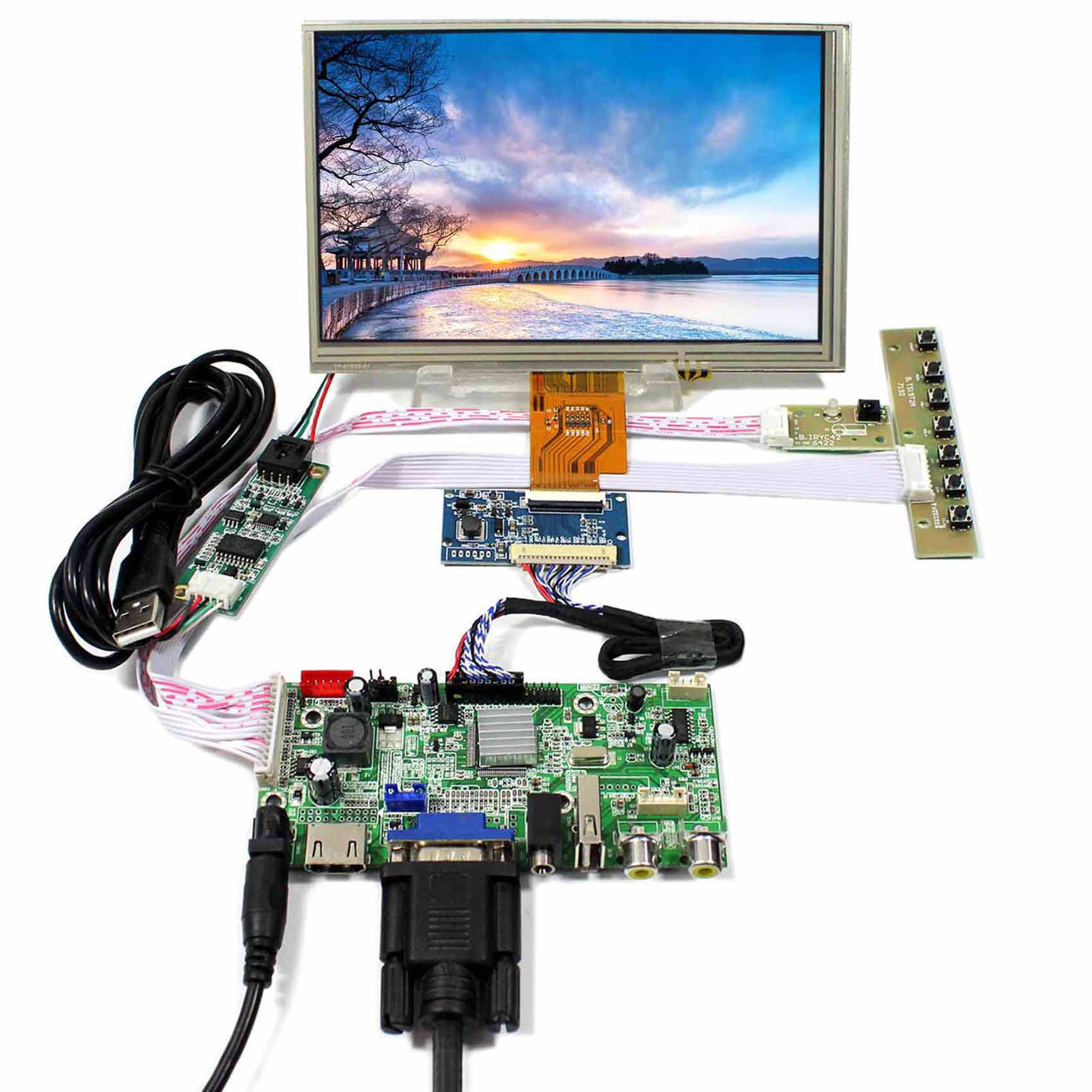

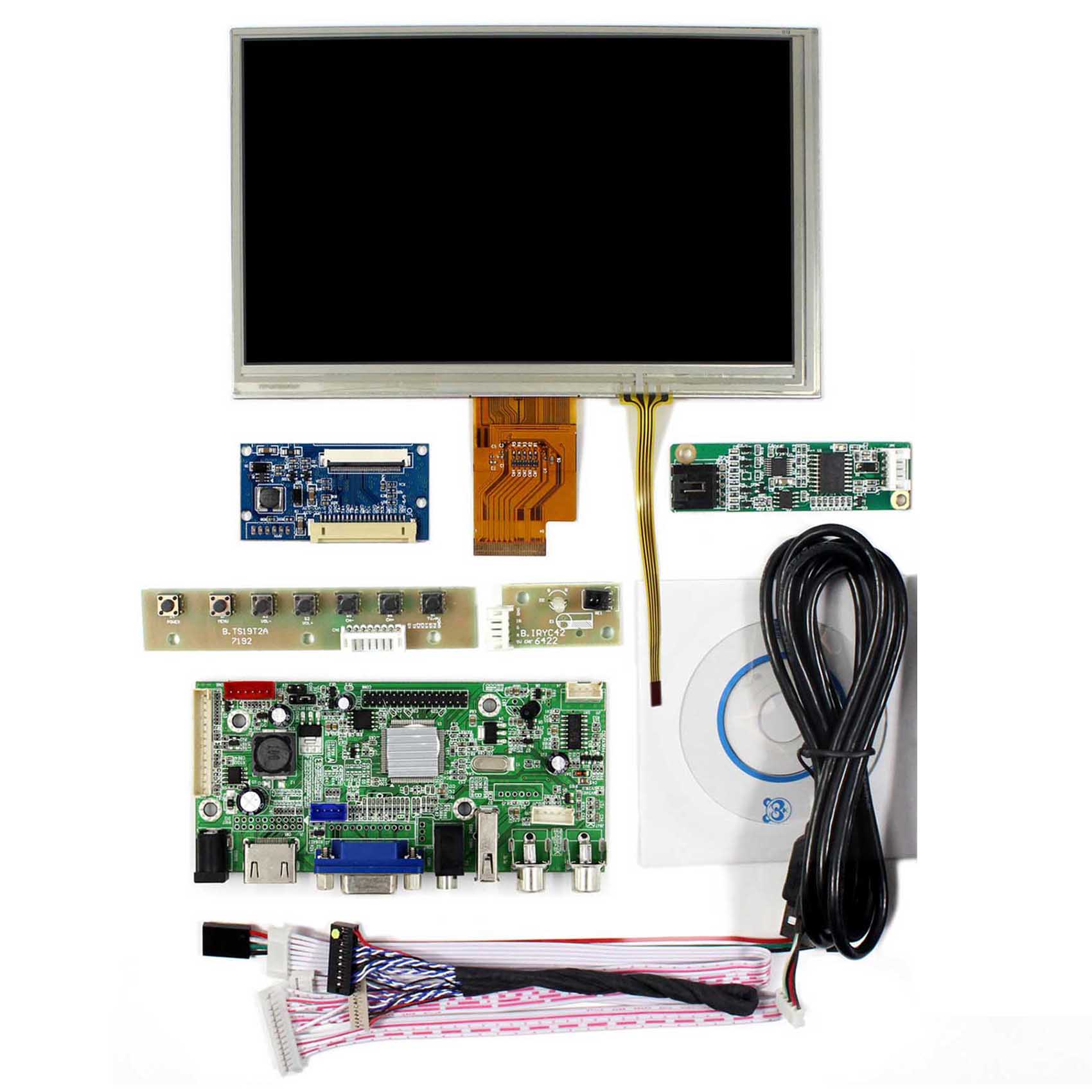

Packing list :
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1× 7inch AT070TNA2 1024X600 LCD Screen
1× Tcon Board VS-TCON40-V1
1× Keyboard With Cable
1× Remote Control(Battery Not included)
