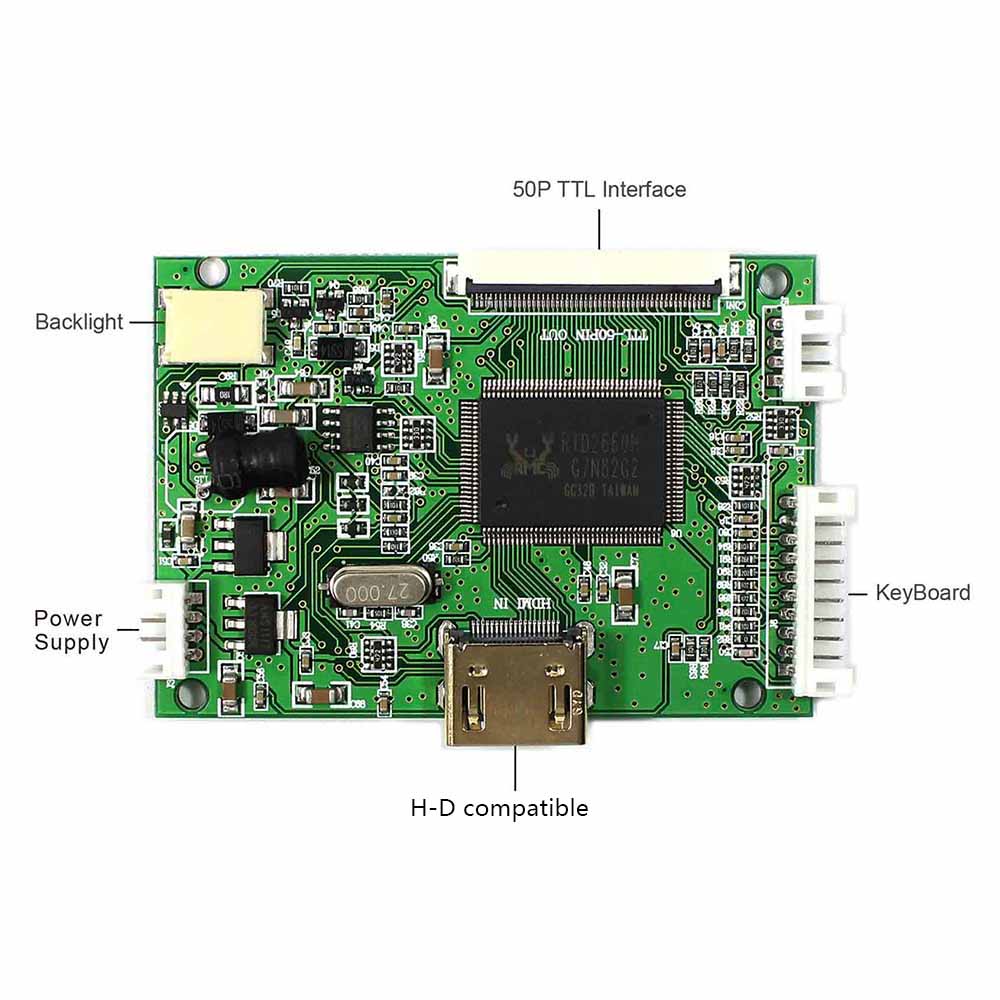

LCD Controller Board:
HD LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:5Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:70mm x 50mm x 8mm
7" AT070TNA2 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 165.75 × 105.39×3.7 (H×V×D)
Display Area 153.6 × 90(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

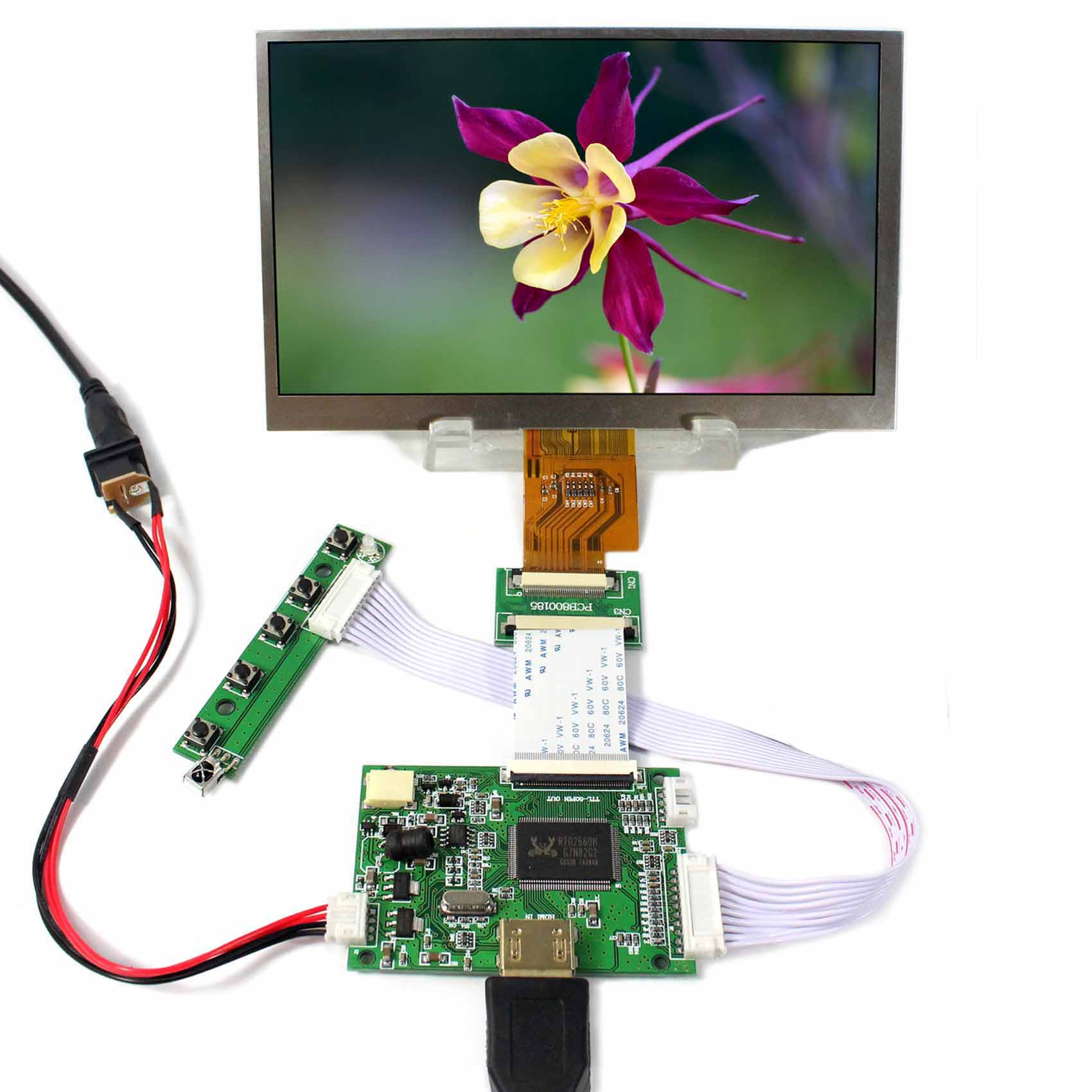

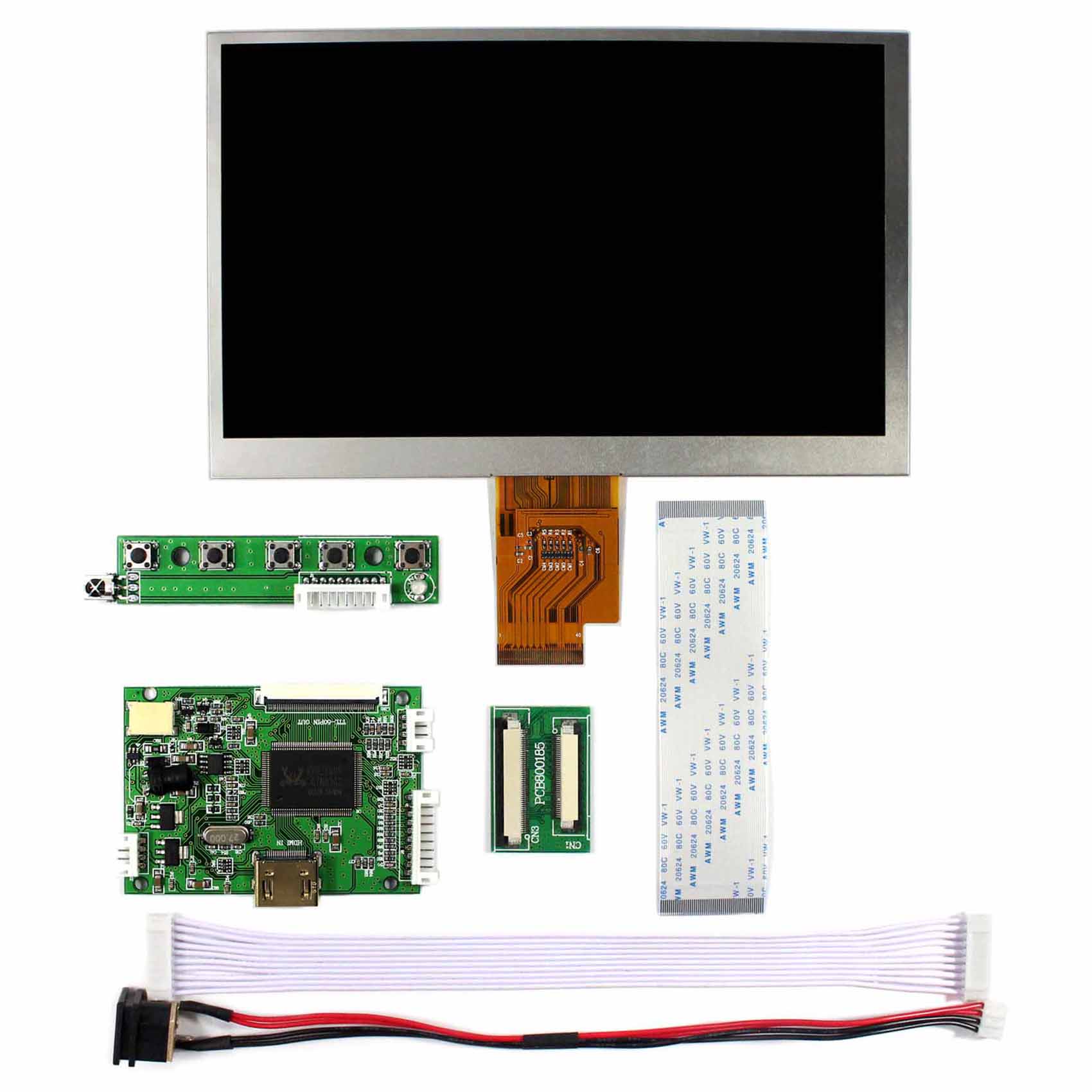

Packing list :
1× HD LCD Controller Board VS-TY50-V2
1× 7inch AT070TNA2 1024X600 LCD Screen
1× VGA Cable
1× AV Signal Cable

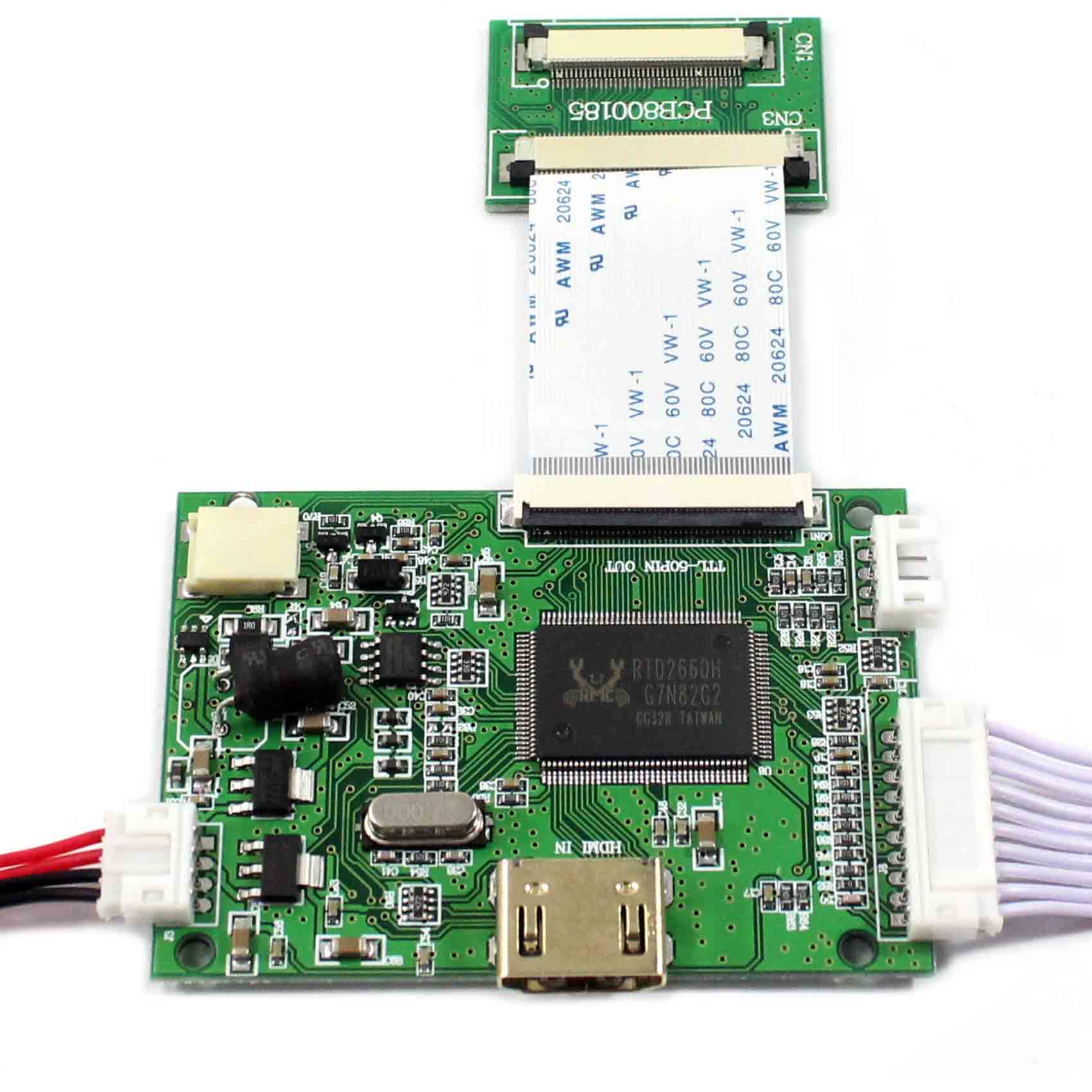

1× 50Pin To 40Pin Converter Board
1× Power Supply Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
