ADT‑Link Dual Reverse Side‑Bend PCIe 5.0 X8 To X16 Extension Cable Compatible With AMD NVIDIA Graphics Cards 30CM
Product Name: PCI-E 5.0 Double Reverse Side Bending x8 to x16 Graphics Card Extension Cable
Wire length: Supports customization of 20-60cm length, welcome deep cooperation.
Compatible graphics card: NVIDIA RTX50 series; AMD RX90xx series, new PCIe 5.0 graphics card
Speed and bandwidth: PCIe 5.0 x8 Gen5 256Gbps
Procurement reminder: It is necessary to purchase 1-2 samples for testing and verification before making bulk purchases.
The length in the options refers to the length of the wire, excluding PCB and connectors. The length of the wire is indicated by the red arrow in the following figure. The distance between screw holes should refer to the size indicated by the green arrow. There may be some error in the length of the wire, so please do not take pictures if you mind. For specific error situations, please refer to the following figure:
Product Advantages:
1、 The advantage of the wire is that ADT has independently developed and designed the 5th generation anti-interference low resistance wire with a scratch resistant and wear-resistant outer sheath, and supports stable transmission of PCIe 5.0 at high frequencies.
2、 Line length advantage, customization is accepted from 30cm to 60cm. Please contact customer service for customization.
3、 The product is made of high-quality materials, with precise PCB craftsmanship. The PCB is made of high TG board, and the copper material thickness is thickened to 1oz, with gold fingers sunk in gold.
4、 The wire used in the product is already very durable. Aluminum alloy gaskets with a thickness of up to 2mm are used to protect the metal welding points, and screws are locked and fastened. The product is sturdy, reliable, resistant to pulling, anti-interference, and will not have problems such as breakage or nail drop. The wire can be bent and folded without affecting its use.
Summary of Technical Issues:
Laboratory test results?

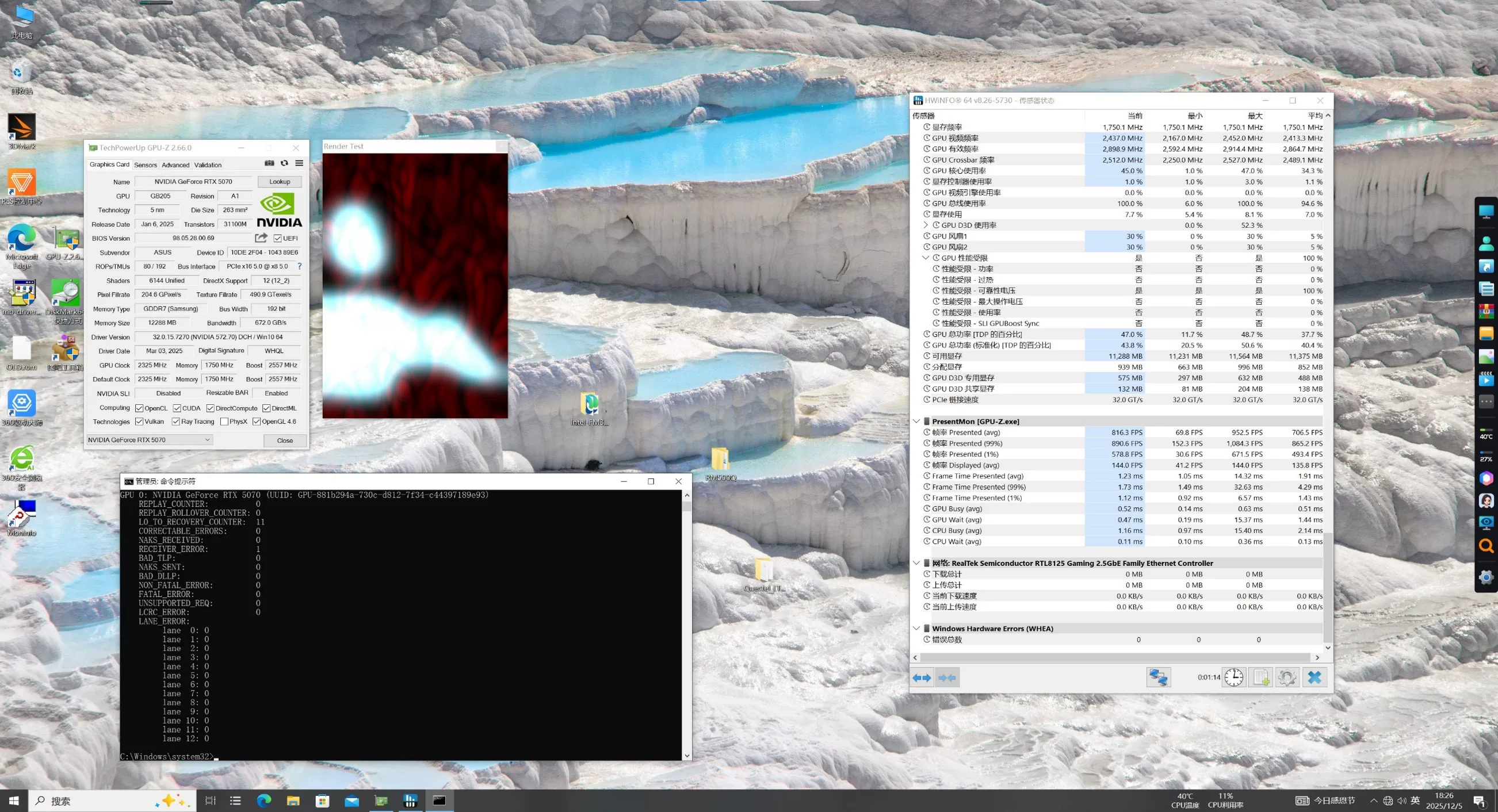

Tested with nVidia RTX 5070 and AMD RX9070, both can achieve PCIe 5.0 x8
What is the quality of the wire? Is there any blocking?
There is a metal layer shielding, using advanced EMI shielding conductive polymers, new materials for EMI shielding, and flat cable design. This technology allows each cable to be completely covered by electromagnetic interference shielding of conductive polymers to prevent incident or outgoing emissions of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of cables.
Is the wire soft? Can it be bent?
The wire is the fifth generation PCIe dedicated black thin wire independently developed by ADT, with a thickness of 0.8mm. The wire is very soft and bendable, which does not affect use, but cannot be pulled or pulled.
Why is the performance poor after connecting the extension cable? Is it slow, laggy, or unusable?
There are three common problems with insufficient linear performance or abnormal functionality of graphics card extension:
1. Extension cable assembly error. The graphics card extension cable should be installed in the graphics card slot closest to the CPU, as other slots have poor performance
2. The gold fingers of the graphics card or the motherboard slot terminals have poor contact or oxide, causing slow and stuttering. The contact points of the gold fingers should be cleaned thoroughly
3. The motherboard and graphics card are aging, and it is not recommended to use extension cords for devices that are over 3 years old. If the equipment is aging or the signal is poor, please reduce the speed for use.
