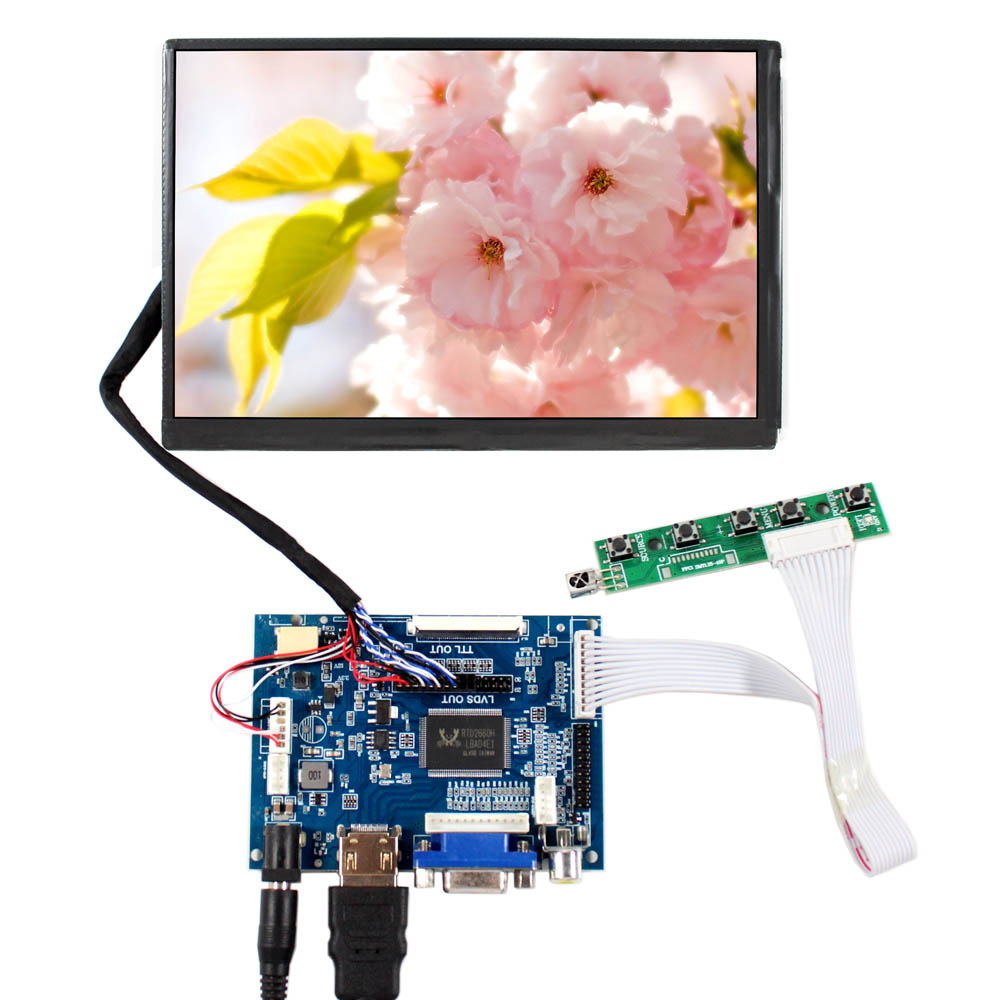

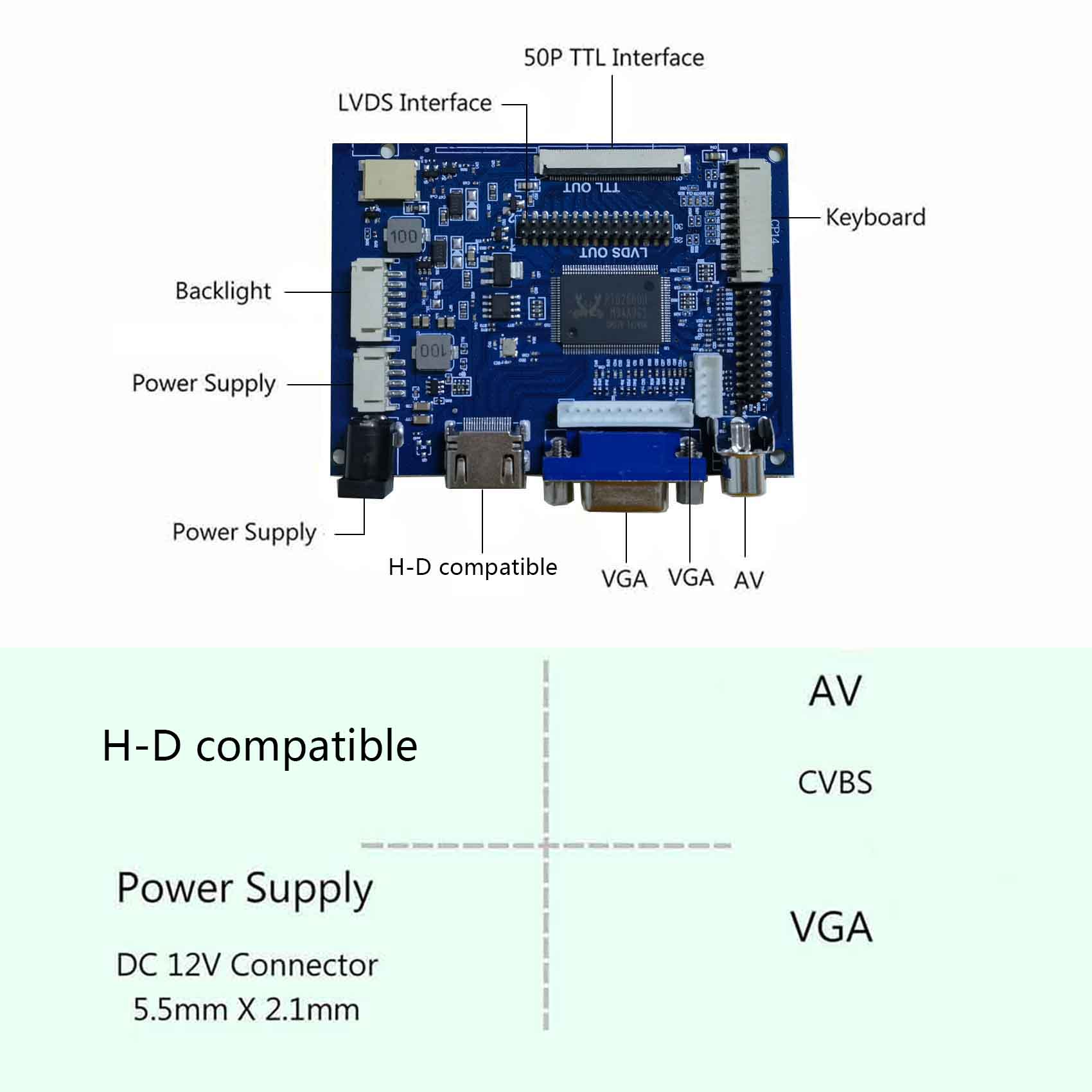

LCD Controller Board:
HD VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

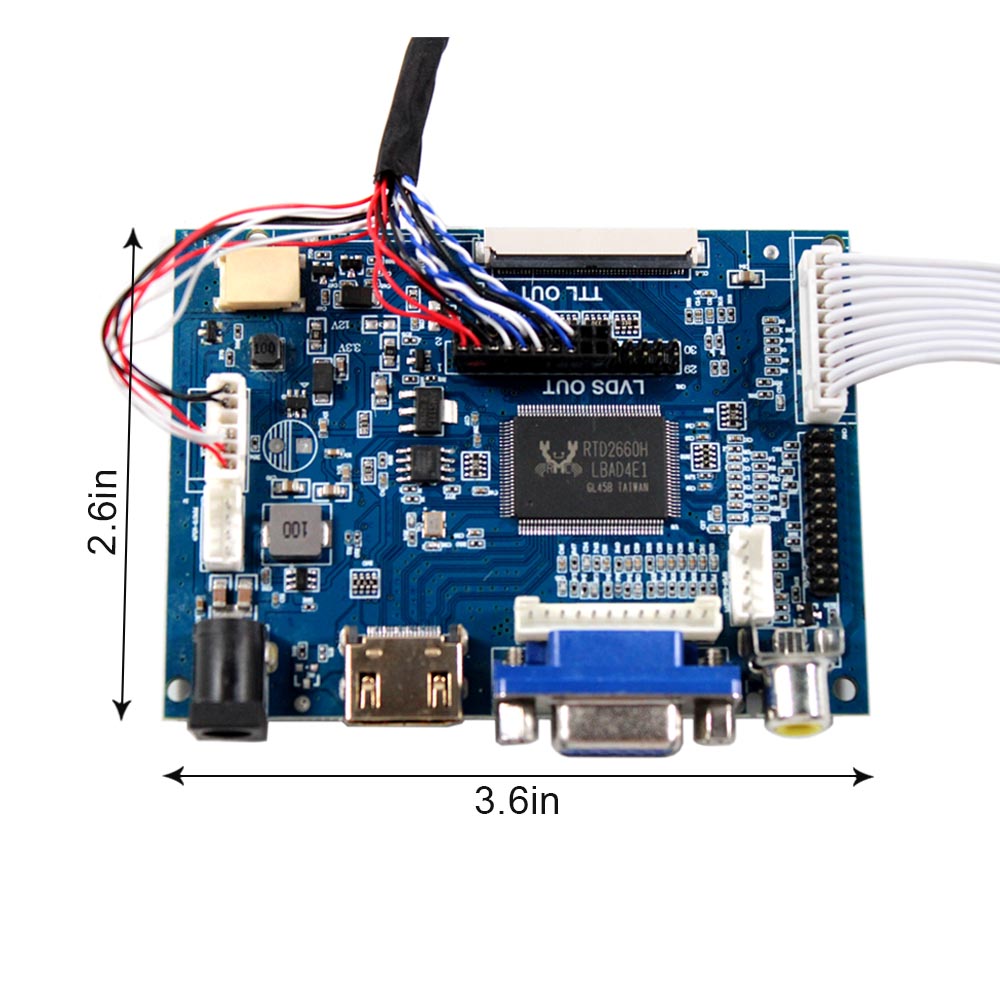

Board Size: 91mm x 66mm x 12mm
7" N070ICG-LD1 1280X800 LCD Screen:
Display Mode HS-IPS, Normally Black, Transmissive
Resolution 1280(RGB)×800
Outline Size 161 ×107×4.5 (H×V×D)
Display Area 149.76 × 93.6 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.) (CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) ,Connector ,40 pins
Backlight LED
Input Voltage 3.3V (Typ.)

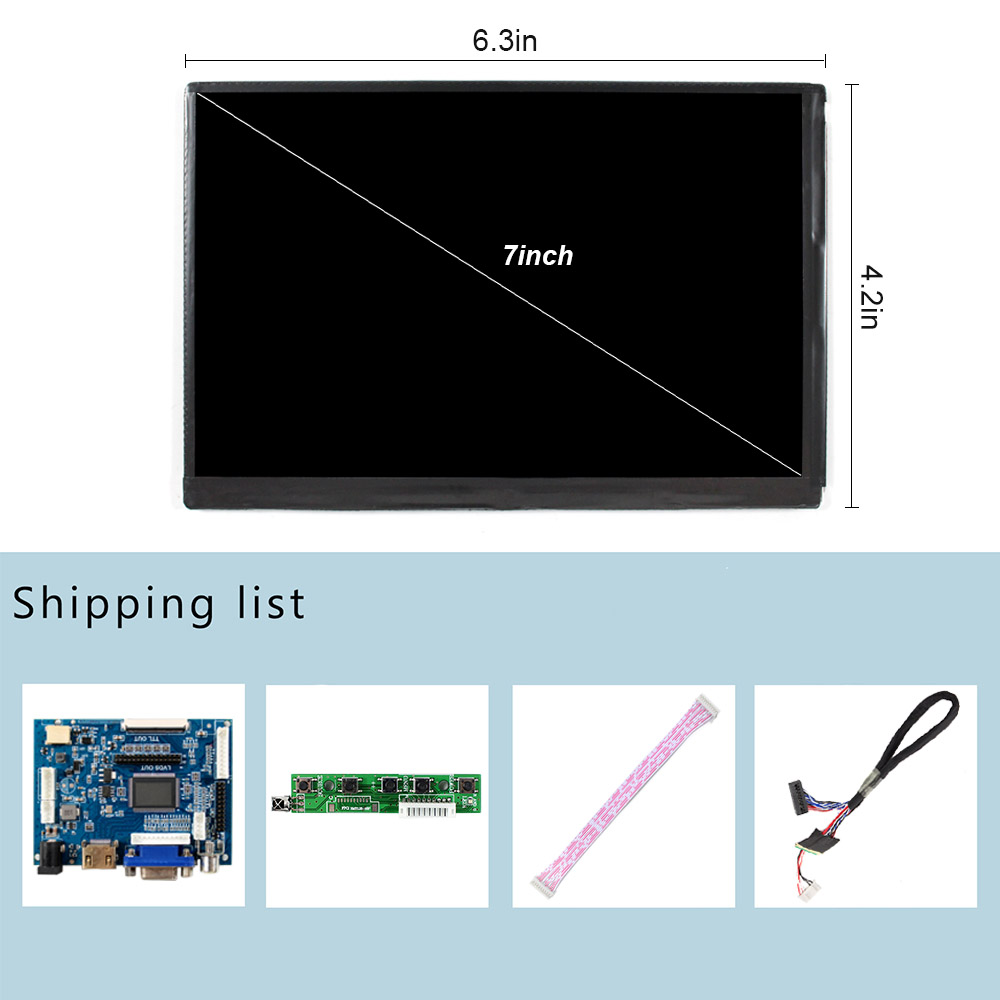

Packing list:
1× HD VGA+2AV LCD Controller Board VS-TY2662-V1
1× 7inch N070ICG-LD1 1280X800 LCD Screen

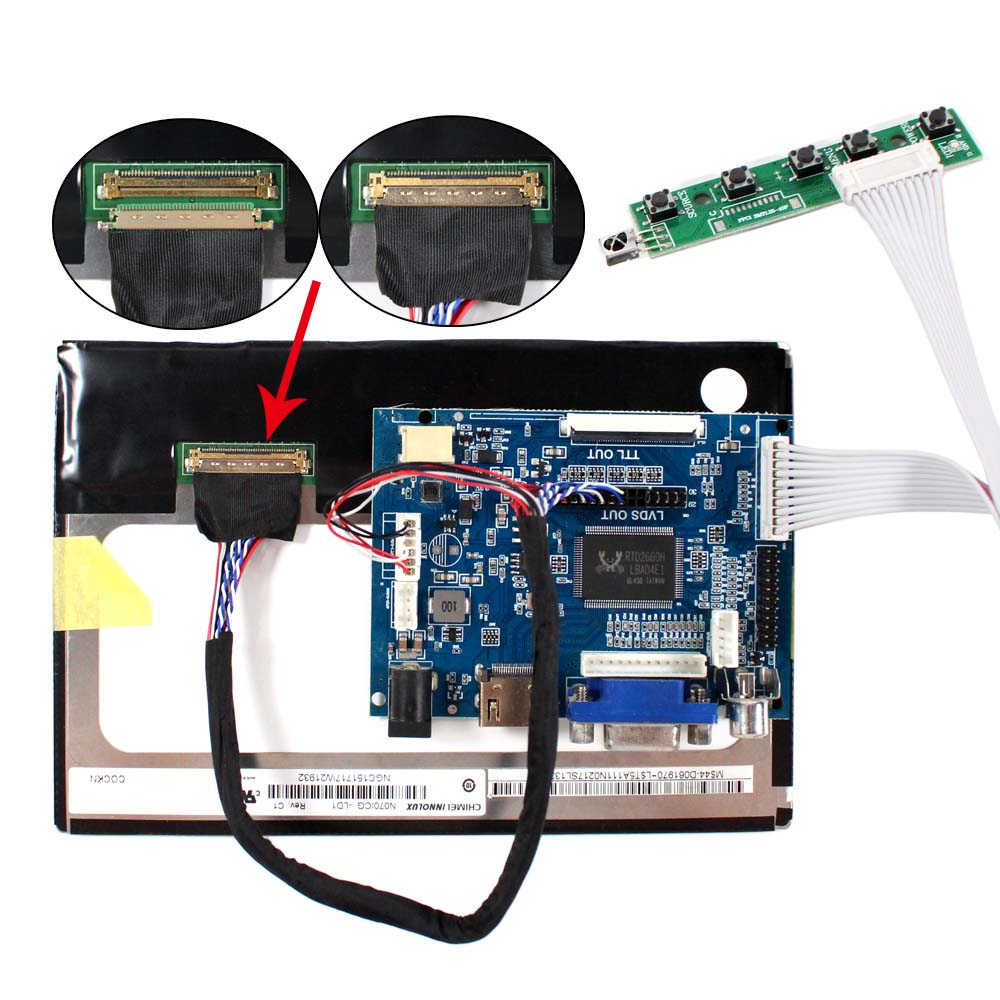

1× LVDS Cable
1× Keyboard With Cable
