Product Description
Feature

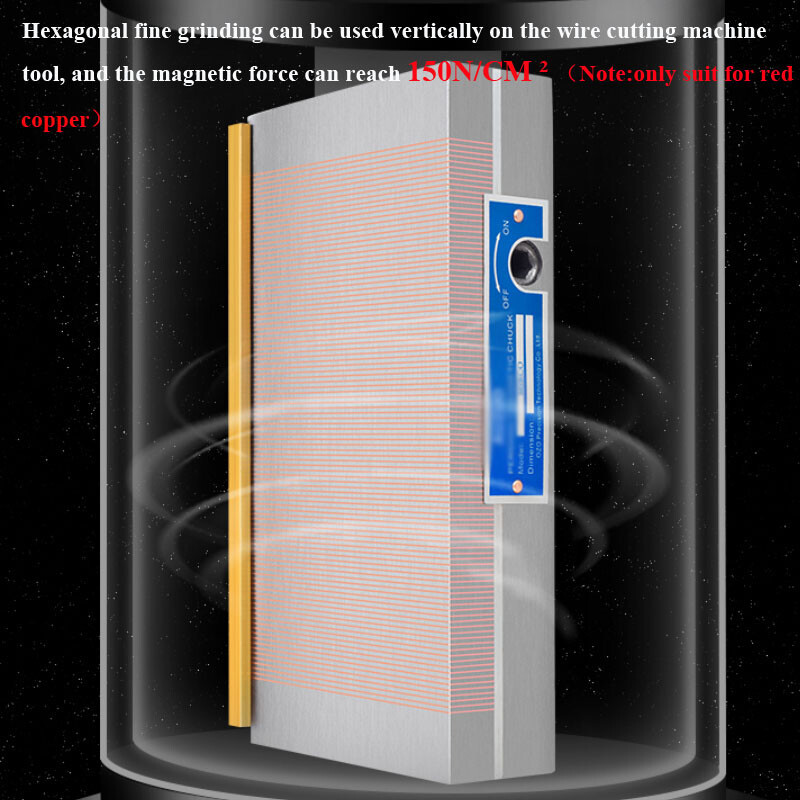

Magnetic Chuck is mainly used in a variety of surface grinding machine, tool grinding machine as a workpiece positioning processing. It has the features of high precision, uniform suction and safety, so that it is a processing positioning sucker.

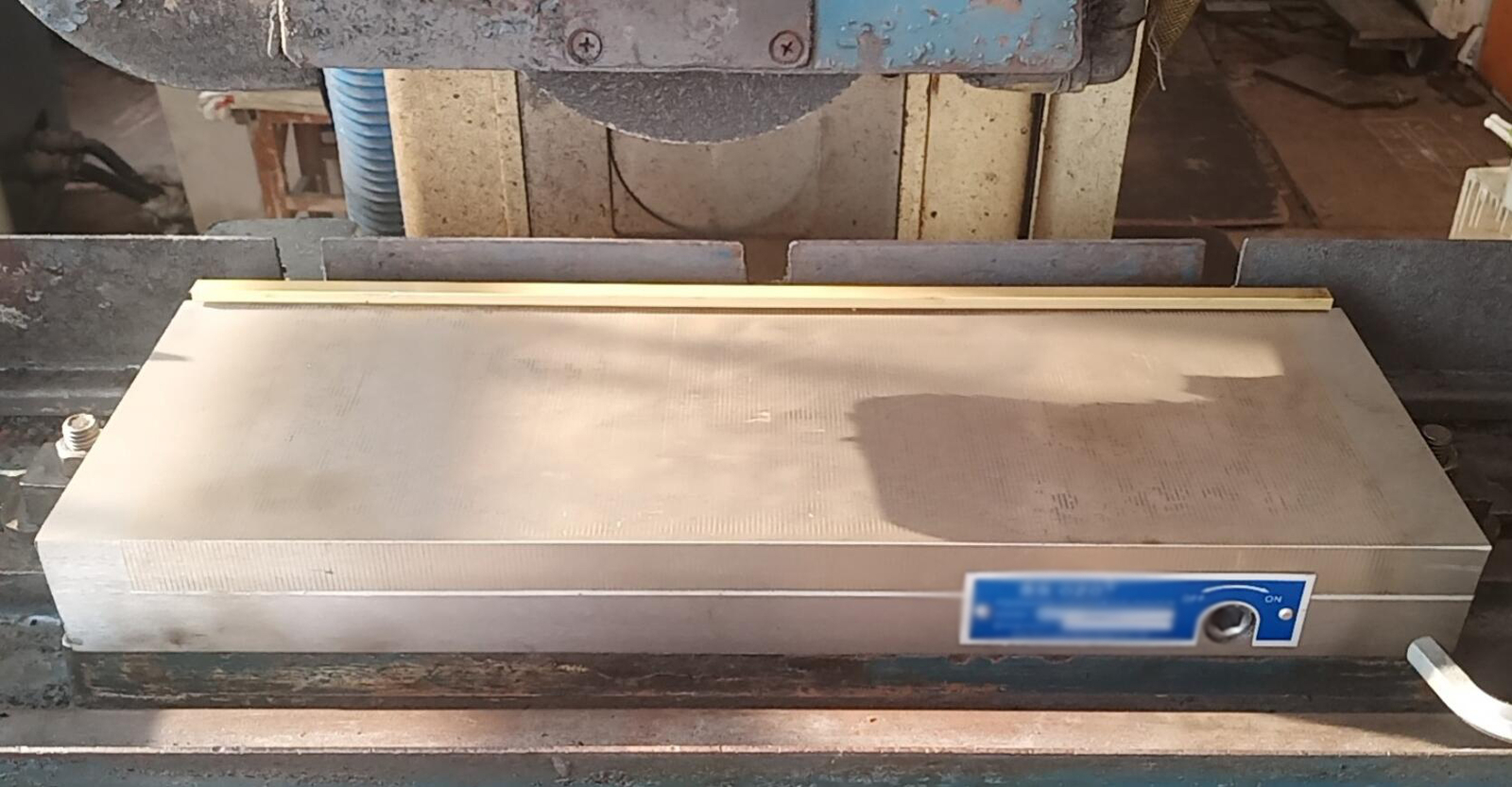

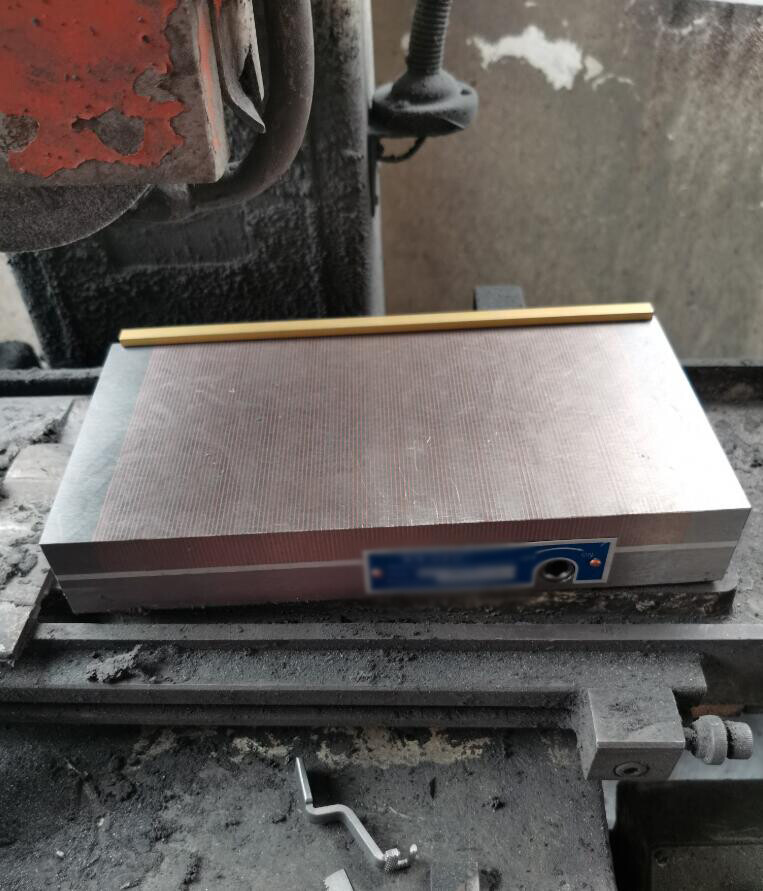

Suitable for grinding machines, EDM electric sparks, wire cutting, tapping machines, bench drills and other processing.

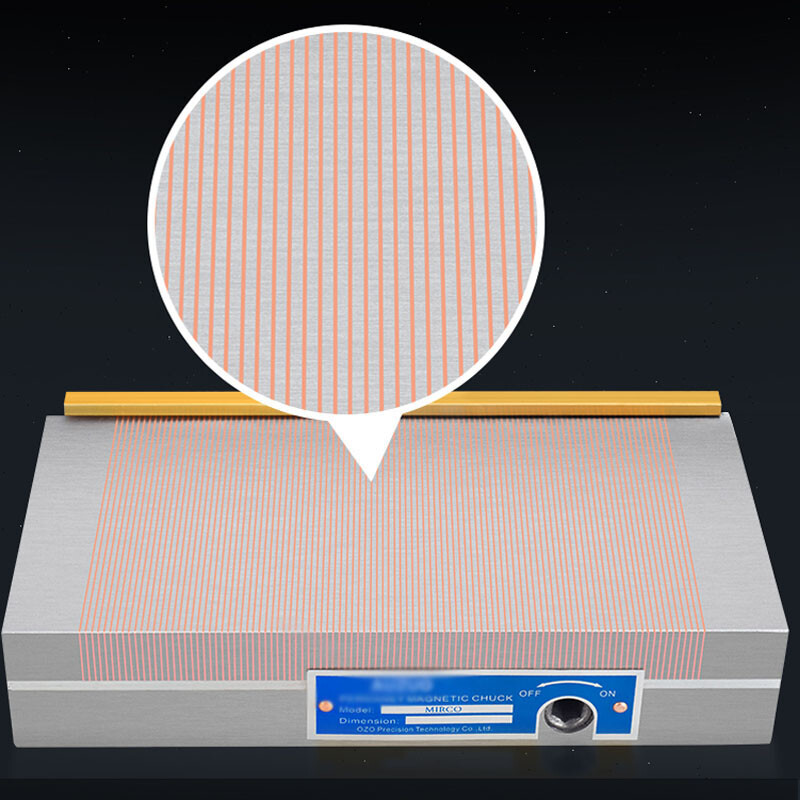

The magnetic pole gap is fine. The magnetic force is evenly distributed. The effect is particularly obvious when processing thin and small workpieces.
Special internal design, can extend the service life.

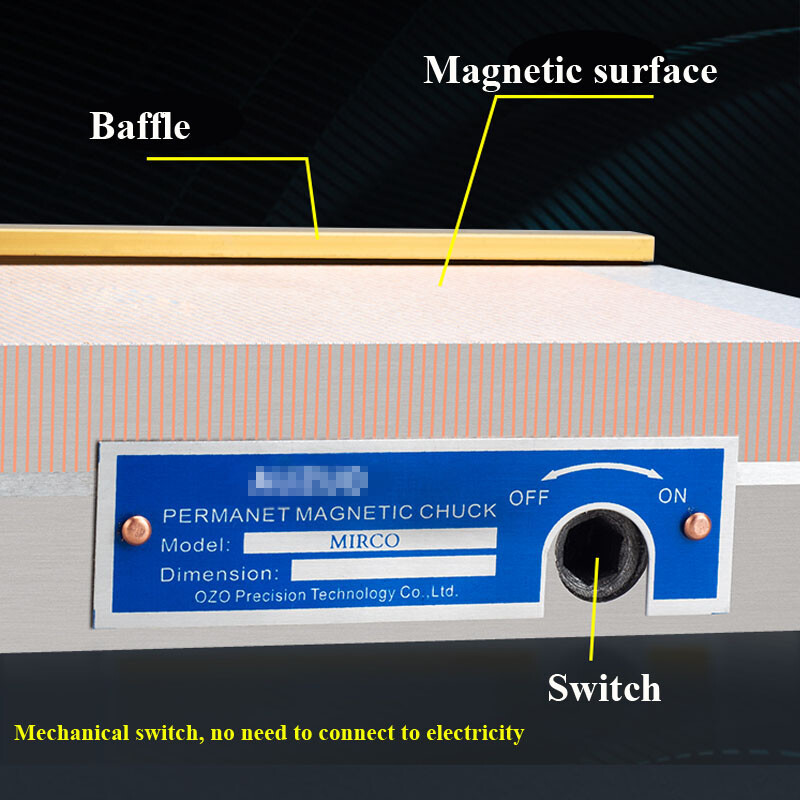

Mechanical switch, no need to connect to electricity

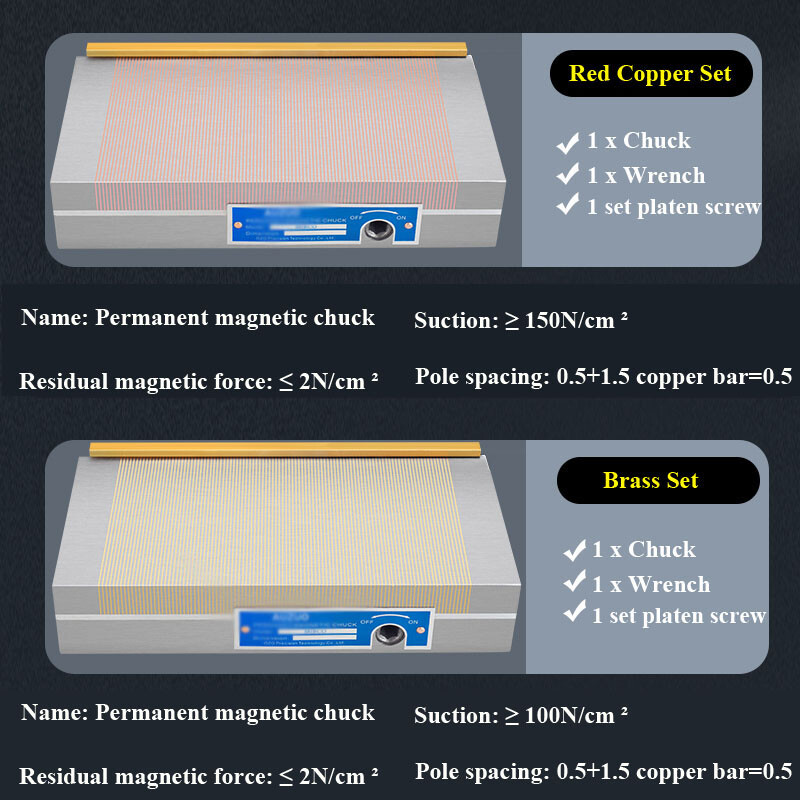

Specification

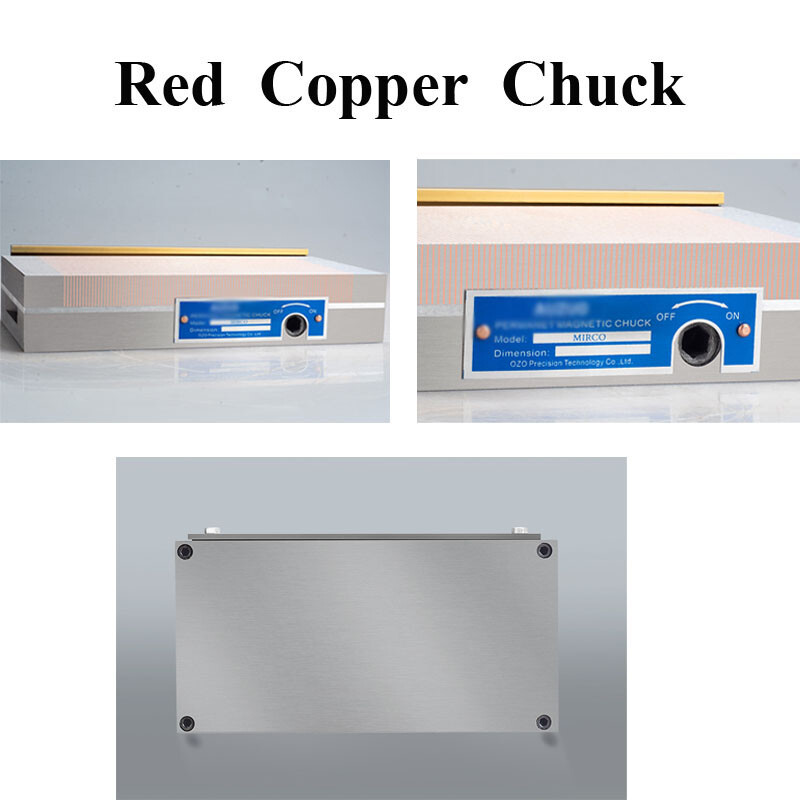

Red Copper

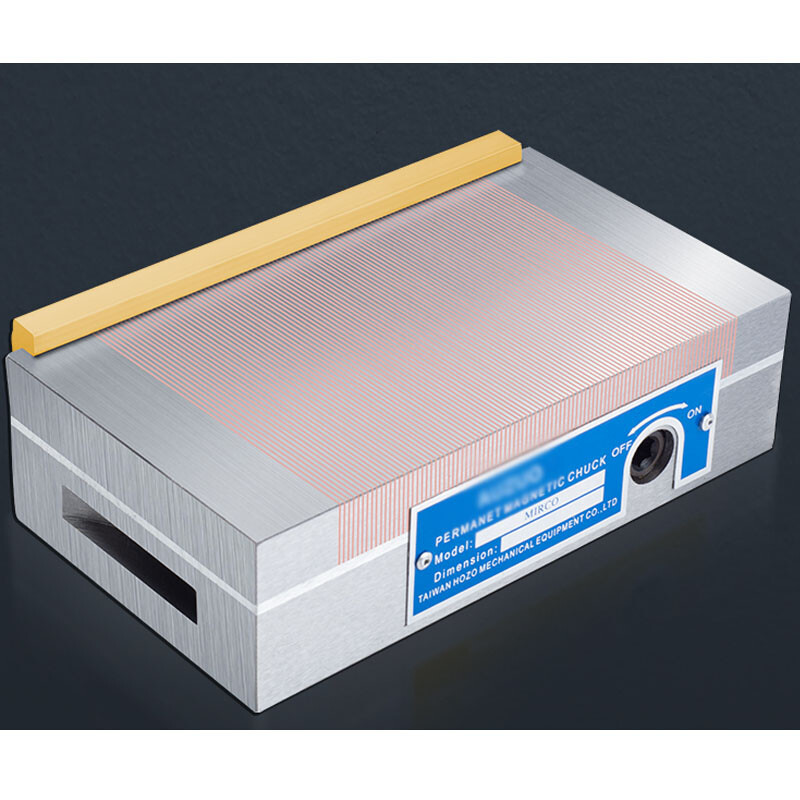

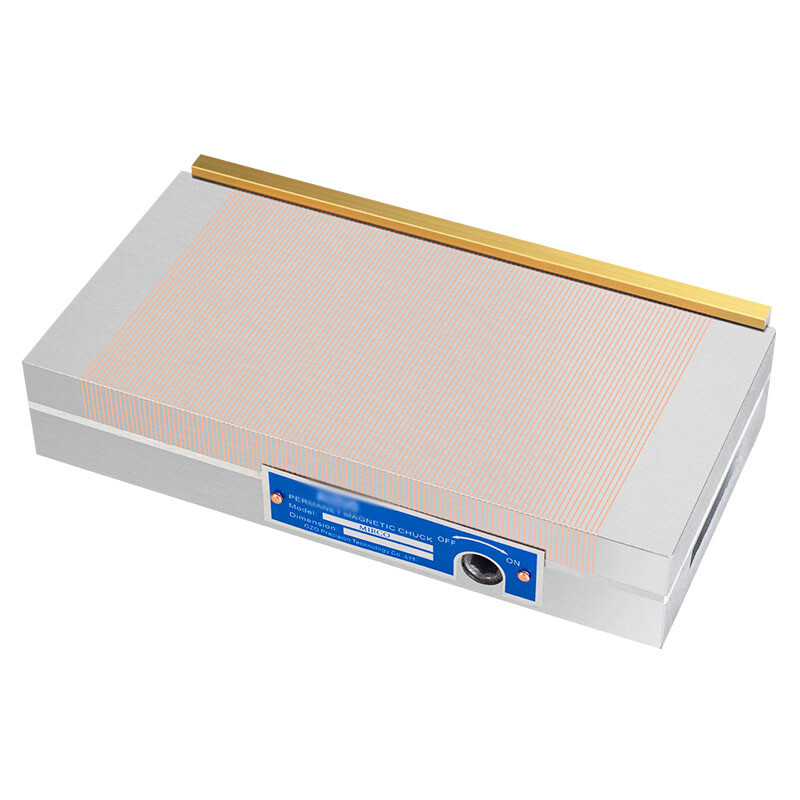

Name: Permanent magnetic chuck
Suction: ≥ 150N/cm ²
Residual magnetic force: ≤ 2N/cm ²
Pole spacing:
0.5+1.5 copper bar=0.5
Red copper 100*175mm
Chuck length: 175
Chuck width: 100
Copper bar length: 130
Copper bar height: 20
Chuck height: 45
Platen groove: 10
Magnetic pole:
0.5+1.5
Brass
Name: Permanent magnetic chuck
Suction: ≥ 100N/cm ²
Residual magnetic force: ≤ 2N/cm ²
Pole spacing:
0.5+1.5 copper bar=0.5
Brass 70*150mm
Chuck length: 150
Chuck width: 70
Copper bar length: 100
Copper bar height: 20
Chuck height: 45
Platen groove: 10
Magnetic pole:
0.5 ± 1.5

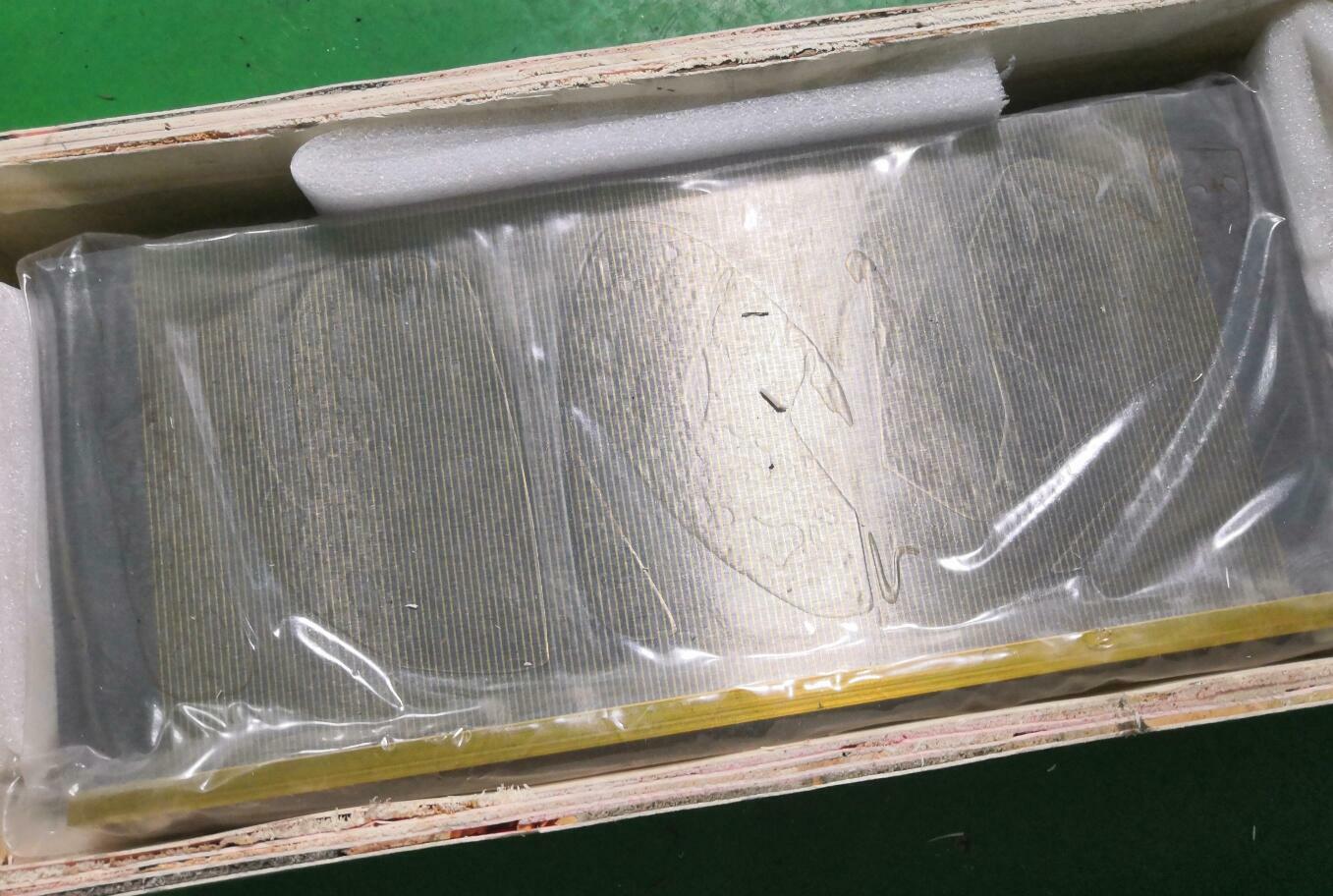

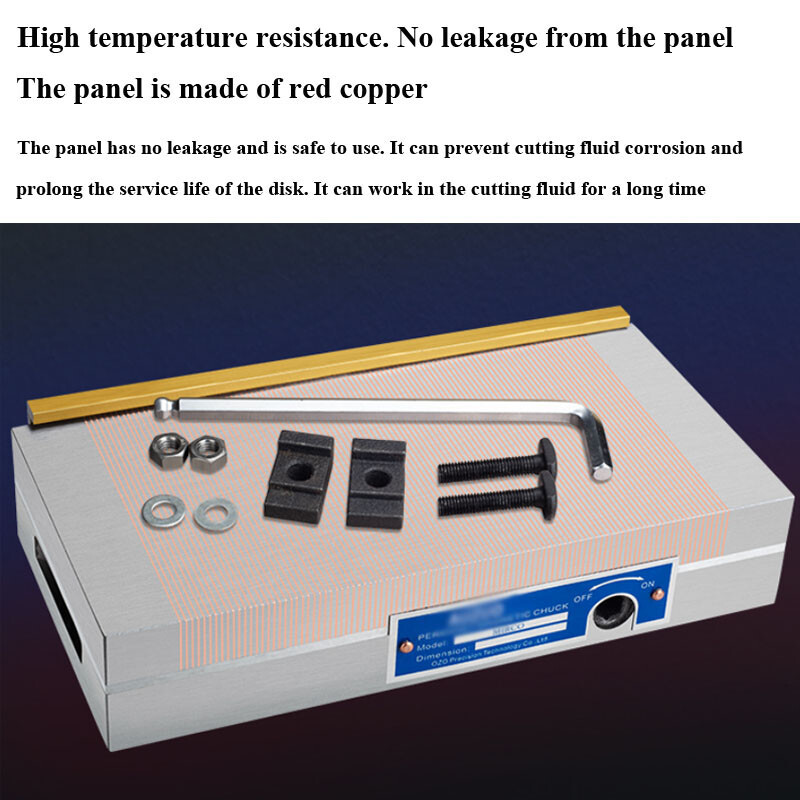

Package includes
1 x Permanent magnetic chuck
1 x Wrench
1 Set platen screw
