ES7060 Cable Identification Instrument Electronic Cable Tester and Device

Product Description

Ⅰ. Features

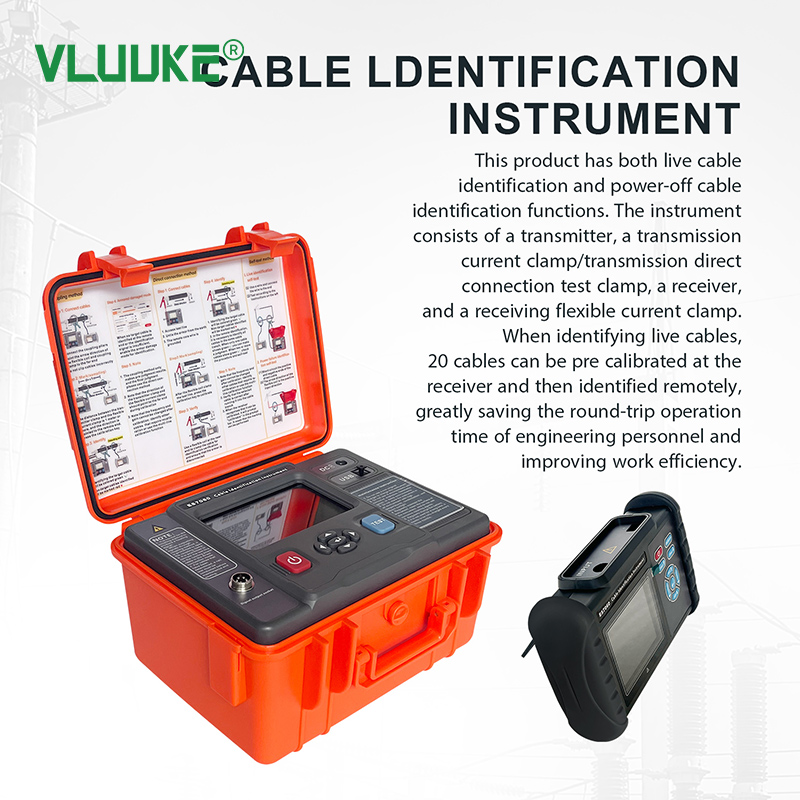

1. Transmitter: Live cable identification and power outage cable identification, transmit the signal to the target cable, built-in large capacity rechargeable lithium battery, automatic impedance matching, automatic protection. The host adopts 5.0-inch touch LCD to display output voltage, output current and circuit impedance (direct connection method), adopts intelligent human-machine interface design, supports touch gesture operation, and is convenient and easy to use, smooth operation and improved operation efficiency.
2. Live cable recognition: Also known as coupling method identification using caliper coupling to output composite pulse width frequency signal, the transmitter has six frequencies to choose from, respectively: 640Hz, 1280Hz, 2.56KHz, 3.84KHz, 6.50KHz, 8. 05 KHz, by coupling to the target cable (10kV three-core armored cable or single core cable), to the cable armor or core coupling the composite pulse width frequency signal, the composite pulse width frequency signal generates electromagnetic field around the target cable, and the receiver uses flexible current clamp to detect and identify; because the composite pulse width frequency signal is directional, the detection is also directional.
3. Power outage cable identification: Also known as direct connection method, using direct connection to output composite pulse width frequency signal. The transmitter has six kinds of choice, respectively, 640Hz, 1280Hz, 2.56KHz, 3.84KHz, 6.50KHz, 8.05KHz, inject composite pulse width frequency signal into the cable core. The composite pulse width frequency signal generates electromagnetic field around the target cable for detection, decoding and identification by the receiver and flexible current clamp; Since the current is directional, the detection is also directional.

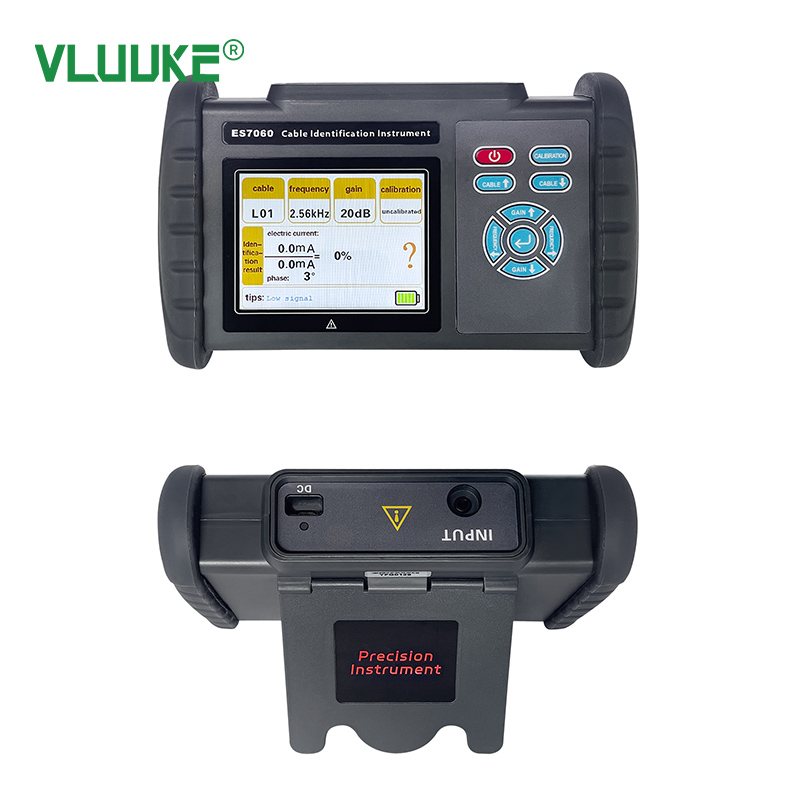

4. Receiver: For handheld equipment, built-in high-speed microprocessor, receiver using hardware filter + DSP digital filter algorithm double filter processing, has excellent filtering performance, and the advanced FHD algorithm can filter interference frequency and the transmitter composite coding current signal extraction and decoding, combined with scientific rigorous calibration rules, greatly reduce the field personnel use requirements, LCD directly display correct detection results, cable identification success shows √, be clear at a glance, easy to use, can calibrate 20 cables at the same time, not repeat calibration, improve work efficiency.
5. Special note: The cable identification instrument also has the function of live cable identification and power failure cable identification. When the power outage cable identification, it is strictly prohibited to access the running cable. When identifying, the transmitting clamp and the receiving clamp should not be mixed, and the direction of the input signal should be consistent.



Ⅱ. Technical Parameter

Function

Output composite pulse width frequency signal, signal coupling output, signal directly connected output, display output voltage, output current, circuit impedance, residual battery voltage, and dynamic indication of transmission state

Power supply

Live identification model: 9.6V / 6Ah lithium battery, full power continuous operation for about 8 hours (3 levels output)

Output method

Live identification model: automatic identification, caliper coupling during live identification; direct connection output during power identification

Power outage identification type: only power outage identification direct connection output

Frequency

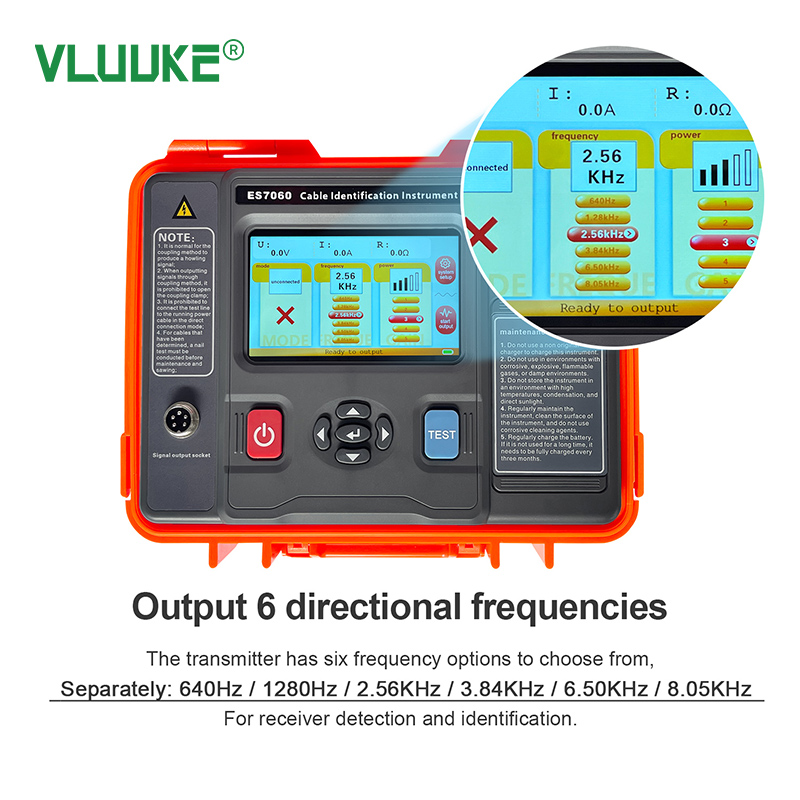

6 Adjustable：640Hz、1.28KHz、2.56KHz、3.84KHz，6.50KHz，8.05KHz

Output interface

Waterproof aviation socket

Output power

Maximum 15W, 5 Levels adjustable, automatic real-time impedance

matching


Output voltage

The maximum peak value is about：110V

Directed connection clamp

Caliber：Max 24mm wire length：1meter

Transmitter clamp

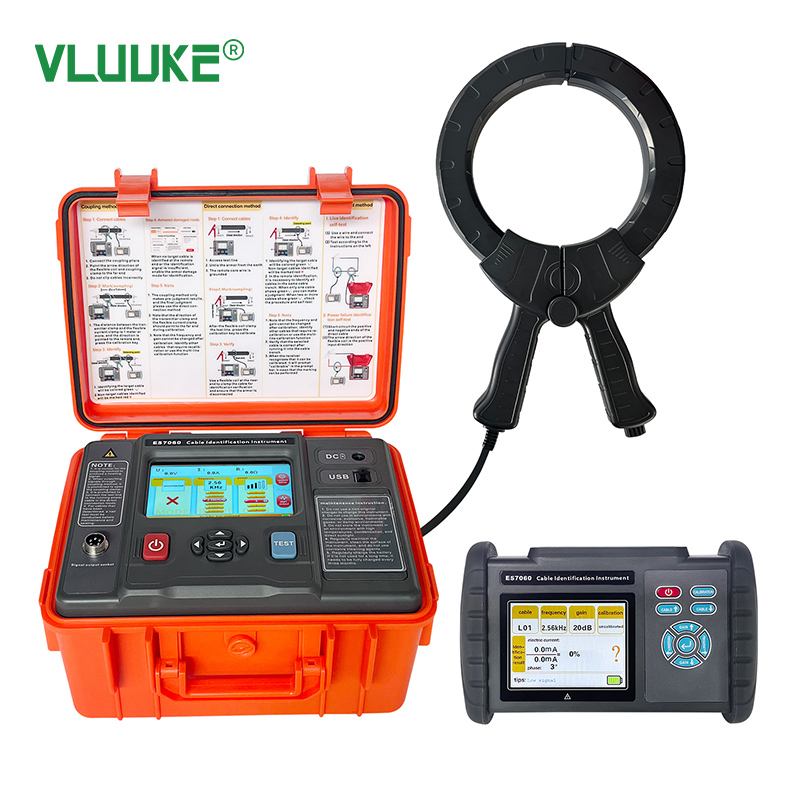

inner diameter：φ125mm    wire length：3meter

Armored damaged mode

Yes





Transmitter clamp  magnetically saturated

40A（50Hz）

Human-computer interaction

Physical buttons, touch screen , gesture recognition

Auto shut off

Yes, no operation, no output for 30 minutes of automatic shutdown, the time can be set

Automatic standby

Yes, the default no operation for 5 minutes to automatically reduce the screen brightness to save power, the time can be set

External voltage detection

Yes, up to 150V

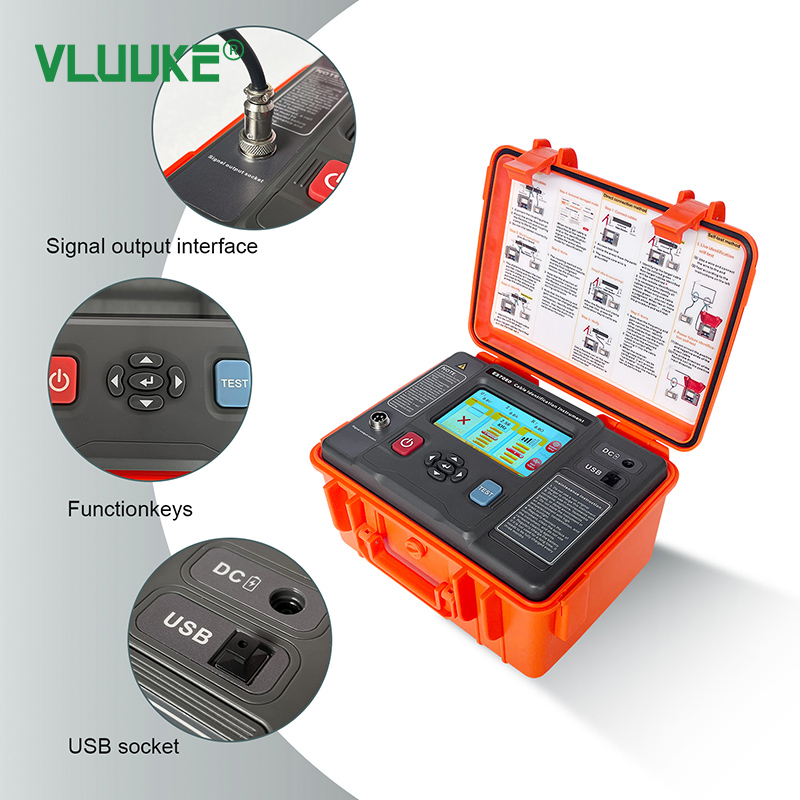

Charging port

Circular charging interface, DC mark

Fixed parts update

Support, is updated via USB

Transmitter size

275mm×226mm×150mm

LCD size

Length width 120mm×70mm； Display field 110mm×62mm

Working temperature

-10℃～40℃





storage condition

-20℃~50℃，≤95％RH, no condensation

Storage condition

-20℃~50℃，≤95％RH, no condensation

Instrument quality

Transmitter about 2.28kg; Transmitter clamp about 1.12kg; The direct connection test clip is about 170g, and the total mass is about 4.44kg

Withstand voltage

AC 3700V/rms(Before the top surface and bottom surface of the instrument box)

Electromagnetic characteristics

IEC61326(EMC)

Refer to safety regulations

IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、class of pollution 2)

Working temperature

-10℃～40℃






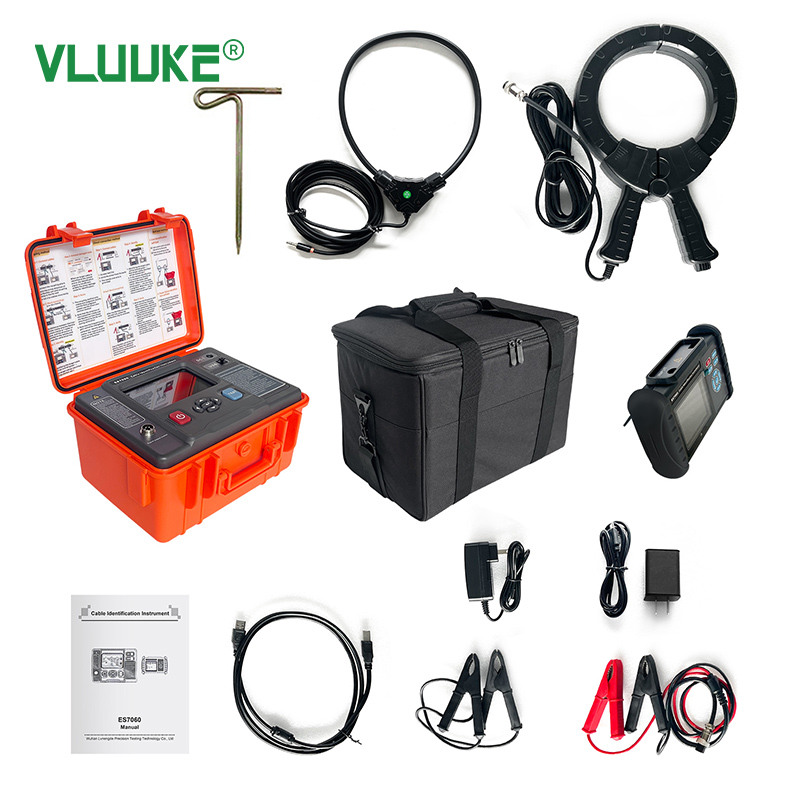

CONDITION: Brand New
QUANTITY: 1 set
COLOR: As The Picture (Picture is the real object you get)
NOTE: All the items come to you with the tracking number
