5MP Door Eye IP POE Camera Mini Peephole 1.66mm Lens Motion Detection Video-eye Viewer Intercom Home Security Surveillance Cam




The correct measurement method for door holes

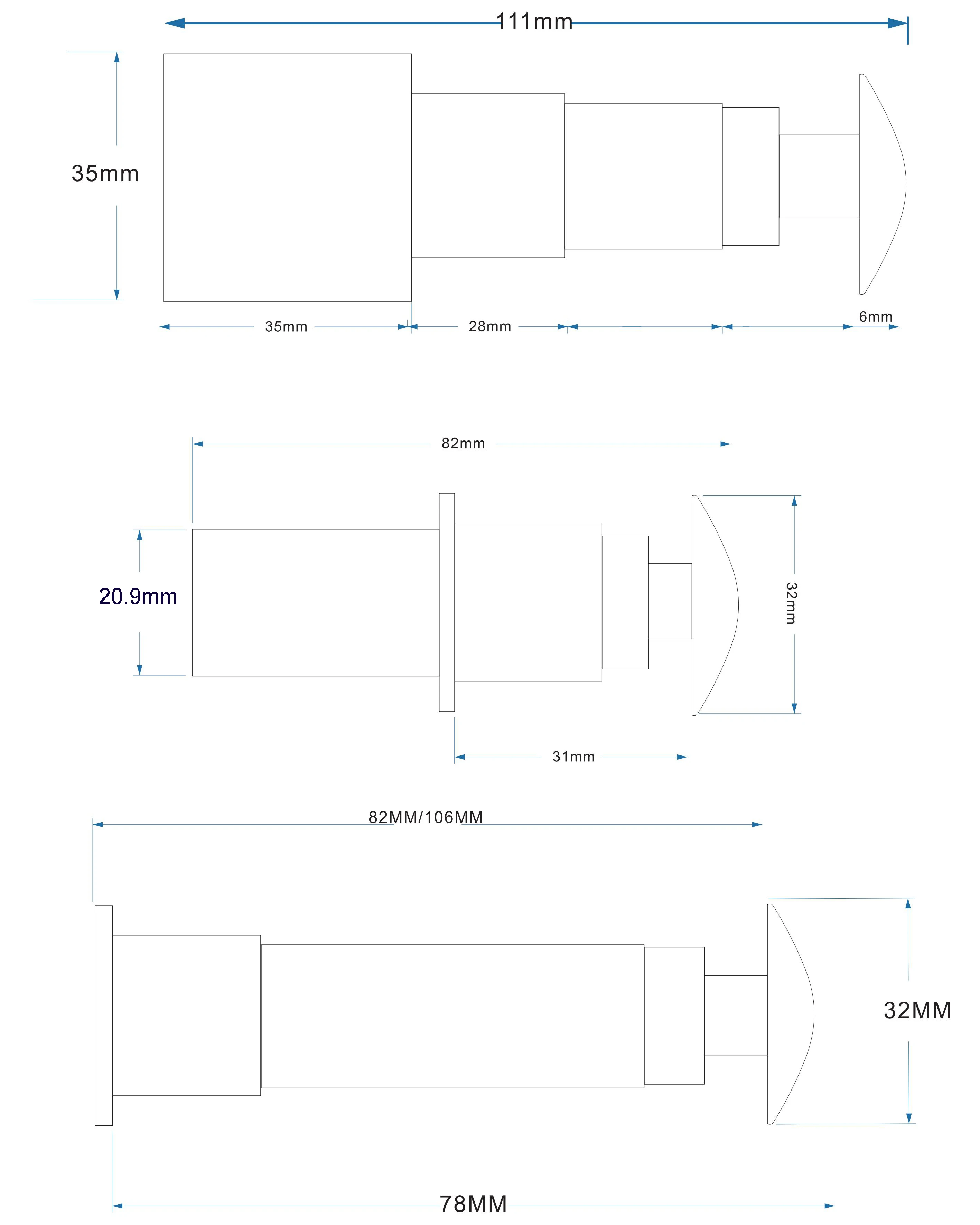

Camera size detail drawing

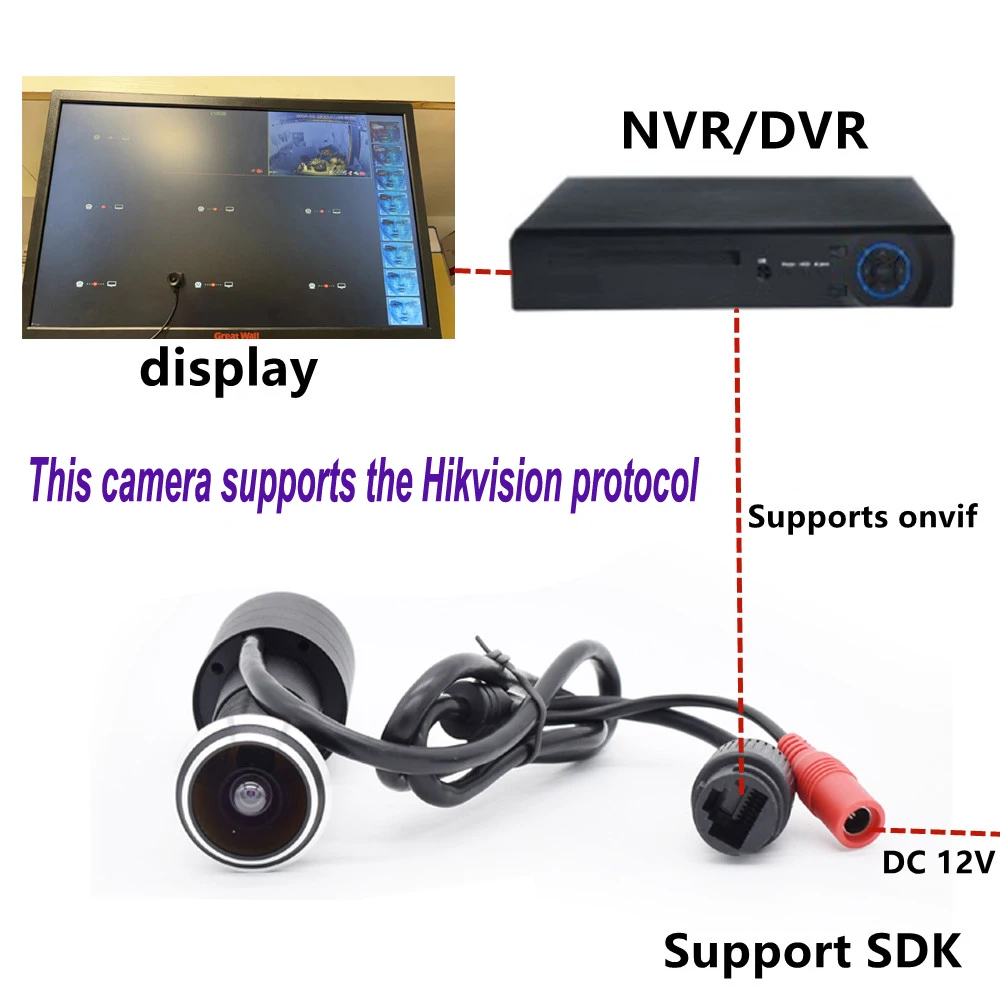

Supports on vif protocol as well as Hik vision protocol, and can be connected to NVR



· Built-in HI3516C 1T computing power NPU, built-in AI algorithm large model;

· Support wired and wireless connections; Wireless connection support Wi-Fi 6, more stable transmission;

· Come with WiFi hotspot, no network can also monitor; APP support Bluetooth network, WiFi connection is more convenient;

· Intelligent detection of light, see faces at night;

· Built-in WEB 2.0 page, support Edge, Chrome, Safari, Firefox and other non-IE kernel browsers;

· Support 512G TF card; Support intelligent video/ordinary video, save full automatic coverage;

· 5MP HD resolution, support dual stream output;

· New APP page, easy to use, support APP alarm push;

· Support sharing function, the maximum share of the APP is 16 people;

· Built-in humanoid and car shape detection function; Expand the application scenarios of electronic fence, cross-border detection, departure detection, and passenger flow statistics;

· Support humanoid tracking, automatic return after tracking (optional);

· Support linkage sound and light alarm; Alarm sound support custom recording and text to voice (optional);

· Support alarm output, can link red and blue lights and other alarms (optional);

· Support ONVIF protocol and access to third-party NVR;

· Support screen occlusion to protect the privacy area;

· Support OSD character overlay function, support network timing;

· Support audio input and output, two-way intercom, audio and video synchronization;

Product parameter description

Day and night mode

Black light full color (Requires a black light lens), intelligent dual light, infrared mode (Optional), intelligent light face but exposure

Image adjustment

Support automatic white balance, support digital width dynamic, support backlight compensation, brightness contrast color and other parameters adjustable;

Privacy block

The private occlusion area is supported

acoustic image

Support mirror image

OSD

Support OSD settings and support OSD drag


Intelligent application

Electronic fence

Support the detection of human shape / vehicle shape, and the equipment shall conduct the alarm after entering the warning area;

Transboundary detection

Support the detection of human shape, support the detection of A-> B, B-> A, A <-> B direction;

Deportation investigation

Support setting the detection area, the equipment will alarm after the personnel leave for a certain time, and the alarm stops after returning;

passenger flow statistics

Support the detection of entering and leaving number statistics, can stack OSD to the picture in real time; daily data can be checked;

Human tracking

Support the humanoid tracking function, automatic tracking after personnel detection;

Voice alarm

Support linkage voice broadcast, voice content can be customized recording;

IO report to the police

Support, can linkage red and blue light alarm; (Optional)

Video recorder linkage

Support linkage video recorder large screen, local voice, AI video, push and other functions

video frequency

compress

H.264 ,H.265

resolution ratio

Main code stream: 5MP (2880 * 1616) / 4MP (2560 * 1440) / 3MP (2304 * 1296) / 2MP (1920 * 1080) / 1MP (1280 * 720)

Sub-stream: 448P (800 * 448) / 360P (640 * 360) / CIF (352 * 288)

memory

Support 512 GTF card storage, support NVR added storage;

network

Ethernet

RJ-45 10M / 100M Adaptive

protocol

ONVIF ,P2P ,CGI ,HTTP ,TCP/IP ,IPv4 ,RTSP ,UDP ,NTP ,DHCP ,DNS ,IP Filter

WI FI

WIFI-6,2.4G band, 802.11 b / g / n

BLE

Support Bluetooth distribution network

access protocol

ONVIF Agreement / private protocol / CGI

client

Mobile phone client: , computer client: VMS, NVR, centralized management

audio frequency

audio frequency

G.711U,G711A

Audio input

Support (Recommended-36DB MIC)

Audio output

Support, built-in power amplifier (recommended 8 Ω 2W)

General specification


size


work environment

-30℃ ~ +60℃

source
