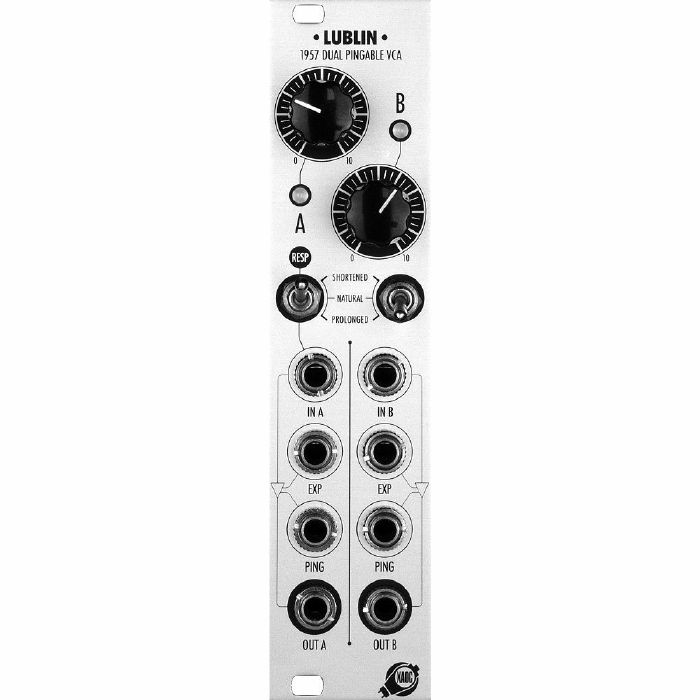

Xaoc Devices Lublin 1957 Dual Pingable VCA Module

Dual pingable voltage controlled amplifier module - 6HP

Great value from Xaoc's pingable dual VCA, capable of creating organic, acoustic-style decay curves which replicate the dynamics of real-life instruments. Ideal for processing audio as well as CV.

Supplier's Notes:
Xaoc Devices Lublin is a high-quality dual VCA module with exponential CV inputs. On top of that, its two identical channels feature additional inputs for pinging. These inputs use an elaborate analogue circuit to model the dynamic behaviour of vactrols, allowing you to trigger a carefully crafted gain response that mimics the natural decay of plucked and struck acoustic instruments. Unlike lowpass gate modules though, Lublin reduces gain while retaining the full frequency bandwidth, so it is perfect for harmonically rich signals, like our Odessa additive VCO. The vactrol-like behaviour is just a starting point as the envelope may be varied within a wide range using a switch (natural, shortened and prolonged response) and a potentiometer, so you are not stuck with one decay characteristic. Therefore, you can use it not only to create bongos, but also for fat compressed kicks! The built-in gain control circuit (saturating CV instead of the audio signal) prevents distortion from excessive amplification. Lublin is DC-coupled, so you can use it to process CV as well as audio signals.

Width 6HP, Depth 33mm (including cable bracket)
40mA/-20mA

Features

• Dual Voltage-Controlled Amplifier
• High quality, low noise and distortion, DC-coupled signal path
• Ping inputs for emulating vactrol response
• Three variants of ping response
• Exponential CV response with adjustable sensitivity
• Gain limiting circuit for protection against signal clipping

Specifications
